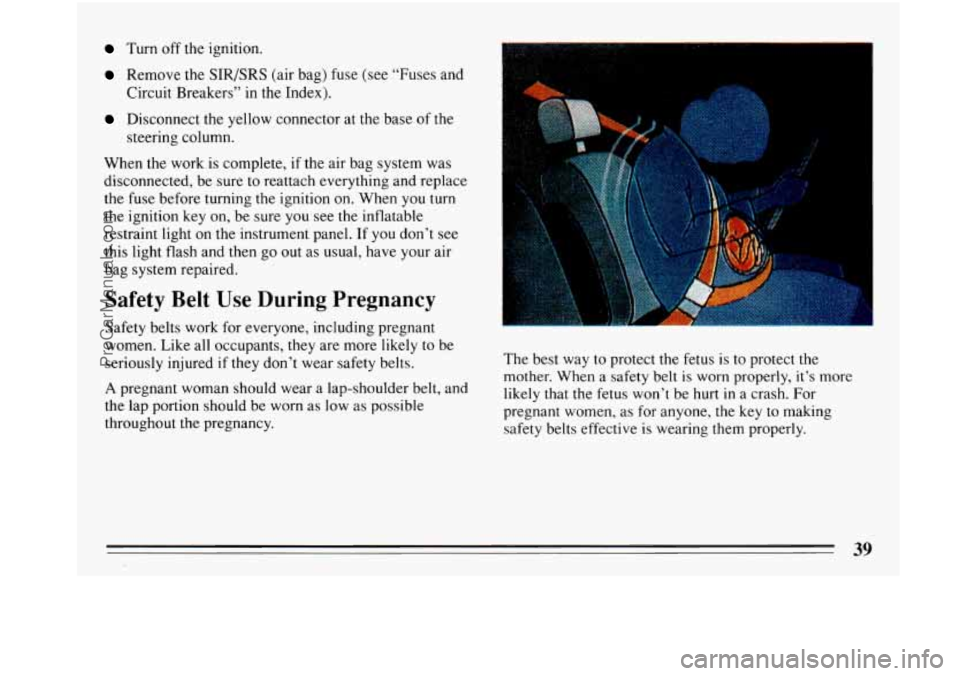

Turn off the ignition.
Remove the SlR/SRS (air bag) fuse (see “Fuses and
Circuit Breakers” in the Index).
Disconnect the yellow connector at the base of the
steering column.
When the work is complete, if the air bag system was
disconnected, be sure to reattach everything and replace
the fuse before turning the ignition on. When you turn
the ignition key on, be sure
you see the inflatable
restraint light
on the instrument panel. If you don’t see
this light flash and then go
out as usual, have your air
bag system repaired.
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely
to be
seriously injured if
they don’t wear safety belts.
A pregnant woman should wear a lap-shoulder belt, and
the lap portion should be worn as low
as possible
throughout the pregnancy. The best way
to protect the fetus is to protect the
mother. When a safety belt
is worn properly, it’s more
likely that the fetus won’t be hurt in a crash. For
pregnant women, as for anyone,
the key to making
safety belts effective is wearing them properly.
ProCarManuals.com
Page 74 of 340

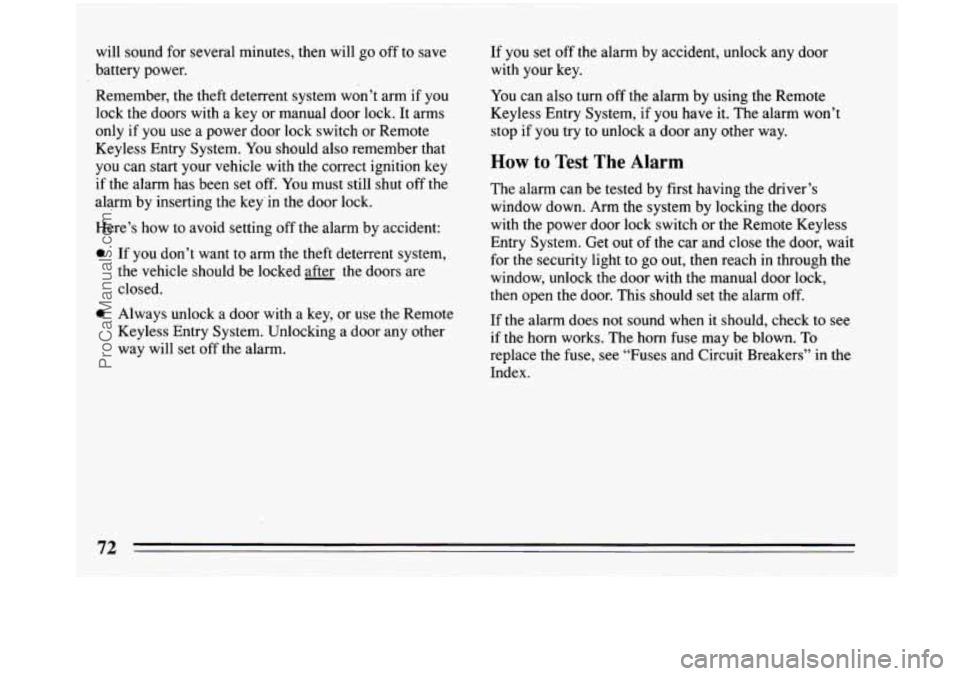

will sound for several minutes, then will go off to save
battery power.
Remember, the theft deterrent system won’t arm if you
lock
the doors with a key or manual door lock. It arms
only if you use
a power door lock switch or Remote
Keyless Entry System. You should also remember that
you can start your vehicle with the correct ignition key
if the alarm has been set
off. You must still shut off the
alarm by inserting the key’in the door lock.
Here’s how to avoid setting
off the alarm by accident:
0
0
If you don’t want to arm the theft deterrent system,
the vehicle should be locked after the doors are
closed.
Always unlock a door with’a key, or use the Remote
Keyless Entry System. Unlocking a door any other
way will set
off the alarm. If
you set
off the alarm by accident, unlock any door
with your
key.
You can also turn off the alarm by using the Remote
Keyless Entry System,
if you have it. The alarm won’t
stop
if you try to unlock a door any other way.
How to Test The Alarm
The alarm can be tested by first having the driver’s
window down. Arm
the system by locking the doors
with the power door lock switch or the Remote Keyless
Entry System. Get out
of the car and close the door, wait
for the security light to go out, then reach in through the
window, unlock the door with the manual door lock,
then open the door. This should set the alarm off.
If the alarm does not sound when
it should, check to see
if the horn works. The horn fuse may be blown. To
replace the fuse, see “Fuses and Circuit Breakers” in the
Index.
72
ProCarManuals.com
Page 75 of 340

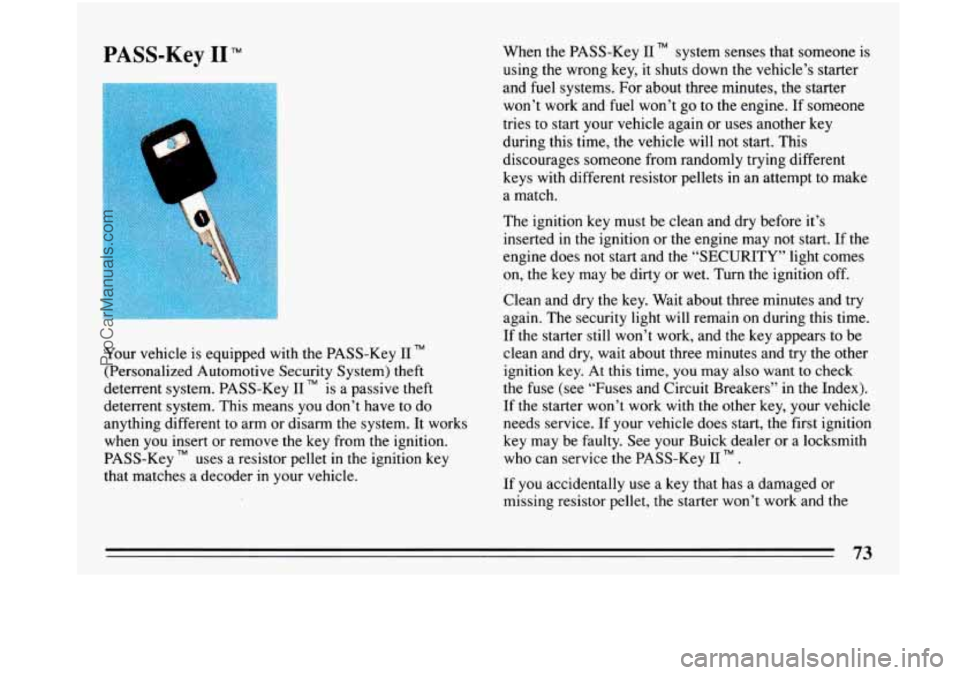

PASS-Key I1 TM
Your vehicle is equipped with the PASS-Key I1 TM
(Personalized Automotive Security System) theft
deterrent system. PASS-Key
I1 TM is a passive theft
deterrent system. This means you don’t have to do
anything different to arm or disarm the system. It works
when you insert or remove the key from the ignition.
PASS-Key
TM uses a resistor pellet in the ignition key
that matches a decoder in your vehicle. When the PASS-Key
I1 system senses that someone
using the wrong key, it shuts down the vehicle’s starter
and
fuel systems. For about three minutes, the starter
won’t work and fuel won’t go to the engine. If someonl
tries to start your vehicle again or uses another key
during this time, the vehicle will not start. This
discourages someone from randomly trying different
is
e
keys with different resistor pellets in an attempt to make
a match.
The ignition
key must be clean and dry before it’s
inserted in the ignition or the engine may not start. If the
engine does not start and the “SECURITY” light comes
on, the key may be dirty or wet. Turn the ignition
off.
Clean and dry the key. Wait about three minutes and try
again. The security light will remain on during this time.
If the starter still won’t work, and the key appears to be
clean and dry, wait about three minutes and try the other
ignition key.
At this time, you may also want to check
the fuse (see “Fuses and Circuit Breakers” in the Index).
If the starter won’t work with the other key, your vehicle
needs service. If your vehicle does start, the first ignition
key may
be faulty. See your Buick dealer or a locksmith
who can service the PASS-Key I1
TM .
If you accidentally use a key that has a damaged or
missing resistor pellet, the starter won’t work and the
ProCarManuals.com
Page 94 of 340

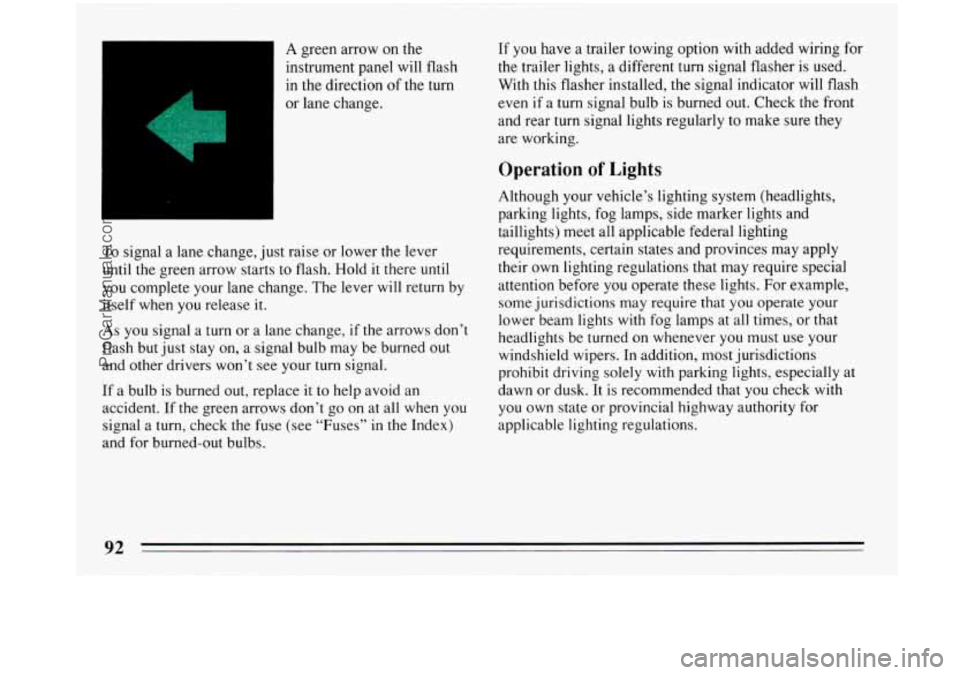

A green arrow on the
instrument panel
will flash
in the direction of the turn
or lane change.
To signal a lane change, just raise or lower the lever
until
the green arrow starts to flash. Hold it there until
you complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don’t
flash but just stay on, a signal bulb may be burned out
and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If
the green arrows don’t go on at all when you
signal a turn, check the fuse (see “Fuses”
in the Index)
and for burned-out bulbs.
If you have a trailer towing option with added wiring for
the trailer lights, a different turn signal flasher is used.
With this flasher installed, the signal indicator will flash
even
if a turn signal bulb is burned out. Check the front
and rear turn signal lights regularly to make sure they
are working.
Operation of Lights
Although your vehicle’s lighting system (headlights,
parking lights, fog lamps, side marker lights and
taillights) meet all applicable federal lighting
requirements, certain states and provinces may apply
their own lighting regulations that may require special
attention before
you operate these lights. For example,
some jurisdictions may require that you operate your
lower beam lights with fog lamps at all times, or that
headlights be turned on whenever you must use your
windshield wipers. In addition, most jurisdictions
prohibit driving solely with parking lights, especially at
dawn or dusk. It is recommended that
you check with
you own state or provincial highway authority for
applicable lighting regulations.
ProCarManuals.com
Page 243 of 340

I
I

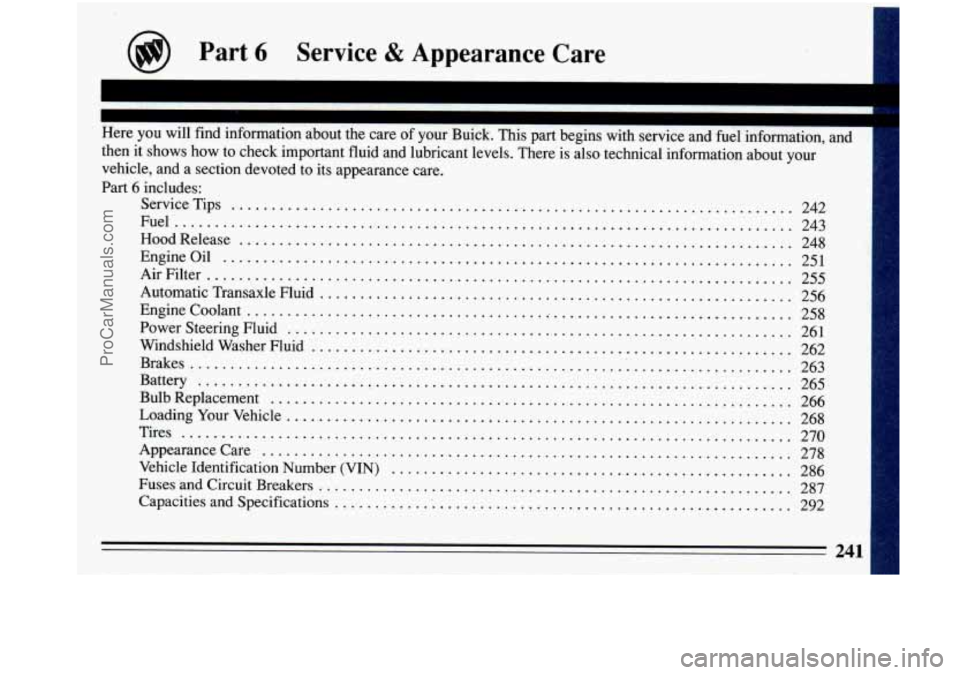

Here you will find information about the care of your Buick . This part begins with service and fuel information. and
then it shows how to check important fluid and lubricant levels
. There is also technical information about your
vehicle. and a section devoted to its appearance care
.
Part 6 includes:
ServiceTips
......................................................................
Engineoil ....................................................................... \
242
Fuel
........................................................................\
..... 243
Hood Release 248
251
AirFilter
........................................................................\
. 255
Automatic Transaxle Fluid
...........................................................
Enginecoolant .................................................................... 258
PowerSteeringFluid
............................................................... 261
Windshield Washer Fluid
............................................................ 262
Brakes
........................................................................\
... 263
Battery
........................................................................\
... 265
266
268
270
278
Vehicle Identification Number (VIN)
.................................................. 286
Fuses .and Circuit Breakers
........................................................... 287
Capacities and Specifications
.......................................................... 292
.....................................................................
256
BulbReplacement
.................................................................
LoadingYourVehicle ...............................................................
Tires ........................................................................\
....
Appearancecare ..................................................................
241
ProCarManuals.com
Page 289 of 340

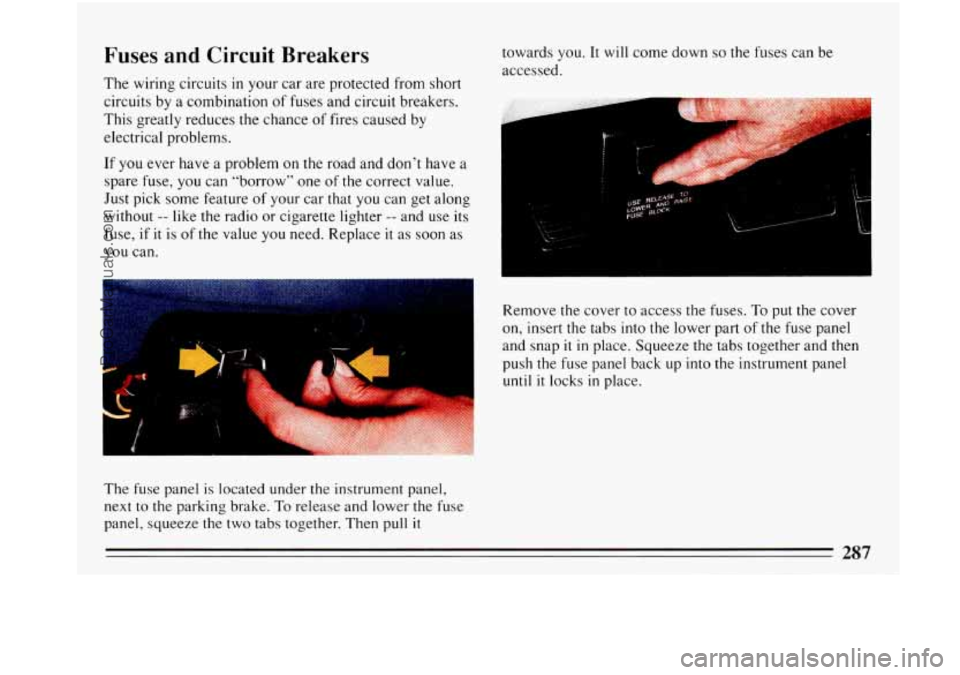

Fuses and Circuit Breakers
The wiring circuits in your car are protected from short
circuits by a combination of fuses and circuit breakers.
This greatly reduces the chance of fires caused by
electrical problems.
If you ever have a problem on the road and don’t have a
spare fuse, you can “borrow” one of the correct value.
Just pick some feature
of your car that you can get along
without
-- like the radio or cigarette lighter -- and use its
fuse,
if it is of the value you need. Replace it as soon as
you can.
tl R
towards you. It will come down so the fuses can be
accessed.
Remove the cover to access the fuses.
To put the cover
on, insert the tabs into the lower part of the fuse panel
and snap
it in place. Squeeze the tabs together and then
push the fuse panel back up into the instrument panel
until it locks in place.
The fuse panel
is located under the instrument panel,
next to the parking brake.
To release and lower the fuse
panel, squeeze
the two tabs together. Then pull it
287
ProCarManuals.com
Page 291 of 340

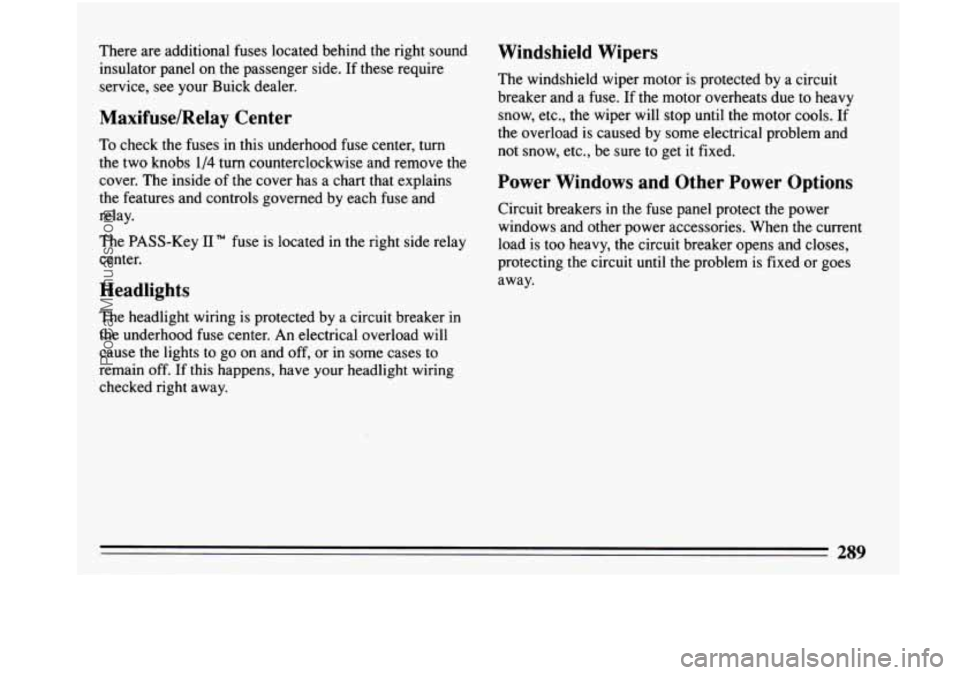

There are additional fuses located behind the right sound
insulator panel on the passenger side. If these require
service, see your Buick dealer.
Maxifuse/Relay Center
To check the fuses in this underhood fuse center, turn
the two knobs
1/4 turn counterclockwise and remove the
cover. The inside of
the cover has a chart that explains
the features and controls governed by each fuse and
relay.
The PASS-Key 'I1
TM fuse is located in the right side relay
center.
Headlights
The headlight wiring is protected by a circuit breaker in
the underhood fuse center. An electrical overload will
cause
the lights to go on and off, or in some cases to
remain
off. If this happens, have your headlight wiring
checked right away.
*
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When
the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed or goes
away.
ProCarManuals.com
Page 327 of 340

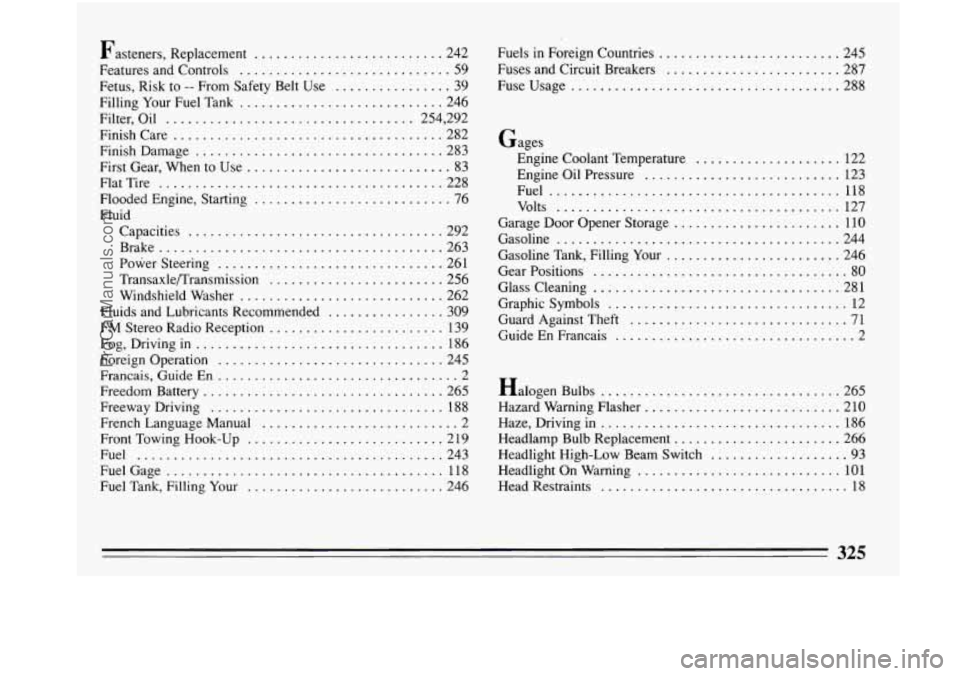

Fasteners. Replacement .......................... 242
Features and Controls
............................. 59
Fetus. Risk to
.. From Safety Belt Use ................ 39
Filling Your Fuel Tank
............................ 246
Filter. Oil
.................................. 254. 292
Finish Care
..................................... 282
Finish Damage
.................................. 283
First Gear. When to Use
............................ 83
FlatTire
....................................... 228
Flooded Engine. Starting
........................... 76
Fluid Fuels in
Foreign Countries
......................... 245
Fuses and Circuit Breakers
........................ 287
Fuseusage
..................................... 288
Gages Engine Coolant Temperature
.................... 122
Engine Oil Pressure
........................... 123
Fuel
........................................ 118
Volts
....................................... 127
Garage Door Opener Storage
....................... 110
Gasoline
....................................... 244
Gasoline Tank. Filling Your
........................ 246
Gear Positions
................................... 80
Glass Cleaning .................................. 281
Graphic Symbols
................................. 12
Guard Against Theft
.............................. 71
Guide En Francais
................................. 2
Capacities
................................... 292
Brake
....................................... 263
Power Steering
............................... 261
Transaxle/Transmission
........................ 256
Windshield Washer
............................ 262
Fluids and Lubricants Recommended
................ 309
FM Stereo Radio Reception
........................ 139
Fog. Driving
in .................................. 186
Foreign Operation
............................... 245
Francais. Guide
En ................................. 2
Freedom Battery ................................. 265 Halogen Bulbs ................................. 265
Freeway Driving
................................ 188 Hazard Warning Flasher ........................... 210
FrenchLanguageManual
........................... 2 Haze. Drivingin ................................. 186
Front Towing Hook-Up
........................... 219 Headlamp Bulb Replacement ....................... 266
Fuel
.......................................... 243 Headlight High-Low Beam Switch ................... 93
Fuel Tank. Filling Your
........................... 246 Head Restraints .................................. 18
FuelGage ...................................... 118 Headlightonwarning ............................ 101
325
........... ...... ......__, ...__ ........... ~~ -~ __~ ~~~~
ProCarManuals.com
