BUICK PARK AVENUE 2005 Owner's Manual

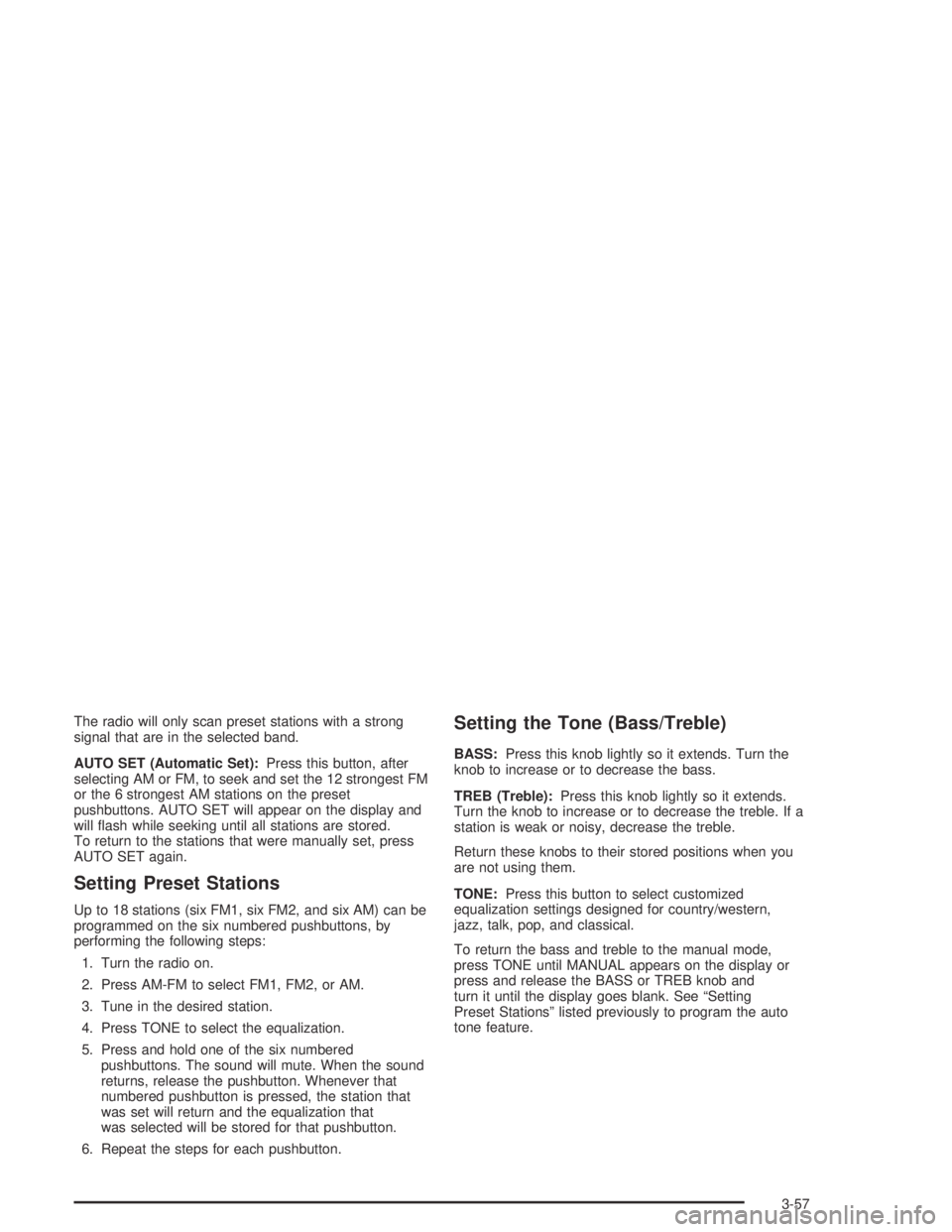

The radio will only scan preset stations with a strong
signal that are in the selected band.
AUTO SET (Automatic Set):Press this button, after
selecting AM or FM, to seek and set the 12 strongest FM
or the 6 strongest AM stations on the preset
pushbuttons. AUTO SET will appear on the display and
will ash while seeking until all stations are stored.
To return to the stations that were manually set, press
AUTO SET again.
Setting Preset Stations
Up to 18 stations (six FM1, six FM2, and six AM) can be
programmed on the six numbered pushbuttons, by
performing the following steps:
1. Turn the radio on.
2. Press AM-FM to select FM1, FM2, or AM.
3. Tune in the desired station.
4. Press TONE to select the equalization.
5. Press and hold one of the six numbered
pushbuttons. The sound will mute. When the sound
returns, release the pushbutton. Whenever that
numbered pushbutton is pressed, the station that
was set will return and the equalization that
was selected will be stored for that pushbutton.
6. Repeat the steps for each pushbutton.
Setting the Tone (Bass/Treble)
BASS:Press this knob lightly so it extends. Turn the
knob to increase or to decrease the bass.
TREB (Treble):Press this knob lightly so it extends.
Turn the knob to increase or to decrease the treble. If a
station is weak or noisy, decrease the treble.
Return these knobs to their stored positions when you
are not using them.
TONE:Press this button to select customized
equalization settings designed for country/western,
jazz, talk, pop, and classical.
To return the bass and treble to the manual mode,
press TONE until MANUAL appears on the display or
press and release the BASS or TREB knob and
turn it until the display goes blank. See “Setting
Preset Stations” listed previously to program the auto
tone feature.
3-57

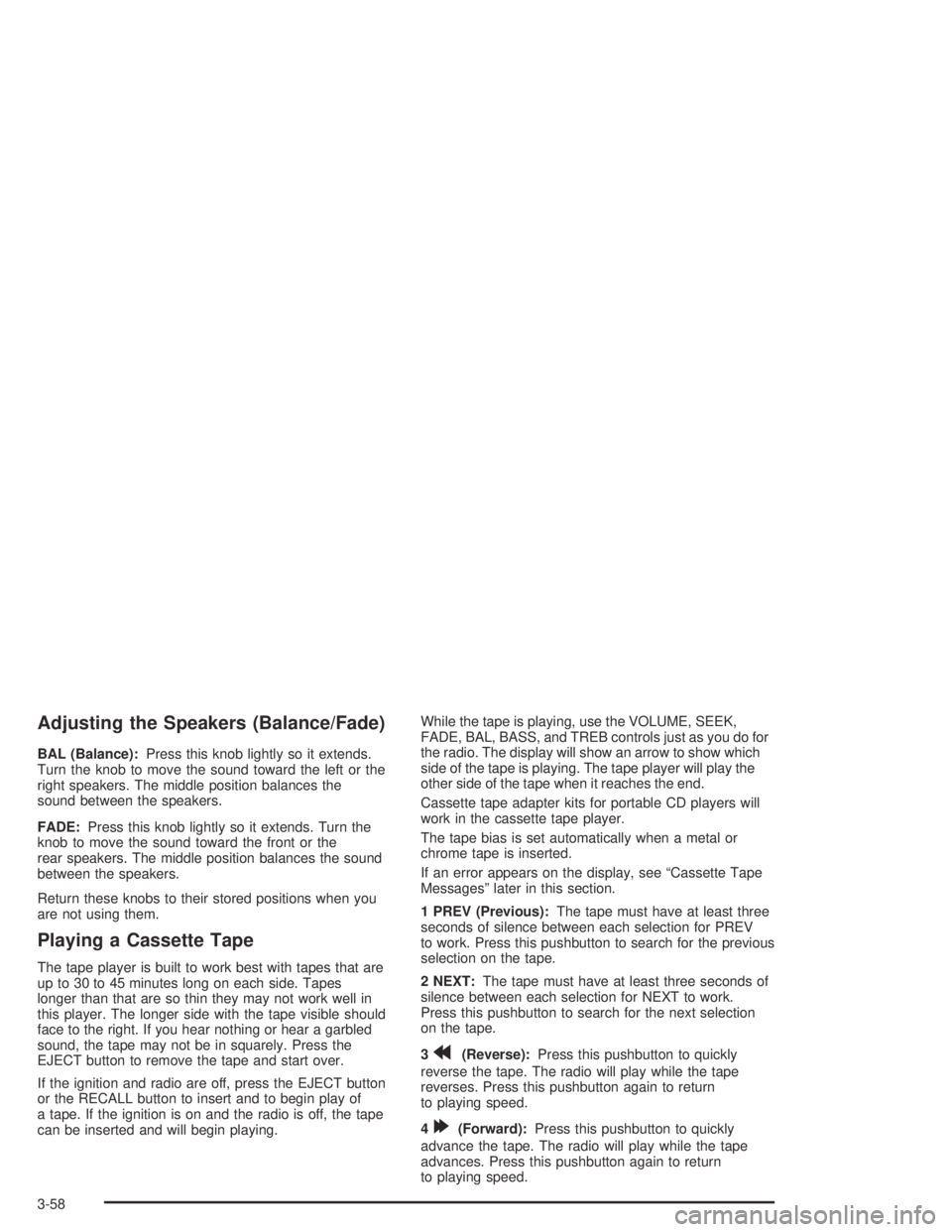

Adjusting the Speakers (Balance/Fade)
BAL (Balance):Press this knob lightly so it extends.
Turn the knob to move the sound toward the left or the
right speakers. The middle position balances the
sound between the speakers.
FADE:Press this knob lightly so it extends. Turn the
knob to move the sound toward the front or the
rear speakers. The middle position balances the sound
between the speakers.
Return these knobs to their stored positions when you
are not using them.
Playing a Cassette Tape
The tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes
longer than that are so thin they may not work well in
this player. The longer side with the tape visible should
face to the right. If you hear nothing or hear a garbled
sound, the tape may not be in squarely. Press the
EJECT button to remove the tape and start over.
If the ignition and radio are off, press the EJECT button
or the RECALL button to insert and to begin play of
a tape. If the ignition is on and the radio is off, the tape
can be inserted and will begin playing.While the tape is playing, use the VOLUME, SEEK,
FADE, BAL, BASS, and TREB controls just as you do for
the radio. The display will show an arrow to show which
side of the tape is playing. The tape player will play the
other side of the tape when it reaches the end.
Cassette tape adapter kits for portable CD players will
work in the cassette tape player.
The tape bias is set automatically when a metal or
chrome tape is inserted.
If an error appears on the display, see “Cassette Tape
Messages” later in this section.
1 PREV (Previous):The tape must have at least three
seconds of silence between each selection for PREV
to work. Press this pushbutton to search for the previous
selection on the tape.
2 NEXT:The tape must have at least three seconds of
silence between each selection for NEXT to work.
Press this pushbutton to search for the next selection
on the tape.
3
r(Reverse):Press this pushbutton to quickly
reverse the tape. The radio will play while the tape
reverses. Press this pushbutton again to return
to playing speed.
4
[(Forward):Press this pushbutton to quickly
advance the tape. The radio will play while the tape
advances. Press this pushbutton again to return
to playing speed.
3-58

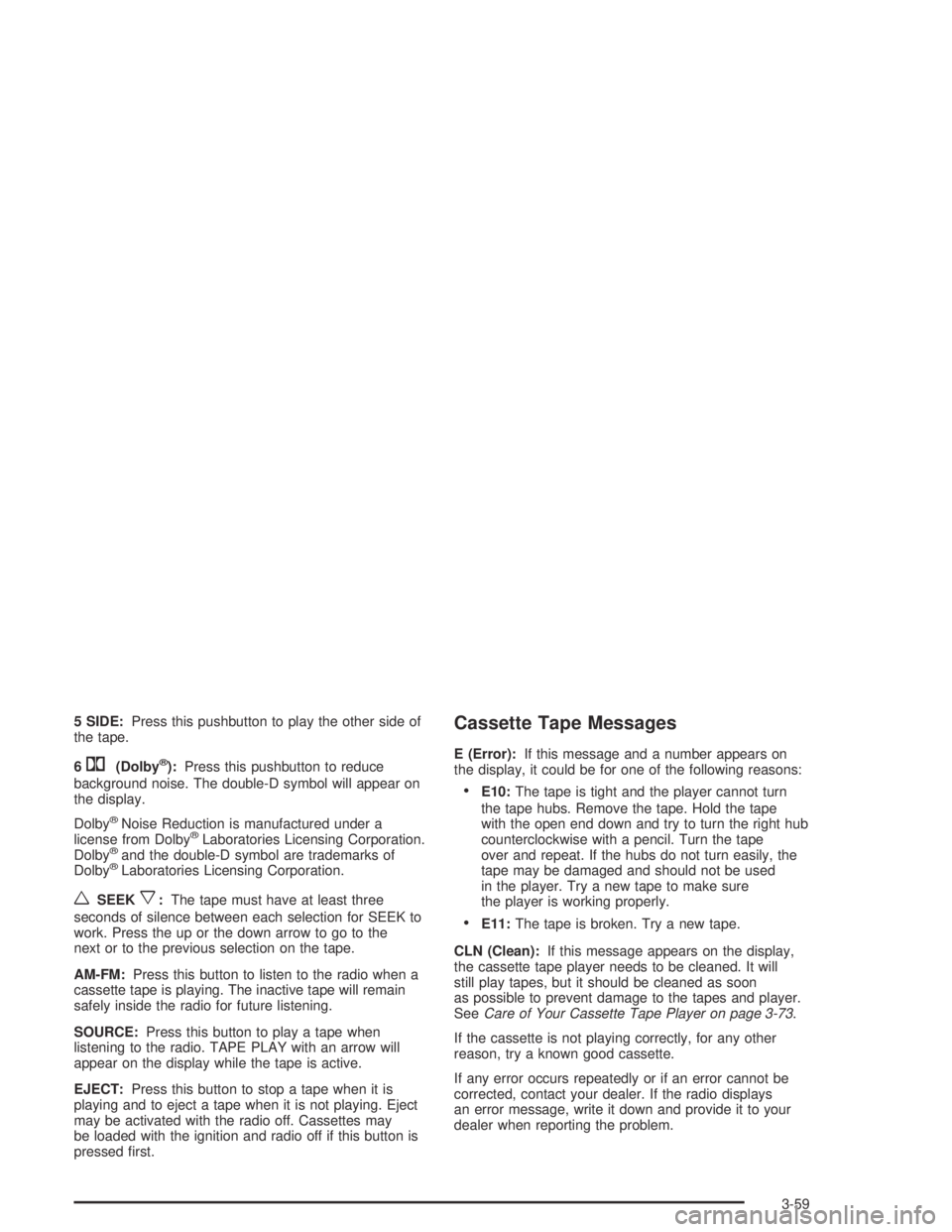

5 SIDE:Press this pushbutton to play the other side of
the tape.
6
W(Dolby®):Press this pushbutton to reduce
background noise. The double-D symbol will appear on
the display.
Dolby
®Noise Reduction is manufactured under a
license from Dolby®Laboratories Licensing Corporation.
Dolby®and the double-D symbol are trademarks of
Dolby®Laboratories Licensing Corporation.
wSEEKx:The tape must have at least three
seconds of silence between each selection for SEEK to
work. Press the up or the down arrow to go to the
next or to the previous selection on the tape.
AM-FM:Press this button to listen to the radio when a
cassette tape is playing. The inactive tape will remain
safely inside the radio for future listening.
SOURCE:Press this button to play a tape when
listening to the radio. TAPE PLAY with an arrow will
appear on the display while the tape is active.
EJECT:Press this button to stop a tape when it is
playing and to eject a tape when it is not playing. Eject
may be activated with the radio off. Cassettes may
be loaded with the ignition and radio off if this button is
pressed rst.
Cassette Tape Messages
E (Error):If this message and a number appears on
the display, it could be for one of the following reasons:
E10:The tape is tight and the player cannot turn
the tape hubs. Remove the tape. Hold the tape
with the open end down and try to turn the right hub
counterclockwise with a pencil. Turn the tape
over and repeat. If the hubs do not turn easily, the
tape may be damaged and should not be used
in the player. Try a new tape to make sure
the player is working properly.
E11:The tape is broken. Try a new tape.
CLN (Clean):If this message appears on the display,
the cassette tape player needs to be cleaned. It will
still play tapes, but it should be cleaned as soon
as possible to prevent damage to the tapes and player.
SeeCare of Your Cassette Tape Player on page 3-73.
If the cassette is not playing correctly, for any other
reason, try a known good cassette.
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer. If the radio displays
an error message, write it down and provide it to your
dealer when reporting the problem.
3-59

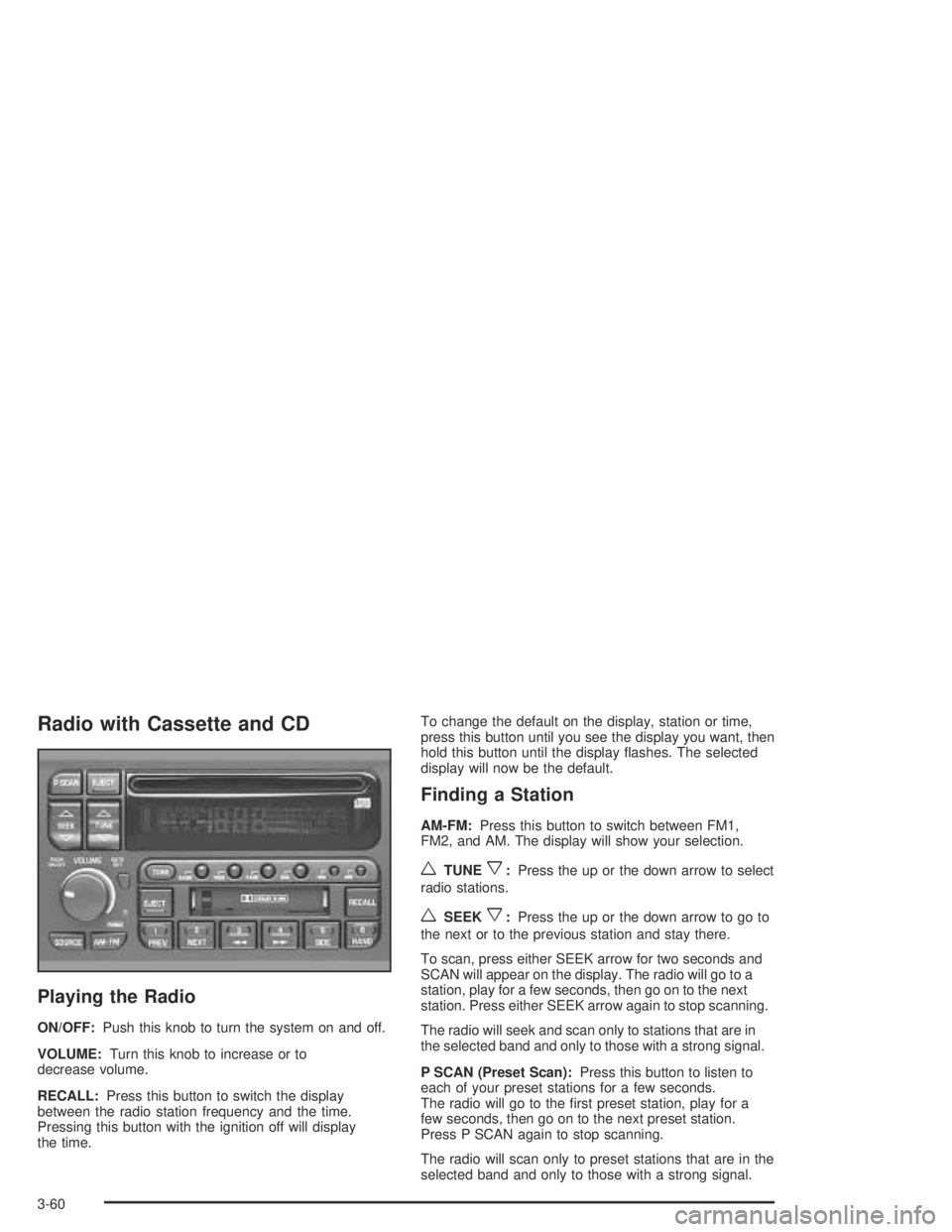

Radio with Cassette and CD
Playing the Radio
ON/OFF:Push this knob to turn the system on and off.
VOLUME:Turn this knob to increase or to
decrease volume.
RECALL:Press this button to switch the display
between the radio station frequency and the time.
Pressing this button with the ignition off will display
the time.To change the default on the display, station or time,
press this button until you see the display you want, then
hold this button until the display ashes. The selected
display will now be the default.
Finding a Station
AM-FM:Press this button to switch between FM1,
FM2, and AM. The display will show your selection.
wTUNEx:Press the up or the down arrow to select
radio stations.
wSEEKx:Press the up or the down arrow to go to
the next or to the previous station and stay there.
To scan, press either SEEK arrow for two seconds and
SCAN will appear on the display. The radio will go to a
station, play for a few seconds, then go on to the next
station. Press either SEEK arrow again to stop scanning.
The radio will seek and scan only to stations that are in
the selected band and only to those with a strong signal.
P SCAN (Preset Scan):Press this button to listen to
each of your preset stations for a few seconds.
The radio will go to the rst preset station, play for a
few seconds, then go on to the next preset station.
Press P SCAN again to stop scanning.
The radio will scan only to preset stations that are in the
selected band and only to those with a strong signal.
3-60

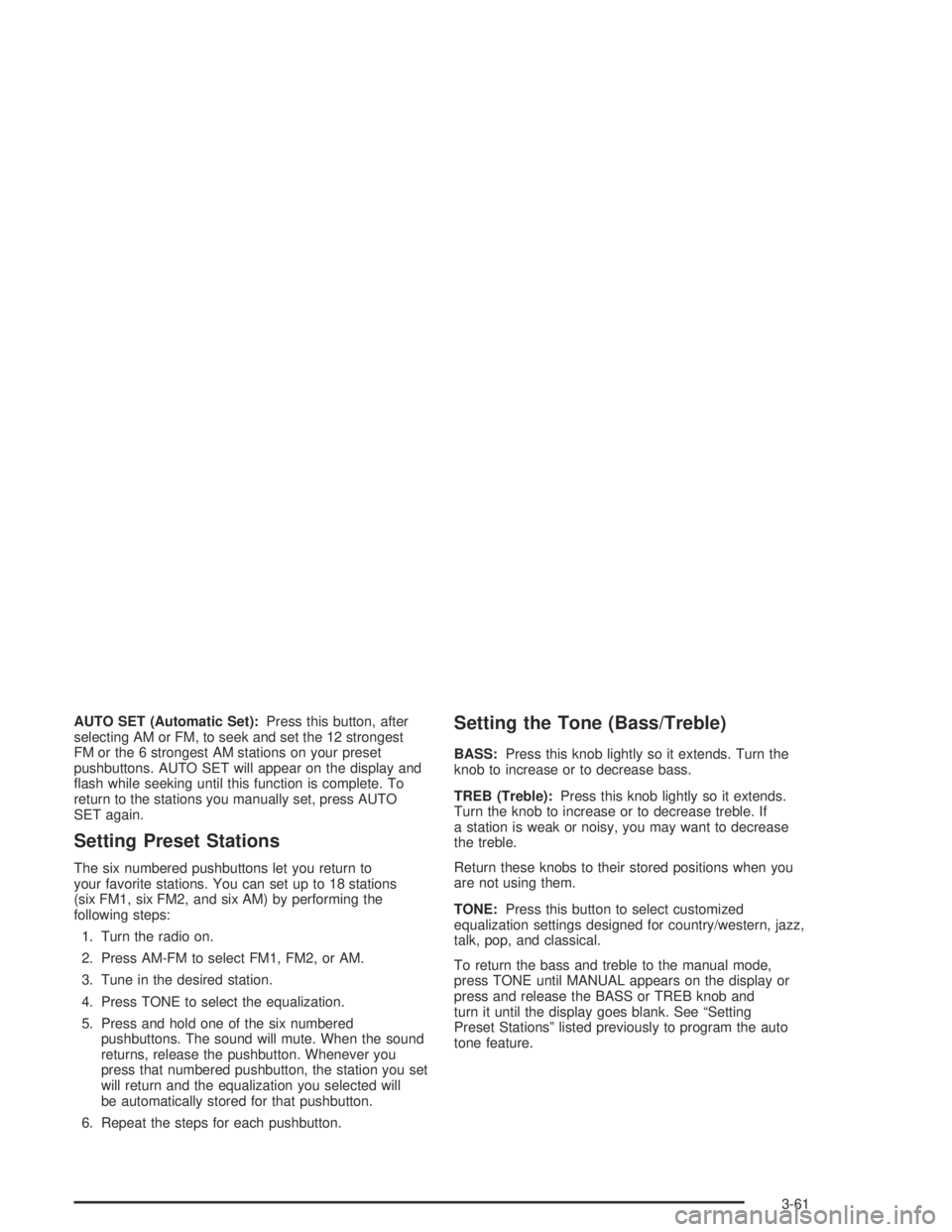

AUTO SET (Automatic Set):Press this button, after
selecting AM or FM, to seek and set the 12 strongest
FM or the 6 strongest AM stations on your preset
pushbuttons. AUTO SET will appear on the display and
ash while seeking until this function is complete. To
return to the stations you manually set, press AUTO
SET again.
Setting Preset Stations
The six numbered pushbuttons let you return to
your favorite stations. You can set up to 18 stations
(six FM1, six FM2, and six AM) by performing the
following steps:
1. Turn the radio on.
2. Press AM-FM to select FM1, FM2, or AM.
3. Tune in the desired station.
4. Press TONE to select the equalization.
5. Press and hold one of the six numbered
pushbuttons. The sound will mute. When the sound
returns, release the pushbutton. Whenever you
press that numbered pushbutton, the station you set
will return and the equalization you selected will
be automatically stored for that pushbutton.
6. Repeat the steps for each pushbutton.
Setting the Tone (Bass/Treble)
BASS:Press this knob lightly so it extends. Turn the
knob to increase or to decrease bass.
TREB (Treble):Press this knob lightly so it extends.
Turn the knob to increase or to decrease treble. If
a station is weak or noisy, you may want to decrease
the treble.
Return these knobs to their stored positions when you
are not using them.
TONE:Press this button to select customized
equalization settings designed for country/western, jazz,
talk, pop, and classical.
To return the bass and treble to the manual mode,
press TONE until MANUAL appears on the display or
press and release the BASS or TREB knob and
turn it until the display goes blank. See “Setting
Preset Stations” listed previously to program the auto
tone feature.
3-61

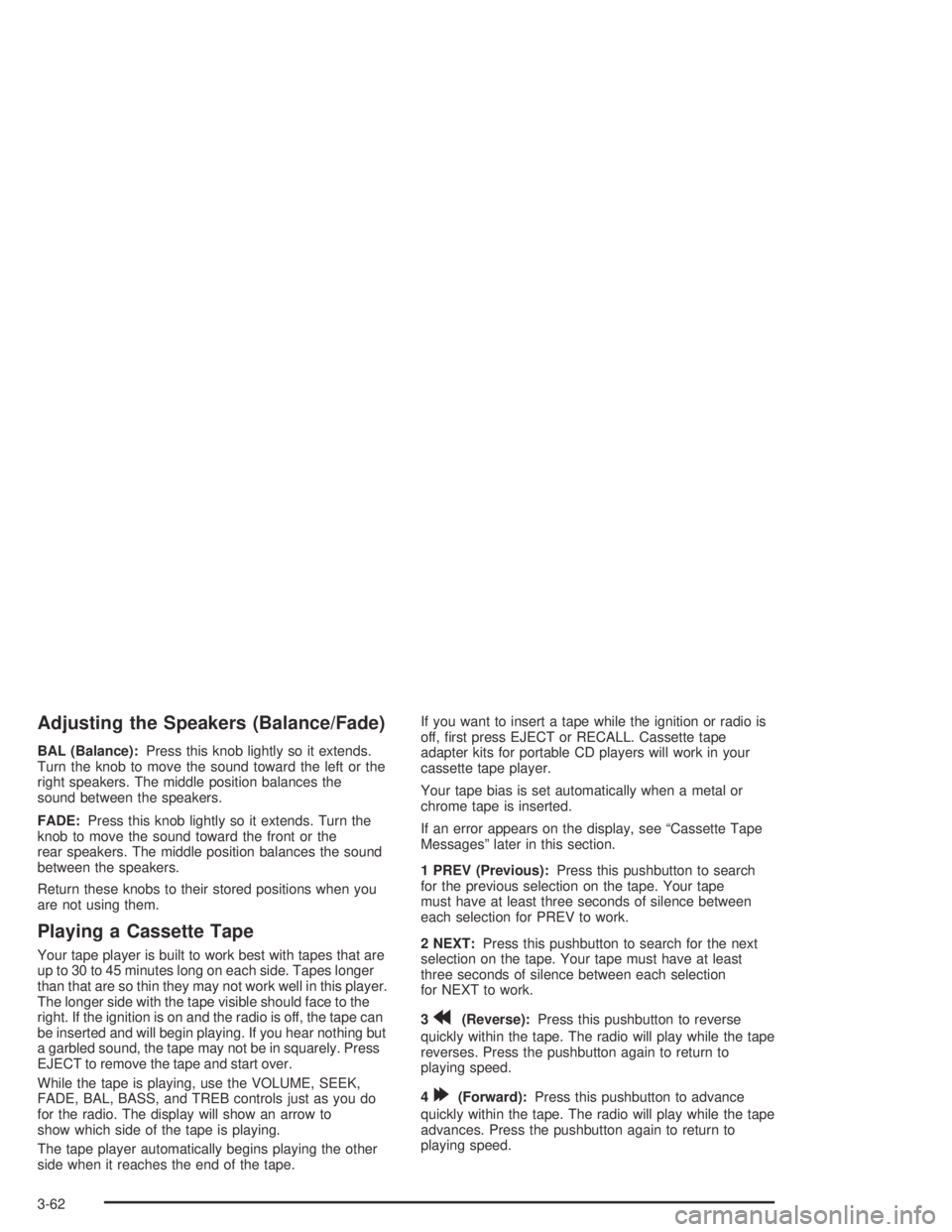

Adjusting the Speakers (Balance/Fade)
BAL (Balance):Press this knob lightly so it extends.
Turn the knob to move the sound toward the left or the
right speakers. The middle position balances the
sound between the speakers.
FADE:Press this knob lightly so it extends. Turn the
knob to move the sound toward the front or the
rear speakers. The middle position balances the sound
between the speakers.
Return these knobs to their stored positions when you
are not using them.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in this player.
The longer side with the tape visible should face to the
right. If the ignition is on and the radio is off, the tape can
be inserted and will begin playing. If you hear nothing but
a garbled sound, the tape may not be in squarely. Press
EJECT to remove the tape and start over.
While the tape is playing, use the VOLUME, SEEK,
FADE, BAL, BASS, and TREB controls just as you do
for the radio. The display will show an arrow to
show which side of the tape is playing.
The tape player automatically begins playing the other
side when it reaches the end of the tape.If you want to insert a tape while the ignition or radio is
off, rst press EJECT or RECALL. Cassette tape
adapter kits for portable CD players will work in your
cassette tape player.
Your tape bias is set automatically when a metal or
chrome tape is inserted.
If an error appears on the display, see “Cassette Tape
Messages” later in this section.
1 PREV (Previous):Press this pushbutton to search
for the previous selection on the tape. Your tape
must have at least three seconds of silence between
each selection for PREV to work.
2 NEXT:Press this pushbutton to search for the next
selection on the tape. Your tape must have at least
three seconds of silence between each selection
for NEXT to work.
3
r(Reverse):Press this pushbutton to reverse
quickly within the tape. The radio will play while the tape
reverses. Press the pushbutton again to return to
playing speed.
4
[(Forward):Press this pushbutton to advance
quickly within the tape. The radio will play while the tape
advances. Press the pushbutton again to return to
playing speed.
3-62

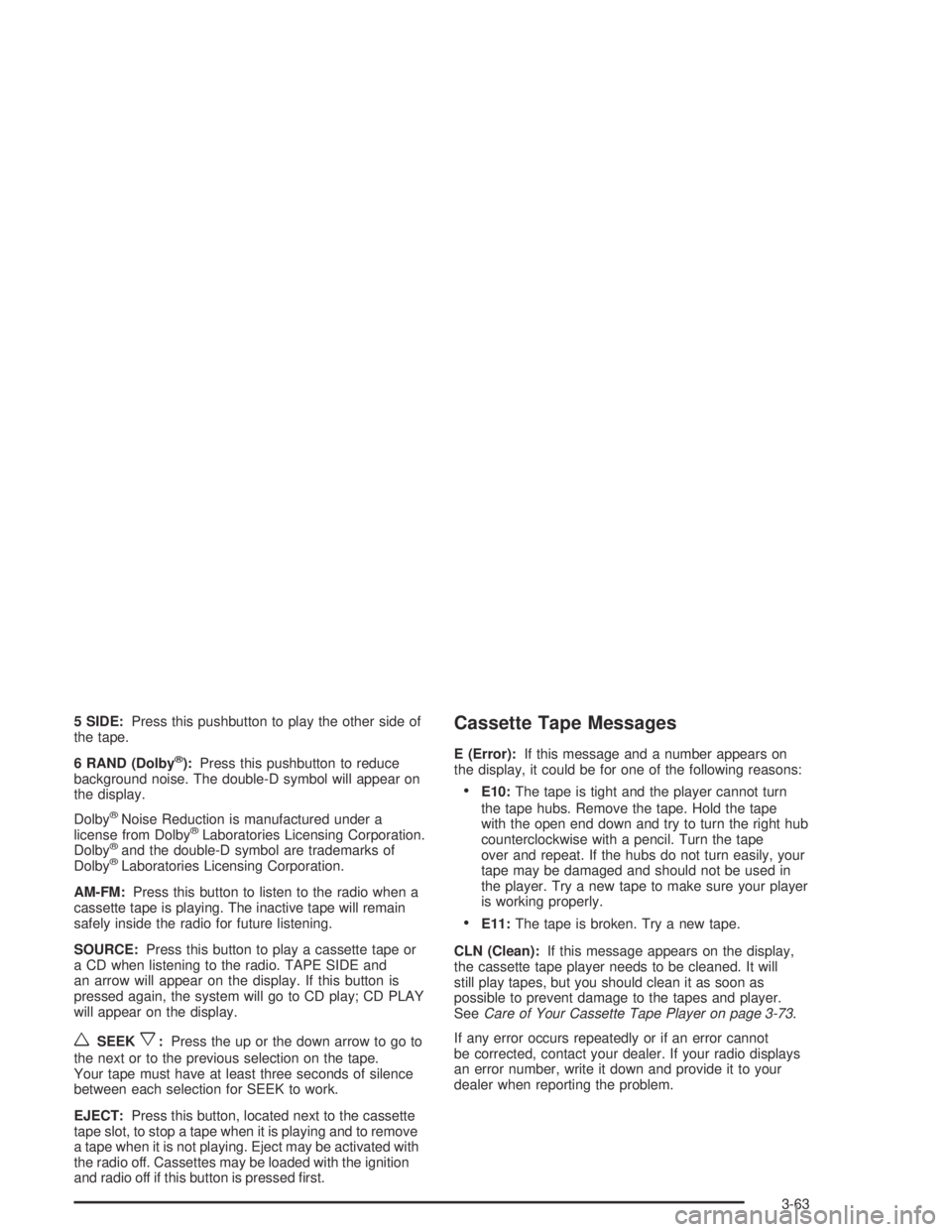

5 SIDE:Press this pushbutton to play the other side of
the tape.
6 RAND (Dolby
®):Press this pushbutton to reduce
background noise. The double-D symbol will appear on
the display.
Dolby
®Noise Reduction is manufactured under a
license from Dolby®Laboratories Licensing Corporation.
Dolby®and the double-D symbol are trademarks of
Dolby®Laboratories Licensing Corporation.
AM-FM:Press this button to listen to the radio when a
cassette tape is playing. The inactive tape will remain
safely inside the radio for future listening.
SOURCE:Press this button to play a cassette tape or
a CD when listening to the radio. TAPE SIDE and
an arrow will appear on the display. If this button is
pressed again, the system will go to CD play; CD PLAY
will appear on the display.
wSEEKx:Press the up or the down arrow to go to
the next or to the previous selection on the tape.
Your tape must have at least three seconds of silence
between each selection for SEEK to work.
EJECT:Press this button, located next to the cassette
tape slot, to stop a tape when it is playing and to remove
a tape when it is not playing. Eject may be activated with
the radio off. Cassettes may be loaded with the ignition
and radio off if this button is pressed rst.
Cassette Tape Messages
E (Error):If this message and a number appears on
the display, it could be for one of the following reasons:
E10:The tape is tight and the player cannot turn
the tape hubs. Remove the tape. Hold the tape
with the open end down and try to turn the right hub
counterclockwise with a pencil. Turn the tape
over and repeat. If the hubs do not turn easily, your
tape may be damaged and should not be used in
the player. Try a new tape to make sure your player
is working properly.
E11:The tape is broken. Try a new tape.
CLN (Clean):If this message appears on the display,
the cassette tape player needs to be cleaned. It will
still play tapes, but you should clean it as soon as
possible to prevent damage to the tapes and player.
SeeCare of Your Cassette Tape Player on page 3-73.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer. If your radio displays
an error number, write it down and provide it to your
dealer when reporting the problem.
3-63

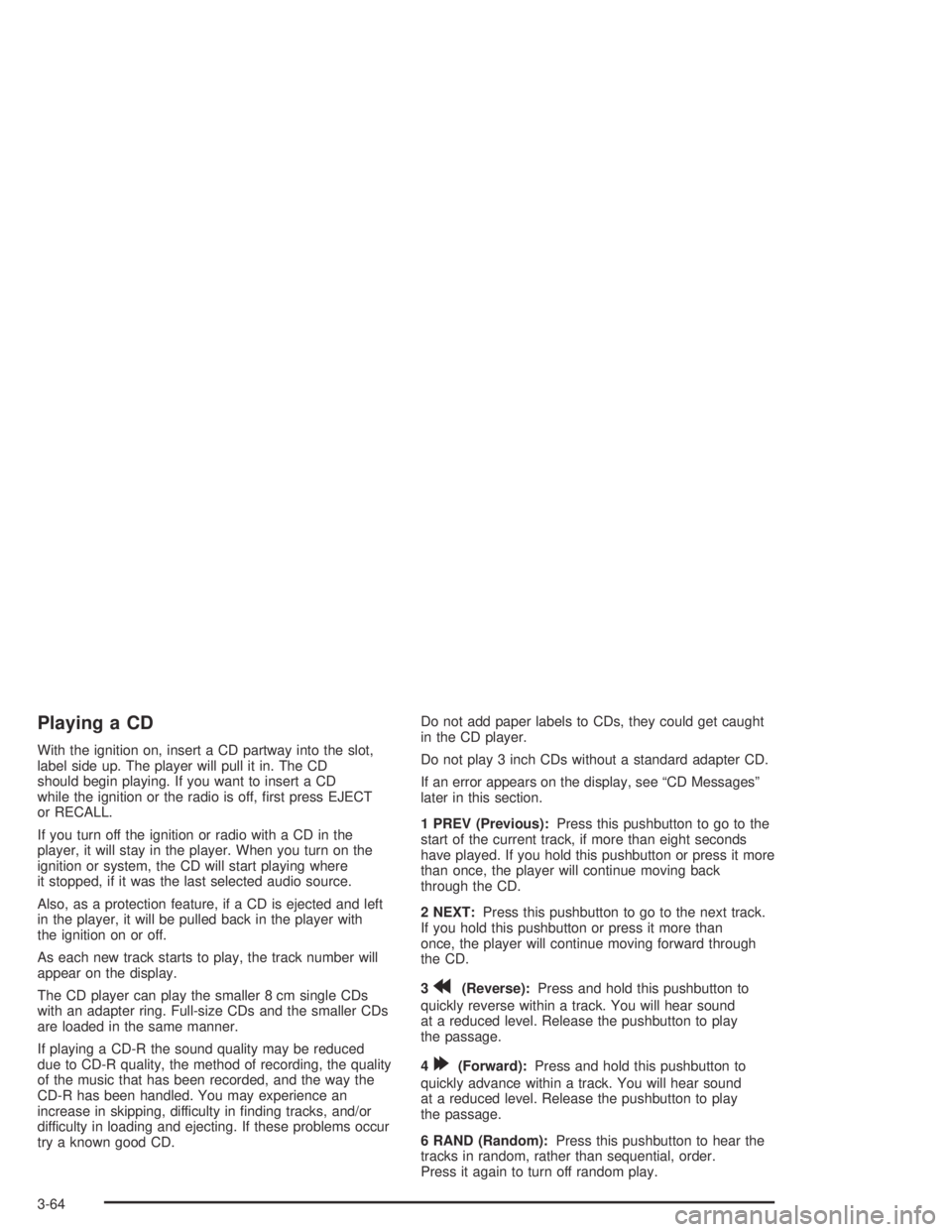

Playing a CD
With the ignition on, insert a CD partway into the slot,
label side up. The player will pull it in. The CD
should begin playing. If you want to insert a CD
while the ignition or the radio is off, rst press EJECT
or RECALL.
If you turn off the ignition or radio with a CD in the
player, it will stay in the player. When you turn on the
ignition or system, the CD will start playing where
it stopped, if it was the last selected audio source.
Also, as a protection feature, if a CD is ejected and left
in the player, it will be pulled back in the player with
the ignition on or off.
As each new track starts to play, the track number will
appear on the display.
The CD player can play the smaller 8 cm single CDs
with an adapter ring. Full-size CDs and the smaller CDs
are loaded in the same manner.
If playing a CD-R the sound quality may be reduced
due to CD-R quality, the method of recording, the quality
of the music that has been recorded, and the way the
CD-R has been handled. You may experience an
increase in skipping, difficulty in nding tracks, and/or
difficulty in loading and ejecting. If these problems occur
try a known good CD.Do not add paper labels to CDs, they could get caught
in the CD player.
Do not play 3 inch CDs without a standard adapter CD.
If an error appears on the display, see “CD Messages”
later in this section.
1 PREV (Previous):Press this pushbutton to go to the
start of the current track, if more than eight seconds
have played. If you hold this pushbutton or press it more
than once, the player will continue moving back
through the CD.
2 NEXT:Press this pushbutton to go to the next track.
If you hold this pushbutton or press it more than
once, the player will continue moving forward through
the CD.
3
r(Reverse):Press and hold this pushbutton to
quickly reverse within a track. You will hear sound
at a reduced level. Release the pushbutton to play
the passage.
4
[(Forward):Press and hold this pushbutton to
quickly advance within a track. You will hear sound
at a reduced level. Release the pushbutton to play
the passage.
6 RAND (Random):Press this pushbutton to hear the
tracks in random, rather than sequential, order.
Press it again to turn off random play.
3-64

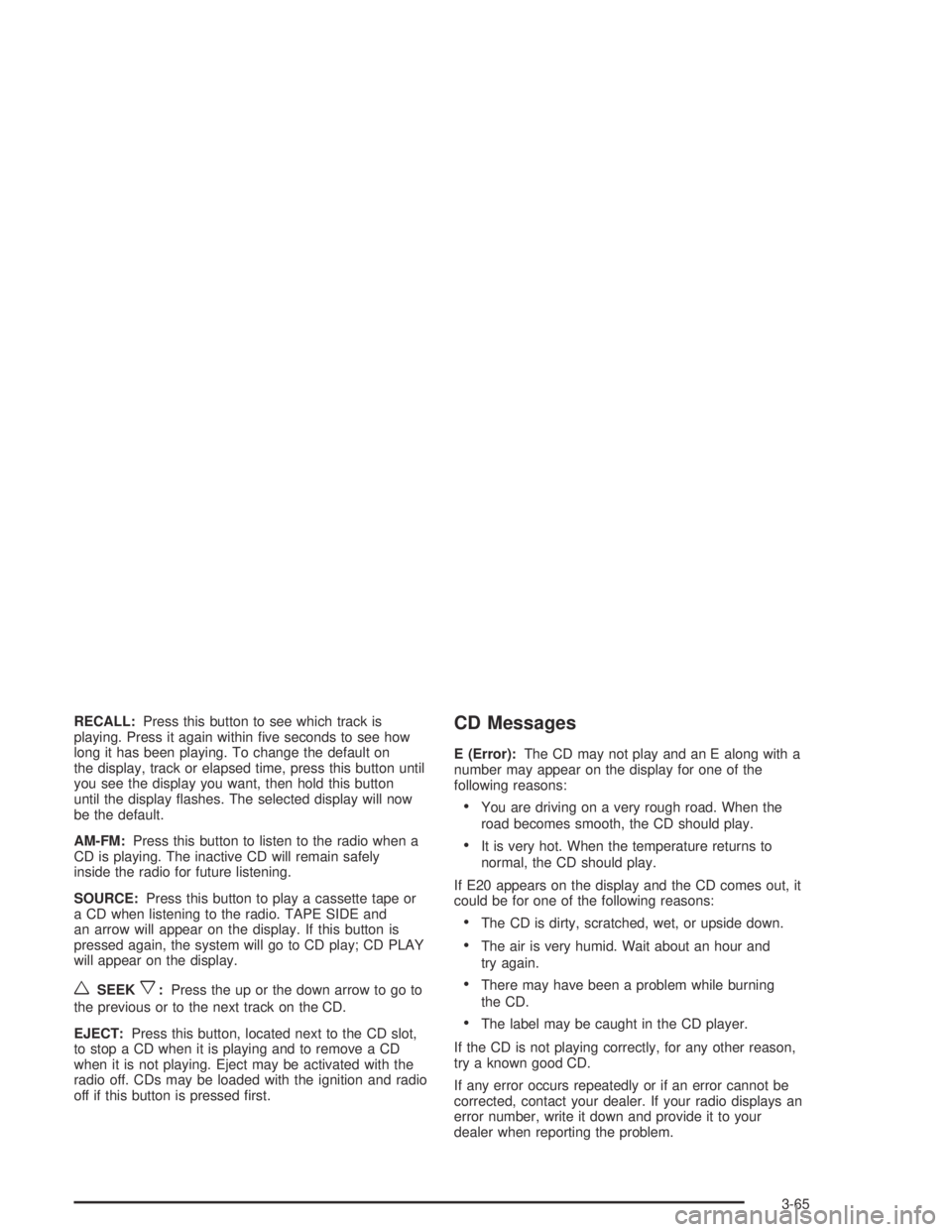

RECALL:Press this button to see which track is
playing. Press it again within ve seconds to see how
long it has been playing. To change the default on
the display, track or elapsed time, press this button until
you see the display you want, then hold this button
until the display ashes. The selected display will now
be the default.
AM-FM:Press this button to listen to the radio when a
CD is playing. The inactive CD will remain safely
inside the radio for future listening.
SOURCE:Press this button to play a cassette tape or
a CD when listening to the radio. TAPE SIDE and
an arrow will appear on the display. If this button is
pressed again, the system will go to CD play; CD PLAY
will appear on the display.
wSEEKx:Press the up or the down arrow to go to
the previous or to the next track on the CD.
EJECT:Press this button, located next to the CD slot,
to stop a CD when it is playing and to remove a CD
when it is not playing. Eject may be activated with the
radio off. CDs may be loaded with the ignition and radio
off if this button is pressed rst.
CD Messages
E (Error):The CD may not play and an E along with a
number may appear on the display for one of the
following reasons:
You are driving on a very rough road. When the
road becomes smooth, the CD should play.
It is very hot. When the temperature returns to
normal, the CD should play.
If E20 appears on the display and the CD comes out, it
could be for one of the following reasons:
The CD is dirty, scratched, wet, or upside down.
The air is very humid. Wait about an hour and
try again.
There may have been a problem while burning
the CD.
The label may be caught in the CD player.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer. If your radio displays an
error number, write it down and provide it to your
dealer when reporting the problem.
3-65

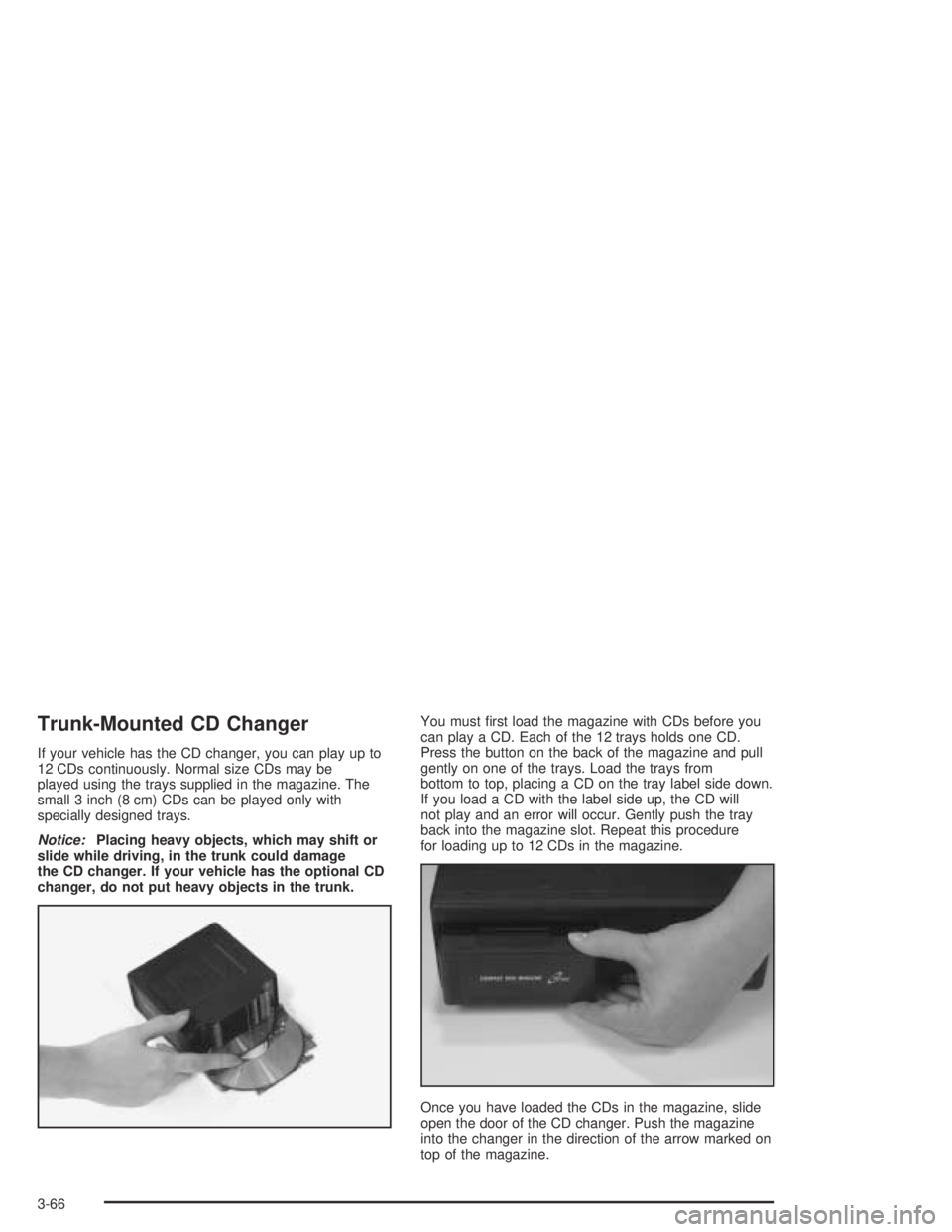

Trunk-Mounted CD Changer
If your vehicle has the CD changer, you can play up to
12 CDs continuously. Normal size CDs may be
played using the trays supplied in the magazine. The
small 3 inch (8 cm) CDs can be played only with
specially designed trays.
Notice:Placing heavy objects, which may shift or
slide while driving, in the trunk could damage
the CD changer. If your vehicle has the optional CD
changer, do not put heavy objects in the trunk.You must rst load the magazine with CDs before you
can play a CD. Each of the 12 trays holds one CD.
Press the button on the back of the magazine and pull
gently on one of the trays. Load the trays from
bottom to top, placing a CD on the tray label side down.
If you load a CD with the label side up, the CD will
not play and an error will occur. Gently push the tray
back into the magazine slot. Repeat this procedure
for loading up to 12 CDs in the magazine.
Once you have loaded the CDs in the magazine, slide
open the door of the CD changer. Push the magazine
into the changer in the direction of the arrow marked on
top of the magazine.
3-66
