BUICK RAINIER 2007 Owner's Manual

Be sure that people and objects are clear of
the garage door or gate operator you are
programming. When programming a garage door,
it is advised to park outside of the garage.
It is recommended that a new battery be installed in
your hand-held transmitter for quicker and more
accurate transmission of the radio-frequency signal.
Programming Universal Home Remote
Follow these steps to program up to three channels:
1. Press and hold down the two outside
Universal Home Remote buttons, releasing
only when the Universal Home Remote
indicator light begins to ash, after
20 seconds. Do not hold down the buttons for
longer than 30 seconds and do not repeat
this step to program a second and/or
third hand-held transmitter to the remaining
two Universal Home Remote buttons.2. Position the end of your hand-held transmitter
about 1 to 3 inches (3 to 8 cm) away from the
Universal Home Remote buttons while
keeping the indicator light in view.
3. Simultaneously press and hold both the
desired Universal Home Remote button
and the hand-held transmitter button. Do not
release the buttons until Step 4 has been
completed.
Some entry gates and garage door openers
may require you to substitute Step 3 with
the procedure noted in “Gate Operator and
Canadian Programming” later in this section.
4. The indicator light will ash slowly at rst and
then rapidly after Universal Home Remote
successfully receives the frequency signal
from the hand-held transmitter. Release both
buttons.
141

5. Press and hold the newly-trained Universal
Home Remote button and observe the
indicator light.
If the indicator light stays on continuously,
programming is complete and your device
should activate when the Universal Home
Remote button is pressed and released.
To program the remaining two Universal Home
Remote buttons, begin with Step 2 under
“Programming Universal Home Remote.”
Do not repeat Step 1 as this will erase all of
the programmed channels.
If the indicator light blinks rapidly for two
seconds and then turns to a constant light,
continue with Steps 6 through 8 following to
complete the programming of a rolling-code
device, most commonly, a garage door opener.
6. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. This can usually be
found where the hanging antenna wire is
attached to the motor-head unit.7. Firmly press and release the “Learn” or
“Smart” button. The name and color of
the button may vary by manufacturer.
You will have 30 seconds to start Step 8.
8. Return to the vehicle. Firmly press and hold
the programmed Universal Home Remote
button for two seconds, then release. Repeat
the press/hold/release sequence a second
time, and depending on the brand of the
garage door opener or other rolling code
device, repeat this sequence a third time to
complete the programming.
The Universal Home Remote should now
activate the rolling-code device.
To program the remaining two Universal
Home Remote buttons, begin with Step 2 of
“Programming Universal Home Remote.” Do not
repeat Step 1, as this will erase all previous
programming from the Universal Home Remote
buttons.
142

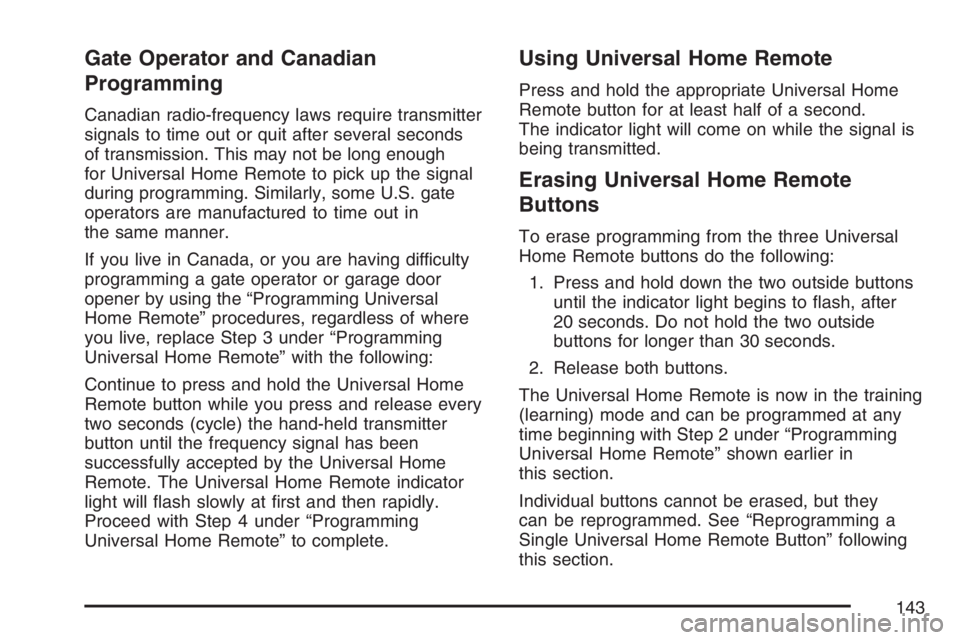

Gate Operator and Canadian
Programming
Canadian radio-frequency laws require transmitter
signals to time out or quit after several seconds
of transmission. This may not be long enough
for Universal Home Remote to pick up the signal
during programming. Similarly, some U.S. gate
operators are manufactured to time out in
the same manner.
If you live in Canada, or you are having difficulty
programming a gate operator or garage door
opener by using the “Programming Universal
Home Remote” procedures, regardless of where
you live, replace Step 3 under “Programming
Universal Home Remote” with the following:
Continue to press and hold the Universal Home
Remote button while you press and release every
two seconds (cycle) the hand-held transmitter
button until the frequency signal has been
successfully accepted by the Universal Home
Remote. The Universal Home Remote indicator
light will ash slowly at rst and then rapidly.
Proceed with Step 4 under “Programming
Universal Home Remote” to complete.
Using Universal Home Remote
Press and hold the appropriate Universal Home
Remote button for at least half of a second.
The indicator light will come on while the signal is
being transmitted.
Erasing Universal Home Remote
Buttons
To erase programming from the three Universal
Home Remote buttons do the following:
1. Press and hold down the two outside buttons
until the indicator light begins to ash, after
20 seconds. Do not hold the two outside
buttons for longer than 30 seconds.
2. Release both buttons.
The Universal Home Remote is now in the training
(learning) mode and can be programmed at any
time beginning with Step 2 under “Programming
Universal Home Remote” shown earlier in
this section.
Individual buttons cannot be erased, but they
can be reprogrammed. See “Reprogramming a
Single Universal Home Remote Button” following
this section.
143

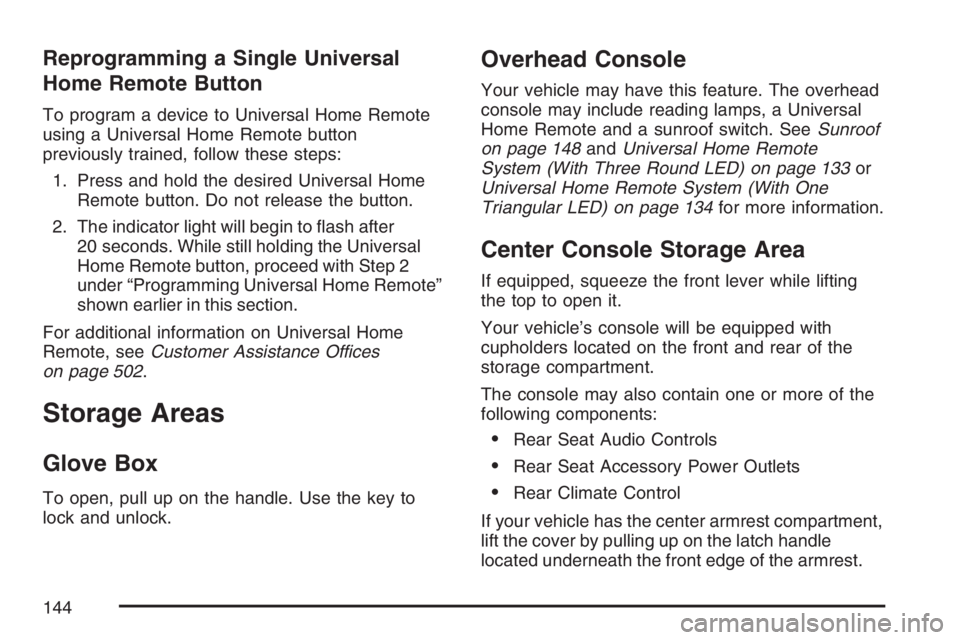

Reprogramming a Single Universal
Home Remote Button
To program a device to Universal Home Remote
using a Universal Home Remote button
previously trained, follow these steps:
1. Press and hold the desired Universal Home
Remote button. Do not release the button.
2. The indicator light will begin to ash after
20 seconds. While still holding the Universal
Home Remote button, proceed with Step 2
under “Programming Universal Home Remote”
shown earlier in this section.
For additional information on Universal Home
Remote, seeCustomer Assistance Offices
on page 502.
Storage Areas
Glove Box
To open, pull up on the handle. Use the key to
lock and unlock.
Overhead Console
Your vehicle may have this feature. The overhead
console may include reading lamps, a Universal
Home Remote and a sunroof switch. SeeSunroof
on page 148andUniversal Home Remote
System (With Three Round LED) on page 133or
Universal Home Remote System (With One
Triangular LED) on page 134for more information.
Center Console Storage Area
If equipped, squeeze the front lever while lifting
the top to open it.
Your vehicle’s console will be equipped with
cupholders located on the front and rear of the
storage compartment.
The console may also contain one or more of the
following components:
Rear Seat Audio Controls
Rear Seat Accessory Power Outlets
Rear Climate Control
If your vehicle has the center armrest compartment,
lift the cover by pulling up on the latch handle
located underneath the front edge of the armrest.
144

Luggage Carrier
{CAUTION:
If you try to carry something on top of
your vehicle that is longer or wider than
the luggage carrier — like paneling,
plywood, a mattress and so forth — the
wind can catch it as you drive along. This
can cause you to lose control. What you
are carrying could be violently torn off,
and this could cause you or other drivers
to have a collision, and of course damage
your vehicle. You may be able to carry
something like this inside. But, never
carry something longer or wider than the
luggage carrier on top of your vehicle.Your vehicle may be equipped with a luggage
carrier that allows you to load things on top of your
vehicle. The luggage carrier, if equipped, has
side rails attached to the roof, and places to use
for tying things down. These let you load some
other things on top of your vehicle, as long as they
are not wider or longer than the luggage carrier.
Notice:Loading cargo on the luggage
carrier that weighs more than 200 lbs (91 kg)
or hangs over the rear or sides of the vehicle
may damage your vehicle. Load cargo so
that it rests on the slats as far forward
as possible and against the side rails, making
sure to fasten it securely.
Do not exceed the maximum vehicle capacity
when loading your vehicle. For more information
on vehicle capacity and loading, seeLoading Your
Vehicle on page 330.
To prevent damage or loss of cargo as you are
driving, check now and then to make sure
the luggage carrier is locked and cargo is still
securely fastened.
145

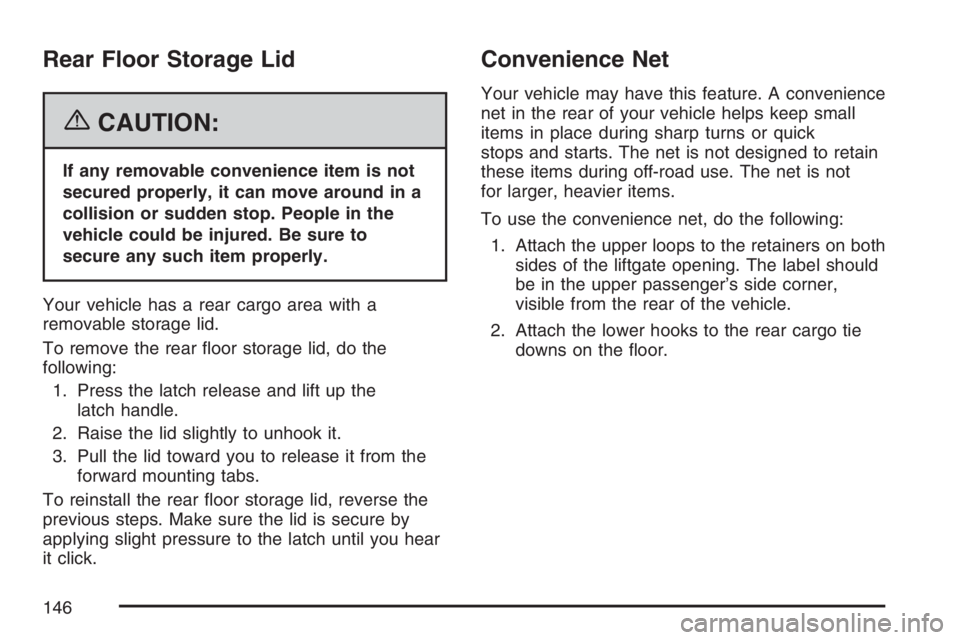

Rear Floor Storage Lid
{CAUTION:
If any removable convenience item is not
secured properly, it can move around in a
collision or sudden stop. People in the
vehicle could be injured. Be sure to
secure any such item properly.
Your vehicle has a rear cargo area with a
removable storage lid.
To remove the rear oor storage lid, do the
following:
1. Press the latch release and lift up the
latch handle.
2. Raise the lid slightly to unhook it.
3. Pull the lid toward you to release it from the
forward mounting tabs.
To reinstall the rear oor storage lid, reverse the
previous steps. Make sure the lid is secure by
applying slight pressure to the latch until you hear
it click.
Convenience Net
Your vehicle may have this feature. A convenience
net in the rear of your vehicle helps keep small
items in place during sharp turns or quick
stops and starts. The net is not designed to retain
these items during off-road use. The net is not
for larger, heavier items.
To use the convenience net, do the following:
1. Attach the upper loops to the retainers on both
sides of the liftgate opening. The label should
be in the upper passenger’s side corner,
visible from the rear of the vehicle.
2. Attach the lower hooks to the rear cargo tie
downs on the oor.
146

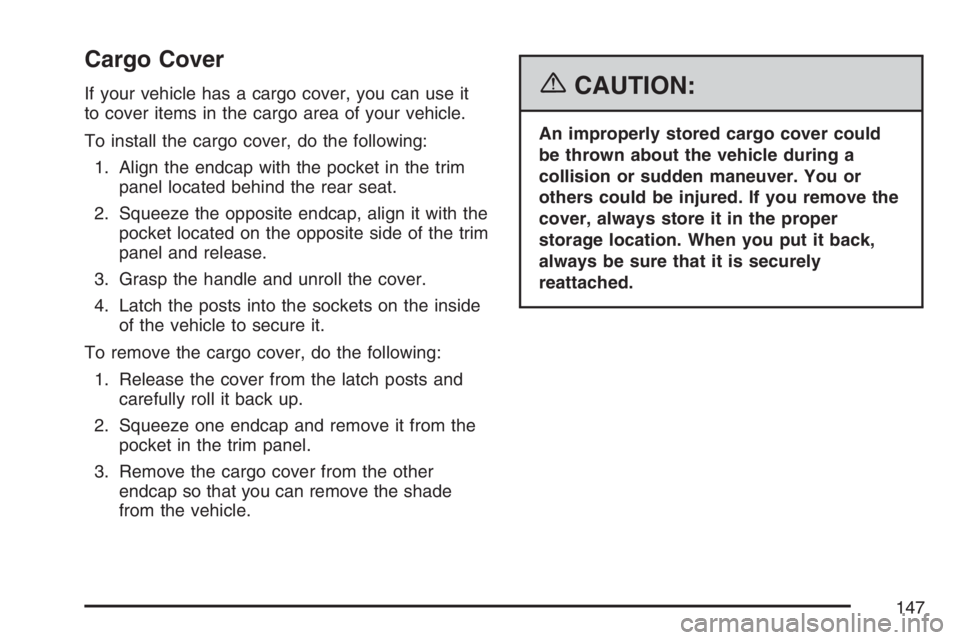

Cargo Cover
If your vehicle has a cargo cover, you can use it
to cover items in the cargo area of your vehicle.
To install the cargo cover, do the following:
1. Align the endcap with the pocket in the trim
panel located behind the rear seat.
2. Squeeze the opposite endcap, align it with the
pocket located on the opposite side of the trim
panel and release.
3. Grasp the handle and unroll the cover.
4. Latch the posts into the sockets on the inside
of the vehicle to secure it.
To remove the cargo cover, do the following:
1. Release the cover from the latch posts and
carefully roll it back up.
2. Squeeze one endcap and remove it from the
pocket in the trim panel.
3. Remove the cargo cover from the other
endcap so that you can remove the shade
from the vehicle.{CAUTION:
An improperly stored cargo cover could
be thrown about the vehicle during a
collision or sudden maneuver. You or
others could be injured. If you remove the
cover, always store it in the proper
storage location. When you put it back,
always be sure that it is securely
reattached.
147

Cargo Tie Downs
There are cargo tie
downs in the rear of your
vehicle that allow you to
strap cargo in and keep
it from moving.
Sunroof
The vehicle may be equipped with a power sliding
sunroof. To open or close the sunroof, the
ignition must be turned to ON, ACCESSORY, or
Retained Accessory Power (RAP) must be
active. SeeRetained Accessory Power (RAP) on
page 110.Press and release the
back of the control in the
overhead console to
open the sunroof. Press
the front of the control to
close the sunroof.
Once the sunroof is closed, press the forward side
of the control to open the sunroof to the vent
position.
The sunroof has a sunshade which can be pulled
forward to block sun rays. If it is in the closed
position, it will open when the sunroof is opened.
148

Instrument Panel Overview........................ 152
Hazard Warning Flashers.......................... 154
Other Warning Devices............................. 154
Horn.......................................................... 154
Tilt Wheel.................................................. 154
Turn Signal/Multifunction Lever.................. 155
Turn and Lane-Change Signals................. 156
Headlamp High/Low-Beam Changer.......... 157
Flash-to-Pass............................................ 157
Windshield Wipers..................................... 157
Windshield Washer.................................... 158
Rear Window Wiper/Washer...................... 158
Cruise Control........................................... 159
Headlamps................................................ 162
Headlamps on Reminder........................... 163
Daytime Running Lamps (DRL)................. 163
Automatic Headlamp System..................... 164
Fog Lamps................................................ 165
Instrument Panel Brightness...................... 166
Dome Lamps............................................. 166
Dome Lamp Override................................ 166
Entry Lighting............................................ 167
Exit Lighting.............................................. 167
Reading Lamps......................................... 167Electric Power Management...................... 167
Battery Run-Down Protection..................... 168
Accessory Power Outlet(s)........................ 168
Ashtray(s) and Cigarette Lighter................ 169
Climate Controls......................................... 170
Dual Automatic Climate Control System....... 170
Outlet Adjustment...................................... 175
Rear Climate Control System.................... 176
Warning Lights, Gages, and Indicators........ 176
Instrument Panel Cluster........................... 178
Speedometer and Odometer...................... 179
Trip Odometer........................................... 179
Tachometer............................................... 179
Safety Belt Reminder Light........................ 180
Passenger Safety Belt Reminder Light....... 180
Airbag Readiness Light............................. 181
Passenger Airbag Status Indicator............. 182
Charging System Light.............................. 185
Voltmeter Gage......................................... 185
Brake System Warning Light..................... 186
Anti-Lock Brake System Warning Light...... 187
StabiliTrak
®Service Light........................... 188
StabiliTrak®Indicator Light......................... 188
Section 3 Instrument Panel
149

Engine Coolant Temperature Gage............ 189
Tire Pressure Light.................................... 189
Malfunction Indicator Lamp........................ 190
Oil Pressure Gage..................................... 193
Security Light............................................ 194
Cruise Control Light.................................. 194
Reduced Engine Power Light.................... 195
Highbeam On Light................................... 195
Service All-Wheel Drive Light.................... 196
Check Gages Warning Light...................... 196
Gate Ajar Light.......................................... 196
Fuel Gage................................................. 197
Low Fuel Warning Light............................ 197
Check Gas Cap Light................................ 197
Driver Information Center (DIC).................. 198
DIC Operation and Displays...................... 199
DIC Warnings and Messages.................... 202
DIC Vehicle Customization........................ 208Audio System(s)......................................... 215
Setting the Time........................................ 217
Radio with CD (Base)............................... 217
Radio with CD (MP3)................................ 228
Radio with Six-Disc CD............................. 238
Using an MP3........................................... 251
XM Radio Messages................................. 257
Navigation/Radio System........................... 260
Rear Seat Entertainment System............... 260
Rear Seat Audio (RSA)............................. 275
Theft-Deterrent Feature............................. 276
Audio Steering Wheel Controls.................. 277
Radio Reception........................................ 278
Care of Your CDs and DVDs.................... 279
Care of the CD and DVD Player............... 279
Fixed Mast Antenna.................................. 279
XM™ Satellite Radio Antenna System....... 280
Chime Level Adjustment............................ 280
Section 3 Instrument Panel
150
