BUICK RAINIER 2007 Owner's Manual

When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal
down while you:
start your engine,
shift into a gear, and
release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the
chocks.
4. Stop and have someone pick up and store the
chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when
you’re pulling a trailer. See the Maintenance
Schedule for more on this. Things that are
especially important in trailer operation are
automatic transmission uid (don’t overll), engine
oil, axle lubricant, belt(s), cooling system and
brake system. Each of these is covered in
this manual, and the Index will help you nd them
quickly. If you’re trailering, it’s a good idea to
review these sections before you start your trip.
Check periodically to see that all hitch nuts
and bolts are tight.
351

Trailer Wiring Harness
Your vehicle is equipped with a seven-wire trailer
towing harness. This harness has a seven-pin
universal heavy-duty trailer connector (if equipped
with the trailering package) that is attached to a
bracket on the hitch platform. If your vehicle is not
equipped with the heavy-duty trailer connector,
you may purchase one from your dealer.The seven-wire harness contains the following
trailer circuits:
Yellow: Left Stop/Turn Signal
Dark Green: Right Stop/Turn Signal
Brown: Running Lamps
White: Ground
Light Green: Back-up Lamps
Dark Blue: Electric Brakes
Red: Battery Feed (The chassis wiring ring
terminal must be fastened to a stud on the
underhood electrical center before the
trailer feed will become active.)
If you need to tow a light-duty trailer with a standard
four-way round pin connector, an adapter connector
is available from your dealer.
If you are charging a remote (non-vehicle) battery,
turn on the headlamps to boost the vehicle
system voltage and properly charge the battery.
Your vehicle is also equipped with wiring for an
electric trailer brake controller. These wires are
located inside the vehicle on the driver’s side under
the instrument panel. These wires should be
connected to an electric trailer brake controller by
your dealer or a qualied service center.
352

Service........................................................ 356
Accessories and Modications................... 356
California Proposition 65 Warning.............. 357
Doing Your Own Service Work.................. 357
Adding Equipment to the Outside
of Your Vehicle...................................... 358
Fuel............................................................. 358
Gasoline Octane........................................ 358
Gasoline Specications.............................. 358
California Fuel........................................... 359
Additives................................................... 359
Fuels in Foreign Countries........................ 360
Filling the Tank......................................... 361
Filling a Portable Fuel Container............... 363
Checking Things Under the Hood.............. 364
Hood Release........................................... 364
Engine Compartment Overview.................. 366
Engine Oil................................................. 369
Engine Oil Life System.............................. 372
Engine Air Cleaner/Filter............................ 374
Automatic Transmission Fluid.................... 375
Engine Coolant.......................................... 379Radiator Pressure Cap.............................. 382
Engine Overheating................................... 382
Cooling System......................................... 384
Engine Fan Noise..................................... 390
Power Steering Fluid ................................. 390
Windshield Washer Fluid........................... 391
Brakes...................................................... 392
Battery...................................................... 396
Jump Starting............................................ 397
All-Wheel Drive........................................... 402
Rear Axle.................................................... 402
Front Axle................................................... 403
Bulb Replacement....................................... 404
Halogen Bulbs........................................... 404
Headlamps, Front Turn Signal, and
Parking Lamps....................................... 405
Taillamps and Turn Signal Lamps............. 405
License Plate Lamp................................... 407
Replacement Bulbs................................... 407
Windshield Replacement............................ 408
Windshield Wiper Blade Replacement....... 408
Section 5 Service and Appearance Care
353

Tires............................................................ 411
Tire Sidewall Labeling............................... 412
Tire Terminology and Denitions............... 416
Ination - Tire Pressure............................. 419
Tire Pressure Monitor System................... 420
Tire Inspection and Rotation...................... 425
When It Is Time for New Tires.................. 426
Buying New Tires...................................... 427
Different Size Tires and Wheels................ 428
Uniform Tire Quality Grading..................... 429
Wheel Alignment and Tire Balance............ 431
Wheel Replacement.................................. 432
Tire Chains............................................... 433
Accessory Inator...................................... 434
If a Tire Goes Flat.................................... 435
Changing a Flat Tire................................. 436
Removing the Spare Tire and Tools.......... 438
Removing the Flat Tire and Installing
the Spare Tire....................................... 440
Secondary Latch System........................... 446
Storing a Flat or Spare Tire and Tools...... 450
Spare Tire................................................. 453Appearance Care........................................ 453
Cleaning the Inside of Your Vehicle.......... 453
Fabric/Carpet............................................. 455
Leather...................................................... 456
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 456
Care of Safety Belts.................................. 457
Washing Your Vehicle............................... 457
Cleaning Exterior Lamps/Lenses................ 458
Finish Care............................................... 458
Windshield, Backglass, and
Wiper Blades......................................... 459
Aluminum Wheels...................................... 459
Tires......................................................... 460
Sheet Metal Damage................................. 460
Finish Damage.......................................... 460
Underbody Maintenance............................ 461
Chemical Paint Spotting............................ 461
Vehicle Care/Appearance Materials............ 462
Vehicle Identication.................................. 463
Vehicle Identication Number (VIN)........... 463
Service Parts Identication Label............... 463
Section 5 Service and Appearance Care
354

Electrical System........................................ 464
Add-On Electrical Equipment..................... 464
Headlamps................................................ 464
Windshield Wiper Fuses............................ 464
Power Windows and Other
Power Options....................................... 464Fuses and Circuit Breakers....................... 465
Engine Compartment Fuse Block............... 465
Rear Underseat Fuse Block....................... 471
Capacities and Specications.................... 474
Section 5 Service and Appearance Care
355

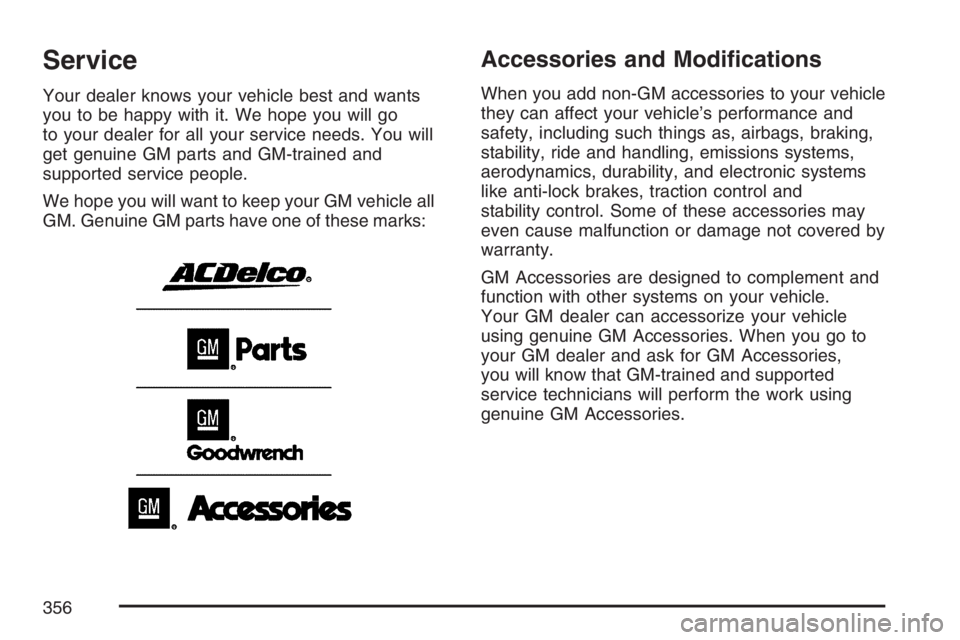

Service
Your dealer knows your vehicle best and wants
you to be happy with it. We hope you will go
to your dealer for all your service needs. You will
get genuine GM parts and GM-trained and
supported service people.
We hope you will want to keep your GM vehicle all
GM. Genuine GM parts have one of these marks:
Accessories and Modications
When you add non-GM accessories to your vehicle
they can affect your vehicle’s performance and
safety, including such things as, airbags, braking,
stability, ride and handling, emissions systems,
aerodynamics, durability, and electronic systems
like anti-lock brakes, traction control and
stability control. Some of these accessories may
even cause malfunction or damage not covered by
warranty.
GM Accessories are designed to complement and
function with other systems on your vehicle.
Your GM dealer can accessorize your vehicle
using genuine GM Accessories. When you go to
your GM dealer and ask for GM Accessories,
you will know that GM-trained and supported
service technicians will perform the work using
genuine GM Accessories.
356

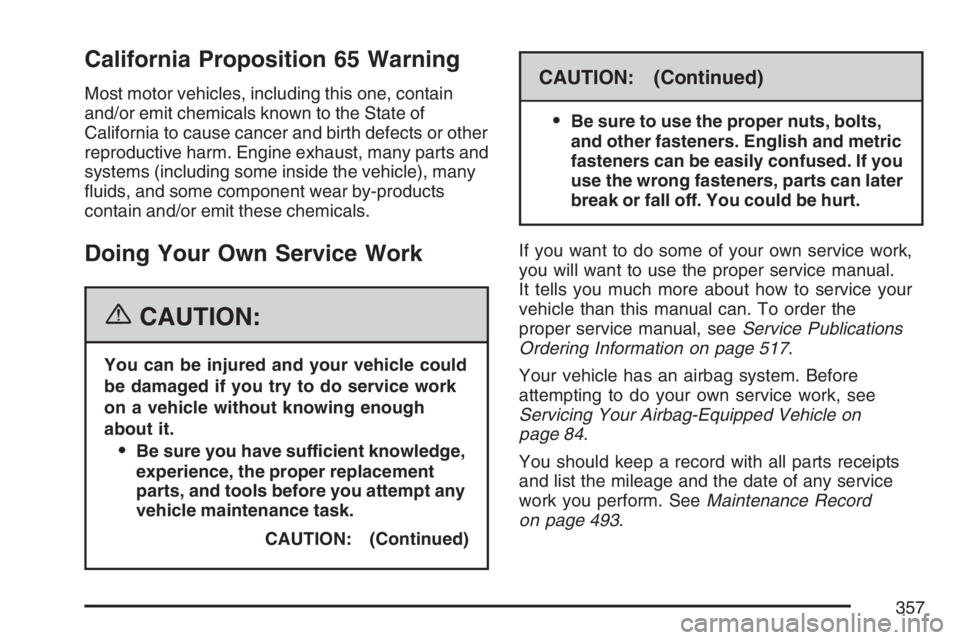

California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm. Engine exhaust, many parts and
systems (including some inside the vehicle), many
uids, and some component wear by-products
contain and/or emit these chemicals.
Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt any
vehicle maintenance task.
CAUTION: (Continued)
CAUTION: (Continued)

Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
If you want to do some of your own service work,
you will want to use the proper service manual.
It tells you much more about how to service your
vehicle than this manual can. To order the
proper service manual, seeService Publications
Ordering Information on page 517.
Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle on
page 84.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeeMaintenance Record
on page 493.
357

Adding Equipment to the Outside
of Your Vehicle
Things you might add to the outside of your
vehicle can affect the airow around it. This may
cause wind noise and affect windshield washer
performance. Check with your dealer before
adding equipment to the outside of your vehicle.
Fuel
Use of the recommended fuel is an important
part of the proper maintenance of your vehicle.
To help keep your engine clean and maintain
optimum vehicle performance, GM recommends
the use of gasoline advertised as TOP TIER
Detergent Gasoline.
Gasoline Octane
Use regular unleaded gasoline with a posted
octane rating of 87 or higher. If the octane rating
is less than 87, you may notice an audible
knocking noise when you drive, commonly referred
to as spark knock. If this occurs, use a gasoline
rated at 87 octane or higher as soon as possible.
If you are using gasoline rated at 87 octane or
higher and you hear heavy knocking, your engine
needs service.
Gasoline Specications
At a minimum, gasoline should meet ASTM
specication D 4814 in the United States or
CAN/CGSB-3.5 in Canada. Some gasolines may
contain an octane-enhancing additive called
methylcyclopentadienyl manganese tricarbonyl
(MMT). General Motors recommends against the
use of gasolines containing MMT. SeeAdditives
on page 359for additional information.
358

California Fuel
If your vehicle is certied to meet California
Emissions Standards, it is designed to operate
on fuels that meet California specications.
See the underhood emission control label.
If this fuel is not available in states adopting
California emissions standards, your vehicle will
operate satisfactorily on fuels meeting federal
specications, but emission control system
performance may be affected. The malfunction
indicator lamp may turn on and your vehicle may
fail a smog-check test. SeeMalfunction Indicator
Lamp on page 190. If this occurs, return to
your authorized GM dealer for diagnosis. If it is
determined that the condition is caused by the
type of fuel used, repairs may not be covered
by your warranty.
Additives
To provide cleaner air, all gasolines in the
United States are now required to contain additives
that will help prevent engine and fuel system
deposits from forming, allowing your emission
control system to work properly. In most cases,
you should not have to add anything to your fuel.
However, some gasolines contain only the
minimum amount of additive required to meet
U.S. Environmental Protection Agency regulations.
To help keep fuel injectors and intake valves
clean, or if your vehicle experiences problems due
to dirty injectors or valves, look for gasoline that
is advertised as TOP TIER Detergent Gasoline.
Also, your GM dealer has additives that will
help correct and prevent most deposit-related
problems.
359

Gasolines containing oxygenates, such as ethers
and ethanol, and reformulated gasolines may
be available in your area. General Motors
recommends that you use these gasolines if they
comply with the specications described earlier.
However, E85 (85% ethanol) and other fuels
containing more than 10% ethanol must not be
used in vehicles that were not designed for
those fuels.
Notice:Your vehicle was not designed for
fuel that contains methanol. Do not use
fuel containing methanol. It can corrode metal
parts in your fuel system and also damage
the plastic and rubber parts. That damage
would not be covered under your warranty.
Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing
additive called methylcyclopentadienyl manganese
tricarbonyl (MMT); ask the attendant where you
buy gasoline whether the fuel contains MMT.General Motors recommends against the use of
such gasolines. Fuels containing MMT can reduce
the life of spark plugs and the performance of
the emission control system may be affected. The
malfunction indicator lamp may turn on. If this
occurs, return to your authorized GM dealer
for service.
Fuels in Foreign Countries
If you plan on driving in another country outside
the United States or Canada, the proper fuel may
be hard to nd. Never use leaded gasoline or
any other fuel not recommended in the previous
text on fuel. Costly repairs caused by use of
improper fuel would not be covered by your
warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business
in the country where you will be driving.
360
