center console BUICK RANDEZVOUS 2002 Owner's Manual

1-5
You can also store an exit position for each driver.
The exit position is programmed by moving the seat
to the desired exit position and then holding the exit
symbol button for more than three seconds. The exit
position set will be for the most recently selected driving
position (1 or 2). A double beep will sound when the
memory is set.
To use exit, your vehicle must be in PARK (P). Push
and release the exit symbol button and the seat will
move to the exit position stored for the most recently
selected driver. You will hear one beep.
To stop recall movement of the seat at any time,
press one of the three memory buttons or one of the
power seat controls located on the outboard side of
the driver's seat.
If your vehicle is equipped with a Driver Information
Center (DIC), you can use it to program certain
functions of the memory seats. See ªDriver Information
Center (DIC) Vehicle Customizationº in the Index.Heated Front Seats (Option)
The heated seat switches
are located in the center
console switchbank.
This feature will quickly heat the lower cushions and
lower back of the driver's and front passenger's seat for
added comfort. The left switch is for the driver's seat
and the right switch is for the front passenger's seat.
Press the top of the switch to turn the heater on.
Press the bottom of the switch to turn the heater off.
The heated seat switch will turn off when the ignition
is turned to OFF and will resume operation when the
ignition is turned to ON, unless the switch is manually
turned off.

2-13
Replacing the Battery in the Remote Transmitter
NOTICE:
When replacing the battery, use care not to
touch any of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.
1. Insert a flat object, such as a coin, into the slot on the
side of the transmitter and twist to separate the halves.
2. Gently pry the battery out of the transmitter. Do not
use the metal flanges to ªpop outº the battery.
3. Replace the battery.
4. Reassemble the transmitter. Make sure the halves are
snapped together tightly so water will not get in.
5. Check the transmitter operation.
Center Console Switchbank
There is a center console switchbank located in the
instrument panel, below the comfort controls.
The switches will vary with the options that are
on your vehicle.
The center console switchbank consists of five switches.
The five possible switches are for the rear window
wiper/washer, the liftgate release, the traction disable,
the park aid disable, and the driver's and passenger's
heated seats. If your vehicle does not have some of the
options controlled by these switches, there will be a
blank button in its place.
For more information, see each of these features in
the Index.

2-22
Liftgate Release
To open the liftgate do one of the following:

press the liftgate release
switch, which is located
on the center console
switchbank, or

press REAR on the optional remote keyless
entry transmitter.
Your vehicle must be in PARK (P) or NEUTRAL (N)
for the liftgate to release.
The liftgate will lock when closed. You will have to use
one of the previous options to open the liftgate again.
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition and transaxle. Also remember to lock the doors.

2-24
When the content theft-deterrent system is armed,
the liftgate may be opened by using one of the
following methods:

press the liftgate release
button, which is located
on the center console
switchbank, or

press REAR on the optional remote keyless
entry transmitter.
Arming with the Power Lock Switch
Your alarm system will arm when you use either power
door lock switch to lock the doors while any door or the
liftgate is open and the key is removed from the ignition.
The security light will start flashing to let you know the
system is armed.
Arming with the Remote Keyless
Entry Transmitter
Your alarm system will arm after a 30 second delay
when you press LOCK on your remote keyless entry
transmitter to lock the doors. The security light will
come on for 30 seconds and then start flashing to let
you know the system is armed.

2-46
Windshield Washer
To wash your windshield, push and hold the paddle with
the windshield washer symbol. The washers and wipers
will operate. When you release the paddle, the washers
will stop, and the wipers will continue to operate for two
cycles, unless your wipers had already been on. In that
case, the wipers will resume the wiper speed you had
selected earlier.
CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
Rear Window Washer/Wiper (If Equipped)
The rear window switch
is located in the center
console switchbank.
Push the wiper symbol on the top of the switch to turn
on the intermittent wiper. To turn off the wiper, gently
push the bottom of the switch.
To wash and wipe the rear window, push in the washer
symbol on the bottom of the switch. Washer fluid will
spray as long as the switch is held in. When the switch is
released, the wiper will continue to cycle three more
times. There is only one washer fluid reservoir for the
front and rear windshield wipers. See ªWindshield
Washer Fluidº in the Index.
To wash the rear window when the rear wiper is already
on, push the bottom of the switch. Push in the top of the
switch to continue the intermittent wiper cycle after the
washing cycle is completed.

2-62
Cell Phone Storage Compartment
Your vehicle has a cell phone storage compartment
located on the floor console storage closest to the
driver's seat. Lift the lid to use the storage compartment.
The compartment has an accessory power outlet for
charging the cell phone.
Cupholders
There are two cupholders located in the floor console.
The cupholders have liners that remove for larger
beverage items. Remove the liners by lifting them out.
Store the liners in the glove box when not in use.
Your vehicle also has cupholders located in the rear seat
armrests if the vehicle has a split folding seat or on the
side of the captain's chairs.
Rear Convenience Net
The rear convenience net is designed to help keep small
loads, like grocery bags, from falling over during sharp
turns or quick stops and starts. Install the convenience
net at the rear of your vehicle, just inside the liftgate.
To attach the rear convenience net attach both the upper
and lower hooks to the loops on either side of the
liftgate opening (the label on the net should be in the
upper left corner).
The side of the convenience net closest to the front of
the vehicle is higher than the side closest to the liftgate.
Once you've loaded items into the net, stretch the higher
side of the net up and over the top of the load to hold it
firmly in place.
The convenience net has a maximum capacity of
100 lbs. (45 kg). It is not designed to hold larger, heavier
loads. Store such loads on the floor of your vehicle, as
far forward as you can.
When not in use, it is recommend that you take down
the rear convenience net to extend its life and retain its
elasticity, and to keep the rear exit clear. Store the net in
the pouch behind either front seat or inside the
convenience center.

2-69

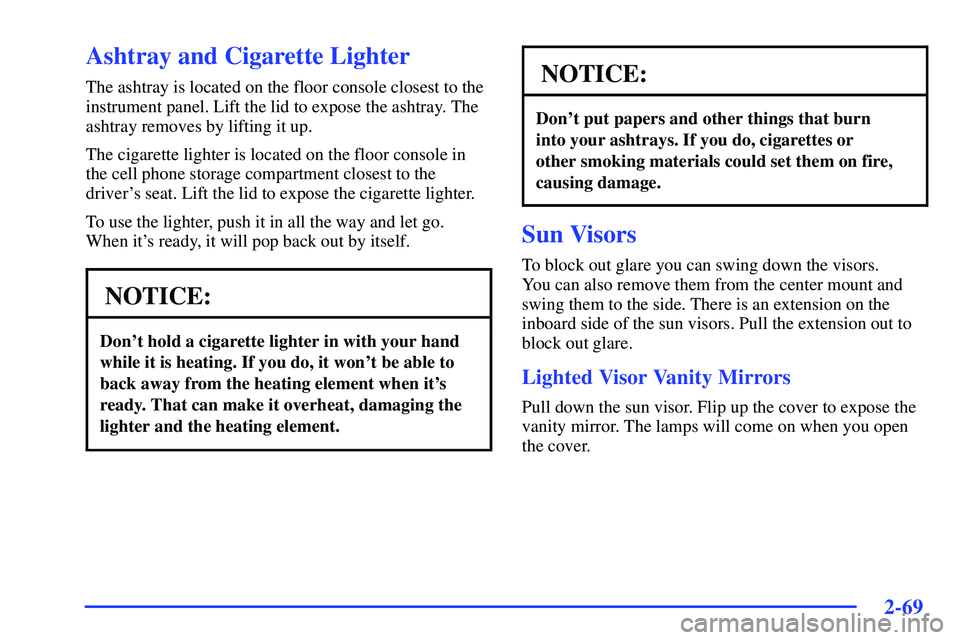

Ashtray and Cigarette Lighter
The ashtray is located on the floor console closest to the
instrument panel. Lift the lid to expose the ashtray. The
ashtray removes by lifting it up.
The cigarette lighter is located on the floor console in
the cell phone storage compartment closest to the
driver's seat. Lift the lid to expose the cigarette lighter.
To use the lighter, push it in all the way and let go.
When it's ready, it will pop back out by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
NOTICE:
Don't put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire,
causing damage.
Sun Visors
To block out glare you can swing down the visors.
You can also remove them from the center mount and
swing them to the side. There is an extension on the
inboard side of the sun visors. Pull the extension out to
block out glare.
Lighted Visor Vanity Mirrors
Pull down the sun visor. Flip up the cover to expose the
vanity mirror. The lamps will come on when you open
the cover.

2-81
The main components of the instrument panel are the following:
A. Exterior/Interior Lamps Control
B. Turn Signal/Multifunction Lever
C. Hazard Warning Flasher Switch
D. Instrument Panel Cluster
E. Shift Lever
F. Instrument Panel Vents
G. Audio System
H. Audio Steering Wheel Controls (If Equipped)
I. Head
-Up Display Switch (Option) and Driver
Information Center (DIC) Controls (If Equipped)J. Hood Release
K. Ignition Switch
L. Comfort Controls
M. Center Console Switchbank
N. Front Armrest Storage
O. Ashtray/Cigarette Lighter/Accessory Power
Outlet/Cell Phone Storage/Purse Storage/Cupholders
P. Instrument Panel Fuse Block
Q. Glove Box

2-88
Anti-Lock Brake System Warning Light
United States Canada
The anti
-lock brake system warning light should come
on for a few seconds when you turn the ignition key to
ON. If the anti
-lock brake system warning light stays on
longer than normal after you've started your engine, turn
the ignition off. Or, if the light comes on and stays on
when you're driving, stop as soon as possible and turn
the ignition off. Then start the engine again to reset the
system. If the light still stays on, or comes on again
while you're driving, the anti
-lock brake system needs
service and you don't have anti
-lock brakes.
The anti
-lock brake system warning light should come
on briefly when you turn the ignition key to ON. If the
light doesn't come on then, have it fixed so it will be
ready to warn you if there is a problem.
Traction Control System Warning Light
(If Equipped)
United States Canada
The traction control system warning light may come on
for the following reasons:

If you turn the system off by pressing the TRAC
OFF button located in the center console switchbank
the warning light will come on and stay on. To turn
the system back on, press the button again. The
warning light should go off. See ªTraction Control
Systemº in the Index for more information.

If there's an engine
-related and brake system problem
that is specifically related to traction control, the
traction control system will turn off and the warning
light will come on. If the brake system problem is
caused by the brakes beginning to overheat, the
brakes will need to cool down before the traction
control system warning light will turn off.

2-125
Rear Parking Assist (RPA) (Option)
RPA can help you to determine how close an object is to
your rear bumper within a given area, making parking
easier. The four ultrasonic sensors located on the rear
bumper detect the distance to the object in the given
area. It is not intended to be used primarily as a rear
obstacle detection system.
Your vehicle's RPA operates when the shift lever is
moved into REVERSE (R) and the vehicle speed is
less than 3 mph (5 km/h). The RPA display is located
inside the vehicle, above the rear window. It has
three color
-coded lights that can be seen through the
rearview mirror.
RPA can be turned off by
pressing the rear park aid
disable switch located in the
center console switchbank.
When the switch is on an
indicator light will glow on
the switch.
