load capacity BUICK RANDEZVOUS 2002 Owner's Manual

2-62
Cell Phone Storage Compartment
Your vehicle has a cell phone storage compartment
located on the floor console storage closest to the
driver's seat. Lift the lid to use the storage compartment.
The compartment has an accessory power outlet for
charging the cell phone.
Cupholders
There are two cupholders located in the floor console.
The cupholders have liners that remove for larger
beverage items. Remove the liners by lifting them out.
Store the liners in the glove box when not in use.
Your vehicle also has cupholders located in the rear seat
armrests if the vehicle has a split folding seat or on the
side of the captain's chairs.
Rear Convenience Net
The rear convenience net is designed to help keep small
loads, like grocery bags, from falling over during sharp
turns or quick stops and starts. Install the convenience
net at the rear of your vehicle, just inside the liftgate.
To attach the rear convenience net attach both the upper
and lower hooks to the loops on either side of the
liftgate opening (the label on the net should be in the
upper left corner).
The side of the convenience net closest to the front of
the vehicle is higher than the side closest to the liftgate.
Once you've loaded items into the net, stretch the higher
side of the net up and over the top of the load to hold it
firmly in place.
The convenience net has a maximum capacity of
100 lbs. (45 kg). It is not designed to hold larger, heavier
loads. Store such loads on the floor of your vehicle, as
far forward as you can.
When not in use, it is recommend that you take down
the rear convenience net to extend its life and retain its
elasticity, and to keep the rear exit clear. Store the net in
the pouch behind either front seat or inside the
convenience center.

2-63 Rear Convenience Center (Option)
CAUTION:
If the rear convenience center isn't secured
properly, it can move around in a collision or
sudden stop. People in the vehicle could be
injured. Be sure to secure the rear convenience
center properly.
The main purpose of the optional rear convenience
center is to provide added convenience when using the
rear of your vehicle by making it easier to load, organize
and store items in your vehicle.
The extended rear convenience center, without the
optional third row stowable seat, has a forward bin and
rear bin. The rear convenience center, with the optional
third row stowable seat, contains one storage bin.
To use the convenience center, remove the carpeted mat
and lift the handle(s) on the top of the lid to open the
storage bin.The extended rear convenience center has a maximum
weight capacity of 400 lbs. (181.6 kg) on top.
The shorter rear convenience center that comes with the
optional third row stowable seat has a maximum weight
capacity of 100 lbs. (45.4 kg) on top.
Removing the Extended Rear Convenience Center
1. Make sure that all items have been removed from the
top and the inside of the rear convenience center.
2. Remove the carpeted mat (if equipped) from
the vehicle.
3. Lift the handle(s) on the top of the lid to open
the rear storage bin. The center lid will also need
to be opened.
4. Remove the two nuts from inside the rear storage
bin. The nuts are located in the bottom of the bin.
5. Lift the rear storage bin and remove it from the rear
of the vehicle.
6. Remove the two nuts inside the forward storage bin.
These nuts are located along the bottom of the center
divider wall.
7. Lift the forward storage bin and remove it from the
rear of the vehicle.

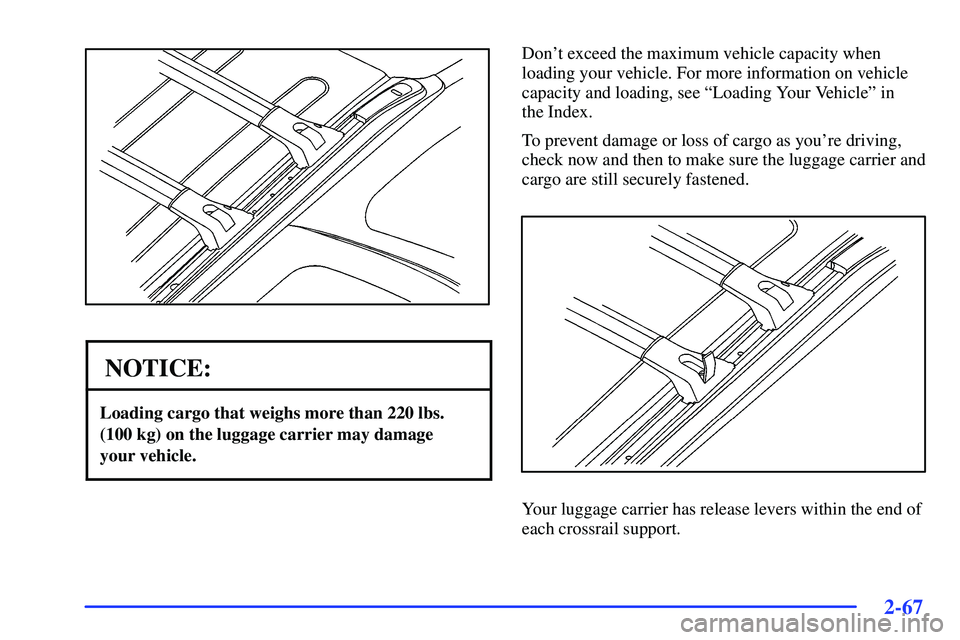

2-67
NOTICE:
Loading cargo that weighs more than 220 lbs.
(100 kg) on the luggage carrier may damage
your vehicle.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.
To prevent damage or loss of cargo as you're driving,
check now and then to make sure the luggage carrier and
cargo are still securely fastened.
Your luggage carrier has release levers within the end of
each crossrail support.

4-34
Loading Your Vehicle
The Certification/Tire label is found on the rear edge of
the driver's door.
The label shows the size of your original tires and the
inflation pressures needed to obtain the gross weight
capacity of your vehicle. This is called the Gross Vehicle
Weight Rating (GVWR). The GVWR includes the
weight of the vehicle, all occupants, fuel and cargo.The Certification/Tire label also tells you the maximum
weights for the front and rear axles, called the Gross
Axle Weight Rating (GAWR). To find out the actual
loads on your front and rear axles, you need to go to a
weigh station and weigh your vehicle. Your dealer can
help you with this. Be sure to spread out your load
equally on both sides of the centerline.
Never exceed the GVWR for your vehicle or the GAWR
for either the front or rear axle.
CAUTION:
Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR. If you do, parts on your vehicle can
break, and it can change the way your vehicle
handles. These could cause you to lose control
and crash. Also, overloading can shorten the life
of your vehicle.

4-37
NOTICE:
Pulling a trailer improperly can damage your
vehicle and result in costly repairs not covered by
your warranty. To pull a trailer correctly, follow
the advice in this part, and see your dealer for
important information about towing a trailer
with your vehicle. Additional rear axle
maintenance is required for a vehicle used to tow
a trailer. See ªScheduled Maintenance Servicesº
in the Index.
Your vehicle can tow a trailer. To identify what the
vehicle trailering capacity is for your vehicle, you
should read the information in ªWeight of the Trailerº
that appears later in this section. But trailering is
different than just driving your vehicle by itself.
Trailering means changes in handling, durability and
fuel economy. Successful, safe trailering takes correct
equipment, and it has to be used properly.
That's the reason for this section. In it are many
time
-tested, important trailering tips and safety rules.
Many of these are important for your safety and that of
your passengers. So please read this section carefully
before you pull a trailer.
Load
-pulling components such as the engine, transaxle,
wheel assemblies and tires are forced to work harder
against the drag of the added weight. The engine is
required to operate at relatively higher speeds and under
greater loads, generating extra heat. What's more, the
trailer adds considerably to wind resistance, increasing
the pulling requirements.

4-39
You can ask your dealer for our trailering information or
advice, or you can write us at:
Buick Customer Assistance Center
P.O. Box 33136
Detroit, MI 48232
-5136
In Canada, write to:
General Motors of Canada Limited
Customer Communication Centre, 163
-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total or gross
weight of your vehicle. The Gross Vehicle Weight
(GVW) includes the curb weight of the vehicle, any
cargo you may carry in it, and the people who will be
riding in the vehicle. And if you will tow a trailer, you
must add the tongue load to the GVW because your
vehicle will be carrying that weight, too. See ªLoading
Your Vehicleº in the Index for more information about
your vehicle's maximum load capacity.
If you're using a weight-carrying or a
weight
-distributing hitch, the trailer tongue weight (A)
should be 10 percent to 15 percent of the total loaded
trailer weight (B). Do not exceed the maximum
allowable tongue weight for your vehicle.
After you've loaded your trailer, weigh the trailer and
then the tongue, separately, to see if the weights are
proper. If they aren't, you may be able to get them right
simply by moving some items around in the trailer.

6-50
Temperature -- A, B, C
The temperature grades are A (the highest), B, and C,
representing the tire's resistance to the generation of
heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure.
The grade C corresponds to a level of performance
which all passenger car tires must meet under the
Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance
on the laboratory test wheel than the minimum required
by law.
Warning: The temperature grade for this tire is
established for a tire that is properly inflated and not
overloaded. Excessive speed, underinflation, or
excessive loading, either separately or in combination,
can cause heat buildup and possible tire failure.Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
Scheduled wheel alignment and wheel balancing are not
needed. However, if you notice unusual tire wear or
your vehicle pulling one way or the other, the alignment
may need to be reset. If you notice your vehicle
vibrating when driving on a smooth road, your wheels
may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts and wheel nuts should be replaced. If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load
-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
