Page 190 of 455

2-102
Service Vehicle Soon Message
United States Canada
This light will come on if your vehicle has certain
non
-emission related problems.
For example, if the entire electrical system fails to send
and receive messages from the vehicle's components,
this message will come on.
These problems may not be obvious and may affect
vehicle performance or durability. Consult a qualified
dealership for necessary repairs to maintain top
vehicle performance.
AWD Disable Warning Message (Option)
United States Canada
You will receive this message when there is a spare tire
on the vehicle, when the anti
-lock brake system warning
light comes on, or when the rear differential fluid is in
an overtemp condition. The message will go out when
the differential fluid cools.
The all
-wheel-drive system will be disabled until the
compact spare tire is replaced by a full
-size tire. If the
warning message is still on after putting on the full
-size
tire, you need to reset the warning message. To reset the
warning message, turn the ignition to OFF then to ON.
If the message stays on, see your dealer right away. See
ªAll
-Wheel Driveº in the Index for more information.
Page 293 of 455

4-34
Loading Your Vehicle
The Certification/Tire label is found on the rear edge of
the driver's door.
The label shows the size of your original tires and the
inflation pressures needed to obtain the gross weight
capacity of your vehicle. This is called the Gross Vehicle
Weight Rating (GVWR). The GVWR includes the
weight of the vehicle, all occupants, fuel and cargo.The Certification/Tire label also tells you the maximum
weights for the front and rear axles, called the Gross
Axle Weight Rating (GAWR). To find out the actual
loads on your front and rear axles, you need to go to a
weigh station and weigh your vehicle. Your dealer can
help you with this. Be sure to spread out your load
equally on both sides of the centerline.
Never exceed the GVWR for your vehicle or the GAWR
for either the front or rear axle.
CAUTION:
Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR. If you do, parts on your vehicle can
break, and it can change the way your vehicle
handles. These could cause you to lose control
and crash. Also, overloading can shorten the life
of your vehicle.
Page 299 of 455

4-40 Total Weight on Your Vehicle's Tires
Be sure your vehicle's tires are inflated to the upper
limit for cold tires. You'll find these numbers on the
Certification/Tire Label at the rear edge of the driver's
door, or see ªTire Loadingº in the Index. Then be sure
you don't go over the GVW limit for your vehicle,
including the weight of the trailer tongue.
Hitches
It's important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough roads are
a few reasons why you'll need the right hitch. Here are
some rules to follow:
If you'll be pulling a trailer that, when loaded, will
weigh more than 2, 000 lbs. (900 kg), be sure to use
a properly mounted, weight
-carrying hitch and sway
control of the proper size. This equipment is very
important for proper vehicle loading and good
handling when you're driving.
Will you have to make any holes in the body of your
vehicle when you install a trailer hitch?
If you do, then be sure to seal the holes later when
you remove the hitch. If you don't seal them, deadly
carbon monoxide (CO) from your exhaust can get
into your vehicle. See ªCarbon Monoxideº in the
Index. Dirt and water can, too.
Safety Chains
You should always attach chains between your vehicle
and your trailer. Cross the safety chains under the tongue
of the trailer to help prevent the tongue from contacting
the road if it becomes separated from the hitch.
Instructions about safety chains may be provided by the
hitch manufacturer or by the trailer manufacturer. Follow
the manufacturer's recommendation for attaching safety
chains and do not attach them to the bumper. Always
leave just enough slack so you can turn with your rig.
Never allow safety chains to drag on the ground.
Trailer Brakes
If your trailer weighs more than 1,000 lbs. (450 kg)
loaded, then it needs its own brakes
-- and they must be
adequate. Be sure to read and follow the instructions for
the trailer brakes so you'll be able to install, adjust and
maintain them properly.
Because you have anti
-lock brakes, do not try to tap
into your vehicle's brake system. If you do, both brake
systems won't work well, or at all.

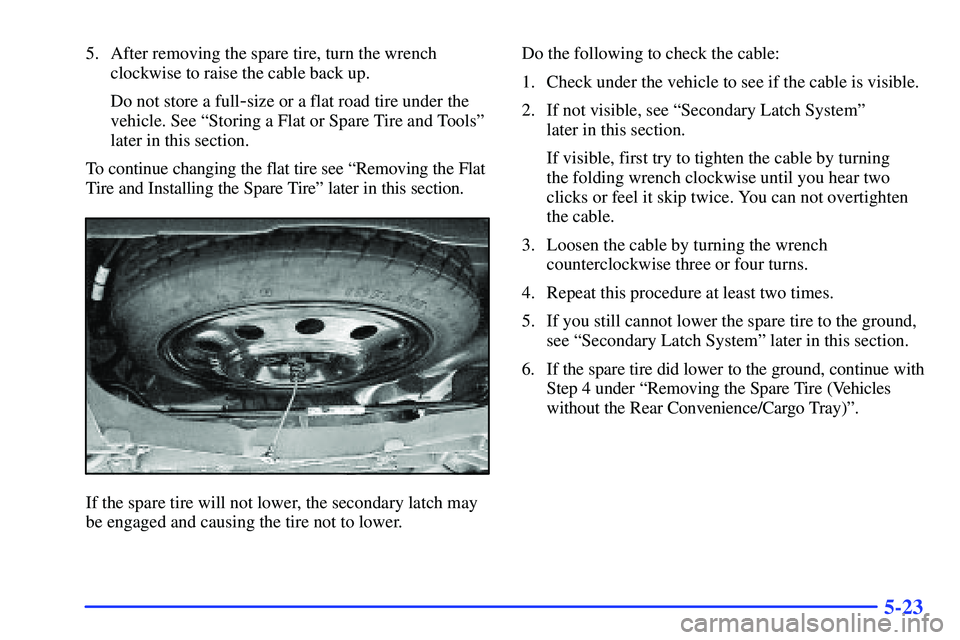

Page 326 of 455

5-23
5. After removing the spare tire, turn the wrench
clockwise to raise the cable back up.
Do not store a full
-size or a flat road tire under the
vehicle. See ªStoring a Flat or Spare Tire and Toolsº
later in this section.
To continue changing the flat tire see ªRemoving the Flat
Tire and Installing the Spare Tireº later in this section.
If the spare tire will not lower, the secondary latch may
be engaged and causing the tire not to lower.Do the following to check the cable:
1. Check under the vehicle to see if the cable is visible.
2. If not visible, see ªSecondary Latch Systemº
later in this section.
If visible, first try to tighten the cable by turning
the folding wrench clockwise until you hear two
clicks or feel it skip twice. You can not overtighten
the cable.
3. Loosen the cable by turning the wrench
counterclockwise three or four turns.
4. Repeat this procedure at least two times.
5. If you still cannot lower the spare tire to the ground,
see ªSecondary Latch Systemº later in this section.
6. If the spare tire did lower to the ground, continue with
Step 4 under ªRemoving the Spare Tire (Vehicles
without the Rear Convenience/Cargo Tray)º.
Page 328 of 455

5-25
5. To remove the spare tire from the cable, tilt the
retainer and slip it through the wheel opening.
6. After removing the spare tire, turn the wrench
clockwise to raise the cable back up.
Do not store a full
-size or a flat road tire under the
vehicle. See ªStoring a Flat or Spare Tire and Toolsº
later in this section.
To continue changing the flat tire see ªRemoving
the Flat Tire and Installing the Spare Tireº later in
this section.
If the spare tire will not lower, the secondary latch may
be engaged and causing the tire not to lower. Do the
following to check the cable:
1. Check under the vehicle to see if the cable is visible.
2. If not visible, see ªSecondary Latch Systemº later
in this section.
If visible, first try to tighten the cable by turning
the folding wrench clockwise until you hear two
clicks or feel it skip twice. You can not overtighten
the cable.
Page 338 of 455

5-35
9. Make sure the tire is stored securely. Push, pull, and
then try to rotate or turn the tire. If the tire moves,
use the folding wrench to tighten the cable.Put back all tools as they were stored in the jack storage
compartment and put the compartment cover back on.
To put the cover back on, slip the tabs on the side of
the cover into the cover opening. Push the cover in place
and push down the tabs on the cover so that it rests
in the groove. This secures the cover in place.
When you replace the compact spare with a full
-size
tire, reinstall the bolt
-on wheel covers or the center cap
(if equipped). Tighten them ªhand tightº over the wheel
nuts, using the folding wrench.
Page 339 of 455

5-36
Storing the Flat Tire (Vehicles without the Stowable
Seat and without the Rear Convenience/Cargo Tray)
A. D-Ring
B. Wing Nut
C. J
-HookD. Valve Stem
E. Full
-Size Tire1. Flip up the D
-ring located in the rear cargo area.
2. Lay the tire in the rear cargo area of the vehicle with
the valve stem up with the center hole of the tire over
the D
-ring.
For vehicles with aluminum wheels, remove the
center trim cap by tapping the back of the cap with
the folding wrench.
3. Remove the J
-hook and the wing nut from the back
of the jack access door. Assemble the wing nut and
the J
-hook.
4. Install the wing nut and the J
-hook to the D-ring
through the center hole of the tire.
5. Tighten the wing nut to secure the tire to the floor.
Push and pull on the tire to make sure the tire is
secure and does not move.
6. Put back all tools as they were stored in the jack
storage compartment and put the compartment
cover back on.
To put the cover back on, slip the tabs on the side of the
cover into the cover opening. Push the cover in place
and push down the tabs on the cover so that it rests in
the groove. This secures the cover in place.
Page 340 of 455

5-37
Storing the Flat Tire (Vehicles with the Rear
Convenience/Cargo Tray) (Option)
A. D-Ring
B. Rear Convenience/
Cargo Tray
C. Wing Nut
D. J
-HookE. Full
-Size Tire
F. Cap on Bottom
of Storage
Compartment1. Open the center storage compartment door of the
rear convenience/cargo tray.
2. Remove the cap on the bottom of the storage
compartment and flip the D
-ring up.
3. Lay the tire on top of the center storage compartment
with the valve stem down. Make sure you can see the
D
-ring through the center hole of the tire.
4. Remove the J
-hook and the wing nut from the back
of the jack access door. Assemble the wing nut and
the J
-hook.
5. Install the wing nut and the J
-hook to the D-ring
through the center hole of the tire.
6. Tighten the wing nut to secure the tire to the floor.
Push and pull on the tire to make sure the tire is
secure and does not move.
7. Put back all tools as they were stored in the jack
storage compartment and put the compartment cover
back on.
To put the cover back on, slip the tabs on the side of the
cover into the cover opening. Push the cover in place
and push down the tabs on the cover so that it rests in
the groove. This secures the cover in place.
Page 341 of 455

5-38
Storing the Flat Tire (Vehicles with the
Stowable Seat) (Option)
A. Rear Convenience/
Cargo Tray
B. Full
-Size Tire
C. D
-RingD. Stowable Seat Strap
E. Cargo Net Hook
F. J
-Hook
G. Wing Nut1. If the seatback is not in an upright position, move it
to an upright position.
2. There is a strap attached to each side of the stowable
seat. Hook the straps to the cargo net hook in the
rear of the vehicle.
3. Flip the D
-ring so it is pointing outward.
4. Open the convenience/cargo tray cover.
5. Stand the full
-size tire up, in the tray against the
back of the seat with the valve stem pointing out.
6. Remove the J
-hook and the wing nut from the back
of the jack access door. Assemble the wing nut and
the J
-hook.
7. Install the wing nut and the J
-hook to the D-ring
through the center hole of the tire.
8. Tighten the wing nut to secure the tire to the seatback.
Push and pull on the tire to make sure the tire
is secure and does not move.
9. Put back all tools as they were stored in the jack
storage compartment and put the compartment
cover back on.
To put the cover back on, slip the tabs on the side of the
cover into the cover opening. Push the cover in place
and push down the tabs on the cover so that it rests in
the groove. This secures the cover in place.
Page 342 of 455

5-39
Storing the Flat Tire with the Stowable Seatback
Folded Flat
A. Stowable Seatback
B. Full
-Size Tire
C. Wing NutD. J
-Hook
E. D
-Ring1. Fold the seatback down and flip the D
-ring up.
2. Lay the tire on the seatback with the valve stem
pointing up with the center hole of the tire over
the D
-ring.
3. Remove the J
-hook and the wing nut from the back
of the jack access door. Assemble the wing nut and
the J
-hook.
4. Install the wing nut and the J
-hook to the D-ring
through the center hole of the tire.
5. Tighten the wing nut to secure the tire to
the seatback.
Push and pull on the tire to make sure the tire
is secure and does not move.
6. Put back all tools as they were stored in the jack
storage compartment and put the compartment
cover back on.
To put the cover back on, slip the tabs on the side of the
cover into the cover opening. Push the cover in place
and push down the tabs on the cover so that it rests in
the groove. This secures the cover in place.
