BUICK REGAL 1994 Owners Manual

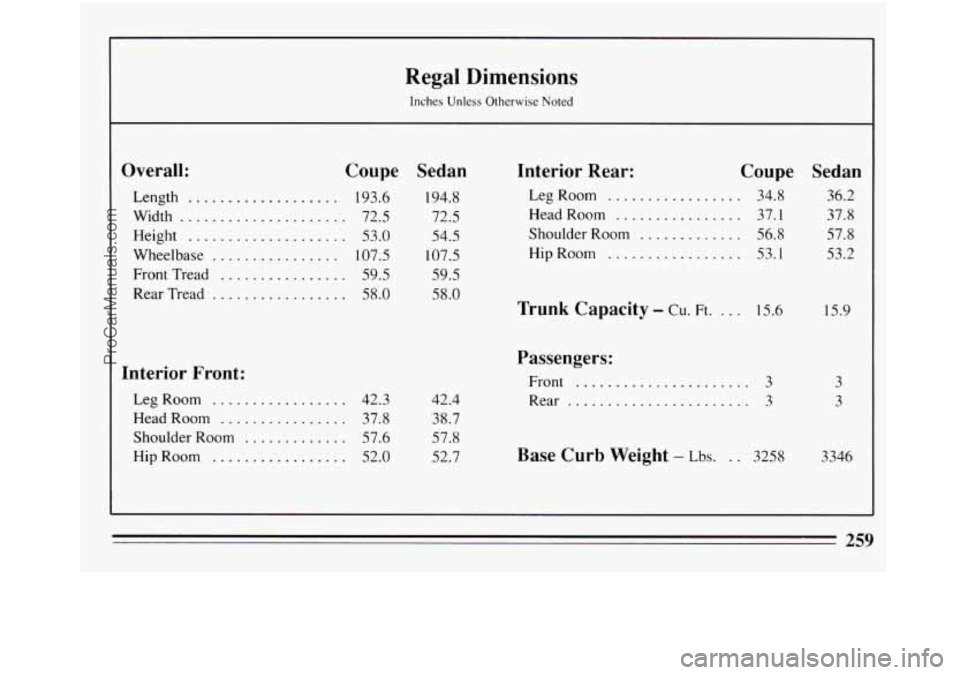

Regal Dimensions
Inches Unless Otherwise Noted
Overall:
Length ...................
Width .....................
Height ....................
Wheelbase ................
Front Tread ................
Rear Tread .................
Interior Front:
Leg Room .................
Head Room ................
Shoulder Room .............
Hip Room ..... ~ ~ ..........
Coupe
193.6
72.5
53.0
107.5 59.5
58.0
42.3 37.8
57.6
52.0
Sedan
194.8 72.5
54.5
107.5
59.5
58.0
Interior Rear: Coupe Sedan
Leg Room ................. 34.8
36.2
Head Room ................ 37.1
37.8
Shoulder Room ............. 56.8 57.8
Hip Room ................. 53.1
53.2
42.4
38.7
57.8
52.7
Trunk Capacity . CU . Ft .... 15.6
15.9
Passengers:
Front ...................... 3
Rear ....................... 3
Base Curb Weight . Lbs ... 3258 3
3
3346
259
ProCarManuals.com

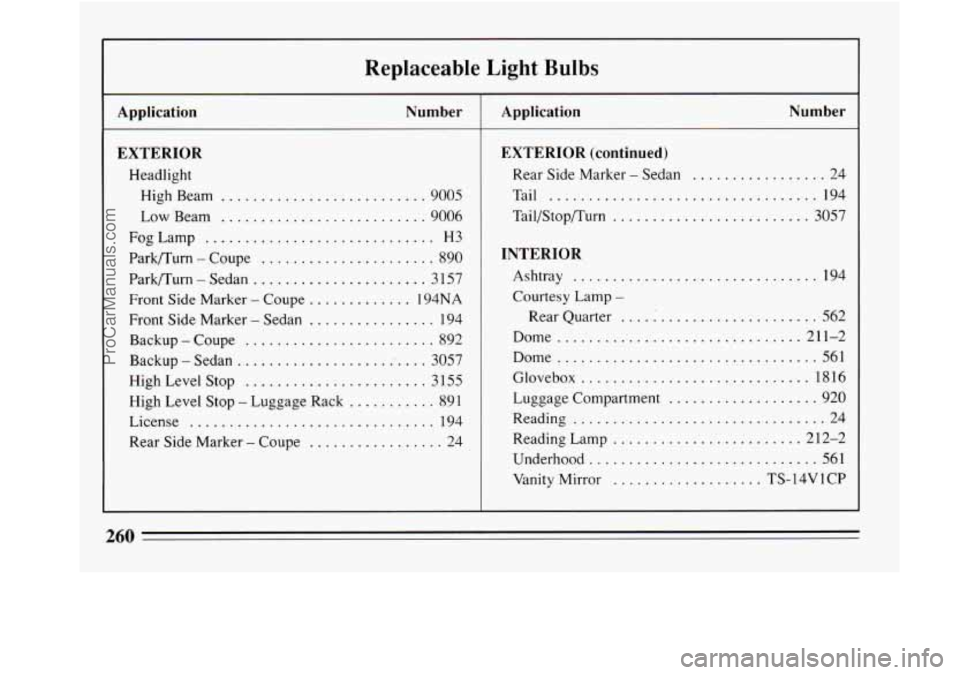

Replaceable Light Bulbs
Application Number
EXTERIOR
Headlight HighBeam
.......................... 9005
Low Beam .......................... 9006
FogLamp
............................. H3
Park/Turn
. Coupe ...................... 890
Parkrurn-Sedan
...................... 3157
Front Side Marker . Coupe ............. 194NA
Front Side Marker
. Sedan ................ 194
Backup-Coupe
........................ 892
Backup-Sedan
........................ 3057
High Level Stop
....................... 3 155
High Level Stop
- Luggage Rack ........... 89 1
License
............................... 194
Rear Side Marker
- Coupe ................. 24
Application Number
EXTERIOR (continued)
Rear Side Marker . Sedan ................. 24
Tail
.................................. 194
Tail/Stop/Turn
......................... 3057
INTERIOR
Ashtray . . .. ........................... 194
Courtesy Lamp .
Rear Quarter .... i .................... 562
Dome
............................... 211-2
Dome
................................. 561
Glovebox ............................. 1816
Luggage Compartment
................... 920
Reading
................................ 24
Reading Lamp
........................ 212-2
Underhood
............................. 561
Vanity Mirror ................... TS-14VlCP
260
ProCarManuals.com

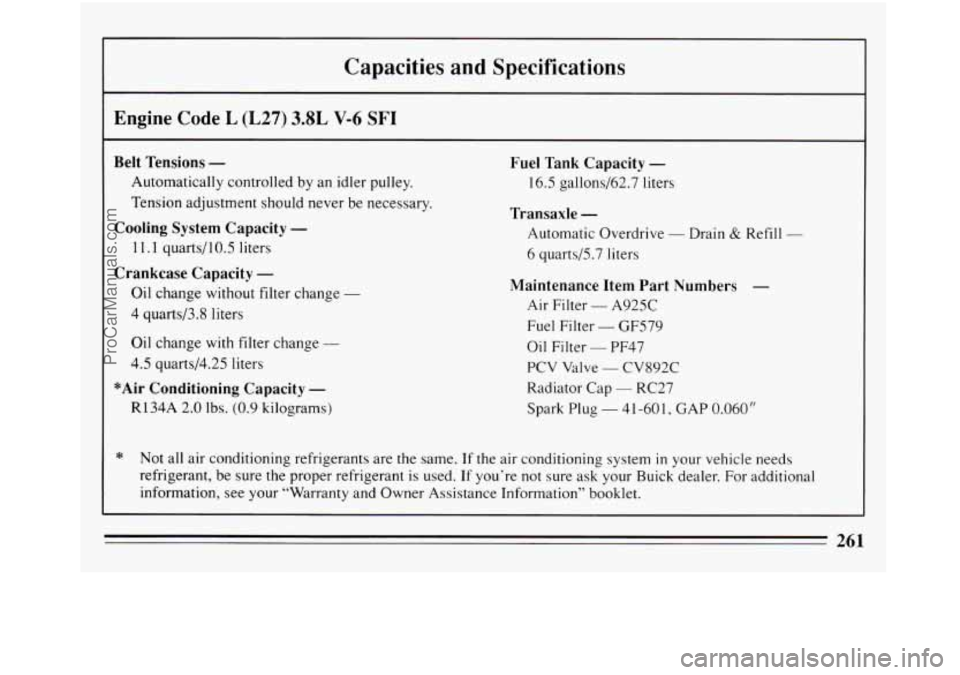

Capacities and Specifications
Engine Code L (L27) 3.8L V-6 SF1
Belt Tensions -
Automatically controlled by an idler pulley.
Tension adjustment should never be necessary.
Cooling System Capacity -
11.1 quartsl10.5 liters
Crankcase Capacity -
Oil change without filter change -
4 quarts/3.8 liters
Oil change with filter change -
4.5 quarts/4.25 liters
*Air Conditioning Capacity -
R134A 2.0 lbs. (0.9 kilograms)
Fuel Tank Capacity -
16.5 gallons/62.7 liters
Transaxle -
Automatic Overdrive - Drain & Refi 11 -
6 quarts/5.7 liters
Maintenance Item Part Numbers -
Air Filter - A925C
Fuel Filter
- GF579
Oil Filter
- PF47
PCV Valve
- CV892C
Radiator Cap
- RC27
Spark Plug
- 4 1-60 1, GAP 0.060”
* Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If you’re not sure ask your Buick dealer. For additional
information, see your “Warranty and Owner Assistance Information” booklet.
261
ProCarManuals.com

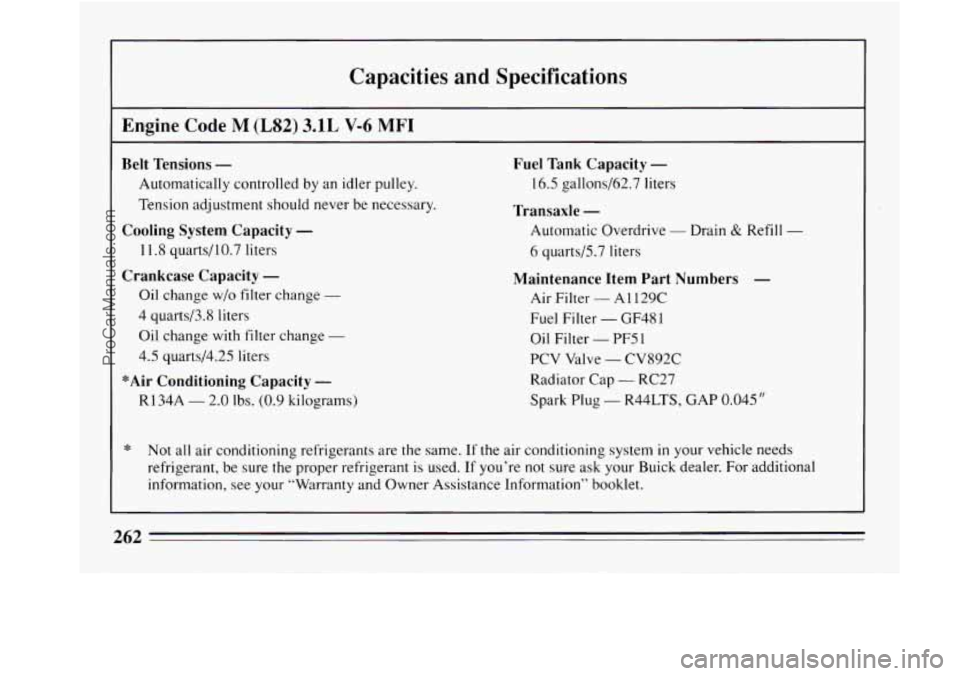

Capacities and Specifications
Engine Code M (LS2) 3.1L V-6 MFI
Belt Tensions -
Automatically controlled by an idler pulley.
Tension adjustment should never be necessary.
Cooling System Capacity -
11.8 quartsll0.7 liters
Crankcase Capacity -
Oil change w/o filter change -
4 quarts/3.8 liters
Oil change with filter change
-
4.5 quarts/4.25 liters
*Air Conditioning Capacity -
R134A - 2.0 lbs. (0.9 kilograms)
Fuel Tank Capacity -
16.5 gallons/62.7 liters
Transaxle -
Automatic Overdrive - Drain & Refill -
6 quarts/5.7 liters
Maintenance Item Part Numbers -
Air Filter - A 1 129C
Fuel Filter - GF48 1
Oil Filter - PF5 1
PCV Valve - CV892C
Radiator Cap
- RC27
Spark Plug
- R44LTS, GAP 0.045”
* Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If you’re not sure ask your Buick dealer. For additional
information, see your “Warranty and Owner Assistance Information” booklet.
262
ProCarManuals.com

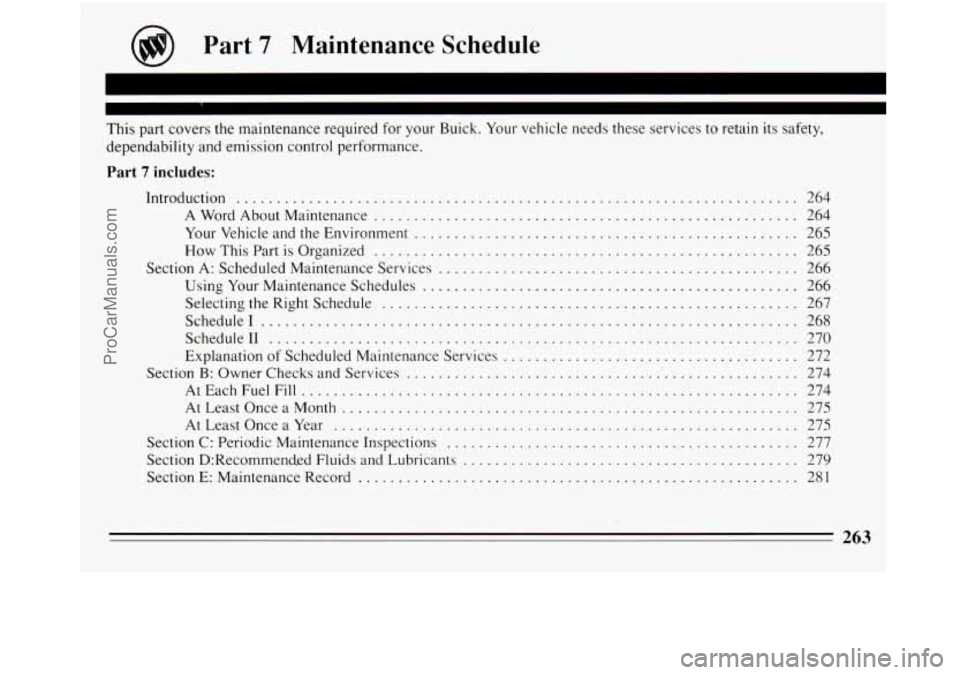

Part 7 Maintenance Schedule
This part covers the maintenance required for your Buick . Your vehicle needs these services to retain its safety.
dependability and emission control performance
.
Part 7 includes:
Introduction ......................................... ......... ................ 264
A Word About Maintenance ..................................................... 264
Your Vehicle and the Environment
................................................ 265
How This Part is Organized ..................................................... 265
Section A: Scheduled Maintenance Services
............................................. 266
Using Your Maintenance Schedules
............................................... 266
Selecting the Right Schedule
.................................................... 267
Schedule1
................................................................... 268
Schedule11
.................................................................. 270
Explanation
of Scheduled Maintenance Services ..................................... 272
Section
B: Owner Checks and Services ................................................. 274
AtEachFuelFill .............................................................. 274
At Least Once
a Month ......................................................... 275
AtLeastOnceaYear .......................................................... 275
Section
C: Periodic Maintenance Inspections ............................................ 277
Section D:Recommendgd Fluids
and Lubricants .......................................... 279
Section E: Maintenance Record ....................................................... 281
263
ProCarManuals.com

I
IMPORTANT:
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED
Protection
Plan
Have you purchased the GM Protection Plan? The
Plan supplements
your new vehicle warranties. See
your Buick dealer for details.

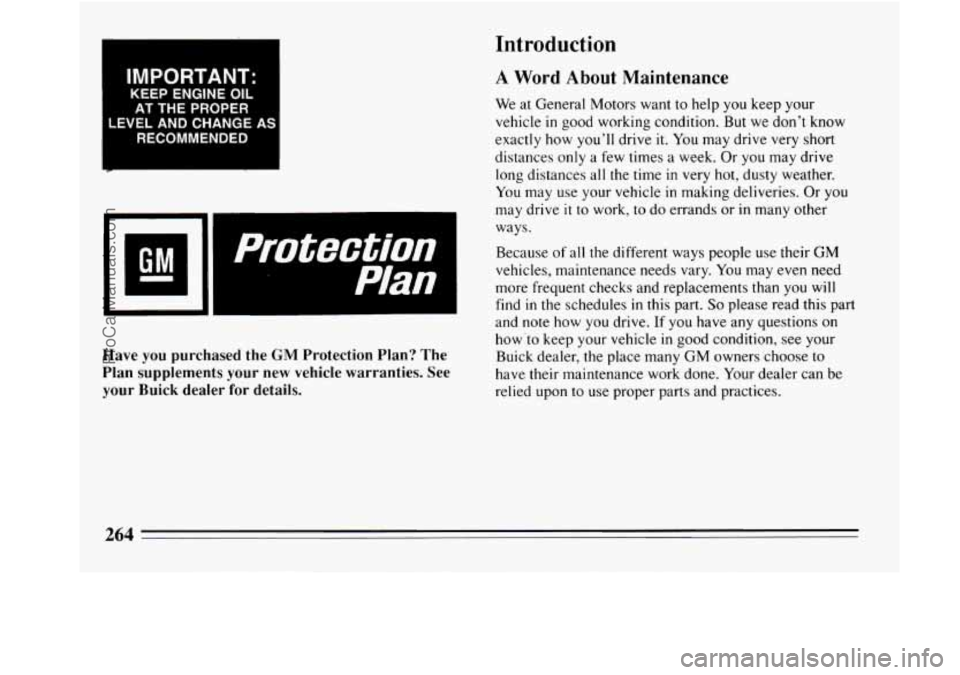

Introduction
A Word About Maintenance
We at General Motors want to help you keep your
vehicle
in good working condition. But we don’t know
exactly how you’ll drive it. You may drive very short
distances only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries. Or you
may drive
it to work, to do errands or in many other
ways.
Because of all the different ways people use their
GM
vehicles, maintenance needs vary. You may even need
more frequent checks and replacements than you will
find
in the schedules in this part. So please read this part
and note how you drive. If you have any questions on
how-to keep your vehicle
in good condition, see your
Buick dealer, the place many
GM owners choose to
have their maintenance work done. Your dealer can be
relied upon to use proper parts and practices.
264
ProCarManuals.com

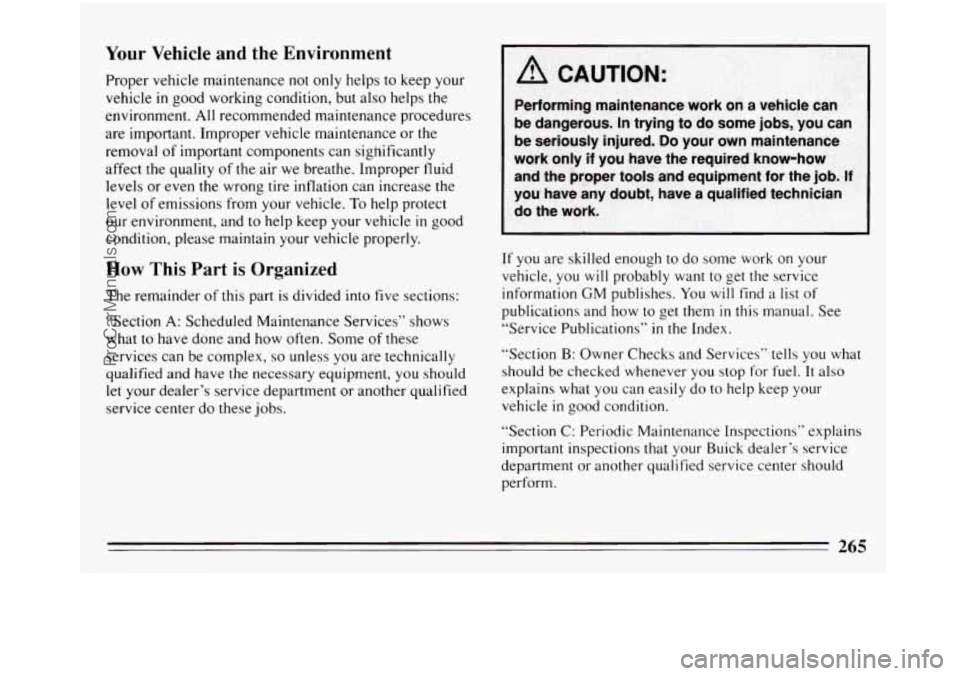

Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle
in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance or the
removal
of important components can sigHificantly
affect the quality
of the air we breathe. Improper fluid
levels or
even the wrong tire inflation can increase the
level of emissions from your vehicle.
To help protect
our environment, and
to help keep your vehicle in good
condition, please maintain your vehicle properly.
How This Part is Organized
The remainder of this part is divided into five sections:
“Section
A: Scheduled Maintenance Services” shows
what to have done and how often. Some of these
services can be complex,
so unless you are technically
qualified and have
the necessary equipment, you should
let your dealer’s service department or another qualified
service center do these jobs. If you
are skilled enough to do some work on your
vehicle,
you will probably want to get the service
information
GM publishes. You will find a list of
publications and how to get them in this manual. See
“Service Publications”
in the Index.
“Section B: Owner Checks and Services” tells you what
should be checked whenever you stop for fuel.
It also
explains what you can easily do to help keep your
vehicle
in good condition.
“Section C: Periodic Maintenance Inspections” explains important inspections that your Buick dealer’s service
department or another qualified service center should perform.
265
ProCarManuals.com

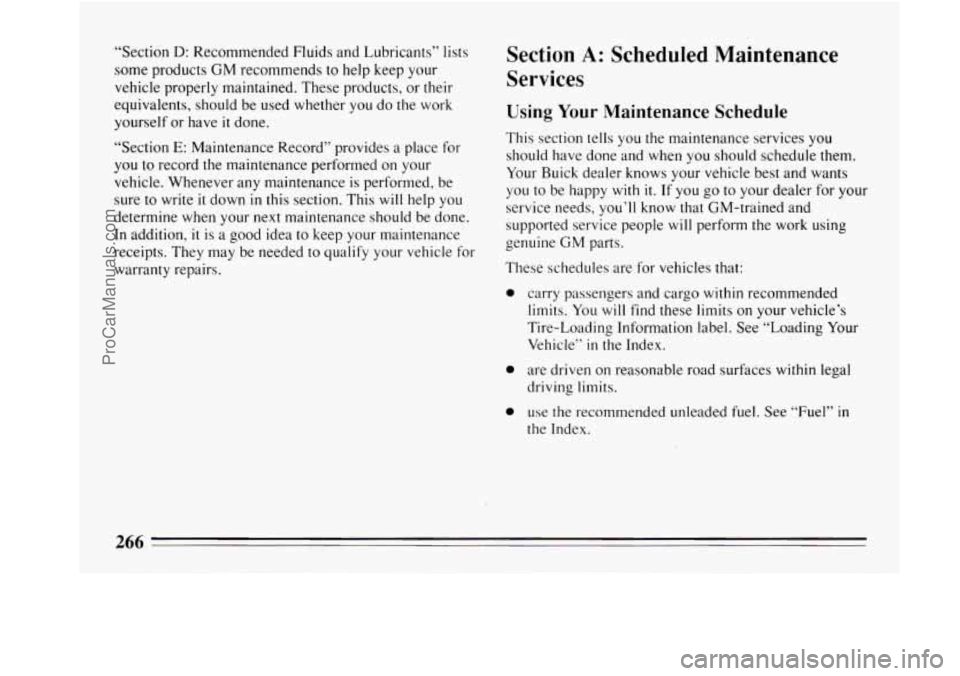

“Section D: Recommended Fluids and Lubricants” lists
some products
GM recommends to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself or have
it done.
“Section
E: Maintenance Record” provides a place for
you to record the maintenance performed on your
vehicle. Whenever any maintenance is performed, be
sure to write
it down in this section. This will help you
determine
when your next maintenance should be done.
In addition,
it is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle for
warranty repairs.
Section A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
This section tells you the maintenance services you
should have done and when you should schedule them.
Your Buick dealer knows your vehicle best and wants
you to be happy with it. If you
go to your dealer for your
service needs, you’ll know that GM-trained and
supported service people
will perform the work using
genuine
GM parts.
These schedules are for vehicles that:
0
0
0
carry passengers and cargo within recommended
limits. You
will find these limits on your vehicle’s
Tire-Loading Information label. See “Loading Your
Vehicle”
in the Index.
are driven on reasonable road surfaces within legal
driving limits.
use the recommended unleaded fuel. See “Fuel”
in
the Index.
266
ProCarManuals.com

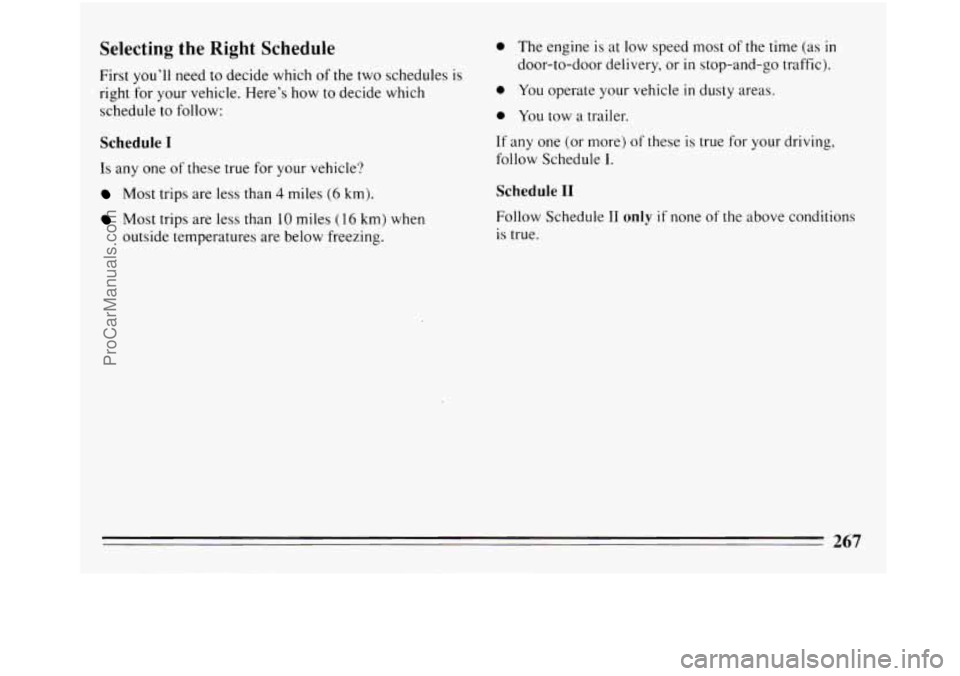

Selecting the Right Schedule
First you’ll need to decide which of the two schedules is
right for your vehicle. Here’s how to decide which
schedule to follow:
Schedule I
Is any one of these true for your vehicle?
Most trips are less than 4 miles (6 km).
Most trips are less than 10 miles (16 km) when
outside temperatures are below freezing.
0 The engine is at low speed most of the time (as in
0 You operate your vehicle in dusty areas.
door-to-door delivery,
or in stop-and-go traffic).
0 You tow a trailer.
If any one (or more) of these is true for your driving,
follow Schedule
I.
Schedule I1
Follow Schedule I1 only if none of the above conditions
is true.
267
ProCarManuals.com

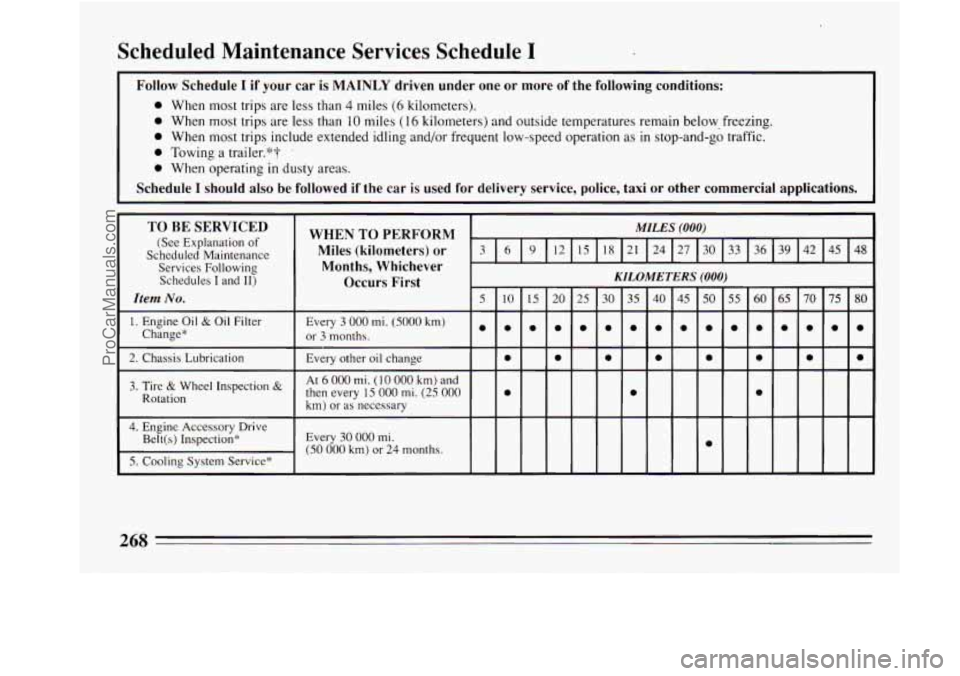

Scheduled Maintenance Services Schedule I
Follow Schedule I if your car is MAINLY driven under one or more of the following conditions:
0 When most trips are less than 4 miles (6 kilometers).
0 When most trips are less than 10 miles (16 kilometers) and outside temperatures remain below freezing.
0 When most trips include extended idling and/or frequent low-speed operation as in stop-and-go traffic.
0 Towing a trailer."? '
0 When operating in dusty areas.
I
Schedule I should also be followed if the car is used for delivery service, police, taxi or other commercial applications.
TO BE SERVICED
(See Explanation of
Scheduled Maintenance
Services Following Schedules
I and 11)
Item No.
1. Engine Oil & Oil Filter
Change"
2. Chassis Lubrication
3. Tire & Wheel Inspection &
Rotation
4. Engine Accessory Drive
Belt(s) Inspection*
5. Cooling System Service*
268
ProCarManuals.com
