radiator cap BUICK REGAL 1995 Owners Manual

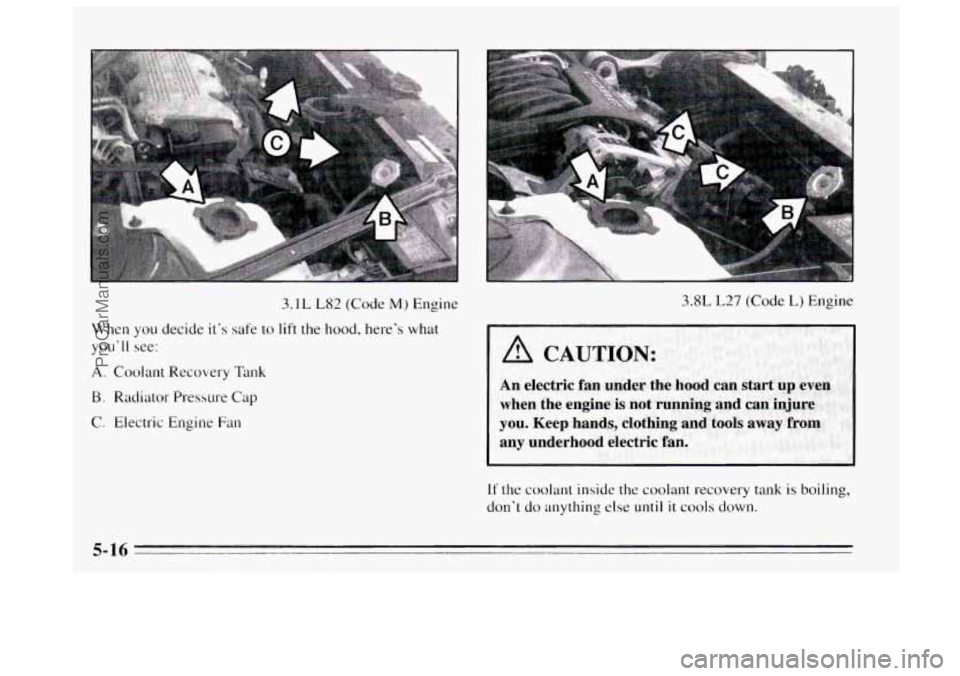

3.1 L L82 (Code M) Engine
When
you decide it’s safe to lift the hood, here’s what
you’
I1 see:
A. Coolant Recovery Tank
B. Radiator Pressure Cap
C. Electric Engine Fan
3.8L L27 (Code L) Engine
An electric fan under the hood can start up even
when the engine
is not running and can injure
you.
Keep hands, clothing and tools away from
any underhood electric fan.
If the coolant inside the coolant recovery tank is boiling,
don’t
do anything else until it cools down.
5-16
ProCarManuals.com

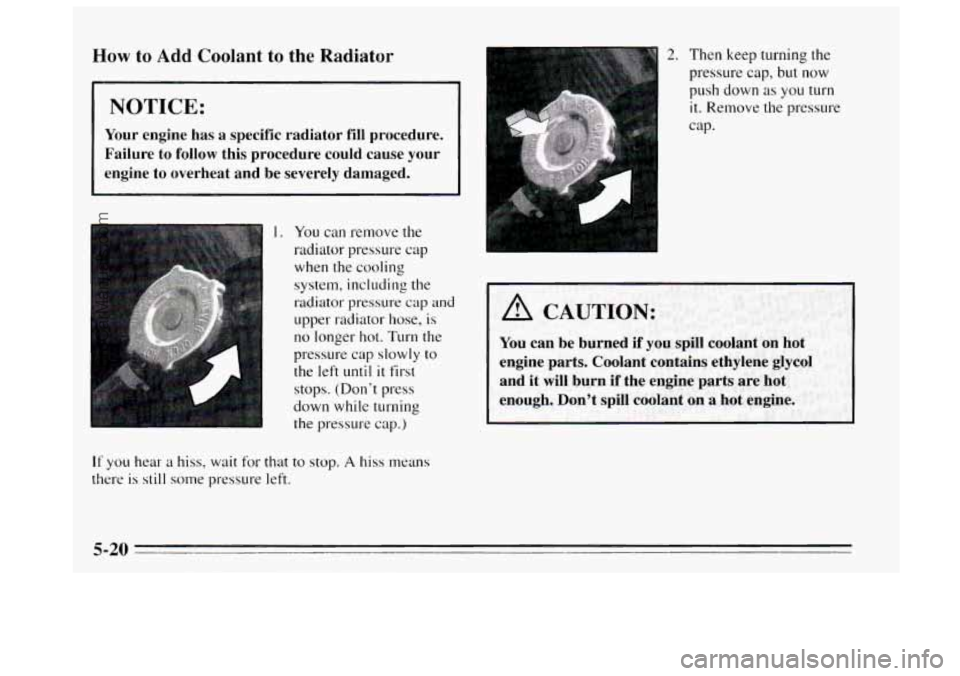

How to Add Coolant to the Radiator
NOTICE:
Your engine has a specific radiator fill procedure.
Failure to
follow this procedure could cause your
engine to overheat and be severely damaged.
1. You can remove the
radiator pressure cap
when the cooling
system, including the
radiator pressure
cap and
upper radiator hose,
is
no longer hot. Turn the
pressure
cap slowly to
the left until it first
stops. (Don’t press
down while turning
the pressure cap.)
IC you hear a hiss, wait for that to stop. A hiss means
there
is still some pressure left.
2. Then keep turning the
pressure cap, but now
push down
as you turn
it. Remove the pressure
cap.
5-20
ProCarManuals.com

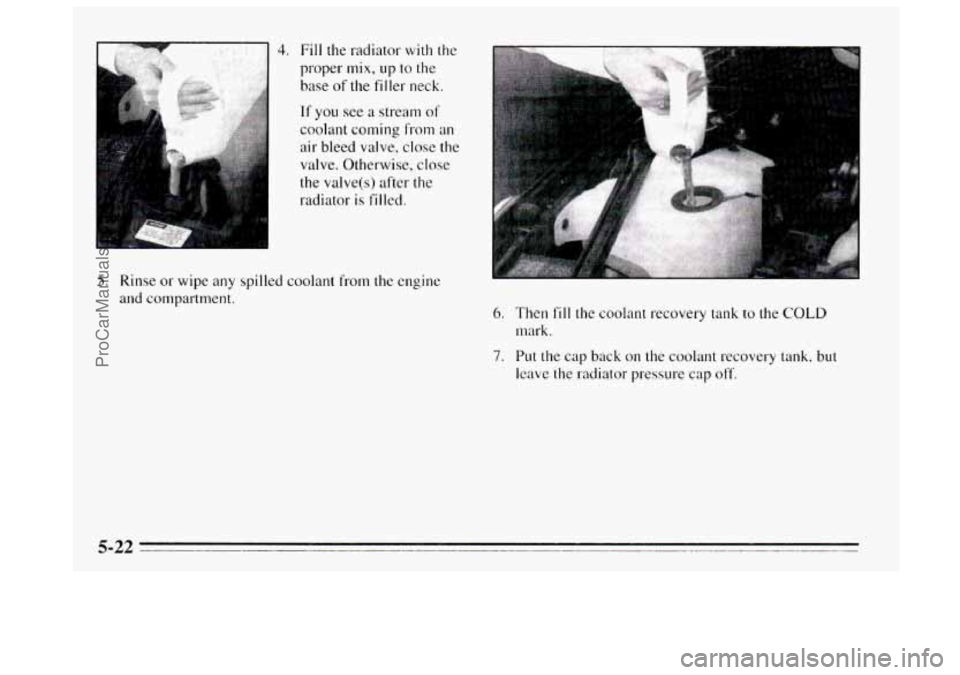

Fill the radiator with the
proper
mix, up to the
base of the filler neck.
If
you see a stream of
coolant coming horn an
air bleed valve, close the
valve. Otherwise, close
the valve(s) after the
radiator is filled.
5. Rinse or wipe any spilled coolant from the engine
and compartment.
6. Then fill the coolant recovery tank to the COLD
mark.
7. Put the cap back on the coolant recovery tank, but
leave the radiator pressure cap off.
ProCarManuals.com

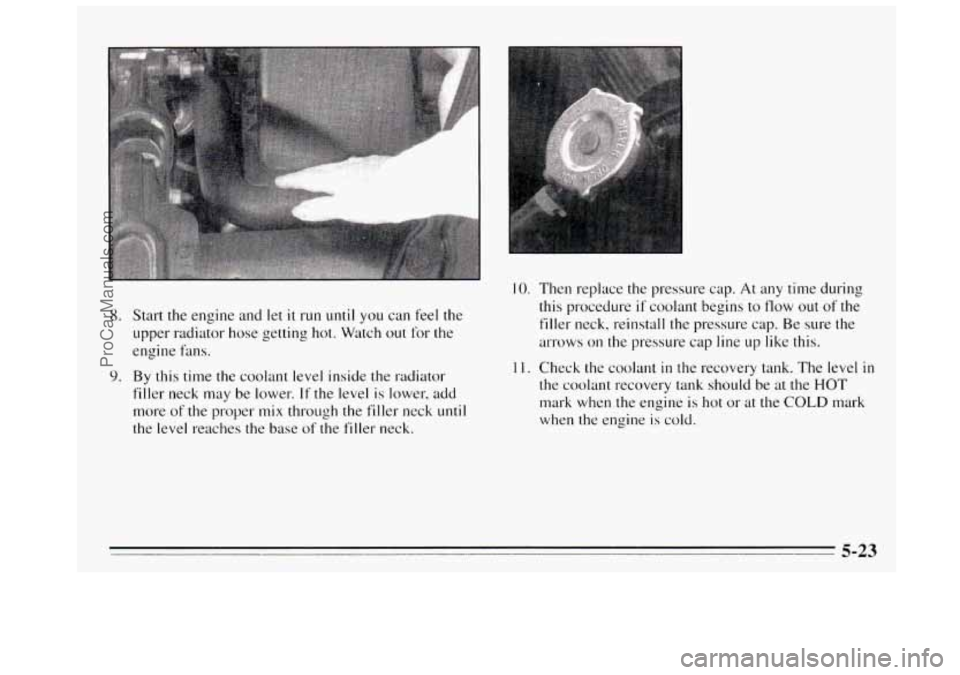

8. Start the engine and let it run until you can feel the
upper radiator hose getting hot. Watch
out for the
engine hns.
9. By this time the coolant level inside the radiator
filler neck may be lower.
If the level is lower, add
more
of the proper mix through the filler neck until
the level reaches the base of the filler neck.
10. Then replace the pressure cap. At any time during
this procedure
if coolant begins to flow out of the
filler neck, reinstall the pressure
cap. Be sure the
BI-~OWS on the pressure cap line up like this.
1 1 - Check the coolant in the recovery tank. The level in
the coolant recovery tank should be at the HOT
mark when the engine is hot or at the COLD mark
when the engine
is cold.
5-23
ProCarManuals.com

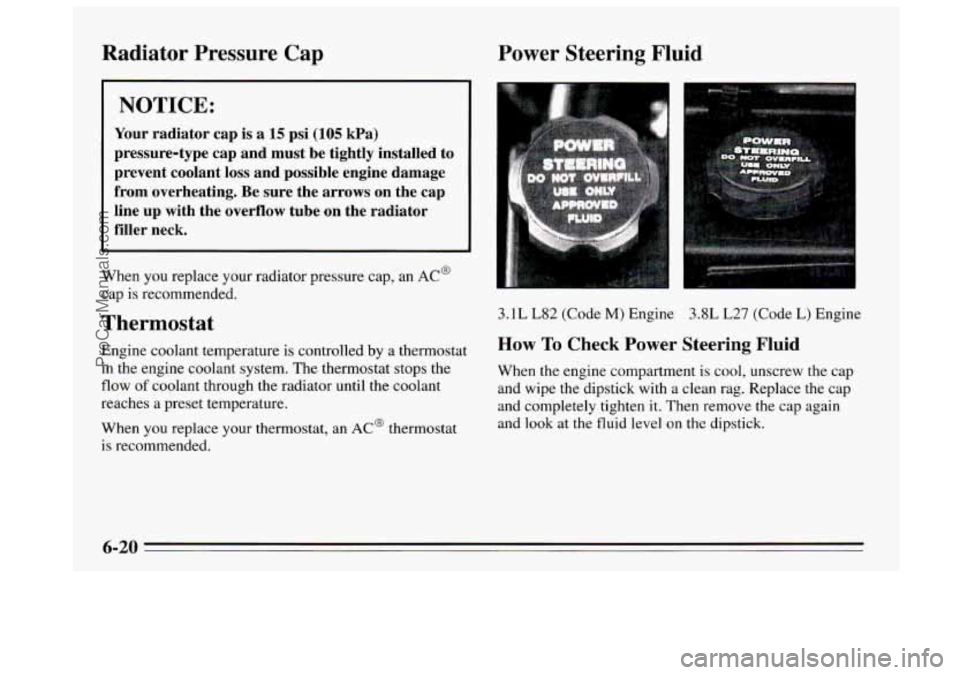

Radiator Pressure Cap Power Steering Fluid
NOTICE:
Your radiator cap is a 15 psi (105 kPa)
pressure-type cap and must be tightly installed to
prevent coolant loss and possible engine damage
from overheating. Be sure the arrows
on the cap
line up with the overflow tube on the radiator
filler neck.
When you replace your radiator pressure cap, an AC@
cap is recommended.
Thermostat
Engine coolant temperature is controlled by a thermostat
in the engine coolant system. The thermostat stops the
flow of coolant through the radiator until the coolant
reaches a preset temperature.
When you replace your thermostat, an
AC@ thermostat
is recommended. 3.1L
L82 (Code M) Engine
3.8L L27 (Code L) Engine
How To Check Power Steering Fluid
When the engine compartment is cool, unscrew the cap
and wipe the dipstick with a clean rag. Replace the cap
and completely tighten
it. Then remove the cap again
and look at the fluid level
on the dipstick.
6-20
ProCarManuals.com

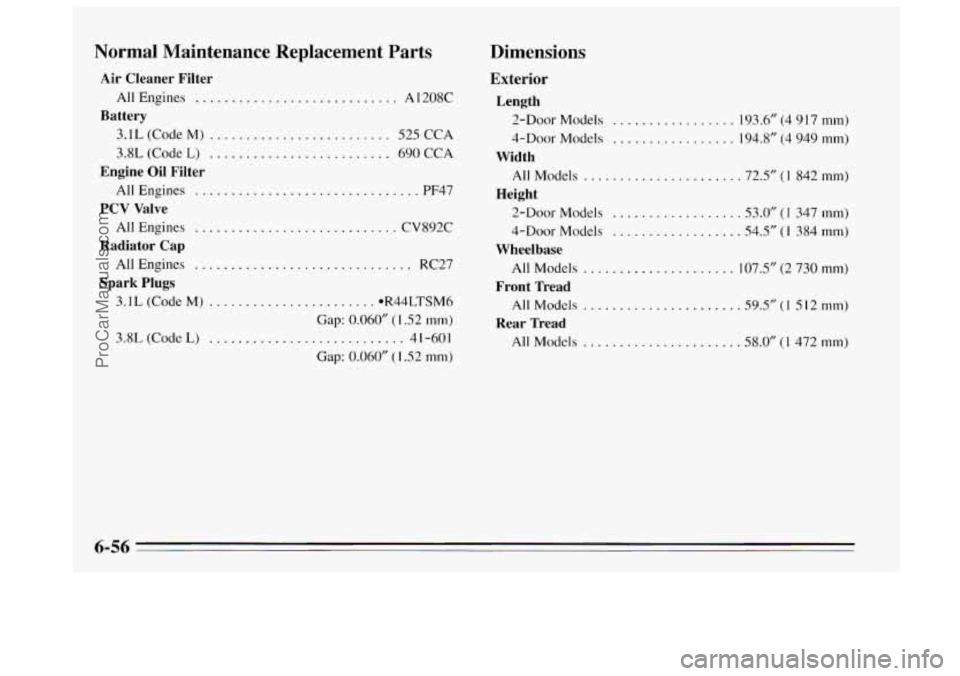

Normal Maintenance Replacement Parts
Air Cleaner Filter
Battery
AllEngines ............................ A1208C
3.1L (Code
M) ......................... 525 CCA
3.8L (Code L) ......................... 690 CCA
AllEngines ............................... PF47
All Engines
............................ CV892C
All Engines
.............................. RC27
3.1
L (Code M) ....................... mR44LTSM6
Gap: 0.060” ( 1.52 mm)
Gap: 0.060” (1.52 mm)
Engine Oil Filter
PCV Valve
Radiator
Cap
Spark Plugs
3-8L(CodeL) ........................... 41-601
Dimensions
Exterior
Length
2-Door Models ................. 193.6” (4 917 mm)
4-Door Models
................. 194.8” (4 949 mm)
All Models ..................... .72.5” (I 842 mm)
2-Door Models ................. .53.0” (1 347 mm)
&Door Models ................. .54.5“ (1 384 mm)
All Models
..................... 107.5” (2 730 mm)
All Models ..................... .59.5“(1 512 mm)
All Models ..................... .S8.0” (1 472 mm)
Width
Height
Wheelbase
Front Tread
Rear Tread
6-56
ProCarManuals.com

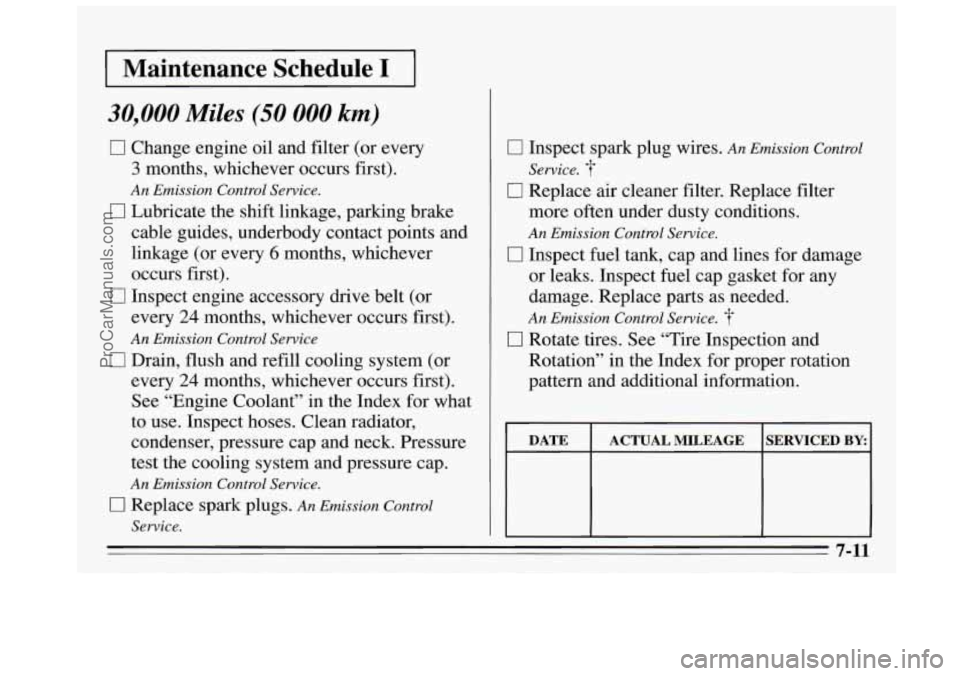

Maintenance Schedule I
30,000 Miles (50 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the shift linkage, parking brake
cable guides, underbody contact points and
linkage (or every
6 months, whichever
occurs first).
0 Inspect engine accessory drive belt (or
every 24 months, whichever occurs first).
An Emission Control Service
0 Drain, flush and refill cooling system (or
every 24 months, whichever occurs first).
See “Engine Coolant” in the Index for what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
0 Replace spark plugs. An Emission Control
Service.
0 Inspect spark plug wires. An Emission Control
0 Replace air cleaner filter. Replace filter
Service. T
more often under dusty conditions.
An Emission Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service.
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
I
~~
I DATE I ACTUAL MILEAGE SERVICED BY:
7-11
ProCarManuals.com

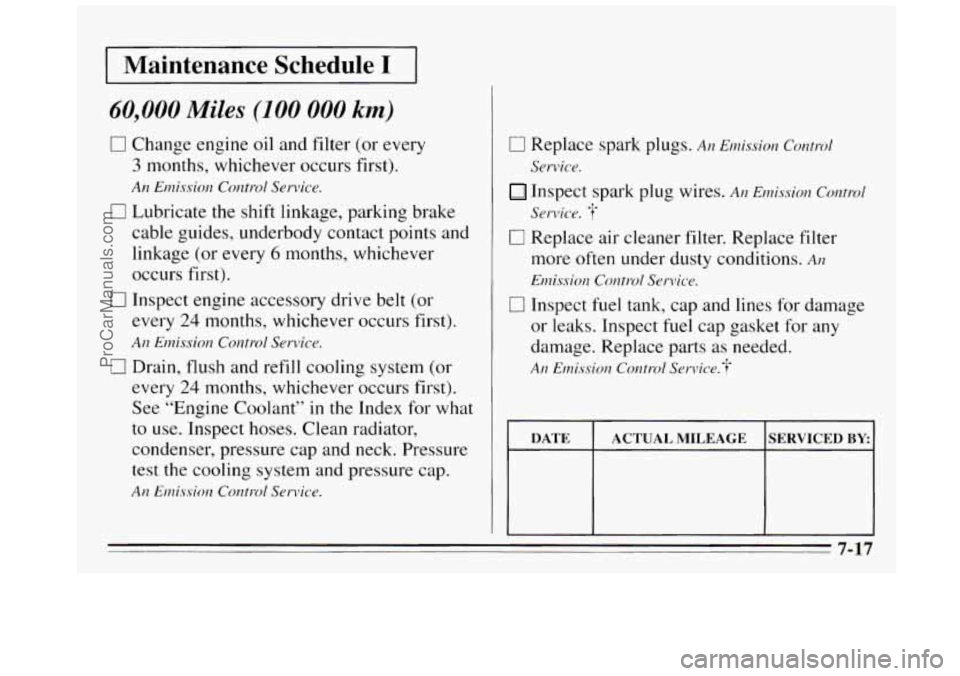

Maintenance Schedule I
60,000 Miles (IO0 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the shift linkage, parking brake
cable guides, underbody contact points and
linkage (or every
6 months, whichever
occurs first).
0 Inspect engine accessory drive belt (or
every 24 months, whichever occurs first).
0 Drain, flush and refill cooling system (or
every 24 months, whichever occurs first).
See “Engine Coolant’’
in the Index for what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
An Emission Control Service.
0 Replace spark plugs. An Ernission Control
Inspect spark plug wires. An Emission Control
0 Replace air cleaner filter. Replace filter
more often under dusty conditions.
Ail
Service.
Service.
-1
Emission Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service.?
I I I I
DATE SERVICED BY: ACTUAL MILEAGE
7-17
ProCarManuals.com

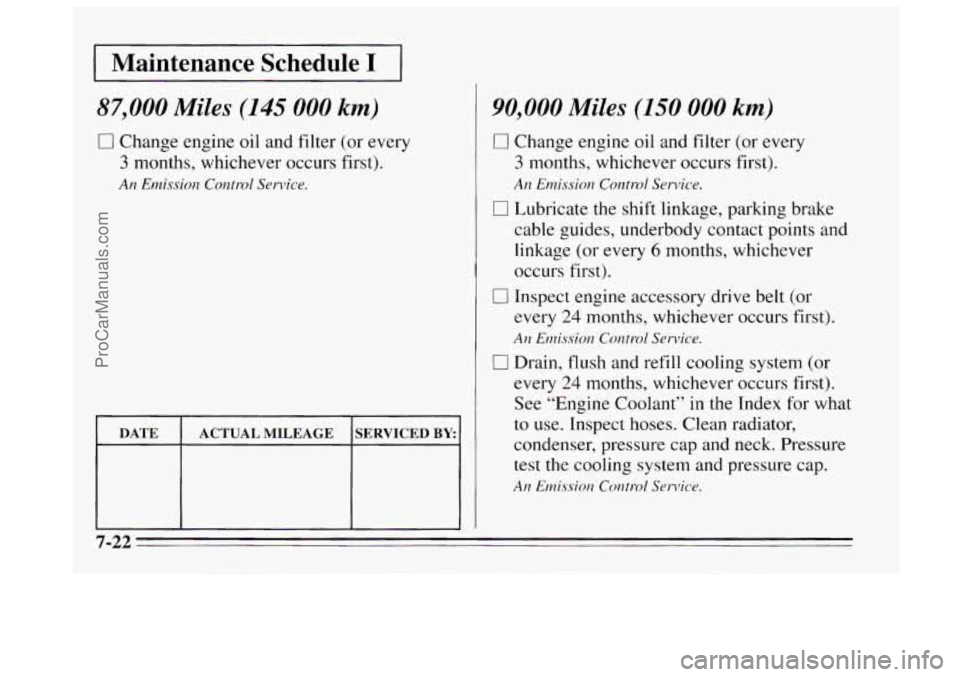

I Maintenance Schedule I 1
87,000 Miles (145 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Conttd Service.
DATE
SERVICED BY ACTUAL MILEAGE
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Senlice.
0 Lubricate the shift linkage, parking brake
cable guides, underbody contact points and
linkage (or every
6 months, whichever
occurs first).
0 Inspect engine accessory drive belt (or
every 24 months, whichever occurs first).
An Emission Control Service.
0 Drain, flush and refill cooling system (or
every
24 months, whichever occurs first).
See “Engine Coolant’,
in the Index for what
to use. Inspect hoses.
Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
7-22
ProCarManuals.com

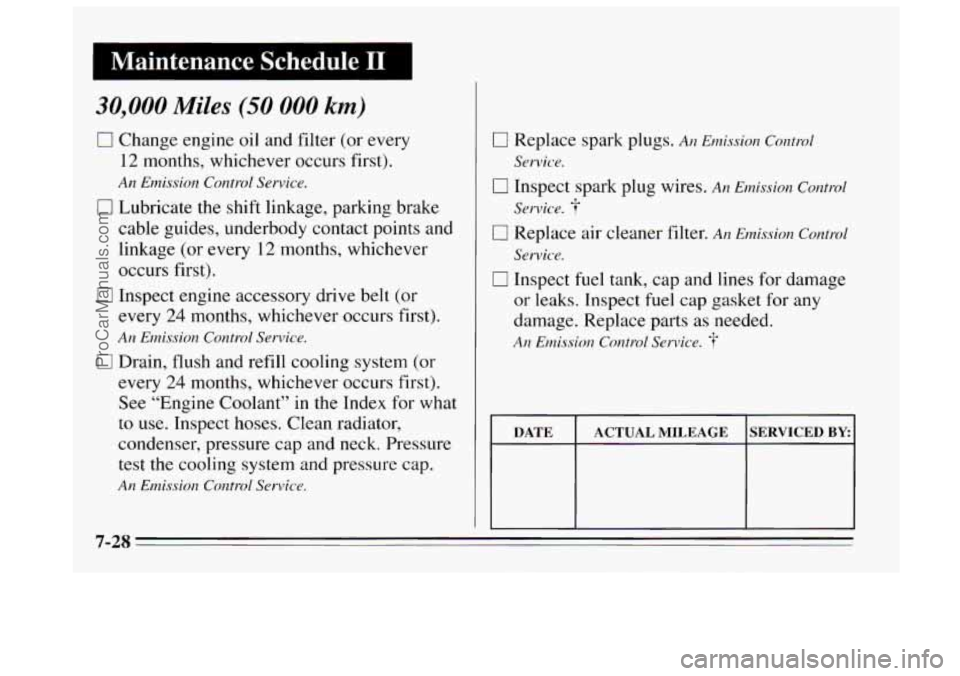

30,000 Miles (50 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Cor.1trol Service.
0 Lubricate the shift linkage, parking brake
cable guides, underbody contact points and
linkage (or every 12 months, whichever
occurs first).
every 24 months, whichever occurs first).
0 Drain, flush and refill cooling system (or
every 24 months, whichever occurs first).
See “Engine Coolant’’
in the Index for what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test
the cooling system and pressure cap.
A 11 Emissiorr Corltrol Sersiw.
0 Inspect engine accessory drive belt (or
An Emis,~io~ Control Service.
0 Replace spark plu,:. 05 AH Emission Control
0 Inspect spark plug wires. A11 Emissiot? Coatrol
0 Replace air cleaner filter. An EIII~.S.S~OI~ Corztrol
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
AII Emission Control Sorw’ce.
Ser\!ice.
Service.
*i-
Service.
DATE SERVICED BY ACTUAL MILEAGE
7-28
