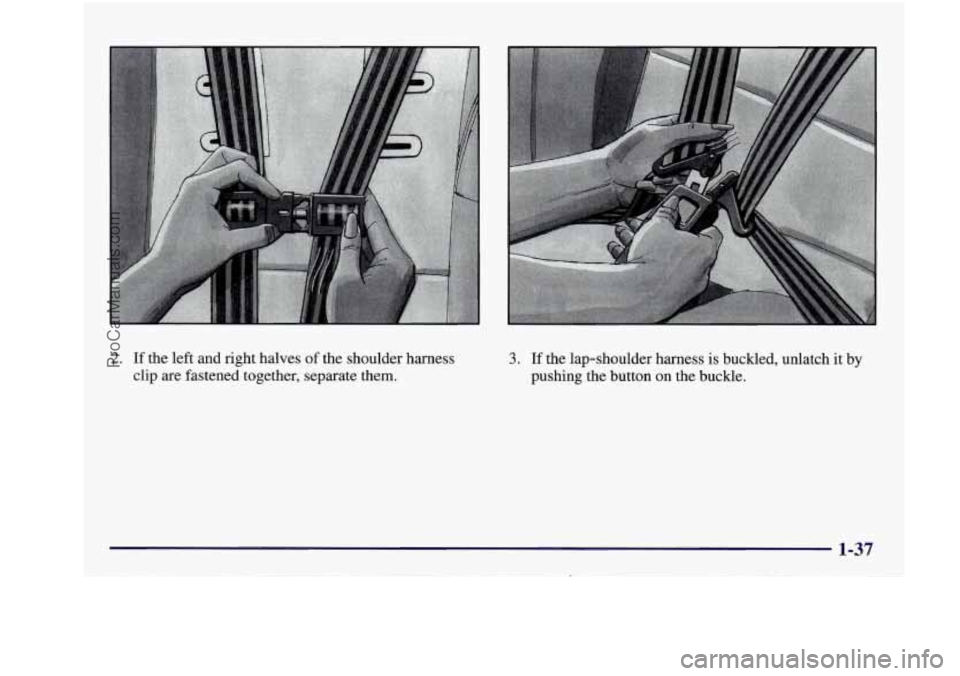

2. If the left and right halves of the shoulder harness
clip are fastened together, separate them. 3. If the lap-shoulder harness is buckled, unlatch it by
pushing the button on the buckle.
1-37
ProCarManuals.com

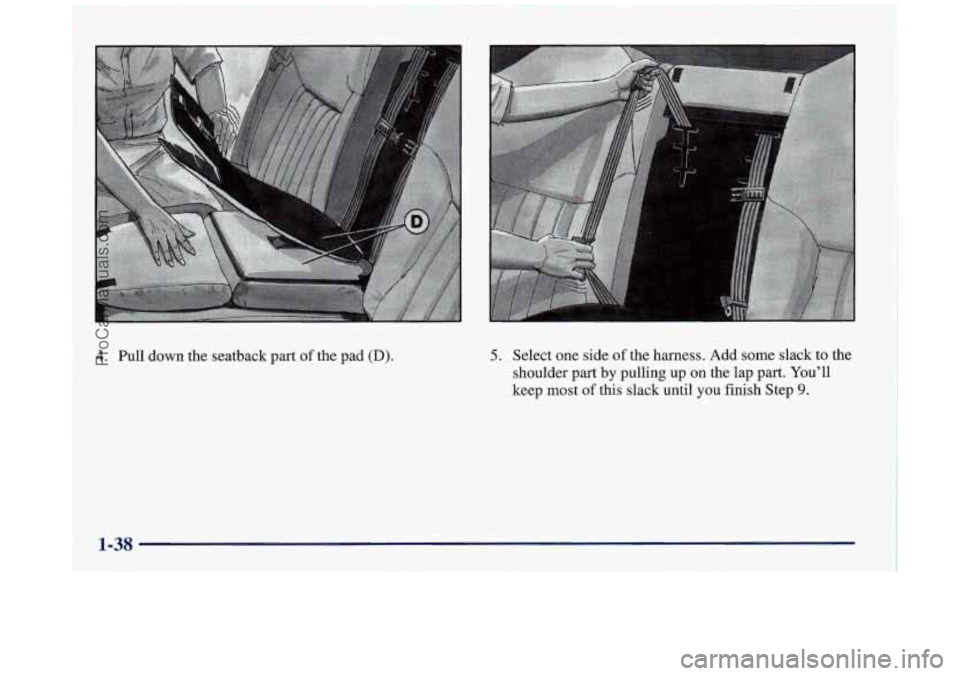

4. Pull down the seatback part of the pad (D). 5. Select one side of the harness. Add some slack to the
shoulder part by
pulling up on the lap part. You'll
keep most
of this slack until you finish Step 9.
1-38
ProCarManuals.com

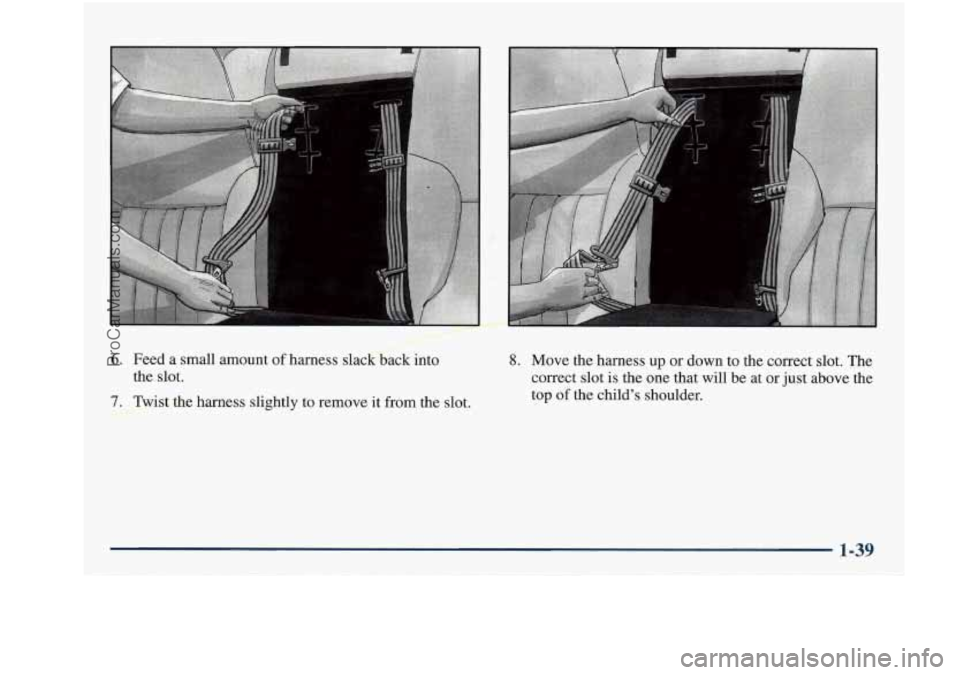

6. Feed a small amount of harness
the slot.
pstthe harness slightly to remove it from the slot.
. -.
8. Move the harness up or down to the correct slot. The
correct slot
is the one that will be at or just above the
top
of the child’s shoulder.
1-39
ProCarManuals.com

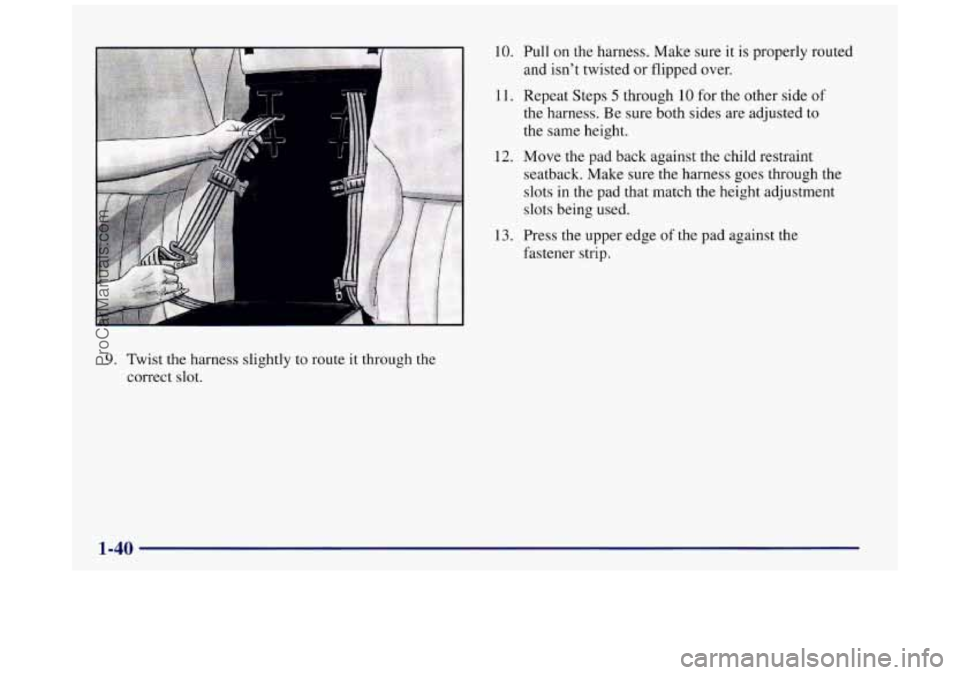

9. Twist the harness slightly to route it through the
correct
slot.
10. Pull on the harness. Make sure it is properly routed
and isn’t twisted or flipped over.
11. Repeat Steps 5 through 10 for the other side of
the harness. Be sure both sides are adjusted to
the same height.
12. Move the pad back against the child restraint
seatback. Make sure the harness
goes through the
slots in the pad that match the height adjustment
slots being used.
fastener strip.
13. Press the upper edge of the pad against the
1-40
-
ProCarManuals.com

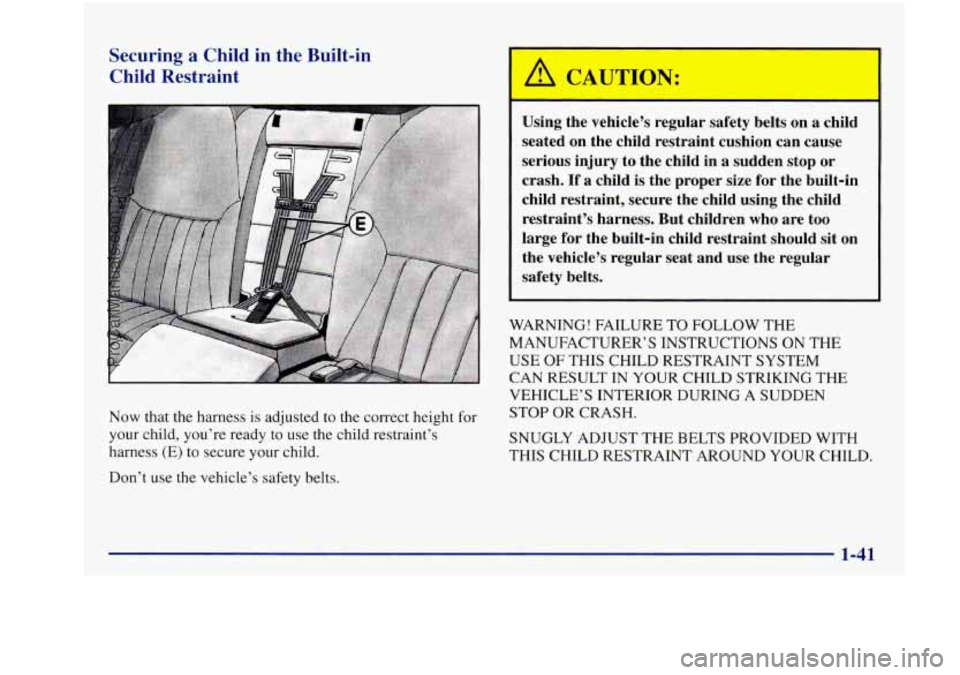

Securing a Child in the Built-in
Child Restraint
Now that the harness is adjusted to the correct height for
your child, you’re ready to use the child restraint’s
harness (E) to secure your child.
Don’t use the vehicle’s safety belts.
Using the vehicle’s regular safety belts on a child
seated on the child restraint cushion can cause
serious injury to the child in a sudden stop or
crash.
If a child is the proper size for the built-in
child restraint, secure the child using the child
restraint’s harness. But children who are too
large for the built-in child restraint should sit on
the vehicle’s regular seat and use the regular
safety belts.
WARNING! FAILURE TO FOLLOW THE
MANUFACTURER’S INSTRUCTIONS
ON THE
USE OF THIS CHILD RESTRAINT SYSTEM
CAN RESULT IN
YOUR CHILD STRIKING THE
VEHICLE’S INTERIOR DURING A SUDDEN
STOP
OR CRASH.
SNUGLY ADJUST THE BELTS PROVIDED WITH
THIS CHILD RESTRAINT AROUND YOUR CHILD.
ProCarManuals.com

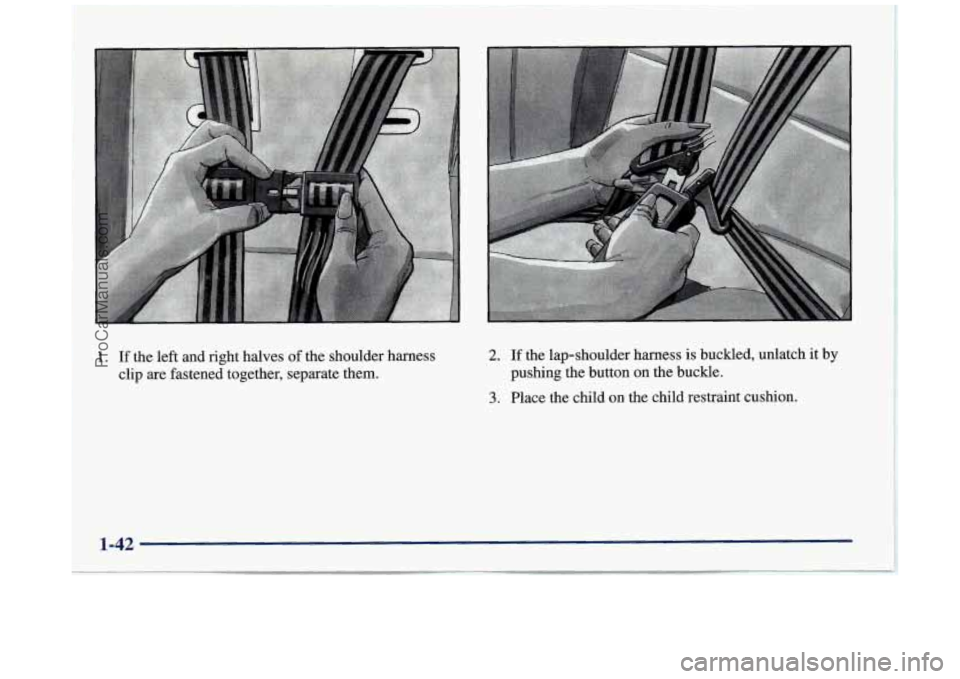

1. If the left and right halves of the shoulder harness
clip are fastened together, separate them. 2. If the lap-shoulder harness is buckled, unlatch it by
3. Place the child on the child restraint cushion.
pushing the button on the buckle.
ProCarManuals.com

4.
5.
6.

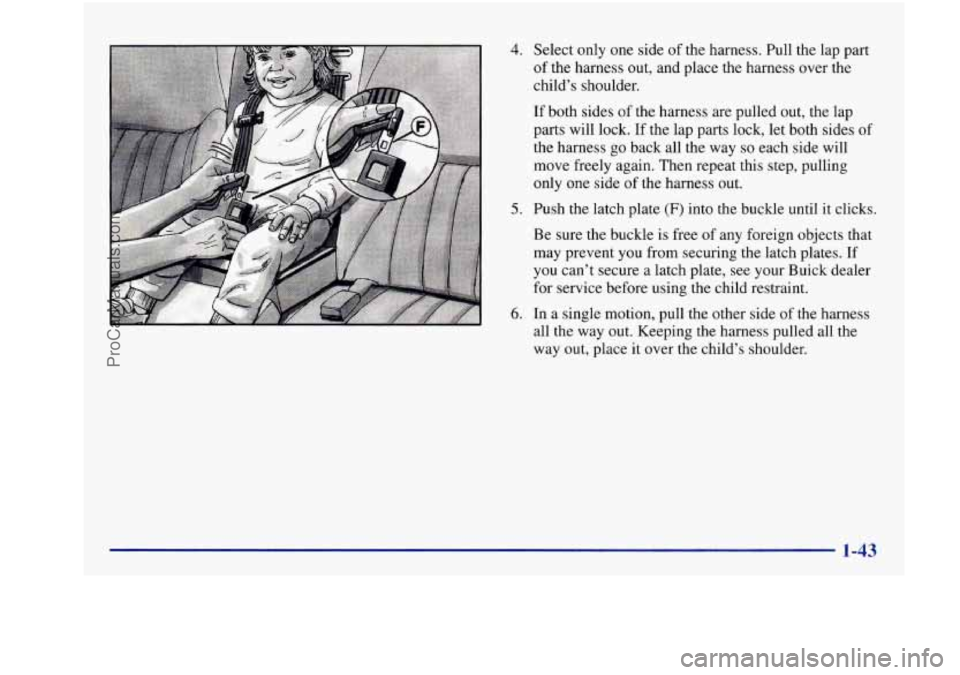

Select only one side of the harness. Pull the lap part
of the harness out, and place the harness over the
child's shoulder.
If both sides
of the harness are pulled out, the lap
parts will lock.
If the lap parts lock, let both sides of
the harness go back all the way
so each side will
move freely again. Then repeat this step, pulling
only one side
of the harness out.
Push the latch plate
(F) into the buckle until it clicks.
Be sure the buckle is free of any foreign objects that
may prevent
you from securing the latch plates. If
you can't secure a latch plate, see your Buick dealer
for service before using the child restraint.
In a single motion, pull the other side of the harness
all the way out. Keeping the harness pulled all the
way out, place it over the child's shoulder.
ProCarManuals.com

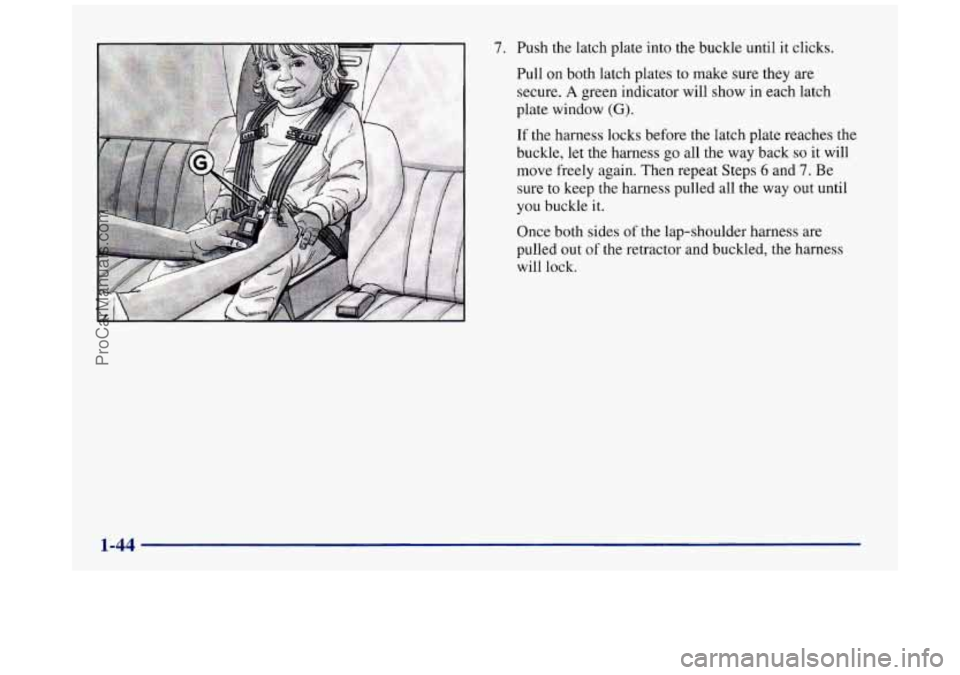

7. Push the latch plate into the buckle until it clicks.
Pull on both latch plates to make sure they are
secure.
A green indicator will show in each latch
plate window
(G).
If the harness locks before the latch plate reaches the
buckle, let the harness
go all the way back so it will
move freely again. Then repeat Steps
6 and 7. Be
sure to keep the harness pulled all the way out until
you buckle
it.
Once both sides of the lap-shoulder harness are
pulled out
of the retractor and buckled, the harness
will lock.
1-44
ProCarManuals.com

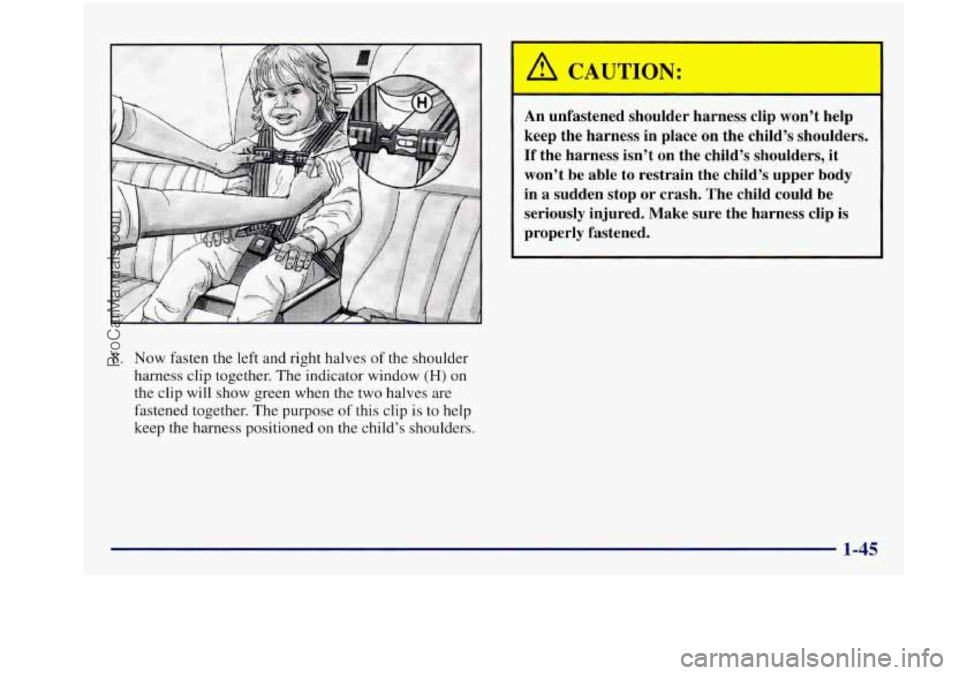

An unfastened shoulder harness clip won’t help
keep the harness in place
on the child’s shoulder
If the harness isn’t on the child’s shoulders, it
won’t be able to restrain the child’s upper body
in a sudden stop or crash. The child could be
seriously injured. Make sure
the harness clip is
properly fastened.
8. Now fasten the left and right halves of the shoulder
harness clip together. The indicator window
(H) on
the clip will show green when the two halves are
fastened together. The purpose
of this clip is to help
keep the harness positioned on the child’s shoulders.
ProCarManuals.com

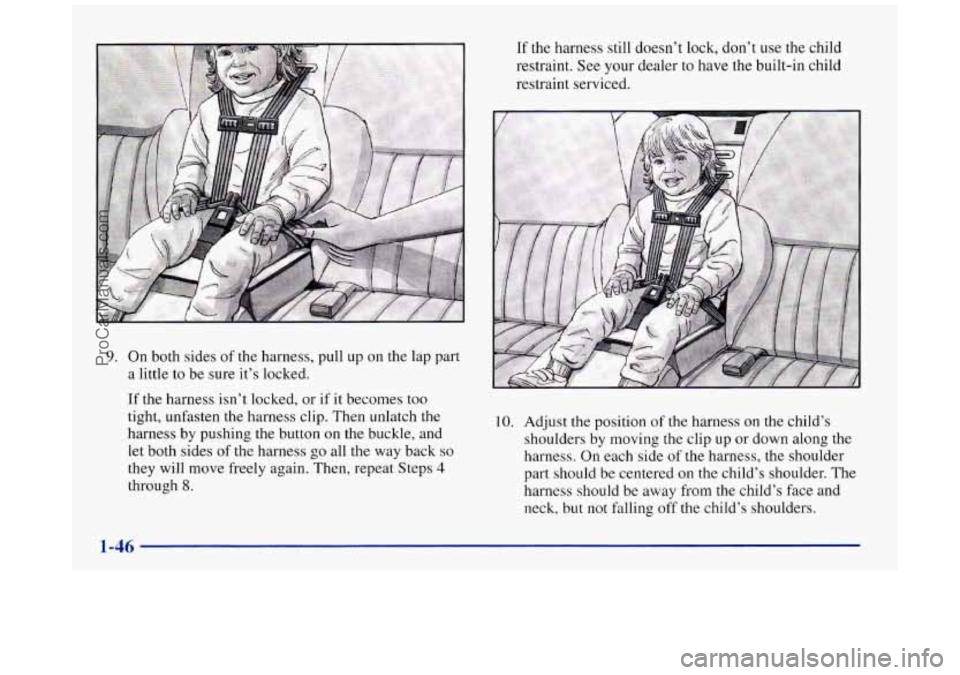

9. On both sides of the harness, pull up on the lap part
a little to be sure
it’s locked.
If the harness isn’t locked, or if it becomes too
tight, unfasten the harness clip. Then unlatch the
harness by pushing the button
on the buckle, and
let both sides of the harness go all the way back so
they will move freely again. Then, repeat Steps 4
through 8.
10. Adjust the position of the harness on the child’s
shoulders
by moving the clip up or down along the
harness. On each side
of the harness, the shoulder
part should be centered on the child’s shoulder. The
harness should be away from the child’s face and
neck, but not falling off the child’s shoulders.
