BUICK REGAL 1998 Owners Manual

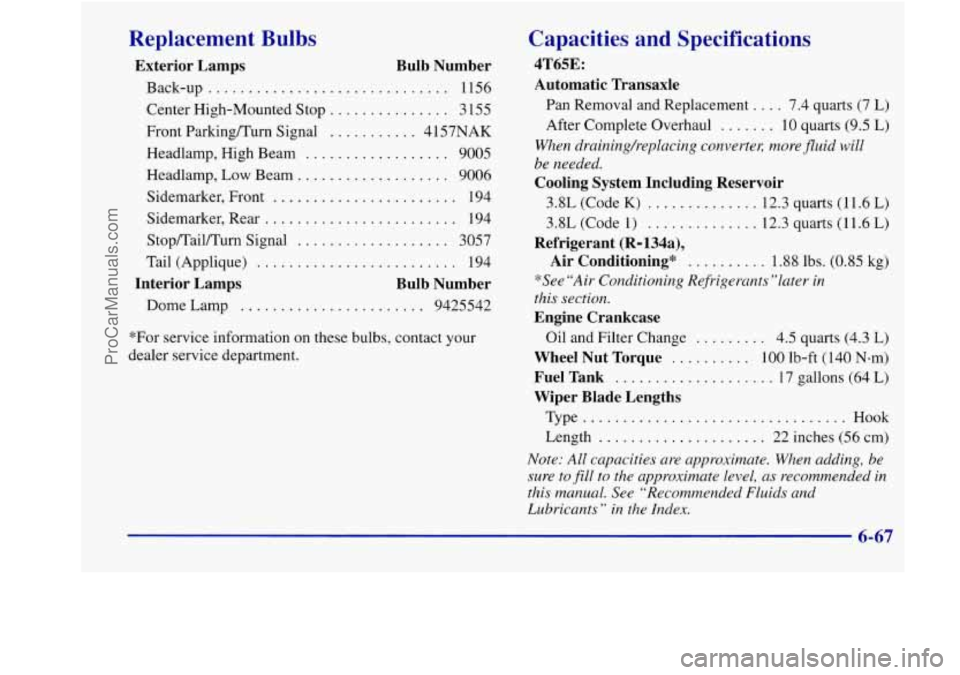

Replacement Bulbs
Exterior Lamps Bulb Number
Back-up .............................. 1156
Center High-Mounted Stop
............... 3155
Front Parking/Turn Signal
........... 4 157NAK
Headlamp, High Beam
.................. 9005
Headlamp, Low Beam.
.................. 9006
Sidemarker, Front ....................... 194
Sidemarker, Rear
........................ 194
Stop/Tail/Turn Signal
................... 3057
Tail (Applique)
....................... 194
Interior Lamps Bulb Number
Dome Lamp ....................... 9425542
*For service information on these bulbs, contact your
dealer service department.
Capacities and Specifications
4T65E:
Automatic Transaxle
Pan Removal and Replacement .... 7.4 quarts (7 L)
After Complete Overhaul
....... 10 quarts (9.5 L)
When drainingheplacing converter; more fluid will
be needed.
Cooling System Including Reservoir
3.8L (Code K) .............. 12.3 quarts (11.6 L)
3.8L (Code 1)
.............. 12.3 quarts (11.6 L)
Air Conditioning* .......... 1.88 lbs. (0.85 kg)
Refrigerant (R-l34a),
*See “Air Conditioning Refrigerants ”later in
this section.
Engine Crankcase
Oil and Filter Change ......... 4.5 quarts (4.3 L)
Wheel Nut Torque .......... 100 lb-ft (140 N-m)
Fuel Tank .................... 17 gallons (64 L)
Wiper Blade Lengths
Type ................................. Hook
Length ..................... 22 inches (56 cm)
Note: All capacities are approximate. When adding, be
sure
to fill to the approximate level, as recommended in
this manual. See “Recommended Fluids and
Lubricants” in the Index.
ProCarManuals.com

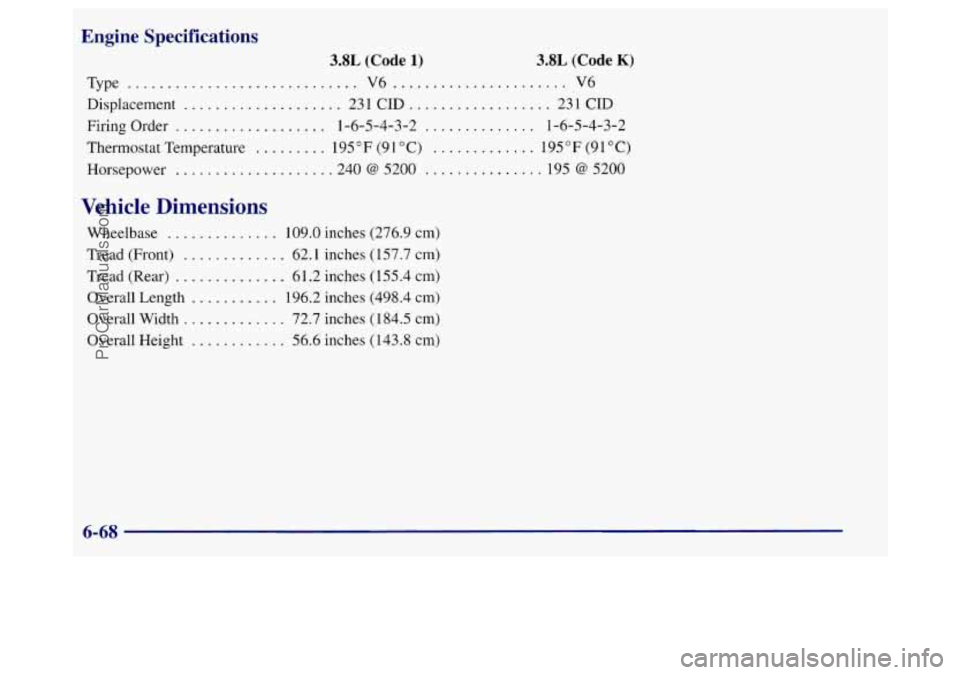

Engine Specifications
3.8L (Code 1) 3.8L (Code K)
Type ............................. V6 ...................... V6
Displacement .................... 23 1 CID .................. 23 1 CID
Thermostat Temperature
......... 195°F (91°C) ............. 195°F (91°C)
Firing
Order
................... 1-6-5-4-3-2 .............. 1-6-5-4-3-2
Horsepower
................... .240 0 5200 ............... 195 0 5200
Vehicle Dimensions
Wheelbase .............. 109.0 inches (276.9 cm)
Tread (Front)
............. 62.1 inches (157.7 cm)
Tread (Rear)
.............. 6 1.2 inches ( 155.4 cm)
Overall Length
........... 196.2 inches (498.4 cm)
Overall Width ............. 72.7 inches (1 84.5 cm)
Overall Height
............ 56.6 inches (143.8 cm)
6-68
ProCarManuals.com

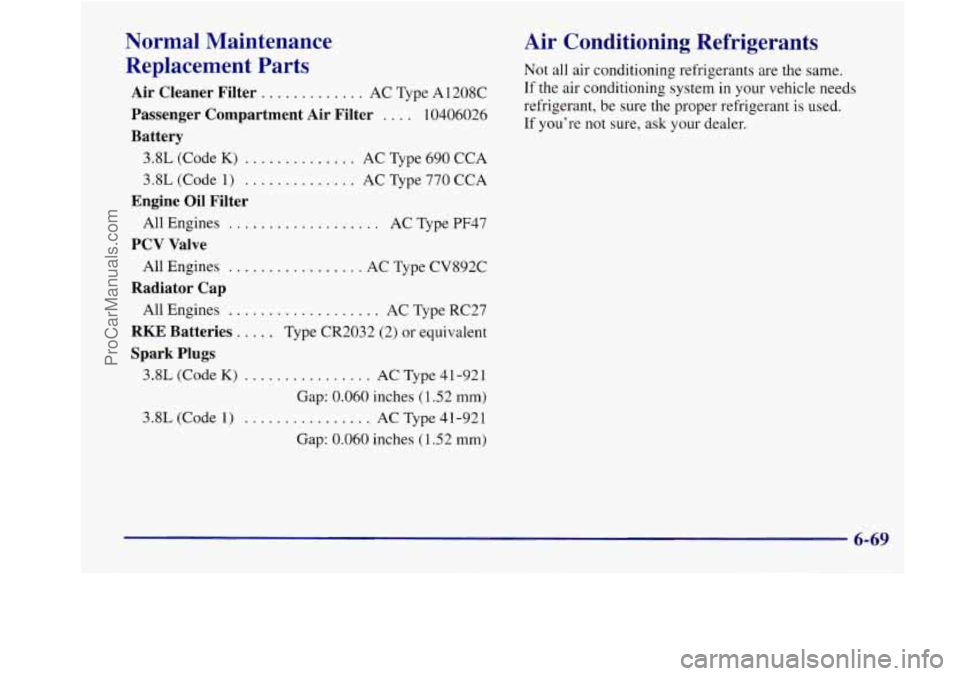

Normal Maintenance
Replacement Parts
Air Cleaner Filter ............. AC Type A 1208C
Passenger Compartment Air Filter .... 10406026
Battery
3.8L (Code K) .............. AC Type 690 CCA
3.8L (Code
1) .............. AC Type 770 CCA
All Engines
................... AC Type PF47
All Engines
................. AC Type CV892C
All Engines ................... AC Type RC27
RKE Batteries ..... Type CR2032 (2) or equivalent
Spark Plugs Engine Oil Filter
PCV Valve
Radiator Cap
3.8L (Code K) ................ AC Type 4 1-92 1
Gap:
0.060 inches (1.52 mm)
3.8L (Code 1) ................ AC Type 41-921
Gap: 0.060 inches (1.52 mm)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant
is used.
If you’re not sure, ask your dealer.
6-69
ProCarManuals.com

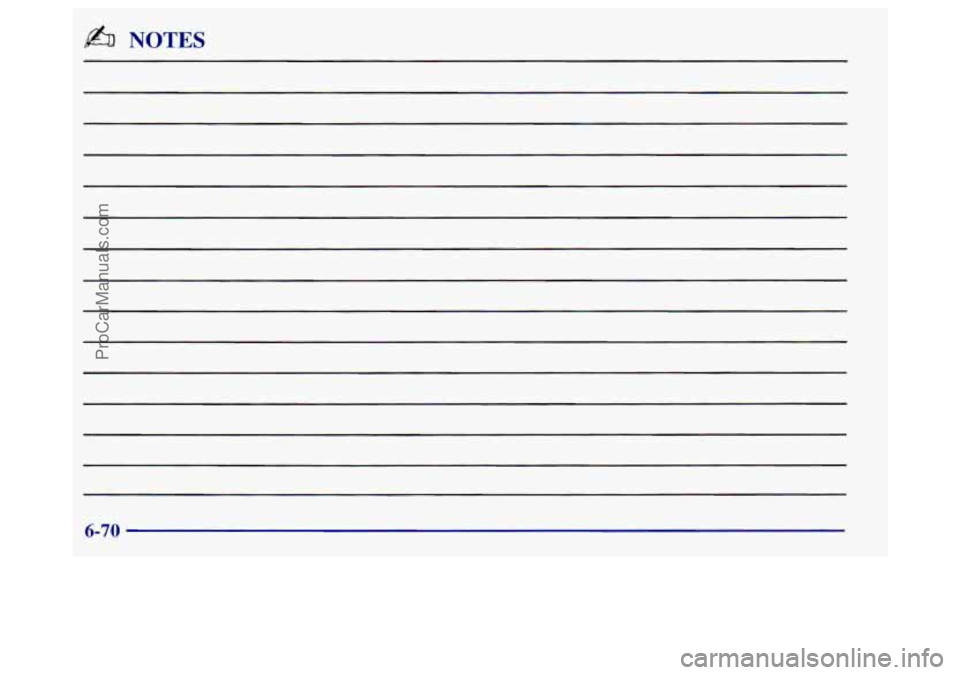

b NOTES
6-70
ProCarManuals.com

n
Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7-2
7-2
7-3
7-4
7-4
7- 14 7- 14
7- 14
7- 15
7- 15
Introduction
Your Vehicle and the Envlronment
How This Section
is Organized
Part
A: Scheduled Maintenance Servlces
Using Your Maintenance Schedule
Part
B: Owner Checks and Services
At Each Fuel Fill
At Least Once a Month
At Least Twice a Year
At Least Once a Year
7-18
7- 18
7-18
7-18
7-18 7-18
7-19
7-20 Part C: Periodic Maintenance Inspections
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Exhaust System Inspection
Engine Cooling System Inspection
Throttle System Inspection
Brake System Inspection
Part D: Recommended Fluids and Lubricants
Part
E: Maintenance Record
7-1
ProCarManuals.com

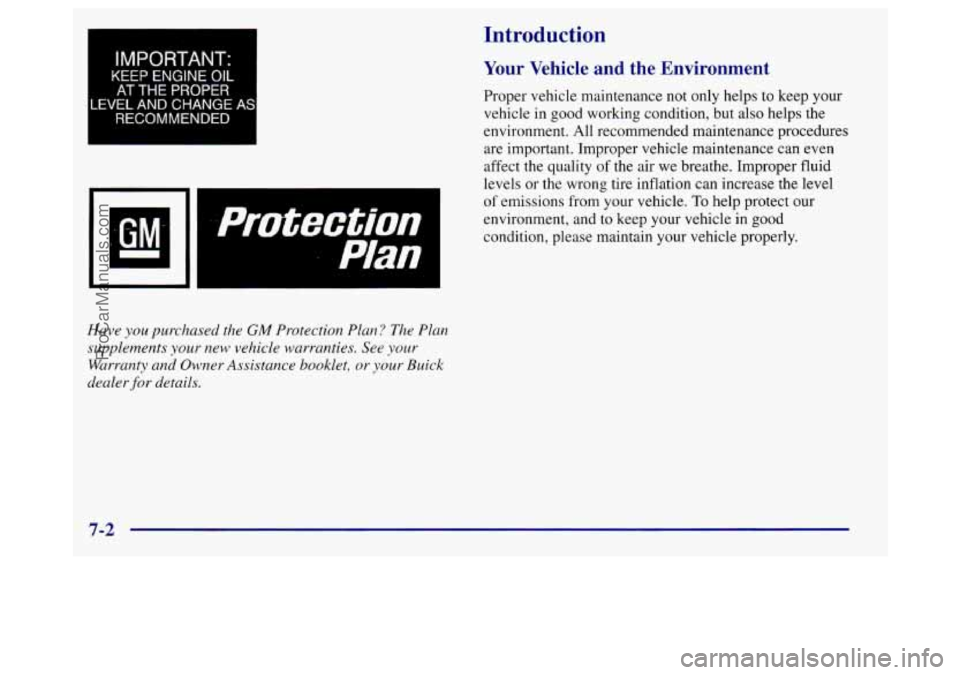

Introduction
1
Plan
Have you purchased the Ghl Protection Plan? The Plan
supplements Elour new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your Buick
dealer for details.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality
of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle.
To help protect our
environment, and
to keep your vehicle in good
condition, please maintain your vehicle properly.
7-2
ProCarManuals.com

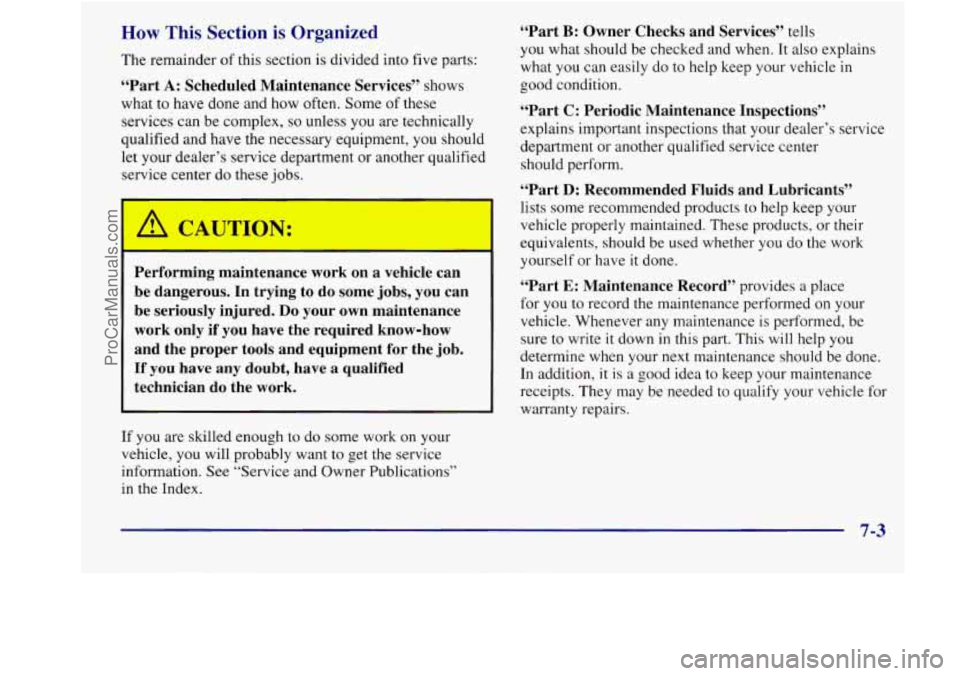

How This Section is Organized
The remainder of this section is divided into five parts:
“Part A: Scheduled Maintenance Services” shows
what to have done and how often. Some of these
services can be complex,
so unless you are technically
qualified and have the necessary equipment, you should
let your dealer’s service department or another qualified
service center do these jobs.
I
I
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you can
be seriously injured.
Do your own maintenance
work only
if you have the required know-how
and the proper tools and equipment for the job.
If you have any doubt, have a qualified
technician do the work.
If you are skilled enough to do some work on your
vehicle,
you will probably want to get the service
information. See “Service and Owner Publications”
in the Index.
“Part B: Owner Checks and Services” tells
you what should be checked and when. It also explains
what you can easily do to help keep your vehicle in
good condition.
“Part C: Periodic Maintenance Inspections”
explains important inspections that your dealer’s service
department or another qualified service center
should perform.
“Part D: Recommended Fluids and Lubricants”
lists some recommended products to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself
or have it done.
“Part E: Maintenance Record” provides a place
for you
to record the maintenance performed on your
vehicle. Whenever any maintenance is performed, be
sure to write
it down in this part. This will help you
determine when your next maintenance should be done.
In addition,
it is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle for
warranty repairs.
7-3
ProCarManuals.com

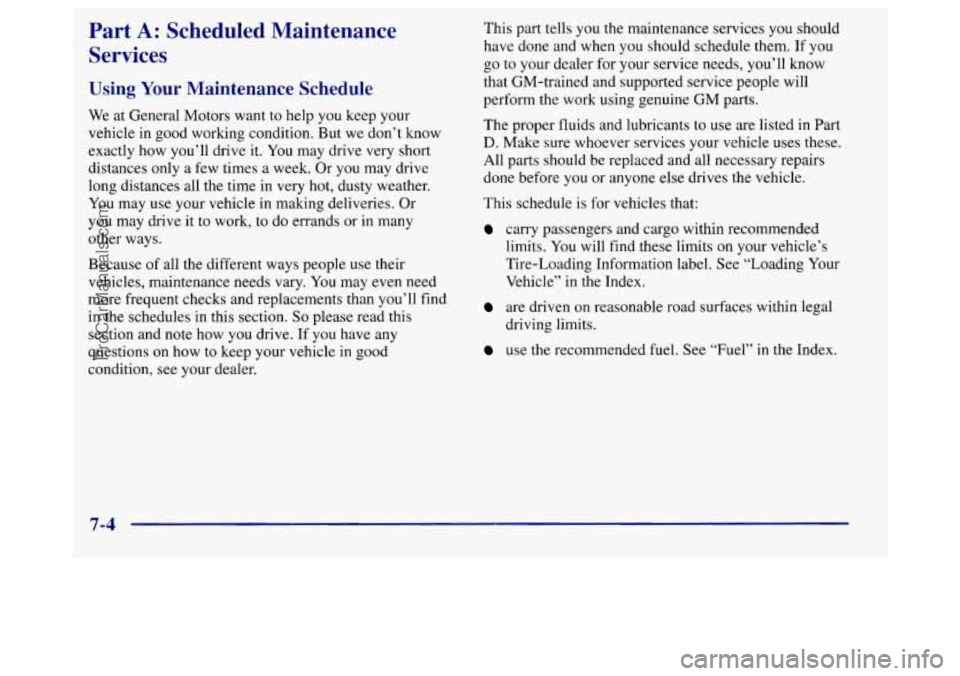

Part A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we don’t know
exactly how you’ll drive it. You may drive very short
distances only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries. Or
you may drive it to work, to do errands or in many
other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may even need
more frequent checks and replacements than you’ll find
in the schedules in this section.
So please read this
section and note how you drive.
If you have any
questions on how to keep your vehicle in good
condition, see your dealer. This
part tells you the maintenance services you should
have done and when
you should schedule them. If you
go to your dealer for your service needs, you’ll know
that GM-trained and supported service people will
perform the work using genuine GM parts.
The proper fluids and lubricants to use are listed in Part
D. Make sure whoever services your vehicle uses these.
All parts should be replaced and all necessary repairs
done before you or anyone else drives the vehicle.
This schedule is for vehicles that:
carry passengers and cargo within recommended
limits. You will find these limits
on your vehicle’s
Tire-Loading Information label. See “Loading Your
Vehicle” in the Index.
are driven on reasonable road surfaces within legal
driving limits.
use the recommended fuel. See “Fuel” in the Index.
7-4
ProCarManuals.com

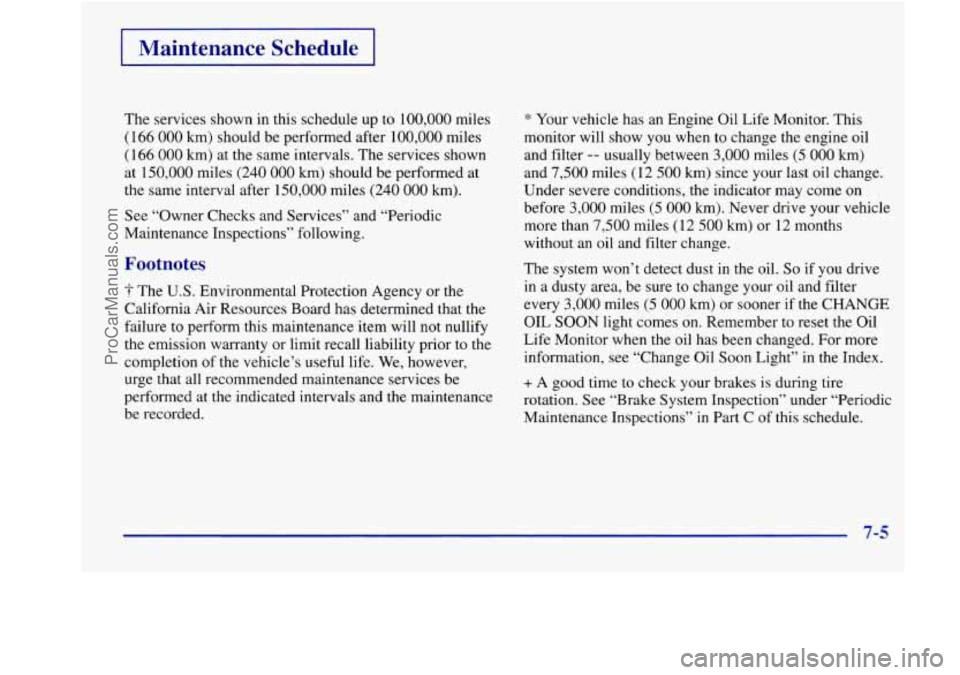

I Maintenance Schedule I
The services shown in this schedule up to 100,000 miles
(166
000 km) should be performed after 100,000 miles
(166
000 km) at the same intervals. The services shown
at 150,000 miles
(240 000 km) should be performed at
the same interval after
150,000 miles (240 000 km).
See “Owner Checks and Services” and “Periodic
Maintenance Inspections” following.
Footnotes
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure
to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
* Your vehicle has an Engine Oil Life Monitor. This
monitor will show you when to change the engine oil
and filter
-- usually between 3,000 miles (5 000 km)
and 7,500 miles (12 500 km) since your last oil change.
Under severe conditions, the indicator may come on
before
3,000 miles (5 000 km). Never drive your vehicle
more than
7,500 miles (12 500 km) or 12 months
without an oil and filter change.
The system won’t detect dust in the oil.
So if you drive
in a dusty area, be sure to change your oil and filter
every
3,000 miles (5 000 km) or sooner if the CHANGE
OIL SOON light comes
on. Remember to reset the Oil
Life Monitor when the oil has been changed. For more
information,
see “Change Oil Soon Light” in the Index.
+ A good time to check your brakes is during tire
rotation. See “Brake System Inspection” under “Periodic
Maintenance Inspections” in Part C of this schedule.
7-5
ProCarManuals.com

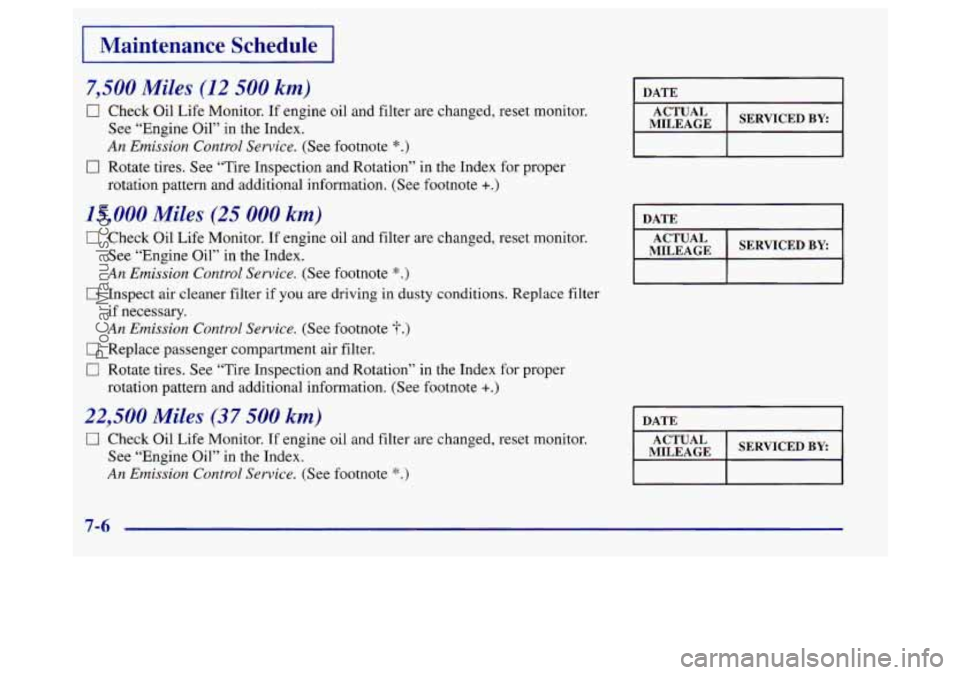

I Maintenance Schedule I
7,500 Miles (12 500 knt)
0 Check Oil Life Monitor. If engine oil and filter are changed, reset monitor.
See “Engine Oil”
in the Index.
An Emission Control Sewice. (See footnote *.)
rotation pattern and additional information. (See footnote +.)
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
15,000 Miles (25 000 km)
0 Check Oil Life Monitor. If engine oil and filter are changed, reset monitor.
See “Engine Oil” in the Index.
An Emission Control Sewice. (See footnote *.)
0 Inspect air cleaner filter if you are driving in dusty conditions. Replace filter
if necessary.
An Emission Control Service. (See footnote t.)
0 Replace passenger compartment air filter.
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information. (See footnote
+.)
22,500 Miles (37 500 km)
0 Check Oil Life Monitor. If engine oil and filter are changed, reset monitor.
See “Engine Oil” in the Index.
An Emission Control Service. (See footnote *.)
DATE
MILEAGE
ACTUAL I SERVICEDBY: I
DATE I
MILEAGE
ACTUAL SERVICED BY:
DATE
ProCarManuals.com
