BUICK REGAL 1998 Owners Manual

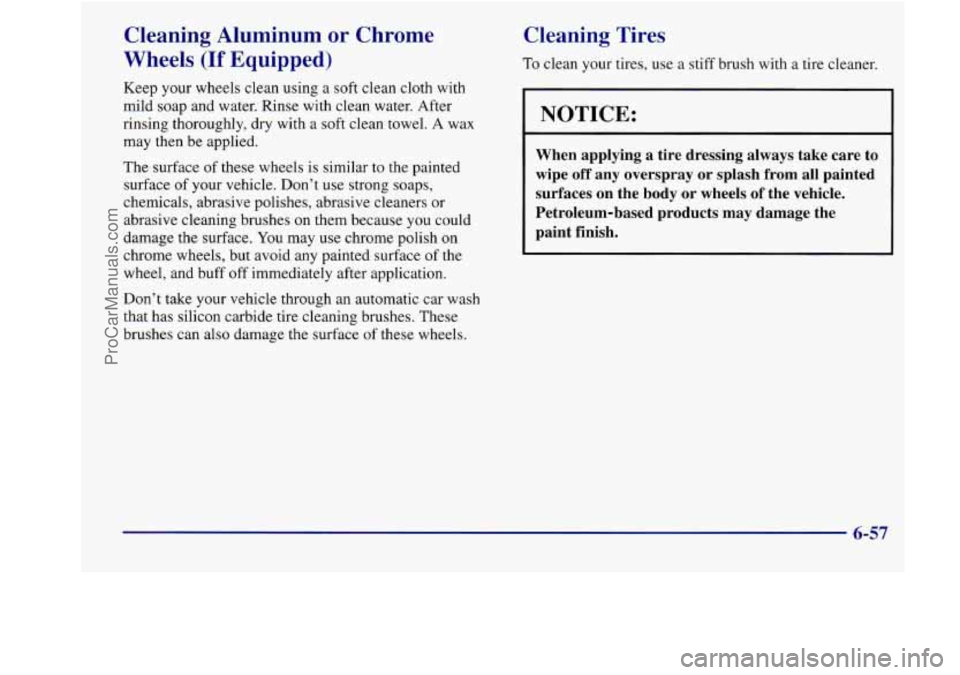

Cleaning Aluminum or Chrome
Wheels
(If Equipped)
Keep your wheels clean using a soft clean cloth with
mild soap and water. Rinse with clean water. After
rinsing thoroughly, dry with a soft clean towel.
A wax
may then
be applied.
The surface
of these wheels is similar to the painted
surface
of your vehicle. Don’t use strong soaps,
chemicals, abrasive polishes, abrasive cleaners or abrasive cleaning brushes on them because you could
damage the surface.
You may use chrome polish on
chrome wheels, but avoid any painted surface of the
wheel, and buff
off immediately after application.
Don’t take your vehicle through an automatic car wash
that has silicon carbide tire cleaning brushes. These
brushes can also damage the surface of these wheels.
Cleaning Tires
To clean your tires, use a stiff brush with a tire cleaner.
I NOTICE:
When applying a tire dressing always take care to
wipe
off any overspray or splash from all painted
surfaces on the body or wheels
of the vehicle.
Petroleum-based products may damage the paint finish.
6-57
ProCarManuals.com

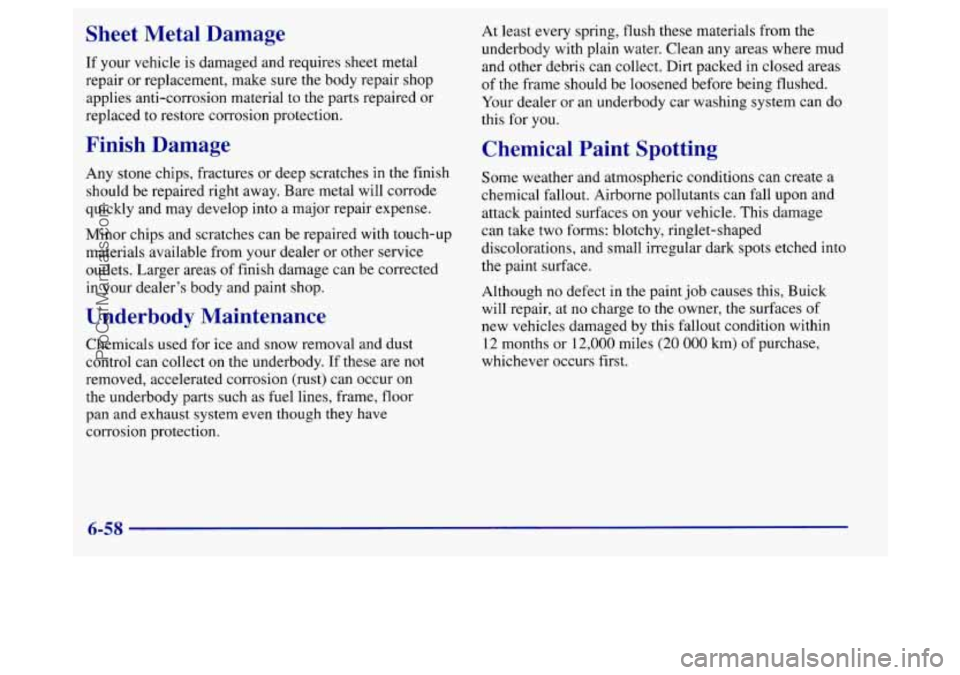

Sheet Metal Damage
If your vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material to the parts repaired or
replaced to restore corrosion protection.
Finish Damage
Any stone chips, fractures or deep scratches in the finish
should be repaired right away. Bare metal will corrode
quickly and may develop into a major repair expense.
Minor chips and scratches can be repaired with touch-up
materials available from your dealer or other service
outlets. Larger areas of finish damage can be corrected
in your dealer’s body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect
on the underbody. If these are not
removed, accelerated corrosion (rust) can occur on
the underbody parts such as fuel lines, frame, floor
pan and exhaust system even though they have
corrosion protection. At
least every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and other debris can collect. Dirt packed in closed areas
of the frame should be loosened before being flushed.
Your dealer or an underbody car washing system can
do
this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can fall upon and
attack painted surfaces on your vehicle. This damage
can take two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into
the paint surface.
Although no defect
in the paint job causes this, Buick
will repair, at no charge
to the owner, the surfaces of
new vehicles damaged by this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever occurs first.
6-58
ProCarManuals.com

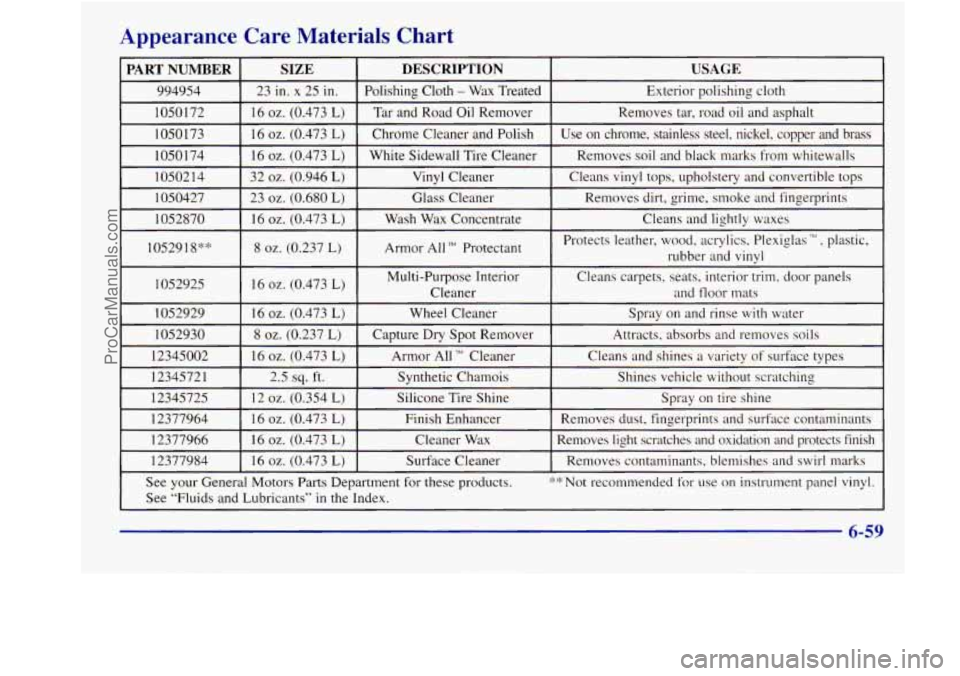

Appearance Care Materials Chart
PART NUMBER USAGE
DESCRIPTION
SIZE
994954
Exterior polishing cloth
Polishing Cloth - Wax Treated
23 in. x 25 in.
1050172
Removes
dirt, grime, smoke and fingerprints
Glass Cleaner 23 02. (0.680 L) 1050427 Cleans
vinyl tops, upholstery and convertible tops Vinyl Cleaner
32 oz. (0.946 L) 1050214 Removes soil and black marks from whitewalls White Sidewall Tir\
e Cleaner 16
oz. (0.473 L) 1050174 Use on chrome, stainless steel, nickel, copper and brass
Chrome Cleaner
and Polish 16 02. (0.473 L) 1050173 Removes tar, road oil and asphalt Tar and
Road Oil Remover 16 02. (0.473 L)
I I I
I 1052870
Wash Wax Concentrate I Cleans and lightly waxes
-
I 16 02. (0.473 L) I
--
I 105291 8** I 8 oz. (0.237 L) 1 Armor All”’ Protectant I Protects leather, wood, acrylics, Plexiglas T‘, plastic,
rubber
and vinvl I
1 1052925 I 16 oz. (0.473 L) I Multi-Purpose Interior Cleans carpets, seats, interior trim, door\
panels
I Cleaner and floor mats I
6-59
ProCarManuals.com

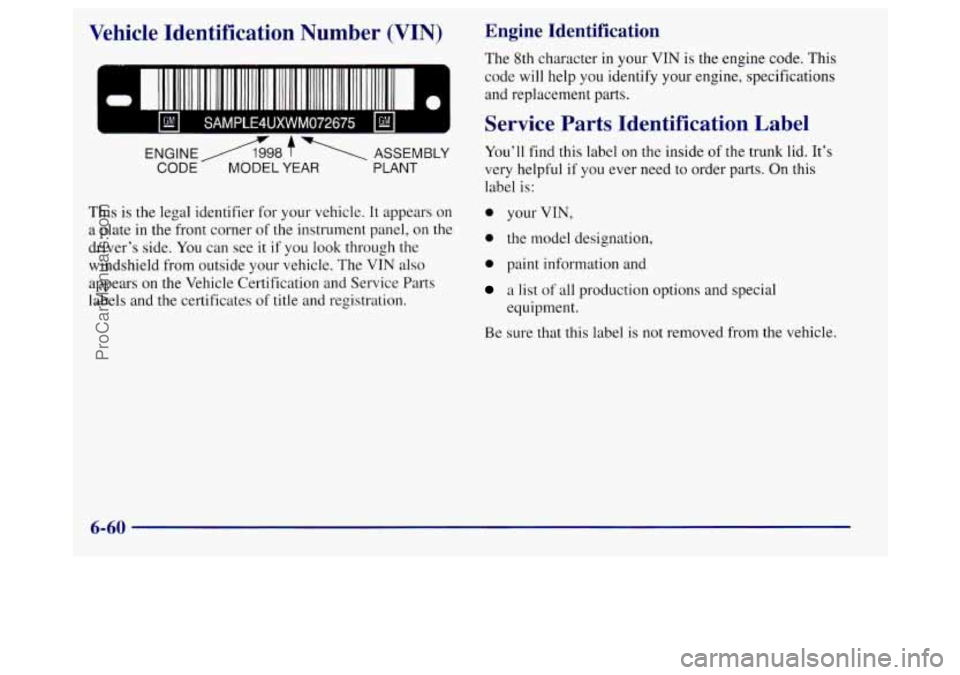

Vehicle Identification Number (VIN)
IIIIIIIIIIIII 11l1111111111I IIIIIIIIIIIIIIII1111IIIIIIIIIIII
7.
ENGINE/l&8 f - ASSEMBLY
CODE MODEL YEAR PLANT
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver’s side.
You can see it if you look through the
windshield from outside your vehicle. The
VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You’ll find this label on the inside of the trunk lid. It’s
very helpful if you ever need to order parts.
On this
label is:
0 your VIN,
0 the model designation,
0 paint information and
a list of all production options and special
equipment.
Be sure that this label is not removed from the vehicle.
6-60
ProCarManuals.com

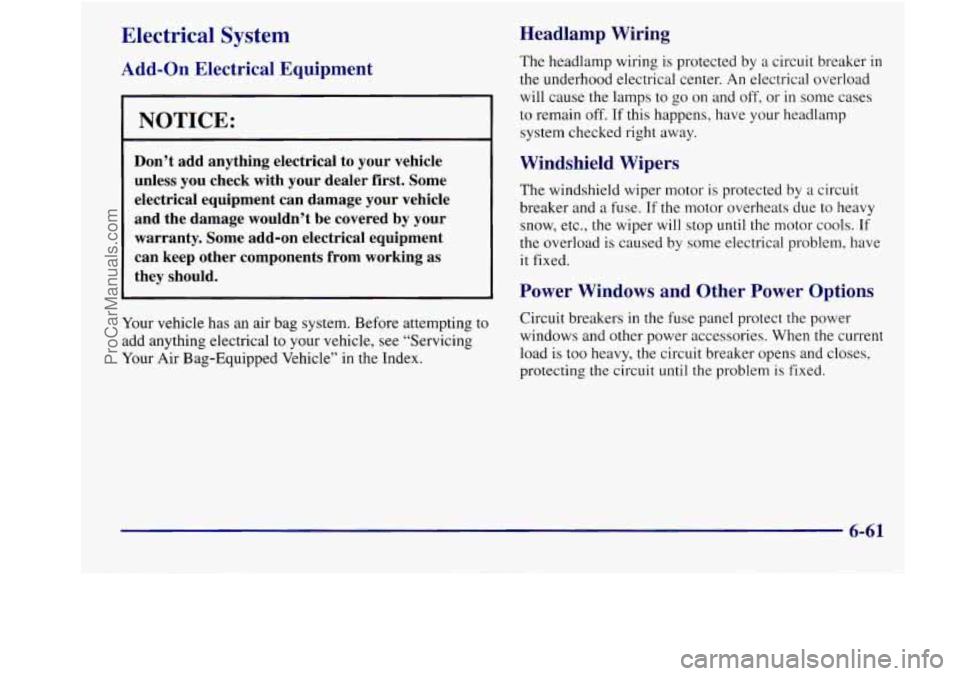

Electrical System
Add-on Electrical Equipment
1 NOTICE:
Don’t add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see “Servicing
Your Air Bag-Equipped Vehicle” in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the underhood electrical center. An electrical overload
will cause the lamps to
go on and off, or in some cases
to remain off. If this happens, have your headlamp
system checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting
the circuit until the problem is fixed.
6-61
ProCarManuals.com

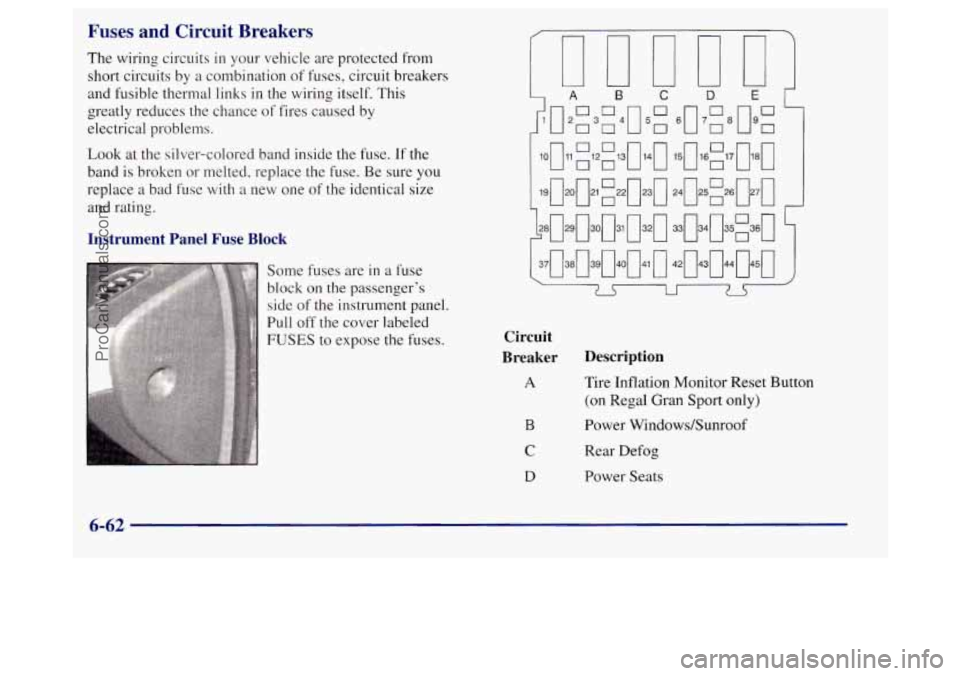

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links in the wiring itself. This
greatly reduces the chance of fires caused by
electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse
with a new one of the identical size
and rating.
Instrument Panel Fuse Block
Some fuses are in a fuse
block on the passenger’s side of the instrument panel.
Pull off the cover labeled
FUSES to expose the fuses. Circuit
Breaker Description
A Tire Inflation Monitor Reset Button
(on Regal Grin Sport only)
B
C
D
Power Windows/Sunroof
Rear Defog
Power Seats
6-62
ProCarManuals.com

Fuse
1
4
6
8
10
13
14
15
17
18
19
20
22
23
Description
Ignition Key Solenoid
Ignition Signal
-- Hot in RUN and
Start
-- PCM, BCM U/H Relay
Power Mirrors
Panel Dimming
Ignition Signal
-- Hot in RUN, Unlock
and Start
-- Cluster, Powertrain Control
Module, Body Control Module
DRL Module
Interior Lamps
Door
Locks
Taillamps, License Lamp
Radio
Heated Mirror
Cruise Control
Clusters
Cigarette Lighter
-- Auxiliary Power
Connection (Power Drop), Data Link
Fuse
24
26
27
28
29
30
31
32
33
34
36
37
38
Description
Stoplamps
Parking Lamps,
Fog Lamps
Auxiliary Power Connection (Power
Drop)
-- Hot in ACC and RUN
Crank Signal
-- Body Control Module,
Cluster, Powertrain Control Modules
Ignition Signal
-- HVAC
Control Head
Shifter Lock Solenoid
Air Bag
Anti-lock Brake Controls, Body
Control Module
Hazard Flashers
Driver’s Heated Seat
Ignition Signal
-- Hot in ACC and
RUN
-- Body Control Module
Anti-lock Brake Solenoids
Low Blower
6-63
ProCarManuals.com

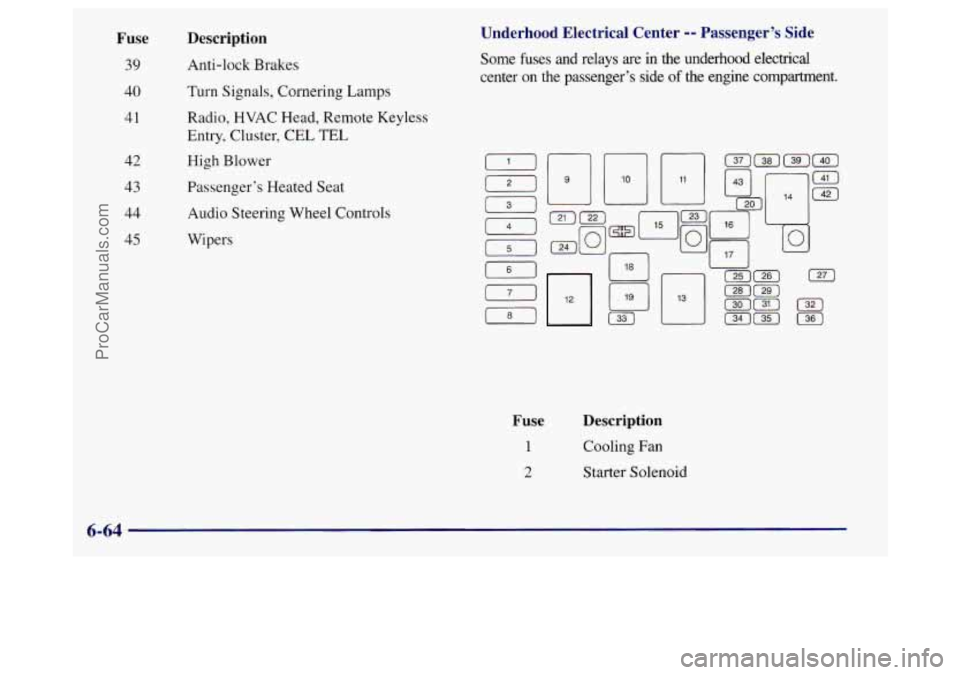

Fuse
39
40
41
42
43
44
45
Description
Anti-lock Brakes
Turn Signals, Cornering Lamps
Radio, HVAC Head, Remote Keyless
Entry, Cluster, CEL
TEL
High Blower
Passenger’s Heated Seat
Audio Steering Wheel Controls
Wipers
Underhood Electrical Center -- Passenger’s Side
Some fuses and relays are in the underhood electrical
center on the passenger’s side
of the engine compartment.
m
121
13)
14)
15)
(81
17)
[8)
Fuse
1
2
Description
Cooling Fan
Starter Solenoid
6-64
ProCarManuals.com

Fuse
3
4
5
6
7
8
Description
Power Seats, Rear Defog,
Heated Seats
High Blower, Hazard Flasher, Stoplamps, Power Mirror,
Door Locks
Ignition Switch, BTSI, Stoplamps,
ABS, Turn Signals, Cluster, Air Bag,
DRL Module
Cooling Fan
Interior Lamps, Retained Accessory
Power, ABS, Keyless Entry, CEL TEL,
Data Link, HVAC Head, Cluster,
Radio, AUX Power (Power Drop), Cigarette Lighter
Ignition Switch, Wipers, Radio,
Steering Wheel Controls, Body Control
Module, AUX Power (Power Drop),
Power Windows, Sunroof, HVAC
Controls, DRL, Rear Defog Relay
Relay
9
10
11
12
13
14
15
16
17
18
19
Description
Cooling Fan 2
Cooling Fan 3
Starter Solenoid
Cooling Fan
1
Ignition Main
Not Used
A/C Clutch
Horn
Fog Lamps
Fuel Pump, Speed Control
Fuel Pump
6-65
ProCarManuals.com

Fuse
20
21
22 23
24 25
26 27
28
29
30
31 32
Description
Not Used
Generator
ECM
A/C Compressor Clutch
Not Used Electronic Ignition
Transaxle
Horn
Fuel Injector
Oxygen Sensor
Engine Emissions
Not Used
Headlamp (Right)
Fuse
33
34 35
36 37
38
39
40
41
42
43
SYMBOL
Description
Rear Compartment Release
Parking Lamps Fuel Pump
Headlamp (Left) Spare Spare
Spare
Spare Spare
Spare
Fuse Puller A/C Compressor Clutch Diode
