5-17
3. Remove the 3800 Series II V6 engine cover shield to
access the bleed valve.
A. Clean the area around the engine oil fill tube and
cap before removing. Twist the oil fill tube, with
cap attached, counterclockwise and remove it.
B. If you have the supercharged engine, remove the
nut in the center of the cover shield.
C. Lift the engine cover shield at the front, slide the
catch tab out of the engine bracket and remove
the cover shield.
D. Put the oil fill tube, with cap attached, in the valve
cover oil fill hole until you're ready to replace the
cover shield.
ProCarManuals.com

yellowblue
5-18
4. After the engine
cools, open the
coolant air
bleed valve.
There is one bleed valve. It is located on the
thermostat housing.5. Fill the radiator with the
proper DEX
-COOL

coolant mixture, up to
the base of the filler
neck. (See ªEngine
Coolantº in the Index
for more information
about the proper
coolant mixture.)
If you see a stream of coolant coming from an air bleed
valve, close the valve. Otherwise, close the valve after
the radiator is filled.
6. Rinse or wipe any spilled coolant from the engine
and the compartment.
ProCarManuals.com

yellowblue
5-19
7. Replace the 3800 Series II V6 engine cover shield.
A. Remove the oil fill tube, with cap attached, from
the valve cover.
B. Insert the catch tab on the cover shield under the
bracket on the engine.
C. Place the hole in the cover shield over the hole in
the valve cover. Install oil fill tube and cap by
twisting clockwise.
D. If you have the supercharged engine, install the
nut in the center of the cover shield.8. Then fill the coolant recovery tank to the COLD
mark on the coolant recovery tank.
9. Put the cap back on the coolant recovery tank, but
leave the pressure cap off.
10. Start the engine and let it run until you can feel the
upper radiator hose getting hot. Watch out for the
engine cooling fans.
ProCarManuals.com

yellowblue
5-20
11. By this time, the coolant level inside the radiator
filler neck may be lower. If the level is lower, add
more of the proper DEX
-COOL
coolant mixture
through the filler neck until the level reaches the
base of the filler neck.
12. Then replace the pressure cap. At any time during
this procedure if coolant begins to flow out of the
filler neck, reinstall the pressure cap. Be sure the
arrows on the pressure cap line up like this.13. Check the coolant in the recovery tank. The level in
the coolant recovery tank should be at the HOT
mark when the engine is hot or at the COLD mark
when the engine is cold.
If a Tire Goes Flat
It's unusual for a tire to ªblow outº while you're driving,
especially if you maintain your tires properly. If air goes
out of a tire, it's much more likely to leak out slowly.
But if you should ever have a ªblowout,º here are a few
tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, and then gently brake to
a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you'd use in a
skid. In any rear blowout, remove your foot from the
accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop
-- well off the road if possible.
If a tire goes flat, the next part shows how to use your
jacking equipment to change a flat tire safely.
ProCarManuals.com

yellowblue
5-21

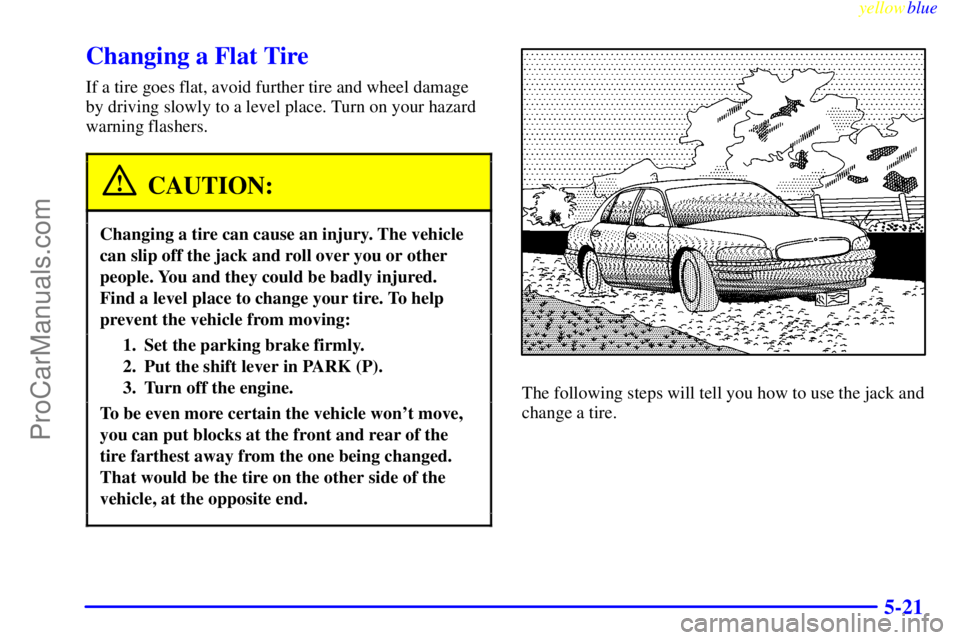

Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your hazard
warning flashers.
CAUTION:
Changing a tire can cause an injury. The vehicle
can slip off the jack and roll over you or other
people. You and they could be badly injured.
Find a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine.
To be even more certain the vehicle won't move,
you can put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side of the
vehicle, at the opposite end.
The following steps will tell you how to use the jack and
change a tire.
ProCarManuals.com

yellowblue
5-22 Removing the Spare Tire and Tools
(See ªCompact Spare Tireº in the Index for more
information about the compact spare.)
1. The equipment you'll
need is in the trunk.
Pull the carpeted mat up
from the floor of the
trunk. Turn the center
nut on the compact spare
cover counterclockwise
to remove it. Then lift
and remove the cover.
2. Remove the spare tire.
ProCarManuals.com

yellowblue
5-23
3. Turn the nut holding the jack counterclockwise and
remove it. Then remove the jack and wrench.The tools you'll be using include the jack (A), extension
and protection guide (B) and wheel wrench (C).
ProCarManuals.com

yellowblue
5-24 Wheel Center Caps
To remove a center cap, use
the wrench to pry gently at
the notch. Don't use a tool
that is narrower than the
wrench to pry at this notch.
Then pry off the cap.
Wheel Covers
If your vehicle is equipped
with wheel covers, be sure
to use a wheel wrench to
begin the process of
loosening the plastic wheel
nut caps.
They won't come off. You will only be able to loosen
them. Once you have loosened the plastic nut caps with
the wheel wrench, if needed, you can finish loosening
them with your fingers.
Then, using the flat end of the wheel wrench, pry along
the edge of the wheel cover until it comes off. Be
careful; the edge may be sharp. Don't try to remove the
cover with your bare hands.
ProCarManuals.com

yellowblue
5-25 Removing the Flat Tire and Installing the
Spare Tire

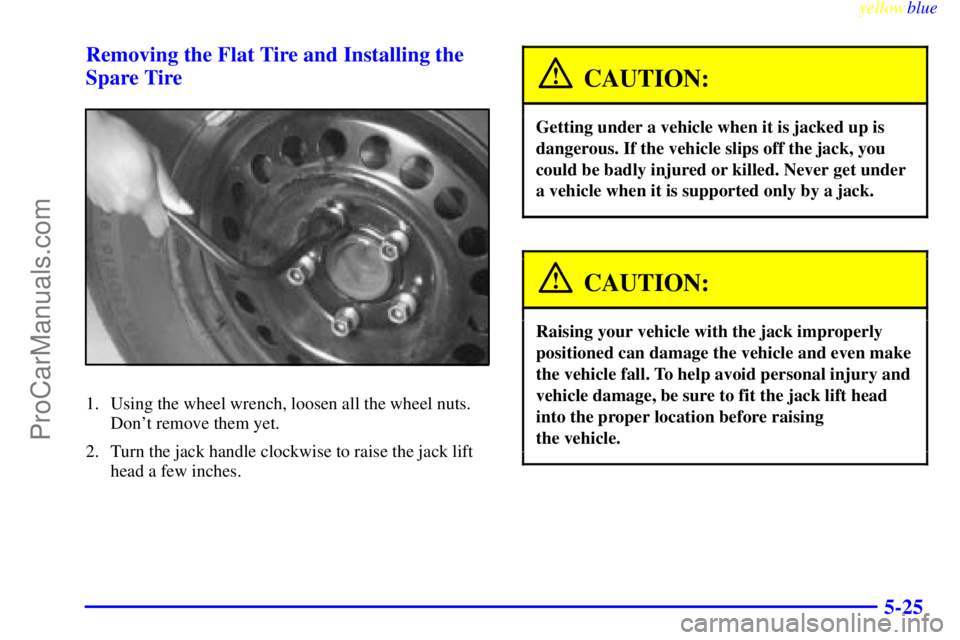

1. Using the wheel wrench, loosen all the wheel nuts.
Don't remove them yet.
2. Turn the jack handle clockwise to raise the jack lift
head a few inches.
CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury and
vehicle damage, be sure to fit the jack lift head
into the proper location before raising
the vehicle.
ProCarManuals.com

yellowblue
5-26
3. For jacking at the vehicle's front location, put the
jack lift head about 6 inches (15 cm) from the rear
edge of the front wheel opening or just behind the
two bolts as shown.4. For jacking at the vehicle's rear location, put the jack
lift head about 5 inches (13 cm) from the front edge
of the rear wheel opening or just behind the off
-set
as shown.
Put the compact spare tire near you.
