BUICK REGAL 2011 Owner's Manual

Black plate (7,1)Buick Regal Owner Manual - 2011

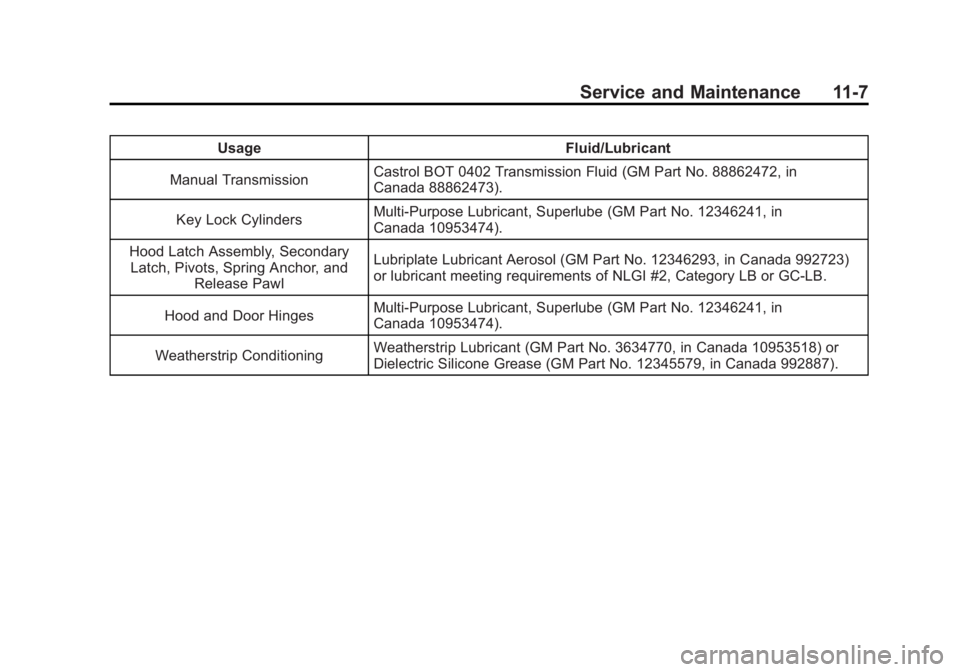

Service and Maintenance 11-7
UsageFluid/Lubricant
Manual Transmission Castrol BOT 0402 Transmission Fluid (GM Part No. 88862472, in
Canada 88862473).
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 12346293, in Canada 992723)
or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or
Dielectric Silicone Grease (GM Part No. 12345579, in Canada 992887).

Black plate (8,1)Buick Regal Owner Manual - 2011
11-8 Service and Maintenance
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 55560894 A3128C
Engine Oil Filter
2.0L L4 Engine 12605566 PF457G
2.4L L4 Engine 12605566 PF457G
Passenger Compartment Air Filter Element 13271191 CF176
Spark Plugs
2.0L L4 Engine 12620540 41–108
2.4L L4 Engine 12620540 41–108
Wiper Blades
Driver Side –60.0 cm (23.62 in) 13227404 —
Passenger Side –45.0 cm (17.7 in) 13227405 —

Black plate (9,1)Buick Regal Owner Manual - 2011
Service and Maintenance 11-9

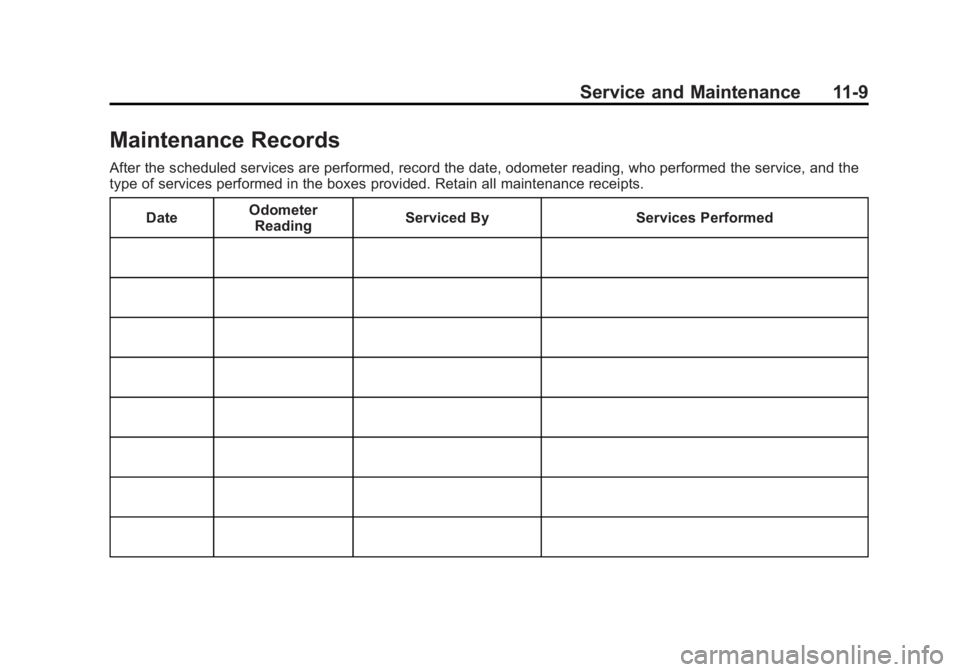

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Services Performed

Black plate (10,1)Buick Regal Owner Manual - 2011

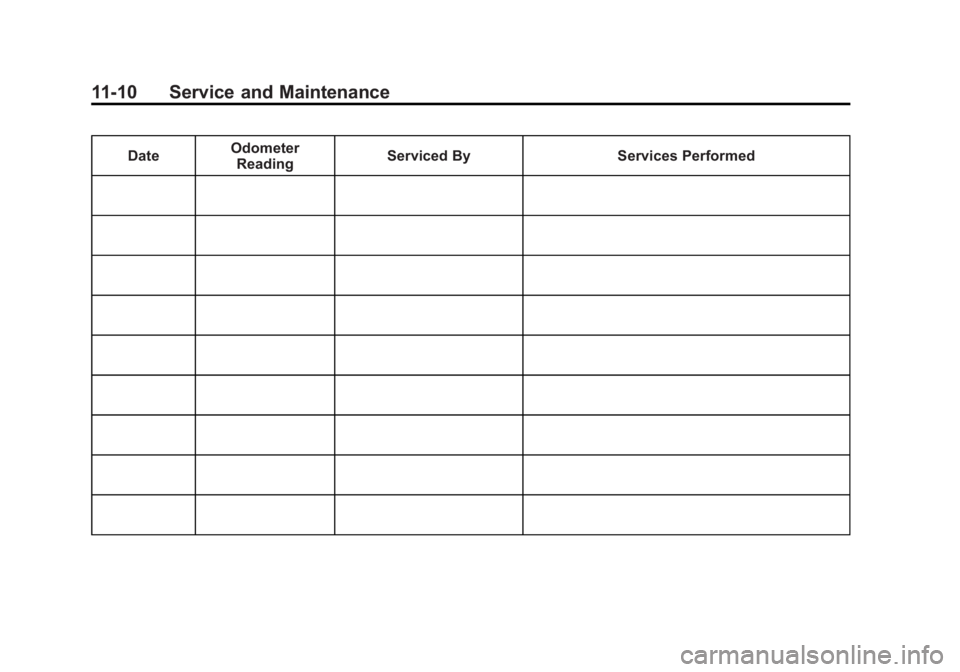

11-10 Service and Maintenance
DateOdometer
Reading Serviced By Services Performed

Black plate (11,1)Buick Regal Owner Manual - 2011

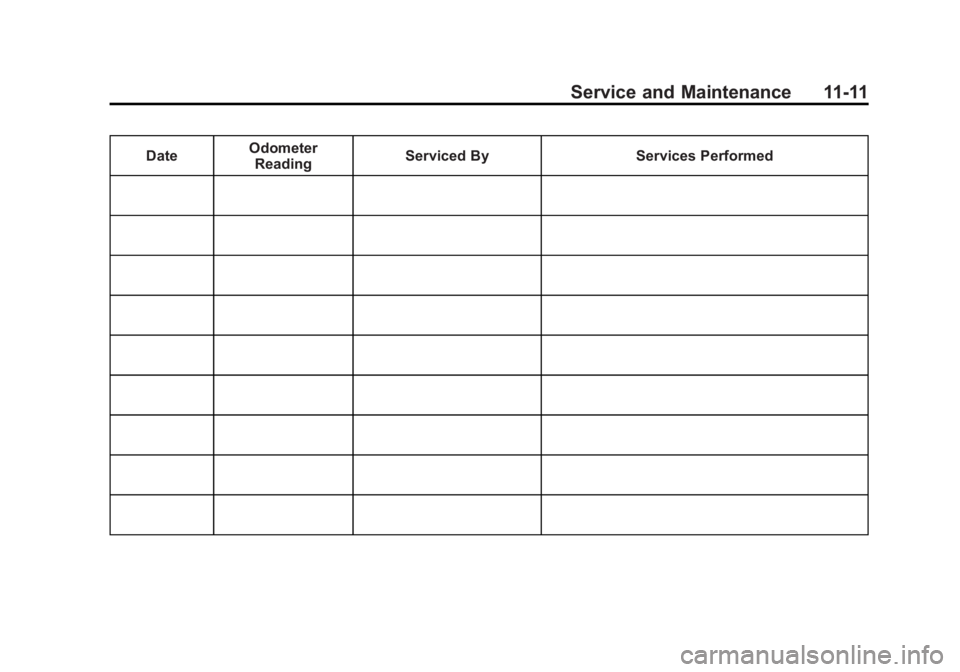

Service and Maintenance 11-11
DateOdometer
Reading Serviced By Services Performed

Black plate (12,1)Buick Regal Owner Manual - 2011
11-12 Service and Maintenance
DateOdometer
Reading Serviced By Services Performed

Black plate (1,1)Buick Regal Owner Manual - 2011
Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2 for the vehicle's
engine code.
Service Parts
Identification Label
This label, located either in the
glove box or the trunk area, has the
following information:
.Vehicle Identification
Number (VIN).
.Model designation.
.Paint information.
.Production options and special
equipment.
Do not remove this label from the
vehicle.

Black plate (2,1)Buick Regal Owner Manual - 2011
12-2 Technical Data
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the hood. See your dealer for more information.
Engine Cooling System 2.0L L4 Engine 7.8 L 8.2 qt
2.4L L4 Engine 7.1 L 7.5 qt
Engine Oil with Filter
2.0L L4 Engine 6 L 6.3 qt
2.4L L4 Engine 4.7 L 5.0 qt
Fuel Tank
2.0L, 2.4L L4 Engine (with NU5 and NT7 emissions) 73.9 L 19.5 gal
2.4L L4 Engine (with NU6 emissions) 70.0 L 18.5 gal

Black plate (3,1)Buick Regal Owner Manual - 2011
Technical Data 12-3
ApplicationCapacities
Metric English
Transmission Fluid* (Drain and Refill)
2.0L L4 Engine, 6–Speed Automatic (Transmission
Requires No Fluid Replacement) — —
2.4L L4 Engine, 6–Speed Automatic 8.4 L 8.9 qt
Wheel Nut Torque 150 Y110 lb ft
*See Automatic Transmission Fluid on page 10‑14 for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.0L L4 Engine VAutomatic 0.9 mm (0.035 in)
2.4L L4 Engine CAutomatic 0.9 mm (0.035 in)

Black plate (4,1)Buick Regal Owner Manual - 2011
12-4 Technical Data

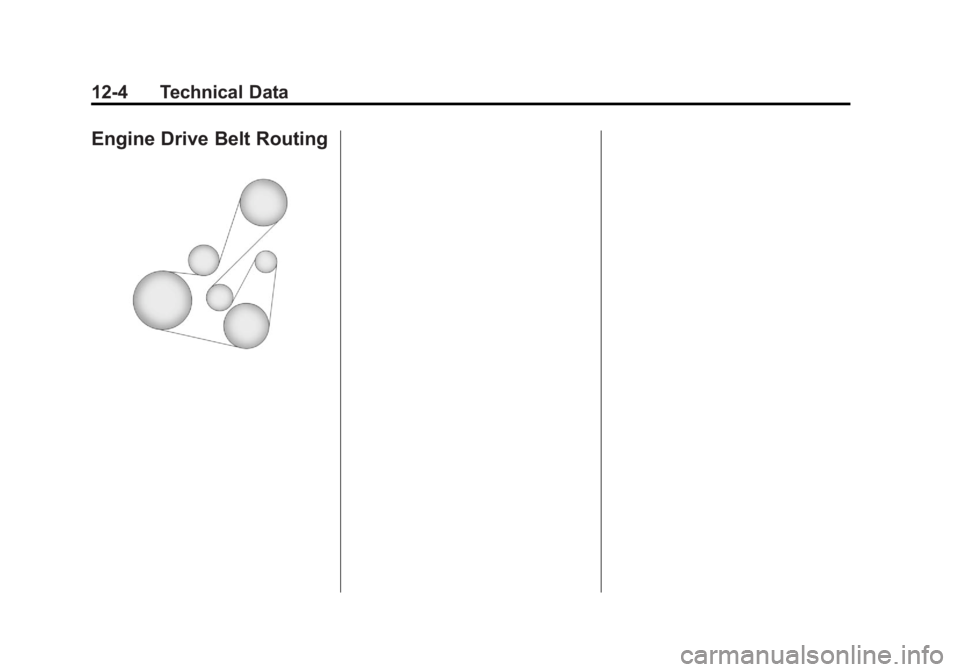

Engine Drive Belt Routing
