coolant reservoir BUICK REGAL 2012 Owner's Manual

Black plate (7,1)Buick Regal Owner Manual - 2012

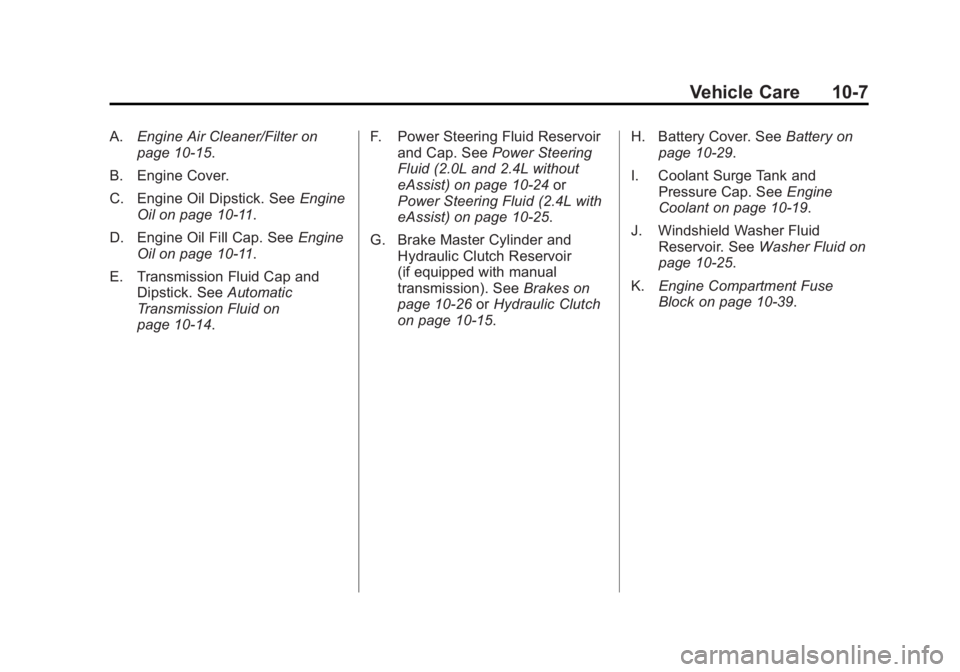

Vehicle Care 10-7
A.Engine Air Cleaner/Filter on
page 10‑15.
B. Engine Cover.
C. Engine Oil Dipstick. See Engine
Oil on page 10‑11.
D. Engine Oil Fill Cap. See Engine
Oil on page 10‑11.
E. Transmission Fluid Cap and Dipstick. See Automatic
Transmission Fluid on
page 10‑14. F. Power Steering Fluid Reservoir
and Cap. See Power Steering
Fluid (2.0L and 2.4L without
eAssist) on page 10‑24 or
Power Steering Fluid (2.4L with
eAssist) on page 10‑25.
G. Brake Master Cylinder and Hydraulic Clutch Reservoir
(if equipped with manual
transmission). See Brakes on
page 10‑26 orHydraulic Clutch
on page 10‑15. H. Battery Cover. See
Battery on
page 10‑29.
I. Coolant Surge Tank and Pressure Cap. See Engine
Coolant on page 10‑19.
J. Windshield Washer Fluid Reservoir. See Washer Fluid on
page 10‑25.
K. Engine Compartment Fuse
Block on page 10‑39.

Black plate (9,1)Buick Regal Owner Manual - 2012
Vehicle Care 10-9
A.Engine Air Cleaner/Filter on
page 10‑15.
B. Engine Cover.
C. Engine Oil Fill Cap. See Engine
Oil on page 10‑11.
D. Engine Oil Dipstick. See Engine
Oil on page 10‑11.
E. Transmission Fluid Cap and Dipstick. See Automatic
Transmission Fluid on
page 10‑14.
F. Brake Master Cylinder Reservoir. See Brakes on
page 10‑26. G. Coolant Surge Tank and
Pressure Cap. See Engine
Coolant on page 10‑19.
H. Battery Cover. See Battery on
page 10‑29.
I. Engine Compartment Fuse
Block on page 10‑39.
J. Windshield Washer Fluid Reservoir. See Washer Fluid on
page 10‑25.

Black plate (11,1)Buick Regal Owner Manual - 2012
Vehicle Care 10-11
A.Engine Air Cleaner/Filter on
page 10‑15.
B. Engine Cover.
C. Engine Cooling Fans (Out of View). See Cooling System on
page 10‑18.
D. Engine Oil Fill Cap. See Engine
Oil on page 10‑11.
E. Engine Oil Dipstick (Out of View). See Engine Oil on
page 10‑11.
F. High Voltage Cable (Orange Color).
G. Transmission Fluid Cap. See Automatic Transmission Fluid
on page 10‑14.
H. Brake Master Cylinder Reservoir. See Brakes on
page 10‑26.
I. Battery (Under Cover). See Battery on page 10‑29. J. Coolant Surge Tank and
Pressure Cap. See Engine
Coolant on page 10‑19.
K. Engine Compartment Fuse
Block on page 10‑39.
L. Windshield Washer Fluid Reservoir. See Washer Fluid on
page 10‑25.
Engine Oil
To ensure proper engine
performance and long life, careful
attention must be paid to engine oil.
Following these simple, but
important steps will help protect
your investment:
.Always use engine oil approved
to the proper specification and of
the proper viscosity grade. See
“Selecting the Right Engine Oil”
in this section.
.Check the engine oil level
regularly and maintain the
proper oil level. See “Checking
Engine Oil” and“When to Add
Engine Oil” in this section.
.Change the engine oil at the
appropriate time. See Engine Oil
Life System on page 10‑13.
.Always dispose of engine oil
properly. See “What to Do with
Used Oil” in this section.
Checking Engine Oil
It is a good idea to check the engine
oil level at each fuel fill. In order to
get an accurate reading, the oil
must be warm and the vehicle must
be on level ground. The engine oil
dipstick handle is a yellow loop. See
Engine Compartment Overview on
page 10‑6 for the location of the
engine oil dipstick.
Obtaining an accurate oil level
reading is essential:
1. If the engine has been running recently, turn off the engine and
allow several minutes for the oil
to drain back into the oil pan.
Checking the oil level too soon
after engine shutoff will not
provide an accurate oil level
reading.

Black plate (24,1)Buick Regal Owner Manual - 2012

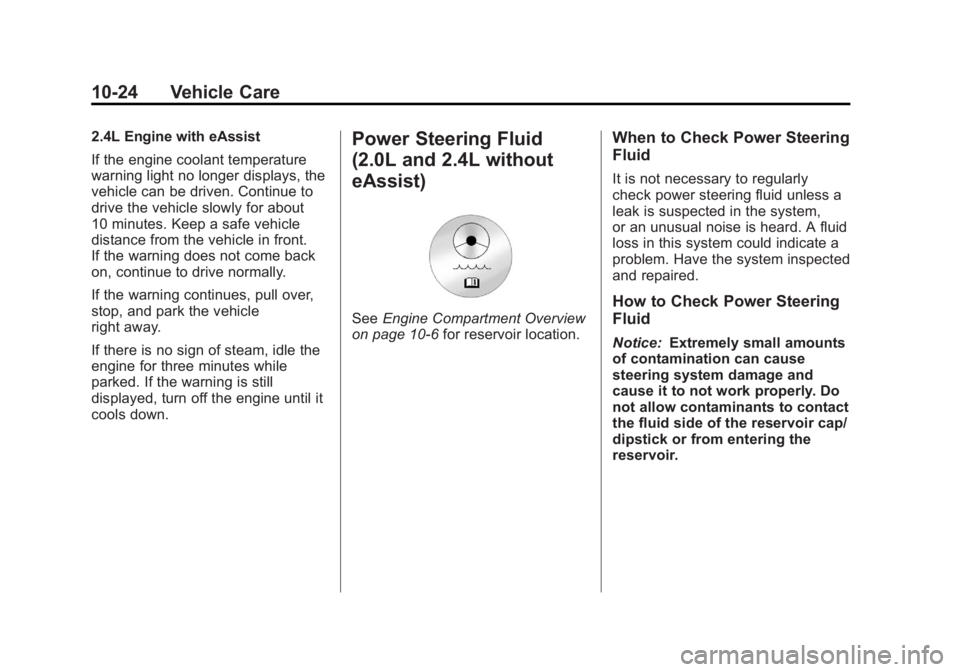

10-24 Vehicle Care
2.4L Engine with eAssist
If the engine coolant temperature
warning light no longer displays, the
vehicle can be driven. Continue to
drive the vehicle slowly for about
10 minutes. Keep a safe vehicle
distance from the vehicle in front.
If the warning does not come back
on, continue to drive normally.
If the warning continues, pull over,
stop, and park the vehicle
right away.
If there is no sign of steam, idle the
engine for three minutes while
parked. If the warning is still
displayed, turn off the engine until it
cools down.Power Steering Fluid
(2.0L and 2.4L without
eAssist)
SeeEngine Compartment Overview
on page 10‑6 for reservoir location.
When to Check Power Steering
Fluid
It is not necessary to regularly
check power steering fluid unless a
leak is suspected in the system,
or an unusual noise is heard. A fluid
loss in this system could indicate a
problem. Have the system inspected
and repaired.
How to Check Power Steering
Fluid
Notice:Extremely small amounts
of contamination can cause
steering system damage and
cause it to not work properly. Do
not allow contaminants to contact
the fluid side of the reservoir cap/
dipstick or from entering the
reservoir.

Black plate (26,1)Buick Regal Owner Manual - 2012
10-26 Vehicle Care
Adding Washer Fluid
Open the cap with the washer
symbol on it. Add washer fluid until
the tank is full. SeeEngine
Compartment Overview on
page 10‑6 for reservoir location.
Notice
.When using concentrated
washer fluid, follow the
manufacturer's instructions
for adding water.
.Do not mix water with
ready-to-use washer fluid.
Water can cause the solution
to freeze and damage the
washer fluid tank and other
parts of the washer system.
Also, water does not clean as
well as washer fluid.
.Fill the washer fluid tank only
three-quarters full when it is
very cold. This allows for
fluid expansion if freezing
occurs, which could damage
the tank if it is
completely full.
.Do not use engine coolant
(antifreeze) in the windshield
washer. It can damage the
windshield washer system
and paint.
Brakes
This vehicle has disc brakes. Disc
brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn and new pads are needed.
The sound can come and go or be
heard all the time the vehicle is
moving, except when applying the
brake pedal firmly.
{WARNING
The brake wear warning sound
means that soon the brakes will
not work well. That could lead to
a crash. When the brake wear
warning sound is heard, have the
vehicle serviced.
Notice: Continuing to drive with
worn-out brake pads could result
in costly brake repair.
Some driving conditions or climates
can cause a brake squeal when the
brakes are first applied or lightly
applied. This does not mean
something is wrong with the brakes.
Properly torqued wheel nuts are
necessary to help prevent brake
pulsation. When tires are rotated,
inspect brake pads for wear and
evenly tighten wheel nuts in the
proper sequence to torque
specifications in Capacities and
Specifications on page 12‑2.
