BUICK REGAL 2017 Owner's Manual

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9804381) - 2017 - crc - 8/30/16
210 Driving and Operating
Caution
Some electrical equipment can
damage the vehicle or cause
components to not work and
would not be covered by the
vehicle warranty. Always check
with your dealer before adding
electrical equipment.
Add-on equipment can drain the
vehicle's 12-volt battery, even if the
vehicle is not operating.
The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see
Servicing the Airbag-Equipped
Vehicle 071 and Adding Equipment
to the Airbag-Equipped Vehicle
0 71.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9804381) - 2017 - crc - 8/30/16
Vehicle Care 211
Vehicle Care
General Information
General Information . . . . . . . . . . 212
California Proposition65 Warning . . . . . . . . . . . . . . . . . 212
California Perchlorate Materials Requirements . . . . . 212
Accessories and Modifications . . . . . . . . . . . . . . . . 213
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 213
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 214
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 215
Engine Oil . . . . . . . . . . . . . . . . . . . . 218
Engine Oil Life System . . . . . . . 220
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 221
Engine Air Cleaner/Filter . . . . . . 222
Cooling System . . . . . . . . . . . . . . 223
Engine Coolant . . . . . . . . . . . . . . . 224
Engine Overheating . . . . . . . . . . 227
Washer Fluid . . . . . . . . . . . . . . . . . 228
Brakes . . . . . . . . . . . . . . . . . . . . . . . 229
Brake Fluid . . . . . . . . . . . . . . . . . . . 230
Battery - North America . . . . . . 231
All-Wheel Drive . . . . . . . . . . . . . . . 232 Starter Switch Check . . . . . . . . . 232
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 232
Ignition Transmission Lock
Check . . . . . . . . . . . . . . . . . . . . . . . 233
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 233
Wiper Blade Replacement . . . . 233
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 234
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 234
Halogen Bulbs . . . . . . . . . . . . . . . . 234
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 235
Headlamps, Front Turn Signal and Parking Lamps . . . . . . . . . 235
Fog Lamps . . . . . . . . . . . . . . . . . . . 235
Taillamps, Turn Signal, Stoplamps, and Back-Up
Lamps . . . . . . . . . . . . . . . . . . . . . . 236
License Plate Lamp . . . . . . . . . . 236
Replacement Bulbs . . . . . . . . . . . 237
Electrical System
High Voltage Devices and Wiring . . . . . . . . . . . . . . . . . . . . . . . 237
Electrical System Overload . . . 238
Fuses and Circuit Breakers . . . 238 Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 239
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 241
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 243
All-Season Tires . . . . . . . . . . . . . . 244
Winter Tires . . . . . . . . . . . . . . . . . . 244
Low-Profile Tires . . . . . . . . . . . . . 244
Summer Tires . . . . . . . . . . . . . . . . 245
Tire Sidewall Labeling . . . . . . . . 245
Tire Designations . . . . . . . . . . . . . 247
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 248
Tire Pressure . . . . . . . . . . . . . . . . . 251
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . 252
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 252
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 253
Tire Inspection . . . . . . . . . . . . . . . . 257
Tire Rotation . . . . . . . . . . . . . . . . . 257
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 258
Buying New Tires . . . . . . . . . . . . . 259
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 260
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 261

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9804381) - 2017 - crc - 8/30/16
212 Vehicle Care
Wheel Alignment and TireBalance . . . . . . . . . . . . . . . . . . . . . 262
Wheel Replacement . . . . . . . . . . 262
Tire Chains . . . . . . . . . . . . . . . . . . . 263
If a Tire Goes Flat . . . . . . . . . . . . 263
Tire Sealant and Compressor Kit . . . . . . . . . . . . . 265
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . 272
Tire Changing . . . . . . . . . . . . . . . . 272
Compact Spare Tire . . . . . . . . . . 277
Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 278
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 281
Recreational VehicleTowing . . . . . . . . . . . . . . . . . . . . . . 282
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . 284
Interior Care . . . . . . . . . . . . . . . . . . 289
Floor Mats . . . . . . . . . . . . . . . . . . . . 292
General Information
For service and parts needs, visit
your dealer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one of
these marks:
California Proposition
65 Warning
WARNING: Most motor vehicles,
including this one, as well as many
of its service parts and fluids,
contain and/or emit chemicals
known to the State of California to cause cancer and birth defects or
other reproductive harm. Engine
exhaust, many parts and systems,
many fluids, and some component
wear by-products contain and/or
emit these chemicals.
See
Battery - North America 0231
and Jump Starting - North America
0 278.
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, safety belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9804381) - 2017 - crc - 8/30/16
Vehicle Care 213
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty.
Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the vehicle warranty.Damage to vehicle components
resulting from modifications or the
installation or use of non-GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle 071.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner ’s manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see Service
Publications Ordering Information
0 318.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Servicing the
Airbag-Equipped Vehicle 071.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9804381) - 2017 - crc - 8/30/16
214 Vehicle Care
Keep a record with all parts receipts
and list the mileage and the date of
any service work performed. See
Maintenance Records0305.
Caution
Even small amounts of
contamination can cause damage
to vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks.
Hood
To open the hood:
1. Pull up on the hood release
handle with this symbol on it.
It is inside the vehicle on the
lower driver side of the
instrument panel.
2. Go to the front of the vehicle tofind the secondary hood
release handle. The handle is
under the front edge of the
hood near the center. Push the
handle to the right and at the
same time raise the hood.
To close the hood: 1. Before closing the hood, be sure all the filler caps are on
properly.
2. Lower the hood 30 cm (12 in) above the vehicle and release
it so it fully latches. Check to
make sure the hood is closed
and repeat the process if
necessary.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9804381) - 2017 - crc - 8/30/16
Vehicle Care 215

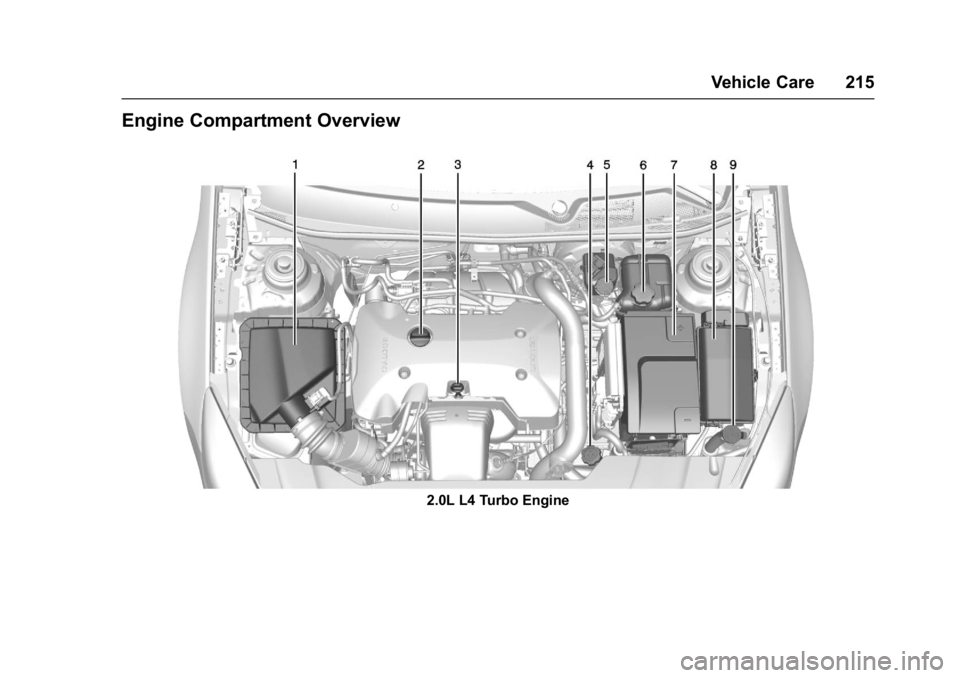

Engine Compartment Overview
2.0L L4 Turbo Engine

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9804381) - 2017 - crc - 8/30/16
216 Vehicle Care
1.Engine Air Cleaner/Filter 0222.
2. Engine Oil Fill Cap. See Engine Oil 0218.
3. Engine Oil Dipstick. See Engine Oil 0218.
4. Transmission Fluid Cap. See Automatic Transmission Fluid
0221.
5. Brake Fluid Reservoir. See Brake Fluid 0230.
6. Coolant Surge Tank and Pressure Cap. See Engine
Coolant 0224.
7. Battery (Under Cover). See Battery - North America 0231.
8. Engine Compartment Fuse
Block 0239.
9. Windshield Washer Fluid Reservoir. See Washer Fluid
0 228.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9804381) - 2017 - crc - 8/30/16
Vehicle Care 217

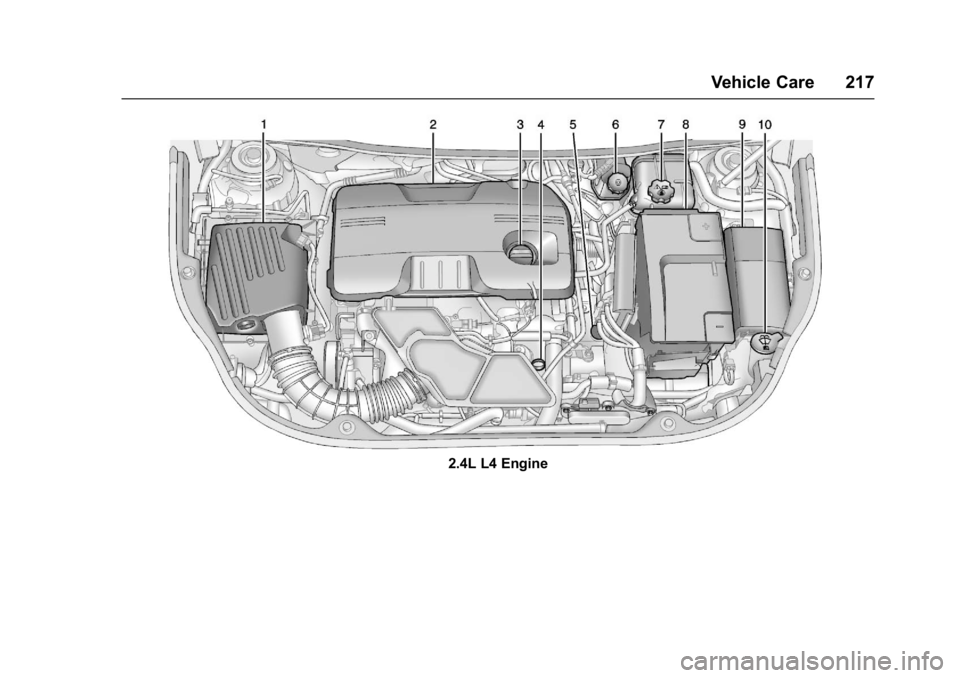

2.4L L4 Engine

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9804381) - 2017 - crc - 8/30/16
218 Vehicle Care
1.Engine Air Cleaner/Filter 0222.
2. Engine Cover.
3. Engine Oil Fill Cap. See Engine Oil 0218.
4. Engine Oil Dipstick. See Engine Oil 0218.
5. Transmission Fluid Cap and Dipstick. See Automatic
Transmission Fluid 0221.
6. Brake Fluid Reservoir. See Brake Fluid 0230.
7. Coolant Surge Tank and Pressure Cap. See Engine
Coolant 0224.
8. Battery (Under Cover). See Battery - North America 0231.
9. Engine Compartment Fuse
Block 0239.
10. Windshield Washer Fluid Reservoir. See Washer Fluid
0 228.Engine Oil
To ensure proper engine
performance and long life, careful
attention must be paid to engine oil.
Following these simple, but
important steps will help protect
your investment:
.
Use engine oil approved to the
proper specification and of the
proper viscosity grade. See
“Selecting the Right Engine Oil”
in this section.
. Check the engine oil level
regularly and maintain the
proper oil level. See “Checking
Engine Oil” and“When to Add
Engine Oil” in this section.
. Change the engine oil at the
appropriate time. See Engine Oil
Life System 0220.
. Always dispose of engine oil
properly. See “What to Do with
Used Oil” in this section.
Checking Engine Oil
Check the engine oil level regularly,
every 650 km (400 mi), especially
prior to a long trip. The engine oil dipstick handle is a loop. See
Engine Compartment Overview
0
215 for the location.
{Warning
The engine oil dipstick handle
may be hot; it could burn you.
Use a towel or glove to touch the
dipstick handle.
If a low oil Driver Information Center
(DIC) message displays, check the
oil level.
Follow these guidelines:
. To get an accurate reading, park
the vehicle on level ground.
Check the engine oil level after
the engine has been off for at
least two hours. Checking the
engine oil level on steep grades
or too soon after engine shutoff
can result in incorrect readings.
Accuracy improves when
checking a cold engine prior to
starting. Remove the dipstick
and check the level.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9804381) - 2017 - crc - 8/30/16
Vehicle Care 219
.If unable to wait two hours, the
engine must be off for at least
15 minutes if the engine is
warm, or at least 30 minutes if
the engine is not warm. Pull out
the dipstick, wipe it with a clean
paper towel or cloth, then push it
back in all the way. Remove it
again, keeping the tip down, and
check the level.
When to Add Engine Oil
If the oil is below the cross-hatched
area at the tip of the dipstick and
the engine has been off for at least
15 minutes, add 1 L (1 qt) of the
recommended oil and then recheck
the level. See “Selecting the Right
Engine Oil” later in this section for
an explanation of what kind of oil to
use. For engine oil crankcase
capacity, see Capacities and
Specifications 0307.
Caution
Do not add too much oil. Oil
levels above or below the
acceptable operating range
shown on the dipstick are harmful
to the engine. If you find that you
have an oil level above the
operating range, i.e., the engine
has so much oil that the oil level
gets above the cross-hatched
area that shows the proper
operating range, the engine could
be damaged. You should drain
out the excess oil or limit driving
of the vehicle and seek a service
professional to remove the
excess amount of oil.
See Engine Compartment Overview
0 215 for the location of the engine
oil fill cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back in when through.
Selecting the Right Engine Oil
Selecting the right engine oil
depends on both the proper oil
specification and viscosity grade.
See Recommended Fluids and
Lubricants 0303.
Specification
Ask for and use engine oils that
meet the dexos1™ specification.
Engine oils that have been
approved by GM as meeting the
dexos1 specification are marked
with the dexos1 approved logo. See
www.gmdexos.com.
Caution
Failure to use the recommended
engine oil or equivalent can result
in engine damage not covered by
the vehicle warranty.
