BUICK SKYLARK 1993 Owners Manual

The fuse chart, below, shows how to tell a blown fuse
from
.. a good fuse.
GOOD 1
I FUSE FUSE
BLOWN
' ' u RATING GM PART NO.
12004003 ................... 3 AMP VIOLET
12004006
................... 7.5 AM.P BROWN
12004007
................... 10 AMP RED
12004008
................... 15 AMP LIGHT BLUE
12004009
................... 20 AMP YELLOW
12004010
................... 25 AMP WHITE
12004011
................... 30 AMP LIGHT GREEN
r- -tu COLOR
12004005 ................... 5 -AMP TAN
Headlights
The headlight wiring is protected by a circuit breaker in
the fuseblock. An electrical overload will cause the
lights to go on and
off, or in some cases to remain off. If
this happens, have your headlight wiring checked right
away.
Windshield Wipers
. The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem and
not snow, etc., be sure to get
it fixed. ,
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed or goes
away.
260
I

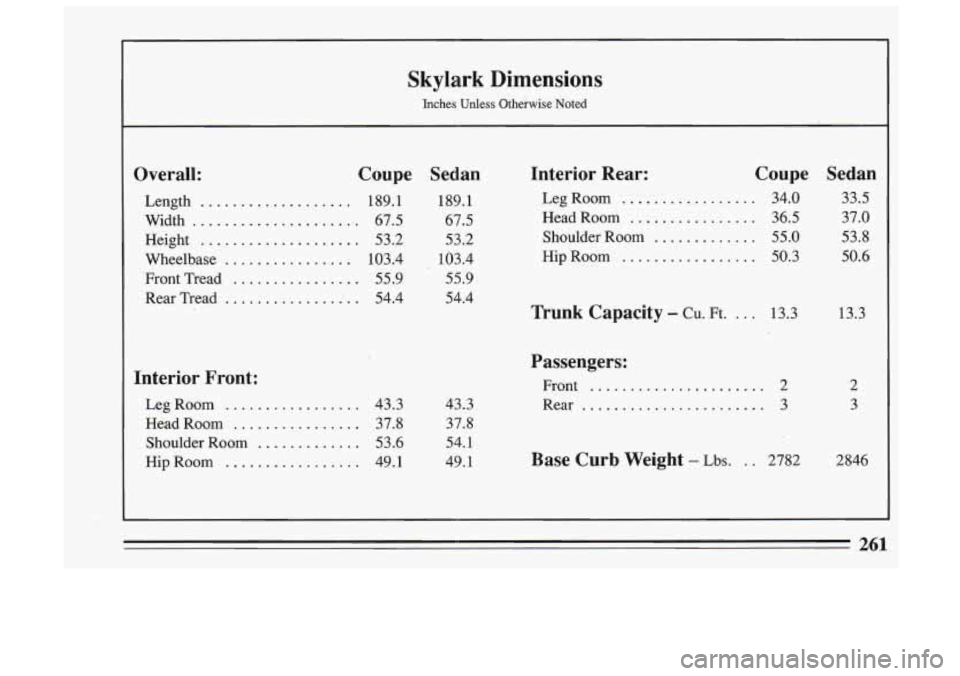

Skylark Dimensions
Inches Unless Otherwise Noted
Overall: Coupe
Length ................... 189.1
Width
..................... 67.5
Height
.................... 53.2
Wheelbase
................ 103.4
Front Tread
................ 55.9
Rear Tread ................. 54.4
Interior Front:
Leg Room ................. 43.3
Head Room
................. 37.8
Shoulder Room
............. 53.6
Hip Room ................. 49.1
Sedan
189.1
67.5 53.2
103.4
55.9
54.4
Interior Rear: Coupe
Leg Room ................. 34.0
Head Room
................ 36.5
Shoulder Room
............. 55.0
Hip Room ................. 50.3
Trunk Capacitv . CU . Ft .... 13.3
43.3 37.8
54.1
49.1
Passengers:
Front ...................... 2
Rear
....................... 3
Base Curb Weight . Lbs ... 2782
Sedan
33.5
37.0
53.8
50.6
13.3
2
3
2846
261

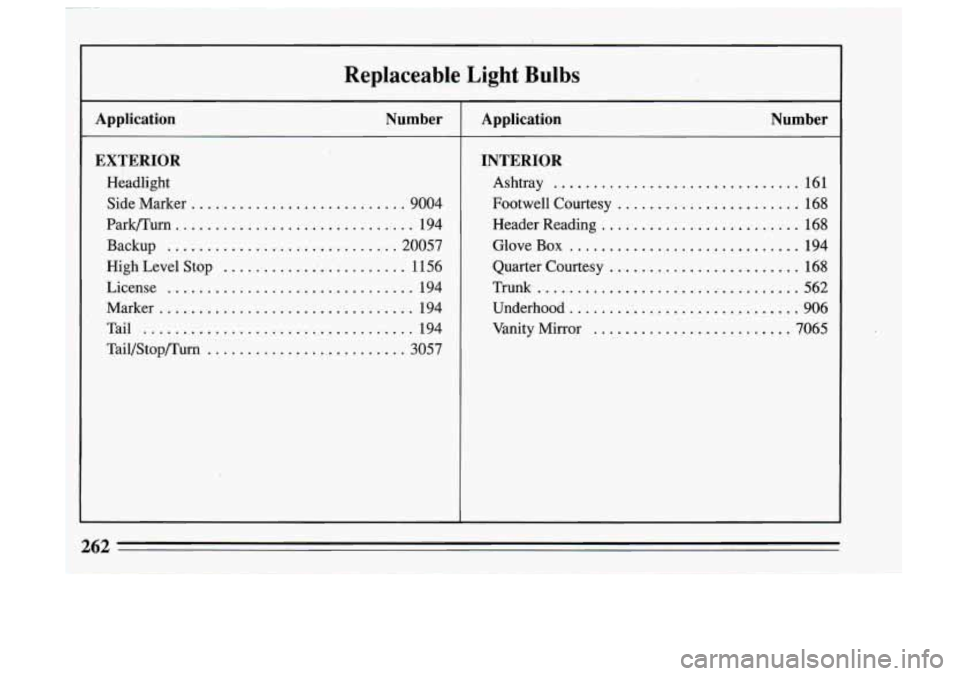

Replaceable Light Bulbs
Application Number
EXTERIOR
Headlight Side Marker
........................... 9004
Park/Tu
rn .............................. 194
Backup
............................. 20057
High Level Stop
........................ 1 156
License
............................... 194
Marker
................................ 194
Tail
.................................. 194
Tail/Stop/Turn
.......................... 3057
Application Number
INTERIOR
Ashtray ............................... 161
Footwell Courtesy
....................... 168
Header Reading
......................... 168
Glove Box
............................. 194
Quartercourtesy
........................ 168
Trunk
.................................. 562
Underhood
............................. 906
Vanity Mirror
......................... 7065
1
262

. Capacities and Specifications
Engine Code D1 (L40)2 2.3L L-4 (QUAD 4) OHC
Belt Tensions -
Front crankbelt: automatically controlled by an
idler pulley. Tension adjustment should never be
ncessary. Power steering:
450 Newtons
Cooling System Capacity -
10.4 quarts/9.8 liters
Crankcase Capacity -
4 quarts/3.8 liters
Air Conditioning Capaeity(Rl2)4 -
2.63 lbs. (1.19 kilograms)
Fuel Tank Capacity -
15.2 gallons/57.5 liters
Transaxle, Automatic -
Capacity 4 quarts/3.8 liters
Maintenance Item Part Numbers3
Air Filter - AI 172C
Fuel Filter
- GF578
Oil Filter
- PF1225 or PF47
PCV Valve
- CV899C
Spark Plug
- FR3LSK, GAP 0.035”
~~~~
1 8th Character of the Vehicle Identification Number.
z Made in a GM plant in the United States.
3 Part numbers are AC type.
4 Air Conditioning Refrigerant - Not all air conditioning refrigerants are the same. If the air conditioning system in your
vehicle needs refrigerant, be sure the proper refrigerant
is used. If you’re not sure ask your Buick dealer.
263

Capacities and Specifications

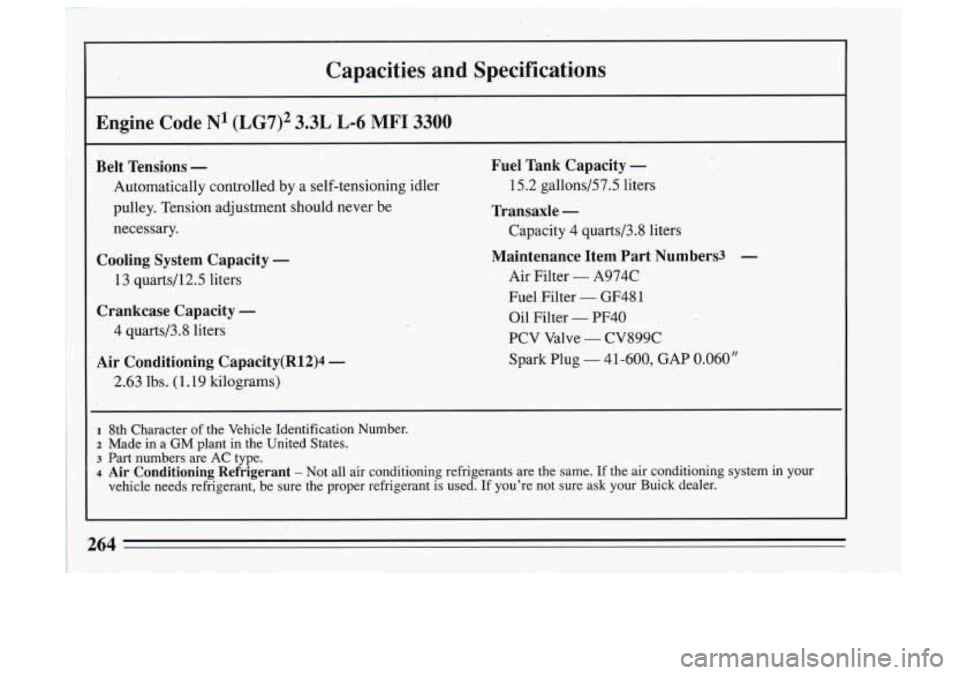

Engine Code N1 (LG7)2 3.3L L-6 MFI 3300
Belt Tensions -
Automatically controlled by a self-tensioning idler
pulley. Tension adjustment.should new be
necessary.
Cooling System Capacity -
13 quarts/l2.5 liters
Crankcase Capacity -
4 quarts/3.8 liters
Air Conditioning Capacity(R12)d -
2.63 lbs. (1.19 kilograms)
Fuel Tank Capacity -
Transaxle -
15.2 gallons/57.5 liters
Capacity
4 quartd3.8 liters
Maintenance Item Part Numbers3 -
Air Filter - A974C
Fuel Filter
- GF48 1
Oil Filter - PF40
PCV Valve
- CV899C
Spark Plug
- 41-600, GAP 0.060”
1 8th Character of the Vehicle Identification Number.
2 Made in a GM plant in the United States.
3 Part numbers are AC type.
4 Air Conditioning Refrigerant - Not all air conditioning refrigerants are the same. If the air conditioning system in your
vehicle needs refrigerant, be sure the proper refrigerant
is used. If you’re not sure ask your Buick dealer.
264

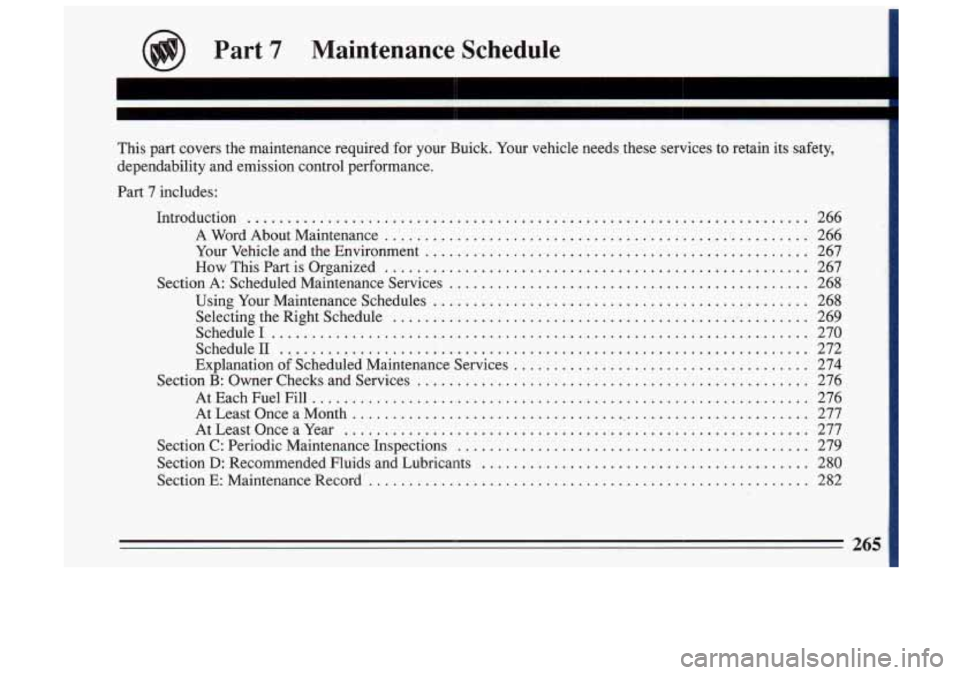

Part 7 Maintenance Schedule
This part covers the maintenance required for your Buick . Your vehicle needs these services to retain its safety.
dependability and emission control performance
.
Part 7 includes:
Introduction
...................................................................... 266
A Word About Maintenance
.....................................................
Your Vehicle and the Environment ................................................ 267
How This Part is Organized
..................................................... 267
Section A: Scheduled Maintenance Services
.............................................
Using Your Maintenance Schedules ............................................... 268
Selecting the Right Schedule
....................................................
Schedule1 ................................................................... 270
Schedule11
.................................................................. 272
Explanation
of Scheduled Maintenance Services ..................................... 274
AtEachFuelFill
.............................................................. 276
At Least Once a Month .......................................................... 277
AtLeastOnceaYear
..........................................................
Section C: Periodic Maintenance Inspections ............................................ 279
Section
D: Recommended Fluids and Lubricants ......................................... 280
Section E: Maintenance Record
....................................................... 282
Section
B: Owner Checks and Services .................................................

IMPORTANT:
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE
AS
RECOMMENDED ,?.j :i i
Protection
Plan
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties. See your
Buick dealer for details.
/
Introduction

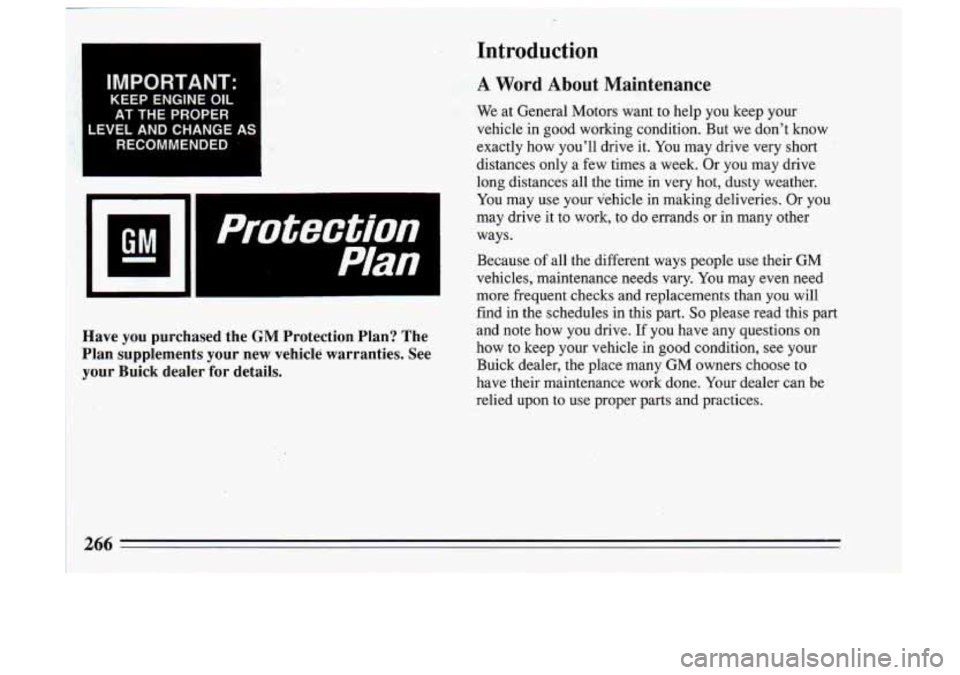

A Word About Maintenance
We at General Motors want to help you keep your
vehicle in good working condition. But we don’t know
exactly how you’ll drive
it. You may drive very short
distances only a few times
a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your Vehicle in making deliveries. Or you
may drive
it to work, to do errands or in many other
ways.
Because
of all the different ways people use their GM
vehicles, maintenance needs vary. You may even need
more frequent checks and replacements than you will
find in the schedules in this part.
So please read this part
and note how you drive. If you have any questions on
how to keep your vehicle in good condition, see your
Buick dealer, the place many GM owners choose to
have their maintenance work done.
Your dealer can be
relied upon to use proper parts and practices.
266

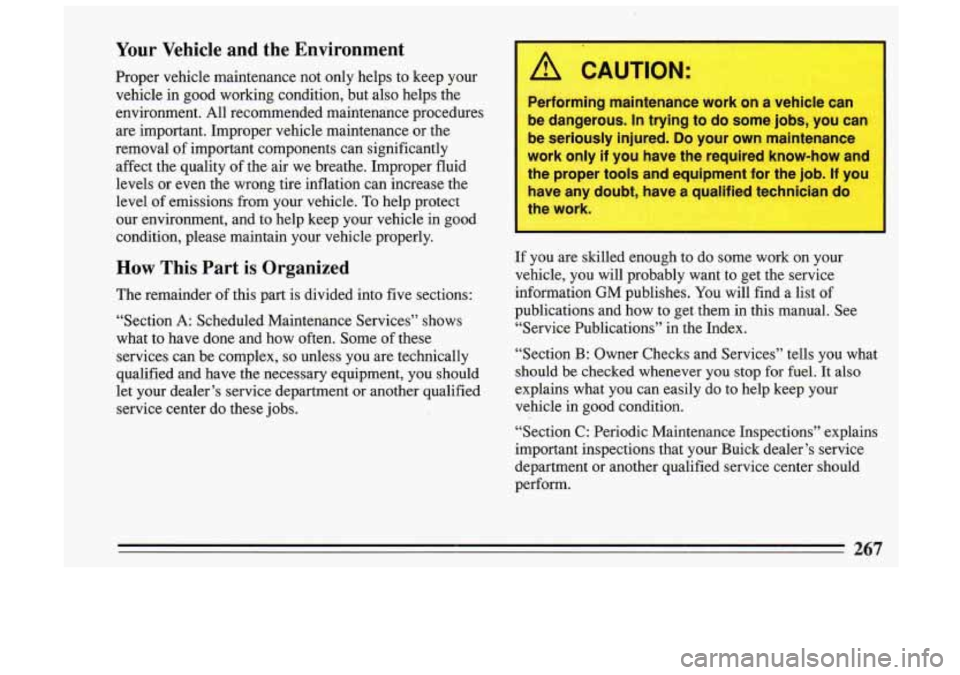

Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance or the
removal
of important components can significantly
affect the quality of the-air we breathe. Improper fluid
levels or even the wrong tire inflation can increase the
level
of emissions from your vehicle. To help protect
our environment, and to help keep your vehicle in good
condition, please maintain your vehicle properly.
How This Part is Organized
The remainder of this part is divided into five sections:
“Section A: Scheduled Maintenance Services” shows
what to have done and how often. Some of these
services can be complex,
so unless you are technically
qualified and have the necessary equipment, you should
let your dealer’s service department or another qualified
service center do these jobs.
A CAUTION:
Performing maintenance work on a vehicle can
be dangerous. In trying to
do some jobs, you can
be seriously injured.
Do your own maintenance
work only
if you have the required know-how and
the proper tools and equipment for the job.
If you
have any doubt, have a qualified technician
do
the work.
If you are skilled enough to do some work on your
vehicle, you will probably want to get the service
information GM publishes. You will find a list of
publications and how to get. them in this manual. See
“Service Publications” in the Index.
“Section B: Owner Checks and Services” tells you what
should be checked whenever you stop for fuel. It also
explains what you can easily do to help keep your
vehicle in good condition.
“Section
C: Periodic Maintenance Inspections” explains
important inspections that your Buick dealer’s service
department or another qualified service center should
perform.

“Section D: Recommended Fluids and Lubricants” lists Section A: Scheduled Maintenance
some products GM recommends to help keep your
vehicle properly maintained. These products,
or their Services
equivalents, should be used whether you do the work
yourself
or have it done. Using Your Maintenance Schedules
“Section E: Maintenance Record” provides a place for
you to record the maintenance performed on your
vehicle. Whenever any maintenance is performed, be
sure to write it down in this section. This will help you
determine when your next maintenance should be done.
In addition, it is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle for warranty repairs. This section tells you the maintenance services you
should have done and when you should schedule them.
Your Buick dealer knows your vehicle best and wants
you
to be happy with it. If you go to your dealer for your
service needs, you’ll know that GM-trained and
supported service people will perform the work using
genuine GM parts.
These schedules are for vehicles that:
0
0
0 carry passengers and cargo within recommended
limits. You will find these limits on your vehicle’s
Tire-Loading Information label. See “Loading Your Vehicle” in the Index.
are driven on reasonable road surfaces within legal
driving limits.
use the recommended unleaded fuel. See “Fuel”
in
the Index.
268

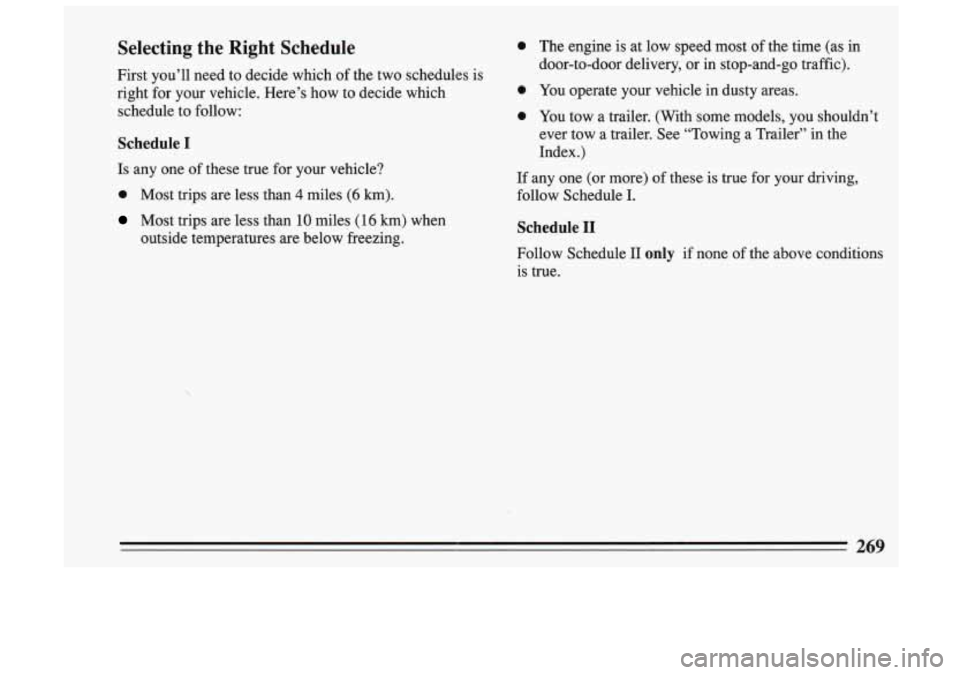

Selecting the Right Schedule
First you’ll need to decide which of the two schedules is
right for your vehicle. Here’s how to decide which
0
schedule to follow: 0
Schedule I
Is any one of these true for your vehicle?
0 Most trips are less than 4 miles (6 km).
Most trips are less than 10 miles (16 km) when
outside temperatures are below freezing.
0 The engine is at low speed most of the time (as in
door-to-door delivery,
or in stop-and-go traffic).
You operate your vehicle in dusty areas.
You tow a trailer. (With some models, you shouldn’t
ever tow a trailer. See “Towing a Trailer” in the
Index.
)
If any one (or more) of these is true for your driving,
follow Schedule I.
Schedule I1
Follow Schedule I1 only if none of the above conditions
is true.
269
