BUICK TERRAZA 2005 User Guide

Press this button once
to turn on the front
passenger’s heated
seat to the high setting.
Both indicator lights to the left of the symbol will be lit to
indicate that it is on the high setting. Press the button
a second time to go to the low setting. One indicator will
be lit. Press the button a third time to turn the heated
seat off.
The heated seats will turn off when the ignition is
turned to LOCK and will resume operation when the
ignition is turned to RUN, unless the button is manually
turned off.Reclining Seatbacks
To adjust a manual seatback, pull up on the lever
located on the outboard side of the driver’s or front
passenger’s seats. Release the lever to lock the
seatback where you want it. Push and pull on the seat
to make sure it’s locked into position. Pull up on the
lever, and the seat will go to its original upright position.
Your vehicle may have power reclining seatbacks.
SeeEight-Way Power Seats on page 1-4.
1-5

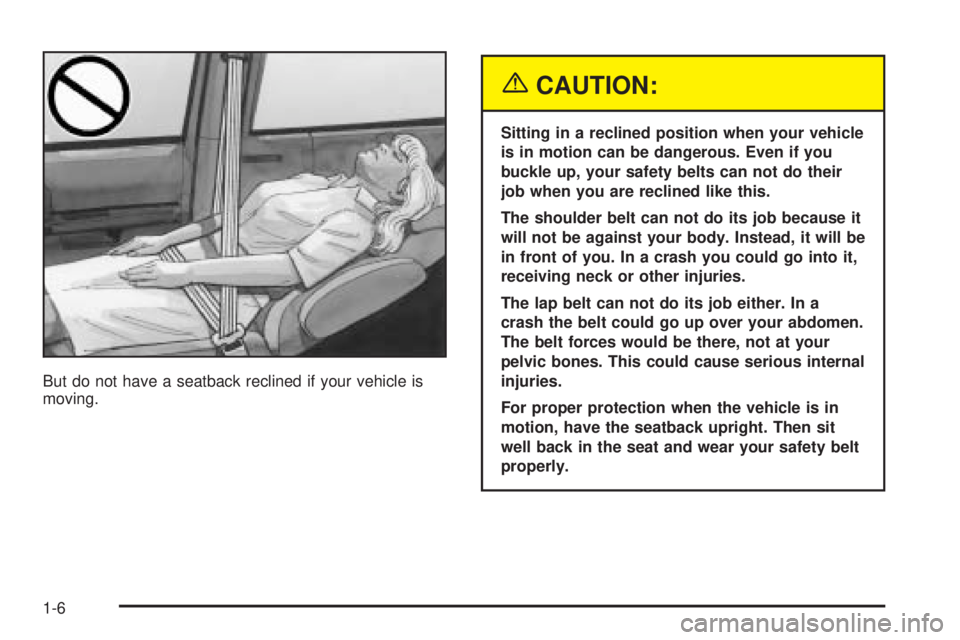

But do not have a seatback reclined if your vehicle is
moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can not do their
job when you are reclined like this.
The shoulder belt can not do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can not do its job either. In a
crash the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-6

Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
The head restraints are adjustable on the rst and
second row seats. They are not adjustable on the third
row seat, if equipped. To adjust a head restraint,
slide it up or down.
Rear Seats
Rear Seat Operation
The rear seats in your vehicle have levers and straps
used to adjust, remove, and reinstall the seats. By using
the levers and straps in the correct order, you can
easily remove the seats from the vehicle.
When you put the seats back in the vehicle, follow the
label on the back of the seat for proper location.
Captain Chairs
Your vehicle has captain’s chairs that can be adjusted
forward or rearward as well as seatbacks that can
be adjusted.
Adjusting the Captain’s Chairs
(Second Row)
The second row captain’s chairs can be adjusted
forward or rearward.
There are two manual adjustment bars on each seat.
One is located under the front of the seat cushion.
The other one is located under the rear of the seat
cushion.
Lift up either bar to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to
make sure it is locked into place.
1-7

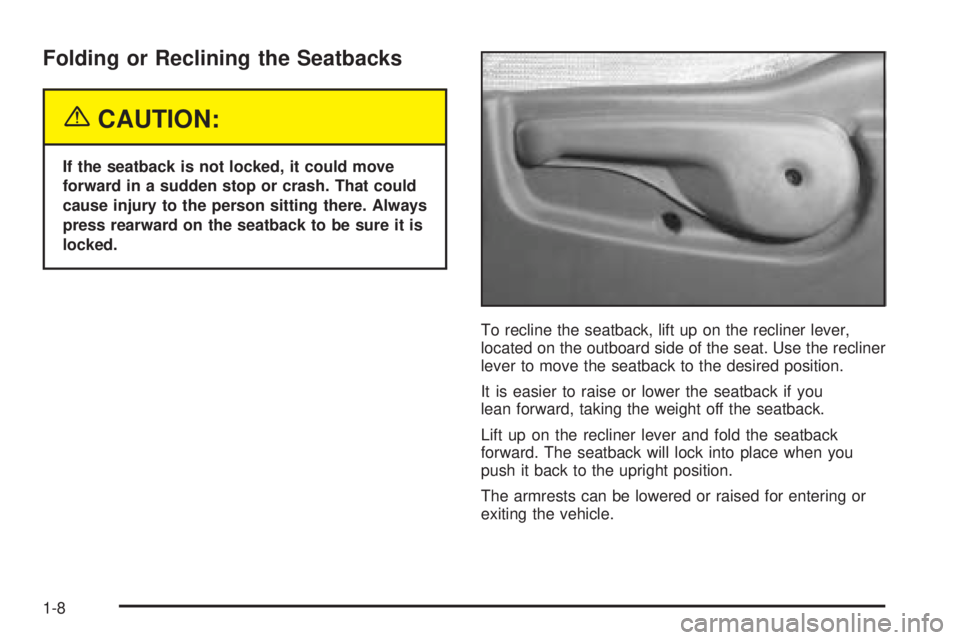

Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
To recline the seatback, lift up on the recliner lever,
located on the outboard side of the seat. Use the recliner
lever to move the seatback to the desired position.
It is easier to raise or lower the seatback if you
lean forward, taking the weight off the seatback.
Lift up on the recliner lever and fold the seatback
forward. The seatback will lock into place when you
push it back to the upright position.
The armrests can be lowered or raised for entering or
exiting the vehicle.
1-8

Removing the Captain’s Chairs
1. Pull the nylon strap behind the seat to release the
rear hooks from the oor pins.2. The seat can then be lifted off the front oor pins
and removed from the vehicle.
1-9

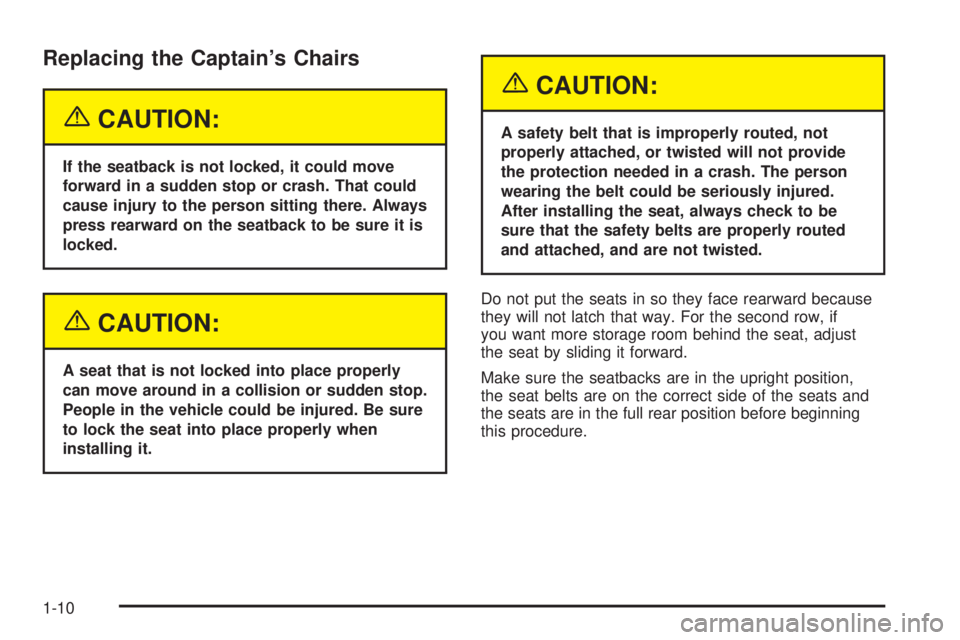

Replacing the Captain’s Chairs
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Do not put the seats in so they face rearward because
they will not latch that way. For the second row, if
you want more storage room behind the seat, adjust
the seat by sliding it forward.
Make sure the seatbacks are in the upright position,
the seat belts are on the correct side of the seats and
the seats are in the full rear position before beginning
this procedure.
1-10

1. Hook the front latches over the front oor pins. 2. Push the rear of the seat down to lock the rear
latches onto the rear set of oor pins.
3. Push and pull on the seat to be sure it is properly
attached.
1-11

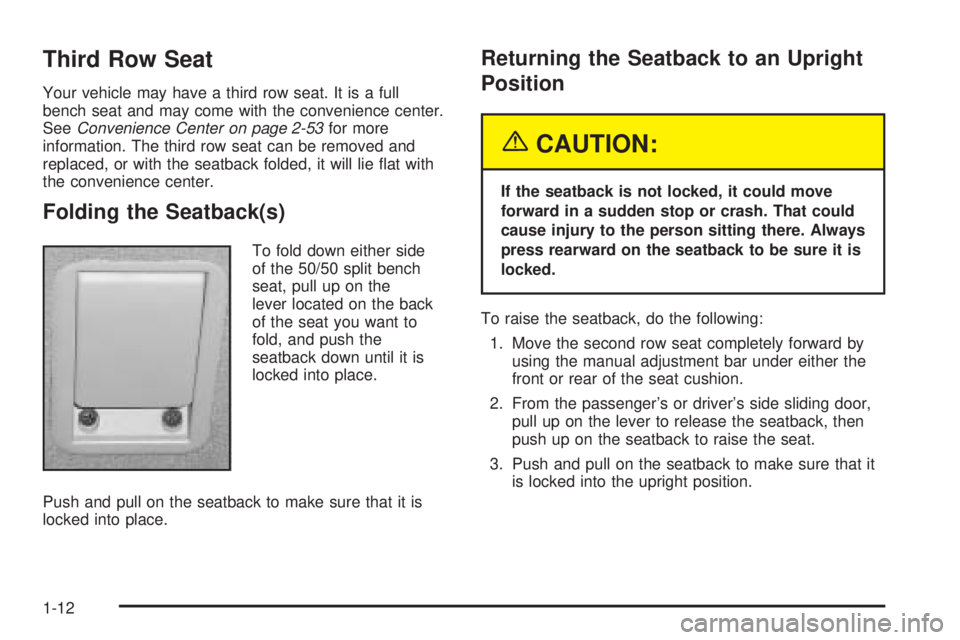

Third Row Seat
Your vehicle may have a third row seat. It is a full
bench seat and may come with the convenience center.
SeeConvenience Center on page 2-53for more
information. The third row seat can be removed and
replaced, or with the seatback folded, it will lie at with
the convenience center.
Folding the Seatback(s)
To fold down either side
of the 50/50 split bench
seat, pull up on the
lever located on the back
of the seat you want to
fold, and push the
seatback down until it is
locked into place.
Push and pull on the seatback to make sure that it is
locked into place.
Returning the Seatback to an Upright
Position
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
To raise the seatback, do the following:
1. Move the second row seat completely forward by
using the manual adjustment bar under either the
front or rear of the seat cushion.
2. From the passenger’s or driver’s side sliding door,
pull up on the lever to release the seatback, then
push up on the seatback to raise the seat.
3. Push and pull on the seatback to make sure that it
is locked into the upright position.
1-12

Removing the Third Row Seat
1. Remove the convenience center, if equipped.
SeeConvenience Center on page 2-53for more
information.
2. Make sure all items are off the seat.
3. Put the seatback in its folded position before
removing the seat. See “Folding the Seatback(s)”
earlier in this section.
4. From behind the seat, squeeze the release handle
until the pin indicators are fully out. This indicates
that the rear latches are released from the oor.
For ease of removing the seat, squeeze the handle
with the palm of your hand up.
5. Lift the seat slightly from the oor to ensure the
latches are clear of the oor pins.
6. Pull the seat rearward and out of the vehicle.
The release handle can be used to carry the seat.
1-13

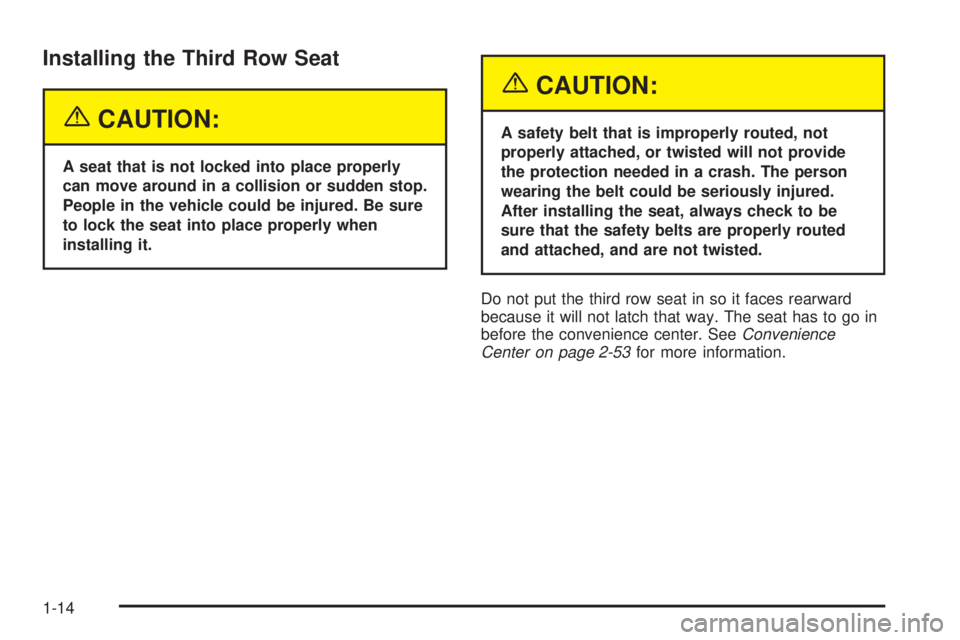

Installing the Third Row Seat
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Do not put the third row seat in so it faces rearward
because it will not latch that way. The seat has to go in
before the convenience center. SeeConvenience
Center on page 2-53for more information.
1-14
