BUICK TERRAZA 2005 Owner's Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-3
Rear Seats
............................................... 1-7
Safety Belts
.............................................1-16
Child Restraints
.......................................1-34
Airbag System
.........................................1-54
Restraint System Check
............................1-67
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
......................................2-10
Windows
.................................................2-24
Theft-Deterrent Systems
............................2-26
Starting and Operating Your Vehicle
...........2-30
Mirrors
....................................................2-41
OnStar
®System
......................................2-42
HomeLink®Wireless Control System
...........2-44
Storage Areas
.........................................2-48
Vehicle Personalization
.............................2-54
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-25
Warning Lights, Gages, and Indicators
........3-31
Driver Information Center (DIC)
..................3-45
Audio System(s)
.......................................3-77Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-37
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
All-Wheel Drive
........................................5-41
Bulb Replacement
....................................5-42
Windshield Wiper Blade Replacement
.........5-46
Tires
......................................................5-47
Appearance Care
.....................................5-77
Vehicle Identication
.................................5-85
Electrical System
......................................5-86
Capacities and Specications
.....................5-93
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-10
Index................................................................ 1
2005 Buick Terraza Owner ManualM

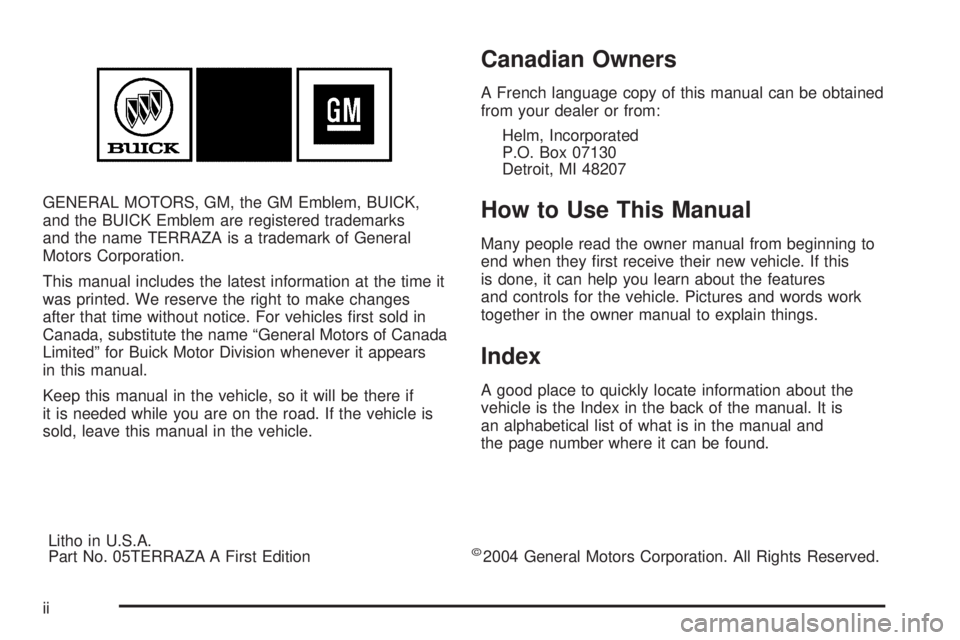

GENERAL MOTORS, GM, the GM Emblem, BUICK,
and the BUICK Emblem are registered trademarks
and the name TERRAZA is a trademark of General
Motors Corporation.
This manual includes the latest information at the time it
was printed. We reserve the right to make changes
after that time without notice. For vehicles rst sold in
Canada, substitute the name “General Motors of Canada
Limited” for Buick Motor Division whenever it appears
in this manual.
Keep this manual in the vehicle, so it will be there if
it is needed while you are on the road. If the vehicle is
sold, leave this manual in the vehicle.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
How to Use This Manual
Many people read the owner manual from beginning to
end when they rst receive their new vehicle. If this
is done, it can help you learn about the features
and controls for the vehicle. Pictures and words work
together in the owner manual to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is
an alphabetical list of what is in the manual and
the page number where it can be found.
Litho in U.S.A.
Part No. 05TERRAZA A First Edition
©2004 General Motors Corporation. All Rights Reserved.
ii

Safety Warnings and Symbols
There are a number of safety cautions in this book. We
use a box and the word CAUTION to tell about things
that could hurt you if you were to ignore the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or reduce
the hazard. Please read these cautions. If you do not,
you or others could be hurt.You will also nd a circle
with a slash through it in
this book. This safety
symbol means “Do Not,”
“Do Not do this” or
“Do Not let this happen.”
iii

Vehicle Damage Warnings
Also, in this manual you will nd these notices:
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly. But
the notice will tell what to do to help avoid the damage.
When you read other manuals, you might see CAUTION
and NOTICE warnings in different colors or in different
words.
There are also warning labels on the vehicle. They use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
If you need help guring out a specic name of a
component, gage, or indicator, reference the following
topics:
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
iv

These are some examples of symbols that may be found on the vehicle:
v

✍NOTES
vi

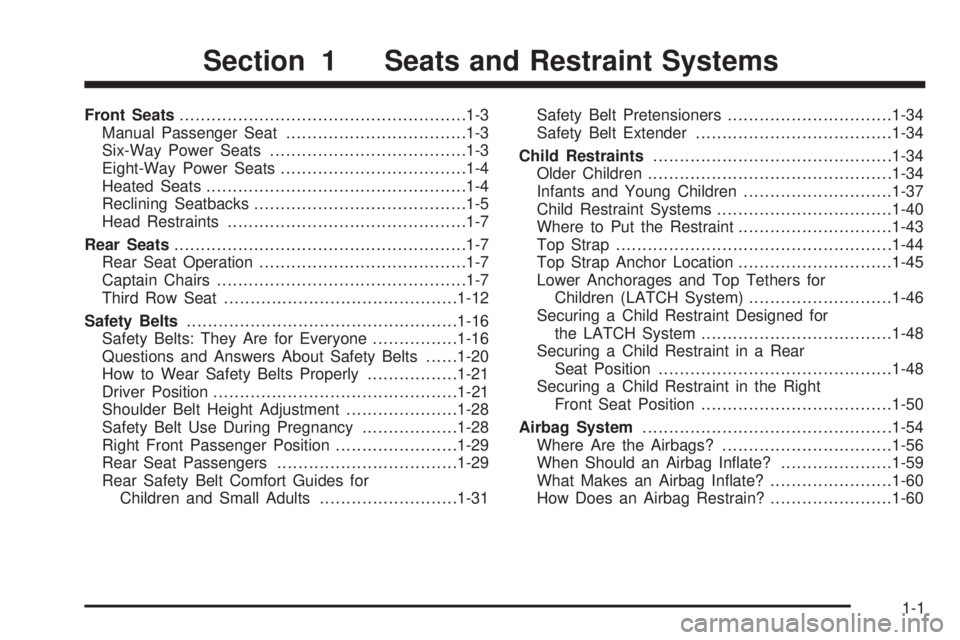

Front Seats......................................................1-3
Manual Passenger Seat..................................1-3
Six-Way Power Seats.....................................1-3
Eight-Way Power Seats...................................1-4
Heated Seats.................................................1-4
Reclining Seatbacks........................................1-5
Head Restraints.............................................1-7
Rear Seats.......................................................1-7
Rear Seat Operation.......................................1-7
Captain Chairs...............................................1-7
Third Row Seat............................................1-12
Safety Belts...................................................1-16
Safety Belts: They Are for Everyone................1-16
Questions and Answers About Safety Belts......1-20
How to Wear Safety Belts Properly.................1-21
Driver Position..............................................1-21
Shoulder Belt Height Adjustment.....................1-28
Safety Belt Use During Pregnancy..................1-28
Right Front Passenger Position.......................1-29
Rear Seat Passengers..................................1-29
Rear Safety Belt Comfort Guides for
Children and Small Adults..........................1-31Safety Belt Pretensioners...............................1-34
Safety Belt Extender.....................................1-34
Child Restraints.............................................1-34
Older Children..............................................1-34
Infants and Young Children............................1-37
Child Restraint Systems.................................1-40
Where to Put the Restraint.............................1-43
Top Strap....................................................1-44
Top Strap Anchor Location.............................1-45
Lower Anchorages and Top Tethers for
Children (LATCH System)...........................1-46
Securing a Child Restraint Designed for
the LATCH System....................................1-48
Securing a Child Restraint in a Rear
Seat Position............................................1-48
Securing a Child Restraint in the Right
Front Seat Position....................................1-50
Airbag System...............................................1-54
Where Are the Airbags?................................1-56
When Should an Airbag Inate?.....................1-59
What Makes an Airbag Inate?.......................1-60
How Does an Airbag Restrain?.......................1-60
Section 1 Seats and Restraint Systems
1-1

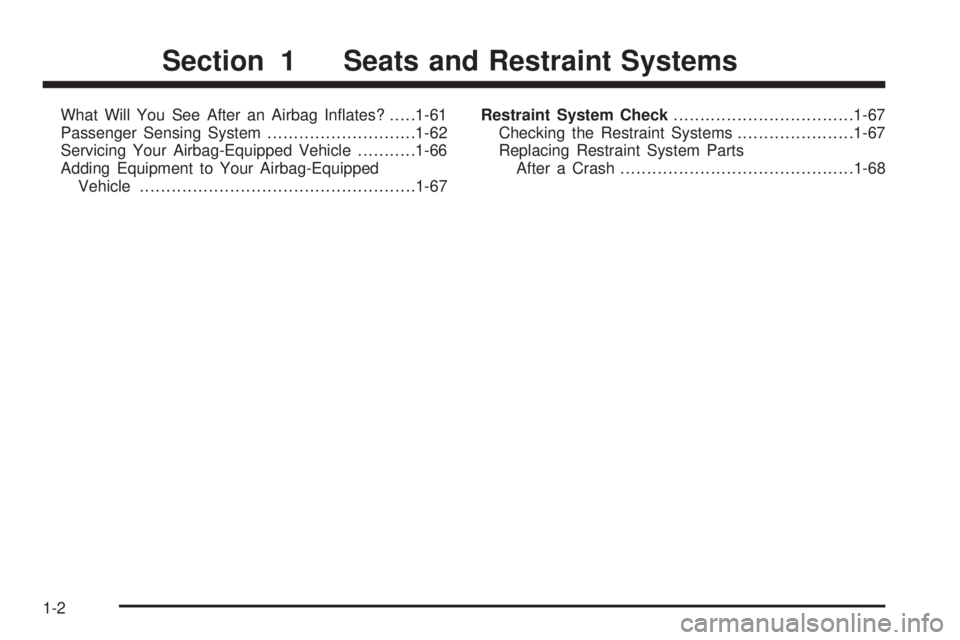

What Will You See After an Airbag Inates?.....1-61
Passenger Sensing System............................1-62
Servicing Your Airbag-Equipped Vehicle...........1-66
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-67Restraint System Check..................................1-67
Checking the Restraint Systems......................1-67
Replacing Restraint System Parts
After a Crash............................................1-68
Section 1 Seats and Restraint Systems
1-2

Front Seats
Manual Passenger Seat
Use the lever located on
the front of the seat to
adjust the seat forward or
rearward. Pull up the
lever to unlock the seat.
Slide the seat to where
you want it and release
the lever.
To make sure the seat is locked into place, try to move
the seat back and forth with your body.
Six-Way Power Seats
Your vehicle may have this
feature. If it does, the
six-way power seat control
is located on the outboard
side of the driver’s
seat. Your vehicle may
also have a passenger’s
six-way power seat.
Move the front of the control up or down to adjust
the front portion of the cushion up or down.
Move the rear of the control up or down to adjust
the rear portion of the cushion up or down.
Lift up or push down on the whole control to move
the entire seat up or down.
To move the whole seat forward or rearward, slide
the control forward or rearward.
1-3

Eight-Way Power Seats
Your vehicle may have this
feature. If it does, the
eight-way power seat
control is located on the
outboard sides of the
driver’s and front
passenger’s seats.
Move the front of the control up or down to adjust
the front portion of the cushion up or down.
Move the rear of the control up or down to adjust
the rear portion of the cushion up or down.
Lift up or push down on the whole control to move
the entire seat up or down.
To move the whole seat forward or rearward,
slide the control forward or rearward.
To recline the seatback, press the vertical control
rearward. To raise the seatback, press the vertical
control forward. SeeReclining Seatbacks on
page 1-5for more information on reclining
seatbacks.
Heated Seats
Your vehicle may have this feature. If it does, the heated
seat buttons are located on the climate control panel.
This feature will heat the lower cushions of the driver’s
and front passenger’s seats.
Press this button once
to turn on the driver’s
side heated seat to
the high setting.
Both indicator lights to the right of the symbol will
be lit to indicate that it is on the high setting. Press
the button a second time to go to the low setting.
One indicator will be lit. Press the button a third time
to turn the heated seat off.
1-4
