You will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Your vehicle has airbags. SeePassenger Sensing
System on page 1-66. General Motors recommends
that rear-facing child restraints be secured in a
rear seat, even if the airbag or airbags are off. If
your child restraint is forward-facing, move the seat
as far back as it will go before securing the child
restraint in this seat. SeeManual Passenger
Seat on page 1-2,Six-Way Power Seats on
page 1-2orEight-Way Power Seats on page 1-3.
When the passenger sensing system has turned off
the right front passenger’s airbag or airbags, the
off indicator in the passenger airbag status indicator
should light and stay lit when you turn the ignition
to RUN or START. SeePassenger Airbag
Status Indicator on page 3-39.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-55

5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt. You should not be
able to pull more of the belt from the retractor
once the lock has been set.
1-56

7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If the airbag or airbags are off, the off indicator on
the instrument panel will be lit and stay lit when the
key is turned to RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint.
If after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
If the on indicator is still lit, secure the child in the child
restraint in a rear seat position in the vehicle and
check with your dealer.
To remove the child restraint, if the top tether is
connected to the top tether anchor, disconnect it.
Unbuckle the vehicle’s safety belt and let it go back all
the way. The safety belt will move freely again and
be ready to work for an adult or larger child passenger.Airbag System
Your vehicle has a frontal airbag for the driver and a
frontal airbag for the right front passenger. Your vehicle
may also have side impact airbags. Side impact
airbags are available for the driver, the right front
passenger and the second row captain’s chairs
(if equipped).
If your vehicle has a side impact airbag, the words
AIRBAG will appear on the airbag covering on the side
of the seatback closest to the door.
Frontal airbags are designed to help reduce the risk of
injury from the force of an inating frontal airbag.
But these airbags must inate very quickly to do their
job and comply with federal regulations.
1-57

Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. Airbags are
designed to work with safety belts but do not
replace them.
Frontal airbags for the driver and right front
passenger are designed to deploy in moderate
to severe frontal and near frontal crashes.
They are not designed to inate in rollover,
CAUTION: (Continued)
CAUTION: (Continued)
rear crashes, or in many side crashes. And, for
some unrestrained occupants, frontal airbags
may provide less protection in frontal crashes
than more forceful airbags have provided in
the past.
Side impact airbags are designed to inate in
moderate to severe crashes where something
hits the side of your vehicle. They are not
designed to inate in frontal, in rollover or in
rear crashes.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
1-58

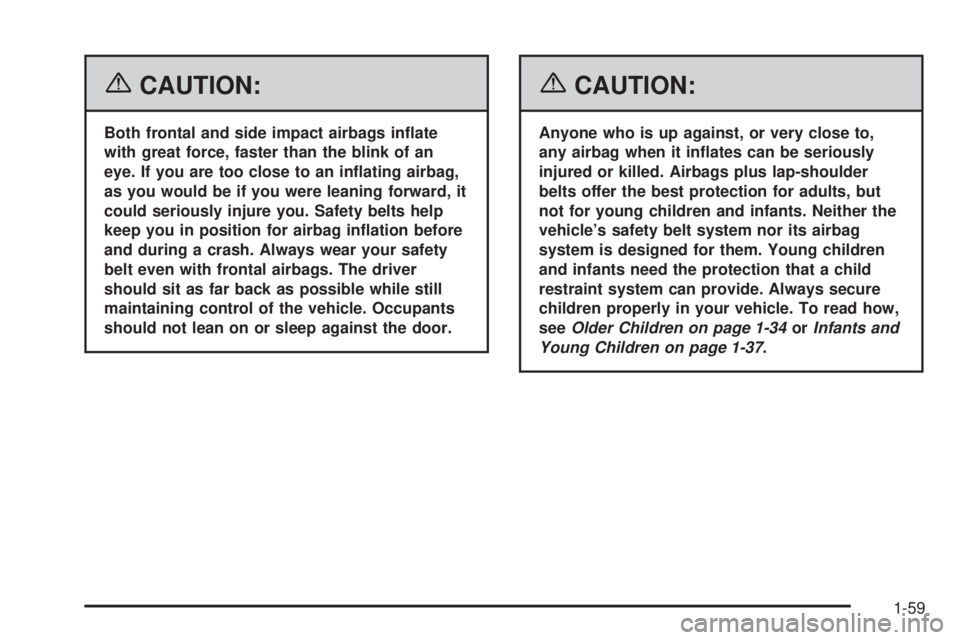

{CAUTION:
Both frontal and side impact airbags inate
with great force, faster than the blink of an
eye. If you are too close to an inating airbag,
as you would be if you were leaning forward, it
could seriously injure you. Safety belts help
keep you in position for airbag ination before
and during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
seeOlder Children on page 1-34orInfants and
Young Children on page 1-37.
1-59

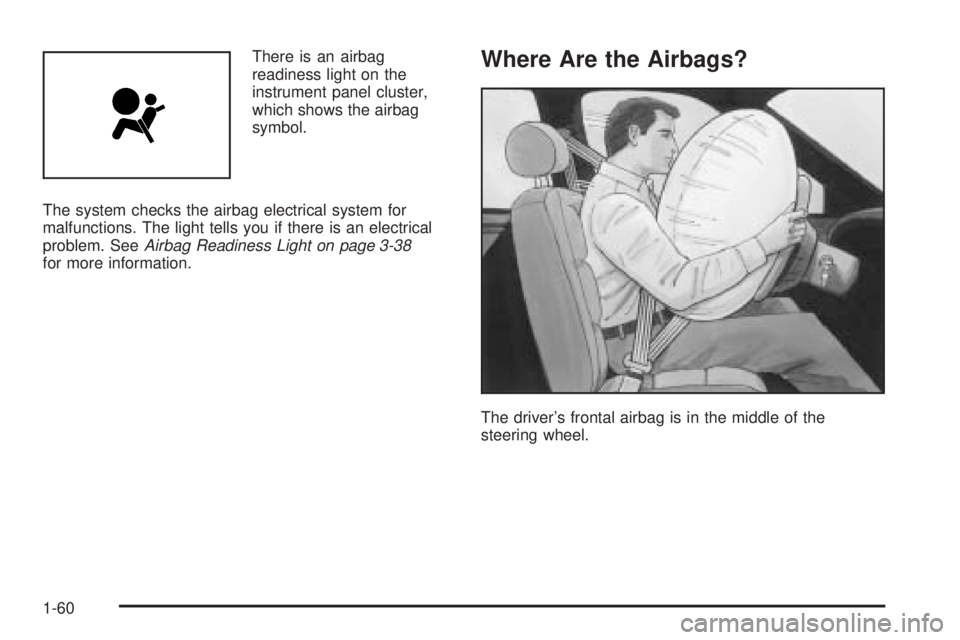

There is an airbag
readiness light on the
instrument panel cluster,
which shows the airbag
symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-38
for more information.Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
1-60

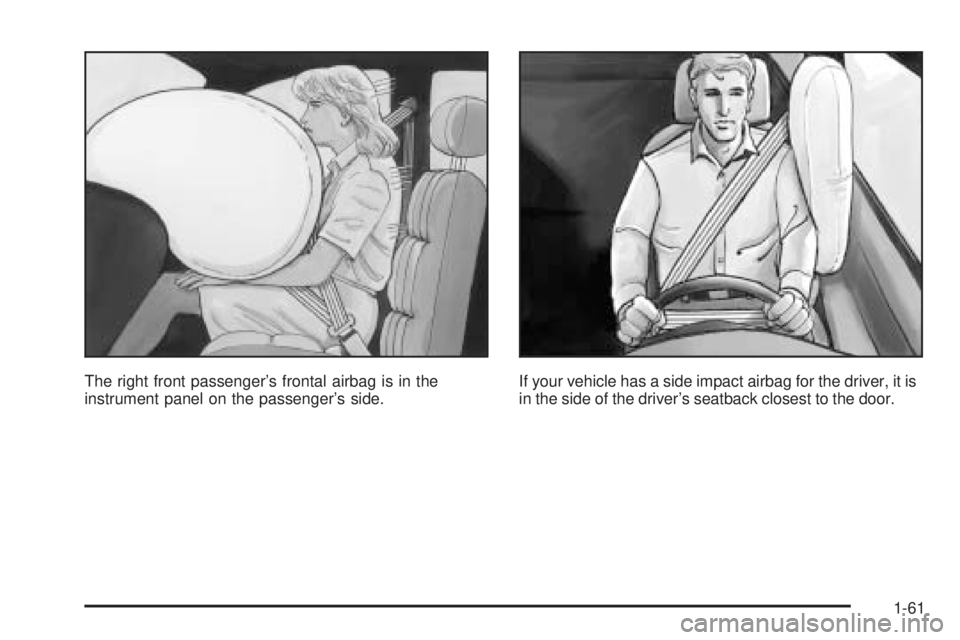

The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.If your vehicle has a side impact airbag for the driver, it is
in the side of the driver’s seatback closest to the door.
1-61

If your vehicle has a side impact airbag for the right
front passenger and/or the second row captain’s chairs
(if equipped), it is in the side of the seatback closest
to the door.
{CAUTION:
If something is between an occupant and an
airbag, the airbag might not inate properly or
it might force the object into that person
causing severe injury or even death. The path
of an inating airbag must be kept clear. Do
not put anything between an occupant and an
airbag, and do not attach or put anything on
the steering wheel hub or on or near any other
airbag covering. Do not let seat covers block
the ination path of a side impact airbag.
1-62

When Should an Airbag Inate?
The driver’s and right front passenger’s frontal airbags
are designed to inate in moderate to severe frontal
or near-frontal crashes. But they are designed to inate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to inate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
In addition, your vehicle has “dual stage” frontal airbags,
which adjust the restraint according to crash severity.
For moderate frontal impacts, these airbags inate at a
level less than full deployment. Your vehicle is
equipped with electronic frontal sensors, which help the
sensing system distinguish between a moderate
frontal impact and a more severe frontal impact. For
more severe frontal impacts, full deployment occurs. If
the front of your vehicle goes straight into a wall
that does not move or deform, the threshold level for
the reduced deployment is about 12 to 18 mph
(19 to 29 km/h), and the threshold level for a full
deployment is about 18 to 25 mph (29 to 40.2 km/h).(The threshold level can vary, however, with specic
vehicle design, so that it can be somewhat above
or below this range.)
Frontal airbags may inate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbags
could inate at a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could inate at a different crash speed than
if the vehicle hits an object that does not deform.
If the vehicle hits a narrow object (like a pole) the
airbags could inate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbags could inate at a different crash speed
than if the vehicle goes straight into the object.
The frontal airbags (driver and right front passenger) are
not intended to inate during vehicle rollovers, rear
impacts, or in many side impacts.
1-63

Your vehicle may or may not have a side impact airbag.
SeeAirbag System on page 1-57. Side impact airbags
are intended to inate in moderate to severe side
crashes. A side impact airbag will inate if the crash
severity is above the system’s designed “threshold
level.” The threshold level can vary with specic vehicle
design. Side impact airbags are not intended to
inate in frontal or near-frontal impacts, rollovers or rear
impacts. A side impact airbag is intended to deploy
on the side of the vehicle that is struck.
In any particular crash, no one can say whether an
airbag should have inated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, ination is determined by
what the vehicle hits, the angle of the impact, and how
quickly the vehicle slows down. For side impact
airbags, ination is determined by the location and
severity of the impact.What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. The sensing
system triggers a release of gas from the inator, which
inates the airbag. The inator, the airbag and related
hardware are all part of the airbag modules. Frontal
airbag modules are located inside the steering wheel and
instrument panel. For seating positions with side impact
airbags, there are also airbag modules in the side of the
seatbacks closest to the door.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper body,
stopping the occupant more gradually. But the frontal
airbags would not help you in many types of collisions,
including rollovers, rear impacts, and many side impacts,
primarily because an occupant’s motion is not toward the
airbag. Side impact airbags would not help you in many
types of collisions, including many frontal or near frontal
collisions, and rear impacts, primarily because an
occupant’s motion is not toward those airbags.
1-64
