BUICK TERRAZA 2007 Owner's Manual

Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by the
extreme heat and suffer permanent
injuries or even death from heat stroke.
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
121

Power Windows
The switches on the
driver’s door armrest
control the front
windows when the
ignition is in RUN,
ACCESSORY or when
Retained Accessory
Power (RAP) is active.
SeeRetained
Accessory Power (RAP)
on page 130.The driver’s power window switch has two down
positions. The rst position lowers the window
normally.
To raise the window, pull up the front of the
switch.
Express-Down Window
To activate the express-down feature, push the
AUTO switch all the way down to the second
position, then release it. The window will lower
completely. To stop the window from lowering all
the way, pull up on the front of the switch.
122

Power Rear Quarter Windows
Your vehicle has power rear quarter windows.
This switch, located in
the overhead console
switchbank, is used
for opening and closing
the power rear
quarter windows.
Press the top of the switch to open the windows;
both windows will open. The windows will
continue to open as long as the switch is pressed,
until they are fully opened.
Press the bottom of the switch with the symbol to
close both windows. The windows can be
closed fully or partially, depending on how long
the switch is pressed.The ignition must be in RUN, ACCESSORY, or
Retained Accessory Power (RAP) must be active,
to use the power rear quarter windows. See
Retained Accessory Power (RAP) on page 130.
Sun Visors
To block out glare, you can swing down the visors
and slide them along the rod to cover different
areas of the front window. You can also remove
them from the center mount and swing them to
the side.
Lighted Vanity Mirror
Your vehicle has lighted vanity mirrors. Pull down
the sun visor and ip up the cover to expose
the vanity mirror. The lamps will come on when
you ip up the cover.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
123

Content Theft-Deterrent
Your vehicle has a theft-deterrent alarm system.
A light located on top of your instrument panel,
near the center of the vehicle next to the
windshield, will ash slowly to let you know that
the system has been armed.
While armed, the doors will not unlock with the
power door lock switch.Once armed, the alarm will go off if someone tries
to enter the vehicle without using the remote
keyless entry transmitter or a key, or turns
the ignition to RUN. The horn will sound and the
turn signal lamps will ash for up to two minutes.
Arming with the Power Lock Switch
Your alarm system will arm when the key is
removed from the ignition and you use the driver’s
power door lock switch, with the driver’s door
open or the passenger’s door power door
lock switch with the passenger’s door open to lock
the vehicle. If you would like to turn on power
door lock switch arming, seeDIC Vehicle
Personalization (Uplevel Only) on page 249
When the security light ashes quickly the system
is arming. After all doors and the liftgate are
closed and locked, the security light will begin
ashing at a very slow rate to let you know
the system is armed.
124

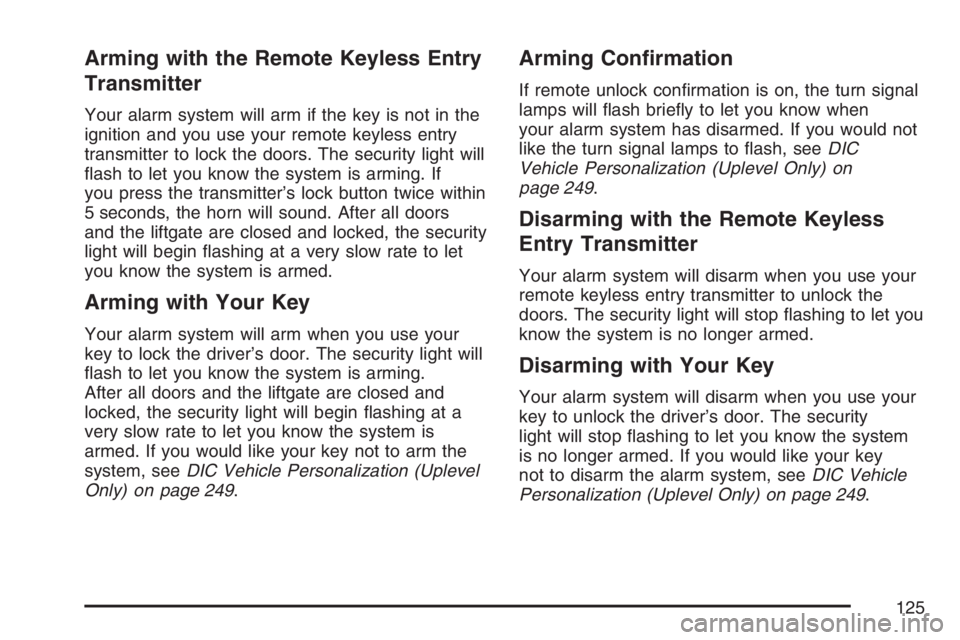

Arming with the Remote Keyless Entry
Transmitter
Your alarm system will arm if the key is not in the
ignition and you use your remote keyless entry
transmitter to lock the doors. The security light will
ash to let you know the system is arming. If
you press the transmitter’s lock button twice within
5 seconds, the horn will sound. After all doors
and the liftgate are closed and locked, the security
light will begin ashing at a very slow rate to let
you know the system is armed.
Arming with Your Key
Your alarm system will arm when you use your
key to lock the driver’s door. The security light will
ash to let you know the system is arming.
After all doors and the liftgate are closed and
locked, the security light will begin ashing at a
very slow rate to let you know the system is
armed. If you would like your key not to arm the
system, seeDIC Vehicle Personalization (Uplevel
Only) on page 249.
Arming Conrmation
If remote unlock conrmation is on, the turn signal
lamps will ash briey to let you know when
your alarm system has disarmed. If you would not
like the turn signal lamps to ash, seeDIC
Vehicle Personalization (Uplevel Only) on
page 249.
Disarming with the Remote Keyless
Entry Transmitter
Your alarm system will disarm when you use your
remote keyless entry transmitter to unlock the
doors. The security light will stop ashing to let you
know the system is no longer armed.
Disarming with Your Key
Your alarm system will disarm when you use your
key to unlock the driver’s door. The security
light will stop ashing to let you know the system
is no longer armed. If you would like your key
not to disarm the alarm system, seeDIC Vehicle
Personalization (Uplevel Only) on page 249.
125

PASS-Key®III
Your PASS-Key®III system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry
Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.PASS-Key
®III uses a radio frequency transponder
in the key that matches a decoder in your
vehicle.
PASS-Key®III Operation
Your vehicle is equipped
with the PASS-Key®III
(Personalized
Automotive Security
System) theft-deterrent
system. PASS-Key
®III
is a passive theft
deterrent system.
This means you do not have to do anything
different to arm or disarm the system. It works
when you insert or remove the key from the
ignition.
When the PASS-Key
®III system senses that
someone is using the wrong key, it shuts down the
vehicle’s starter and fuel systems.
126

The starter will not work and fuel will stop being
delivered to the engine. Anyone using a
trial-and-error method to start the vehicle will be
discouraged because of the high number of
electrical key codes.
If the engine does not start and the security
message comes on, the key may have a damaged
transponder. Turn the ignition off and try again.
If the engine still does not start, and the key
appears to be undamaged, try another ignition key.
At this time, you may also want to check the
instrument panel PASS KEY fuse. If the engine still
does not start with the other key, your vehicle
needs service. If your vehicle does start, the rst
key may be faulty. See your dealer or a locksmith
who can service the PASS-Key
®III to have a new
key made. SeeFuses and Circuit Breakers on
page 497.
It is possible for the PASS-Key
®III decoder to learn
the transponder value of a new or replacement key.
Up to 10 keys may be programmed for the vehicle.
This procedure is for learning additional keys only.
If all the currently programmed keys are lost or do
not operate, you must see your dealer or a
locksmith who can service PASS-Key
®III to have
keys made and programmed to the system.See your dealer or a locksmith who can service
PASS-Key
®III to get a new key blank that is
cut exactly as the ignition key that operates the
system.
To program the new key, do the following:
1. Verify the new key has PK3 stamped on it.
2. Insert the original, already programmed
key into the ignition lock cylinder and start the
engine. If the engine will not start, see your
dealer for service.
3. After the engine has started, turn the key to
LOCK and remove the key.
4. Insert the key to be programmed and turn it to
RUN within 10 seconds of removing the
previous key.
5. The security message will turn off once the
key has been programmed. It may not be
apparent that the security message went on
due to how quickly the key is programmed.
6. Repeat Steps 1 through 4 if additional keys
are to be programmed.
127

If you are ever driving and the security message
comes on and stays on, you will be able to restart
your engine if you turn it off. Your PASS-Key
®III
system, however, is not working properly and must
be serviced by your dealer. Your vehicle is not
protected by the PASS-Key
®III system at
this time.
If you lose or damage a PASS-Key
®III key, see
your dealer or a locksmith who can service
PASS-Key
®III to have a new key made.
Starting and Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an
elaborate break-in. But it will perform better in
the long run if you follow these guidelines:
Do not drive at any one constant speed,
fast or slow, for the rst 500 miles
(805 km). Do not make full-throttle starts.
Avoid downshifting to brake, or slow,
the vehicle.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
your new brake linings are not yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every time
you get new brake linings.
Do not tow a trailer during break-in. See
Towing a Trailer on page 386for the trailer
towing capabilities of your vehicle and more
information.
Following break-in, engine speed and load can
be gradually increased.
128

Ignition Positions
The key can be turned to one of four positions
while in the ignition switch.
A (LOCK):This is the only position from which
you can remove the key. This position locks
your ignition and transaxle.Notice:Using a tool to force the key from the
ignition switch could cause damage or
break the key. Use the correct key and turn the
key only with your hand. Make sure the key
is all the way in. If none of this works,
then your vehicle needs service.
B (ACCESSORY):This is the position in which
you can operate the electrical accessories, such as
the radio.
C (RUN):This is the position to which the switch
returns after the engine is started and the ignition
key is released. This is the position for driving. Even
while the engine is not running, RUN can be used to
operate your electrical accessories and to display
some instrument panel warning lights.
The battery could be drained if you leave the key in
the ACCESSORY or RUN position with the engine
off. You may not be able to start your vehicle if the
battery is allowed to drain for an extended period
of time.
D (START):This position starts the engine. When
the engine starts, release the ignition key. The
switch will return to RUN for driving.
129

Key In the Ignition
Never leave your vehicle with the keys inside, as it
is an easy target for joy riders or thieves. If you
leave the key in the ignition and park your vehicle,
a chime will sound, when you open the driver’s
door. Always remember to remove your key from
the ignition and take it with you. This will lock
your ignition and transaxle. Also, always remember
to lock the doors.
The battery could be drained if you leave the key
in the ignition while your vehicle is parked.
You may not be able to start your vehicle after it
has been parked for an extended period of time.
Retained Accessory Power (RAP)
With RAP, your power windows and the audio
system will continue to work for up to 10 minutes
after the engine is turned off or until either
door is opened. If a door is opened, the power
windows and audio system will shut off.
Starting the Engine
Move your shift lever to PARK (P) or
NEUTRAL (N). Your engine will not start in
any other position — that is a safety feature. To
restart when you are already moving, use
NEUTRAL (N) only.
Notice:Shifting into PARK (P) with the vehicle
moving could damage the transaxle. Shift
into PARK (P) only when your vehicle is
stopped.
1. With your foot off the accelerator pedal, turn
your ignition key to START. When the engine
starts, let go of the key. The idle speed will go
down as your engine warms up. Do not race
the engine immediately after starting it.
Operate the engine and transaxle gently until
the oil warms up and lubricates all moving
parts.
130
