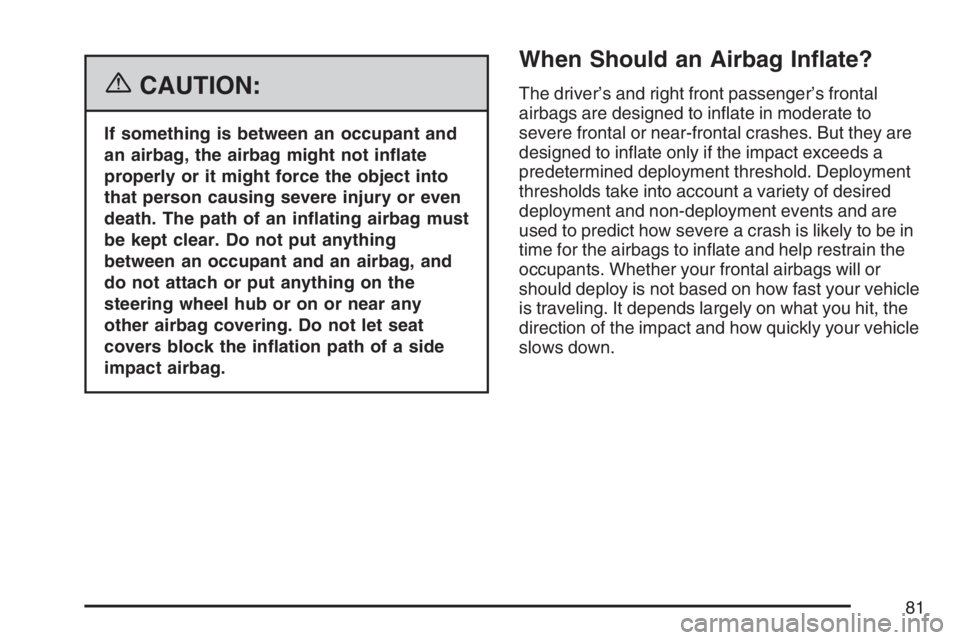

Page 81 of 562
{CAUTION:
If something is between an occupant and
an airbag, the airbag might not in ate
properly or it might force the object into
that person causing severe injury or even
death. The path of an in ating airbag must
be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. Do not let seat
covers block the in ation path of a side
impact airbag.
When Should an Airbag In ate?
The driver’s and right front passenger’s frontal
airbags are designed to in ate in moderate to
severe frontal or near-frontal crashes. But they are
designed to in ate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and are
used to predict how severe a crash is likely to be in
time for the airbags to in ate and help restrain the
occupants. Whether your frontal airbags will or
should deploy is not based on how fast your vehicle
is traveling. It depends largely on what you hit, the
direction of the impact and how quickly your vehicle
slows down.
81
Page 82 of 562
In addition, your vehicle has “dual stage” frontal
airbags, which adjust the restraint according
to crash severity. For moderate frontal impacts,
these airbags in ate at a level less than full
deployment. Your vehicle has electronic frontal
sensors, which help the sensing system distinguish
between a moderate frontal impact and a more
severe frontal impact. For more severe frontal
impacts, full deployment occurs. If the front of your
vehicle goes straight into a wall that does not
move or deform, the threshold level for the
reduced deployment is about 12 to 18 mph
(19 to 29 km/h), and the threshold level for
a full deployment is about 18 to 25 mph
(29 to 40.2 km/h). The threshold level can vary,
however, with speci c vehicle design, so that it can
be somewhat above or below this range.Frontal airbags may in ate at different crash
speeds. For example:
If the vehicle hits a stationary object, the
airbags could in ate at a different crash speed
than if the vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could in ate at a different crash
speed than if the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object (like a pole),
the airbags could in ate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
If the vehicle goes into an object at an angle,
the airbags could in ate at a different crash
speed than if the vehicle goes straight into the
object.
The frontal airbags (driver and right front
passenger) are not intended to in ate during
vehicle rollovers, rear impacts, or in many side
impacts.
82

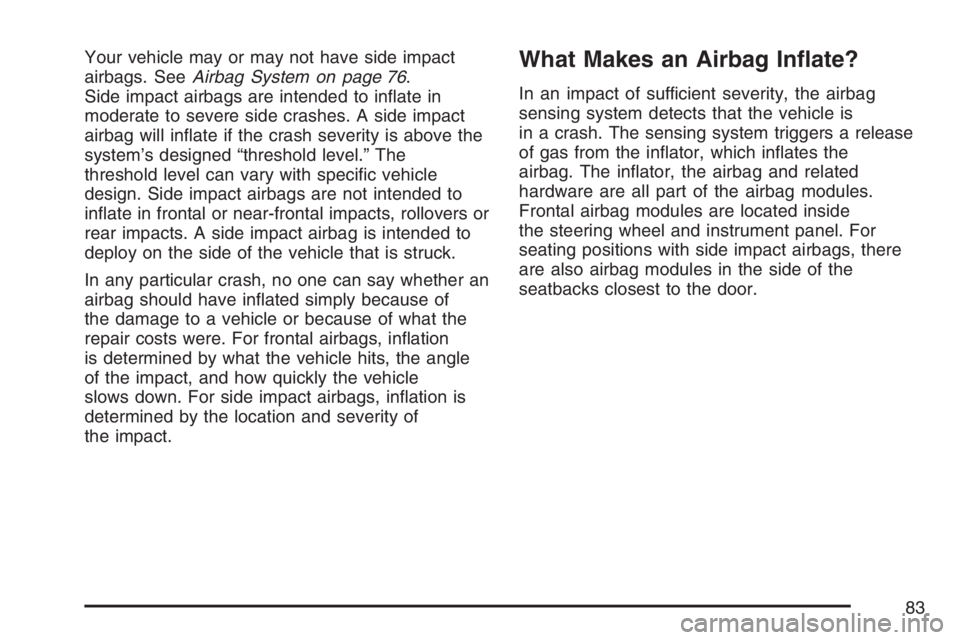

Page 83 of 562
Your vehicle may or may not have side impact
airbags. SeeAirbag System on page 76.
Side impact airbags are intended to in ate in
moderate to severe side crashes. A side impact
airbag will in ate if the crash severity is above the
system’s designed “threshold level.” The
threshold level can vary with speci c vehicle
design. Side impact airbags are not intended to
in ate in frontal or near-frontal impacts, rollovers or
rear impacts. A side impact airbag is intended to
deploy on the side of the vehicle that is struck.
In any particular crash, no one can say whether an
airbag should have in ated simply because of
the damage to a vehicle or because of what the
repair costs were. For frontal airbags, in ation
is determined by what the vehicle hits, the angle
of the impact, and how quickly the vehicle
slows down. For side impact airbags, in ation is
determined by the location and severity of
the impact.What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. The sensing system triggers a release
of gas from the in ator, which in ates the
airbag. The in ator, the airbag and related
hardware are all part of the airbag modules.
Frontal airbag modules are located inside
the steering wheel and instrument panel. For
seating positions with side impact airbags, there
are also airbag modules in the side of the
seatbacks closest to the door.
83
Page 84 of 562
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. In
moderate to severe side collisions, even belted
occupants can contact the inside of the vehicle.
Airbags supplement the protection provided
by safety belts. Airbags distribute the force of the
impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But
the frontal airbags would not help you in many
types of collisions, including rollovers, rear
impacts, and many side impacts, primarily because
an occupant’s motion is not toward the airbag.
Side impact airbags would not help you in many
types of collisions, including many frontal or
near frontal collisions, rollovers, and rear impacts.
Airbags should never be regarded as anything
more than a supplement to safety belts, and then
only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front
passenger’s frontal airbags, and only in moderate
to severe side collisions for vehicles with side
impact airbags.
What Will You See After an Airbag
In ates?
After an airbag in ates, it quickly de ates, so
quickly that some people may not even realize the
airbag in ated. Some components of the airbag
module — the steering wheel hub for the driver’s
frontal airbag, the instrument panel for the
right front passenger’s frontal airbag, and for
seating positions with side impact airbags, the side
of the seatback closest to the door — may be
hot for a short time. The parts of the airbag that
come into contact with you may be warm, but
not too hot to touch. There may be some smoke
and dust coming from the vents in the de ated
airbags. Airbag in ation does not prevent the driver
from seeing out of the windshield or being able
to steer the vehicle, nor does it prevent people
from leaving the vehicle.
84

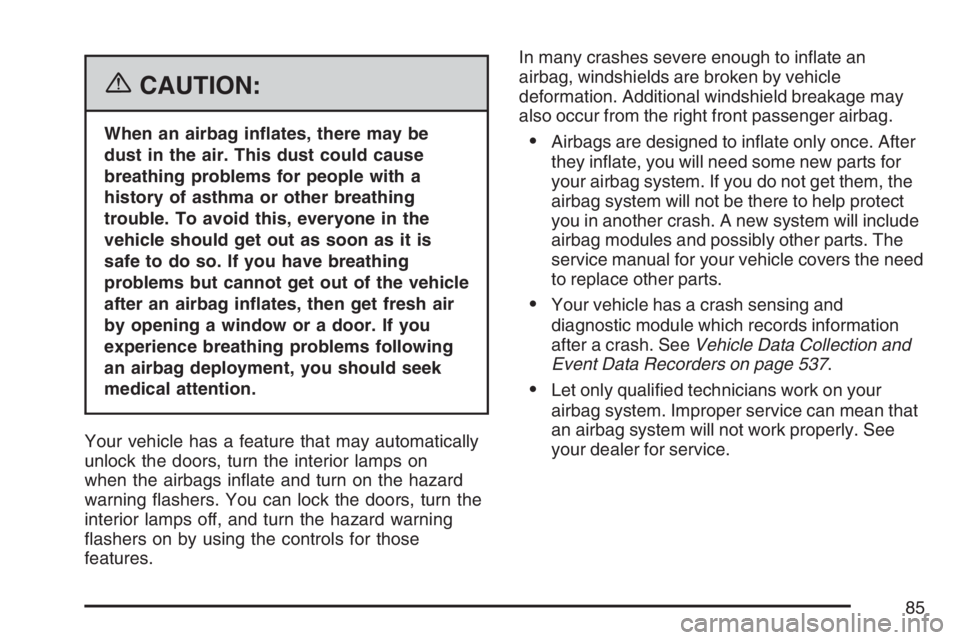

Page 85 of 562
{CAUTION:
When an airbag in ates, there may be
dust in the air. This dust could cause
breathing problems for people with a
history of asthma or other breathing
trouble. To avoid this, everyone in the
vehicle should get out as soon as it is
safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag in ates, then get fresh air
by opening a window or a door. If you
experience breathing problems following
an airbag deployment, you should seek
medical attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on
when the airbags in ate and turn on the hazard
warning ashers. You can lock the doors, turn the
interior lamps off, and turn the hazard warning
ashers on by using the controls for those
features.In many crashes severe enough to in ate an
airbag, windshields are broken by vehicle
deformation. Additional windshield breakage may
also occur from the right front passenger airbag.Airbags are designed to in ate only once. After
they in ate, you will need some new parts for
your airbag system. If you do not get them, the
airbag system will not be there to help protect
you in another crash. A new system will include
airbag modules and possibly other parts. The
service manual for your vehicle covers the need
to replace other parts.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Collection and
Event Data Recorders on page 537.
Let only quali ed technicians work on your
airbag system. Improper service can mean that
an airbag system will not work properly. See
your dealer for service.
85
Page 86 of 562
Passenger Sensing System
Your vehicle has a passenger sensing system.
The passenger airbag status indicator on the
instrument panel will be visible when you turn your
ignition key to RUN or START.
The words ON and OFF or the symbol for on and
off, will be visible during the system check.
When the system check is complete, either the
word ON or the word OFF, or the symbol for on or
the symbol for off will be visible. SeePassenger
Airbag Status Indicator on page 211.The passenger sensing system will turn off the
right front passenger’s frontal airbag and side
impact airbag (if equipped) under certain
conditions. The driver’s airbags or the second row
side impact airbags (if equipped) are not part of
the passenger sensing system.
The passenger sensing system works with sensors
that are part of the right front passenger’s seat and
safety belt. The sensors are designed to detect the
presence of a properly-seated occupant and
determine if the passenger’s airbag or airbags
should be enabled (may in ate) or not.
Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. We recommend that child restraints be
secured in a rear seat, including an infant riding in
a rear-facing infant seat, a child riding in a
forward-facing child seat and an older child riding
in a booster seat.
Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun
visor says, “Never put a rear-facing child seat
in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
United StatesCanada
86
Page 87 of 562
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag.
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag and
seat-mounted side impact airbag
(if equipped) under certain conditions,
CAUTION: (Continued)
CAUTION: (Continued)
no system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be secured
in the rear seat, even if the airbag is off.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
87
Page 88 of 562
The passenger sensing system is designed to turn
off the right front passenger’s airbag and side
impact airbag (if equipped) if:
The right front passenger seat is unoccupied.
The system determines that an infant is
present in a rear-facing infant seat.
The system determines that a small child is
present in a forward-facing child restraint.
The system determines that a small child is
present in a booster seat.
A right front passenger takes his/her weight off
of the seat for a period of time.
The right front passenger seat is occupied by
a smaller person, such as a child who has
outgrown child restraints.
Or, if there is a critical problem with the airbag
system or the passenger sensing system.When the passenger sensing system has turned
off the right front passenger’s airbag or airbags,
the off indicator will light and stay lit to remind you
that the airbag or airbags are off.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint following the child restraint
manufacturer’s directions and refer toSecuring a
Child Restraint in the Right Front Seat Position
on page 72.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
88
Page 89 of 562

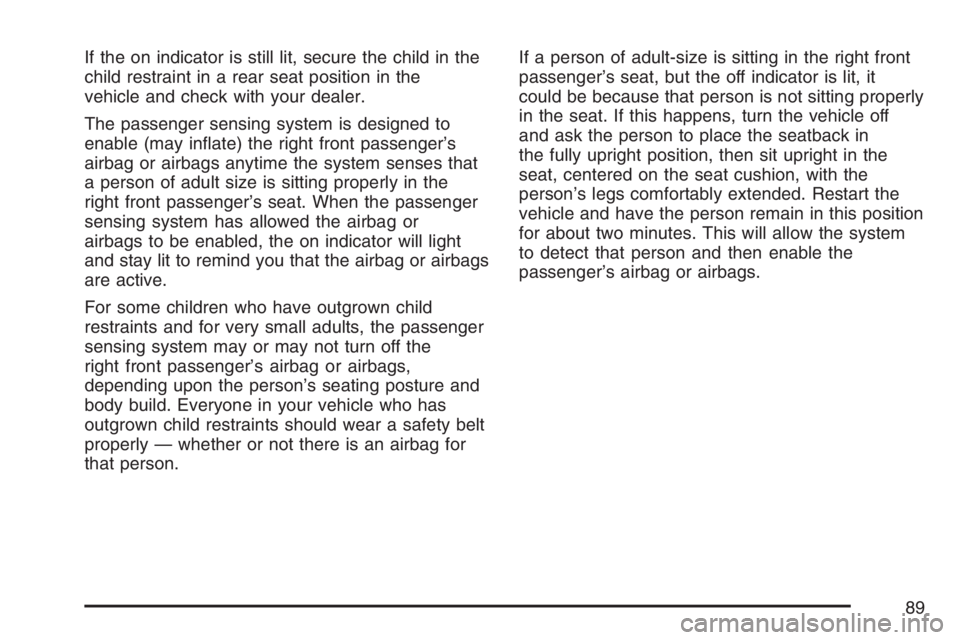

If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your dealer.
The passenger sensing system is designed to
enable (may in ate) the right front passenger’s
airbag or airbags anytime the system senses that
a person of adult size is sitting properly in the
right front passenger’s seat. When the passenger
sensing system has allowed the airbag or
airbags to be enabled, the on indicator will light
and stay lit to remind you that the airbag or airbags
are active.
For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the
right front passenger’s airbag or airbags,
depending upon the person’s seating posture and
body build. Everyone in your vehicle who has
outgrown child restraints should wear a safety belt
properly — whether or not there is an airbag for
that person.If a person of adult-size is sitting in the right front
passenger’s seat, but the off indicator is lit, it
could be because that person is not sitting properly
in the seat. If this happens, turn the vehicle off
and ask the person to place the seatback in
the fully upright position, then sit upright in the
seat, centered on the seat cushion, with the
person’s legs comfortably extended. Restart the
vehicle and have the person remain in this position
for about two minutes. This will allow the system
to detect that person and then enable the
passenger’s airbag or airbags.
89
Page 90 of 562
{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something may
CAUTION: (Continued)
CAUTION: (Continued)
be wrong with the airbag system. If this
ever happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger’s seat
may not have the protection of the frontal
airbag. SeeAirbag Readiness Light on
page 210for more on this, including
important safety information.
Aftermarket equipment, such as seat covers, can
affect how well the passenger sensing system
operates. You may want to consider not using seat
covers or other aftermarket equipment if your
vehicle has the passenger sensing system. See
Adding Equipment to Your Airbag-Equipped
Vehicle on page 92for more information about
modi cations that can affect how the system
operates.
90
