Page 1 of 562
Seats and Restraint Systems....................... 7
Front Seats
.............................................. 9
Rear Seats
............................................. 16
Safety Belts
............................................ 26
Child Restraints
...................................... 49
Airbag System
........................................ 76
Restraint System Check
......................... 93
Features and Controls................................ 95
Keys
....................................................... 97
Doors and Locks
.................................. 106
Windows
............................................... 121
Theft-Deterrent Systems
....................... 123
Starting and Operating Your Vehicle
..... 128
Mirrors
.................................................. 143
OnStar
®System
................................... 145
Universal Home Remote System
.......... 147
Storage Areas
...................................... 158
Instrument Panel....................................... 167
Instrument Panel Overview
................... 170
Climate Controls
................................... 193Warning Lights, Gages, and
Indicators
.......................................... 207
Driver Information Center (DIC)
............ 223
Audio System(s)
................................... 258
Driving Your Vehicle................................. 345
Your Driving, the Road, and Your
Vehicle
.............................................. 346
Towing
................................................. 384
Service and Appearance Care.................. 397
Service
................................................. 400
Fuel
...................................................... 402
Checking Things Under the Hood
......... 408
Bulb Replacement
................................ 443
Windshield Wiper Blade Replacement
... 447
Tires
..................................................... 449
Appearance Care
.................................. 487
Vehicle Identi cation
............................. 496
Electrical System
.................................. 496
Capacities and Speci cations
................ 503
2007 Buick Terraza Owner ManualM
1
Page 31 of 562
Q:If I am a good driver, and I never drive far
from home, why should I wear safety
belts?
A:You may be an excellent driver, but if you are
in an accident — even one that is not your
fault — you and your passengers can be hurt.
Being a good driver does not protect you
from things beyond your control, such as bad
drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of
serious injuries and deaths occur at speeds of
less than 40 mph (65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
This part is only for people of adult size.
Be aware that there are special things to know
about safety belts and children. And there
are different rules for smaller children and babies.
If a child will be riding in your vehicle, see
Older Children on page 49orInfants and Young
Children on page 52. Follow those rules for
everyone’s protection.
First, you will want to know which restraint
systems your vehicle has.
We will start with the driver position.
Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how to
wear it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight. To
see how, see “Seats” in the Index.
31
Page 41 of 562
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely
to be seriously injured if they do not wear
safety belts.
A pregnant woman should wear a lap-shoulder
belt, and the lap portion should be worn as low as
possible, below the rounding, throughout the
pregnancy.The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it
is more likely that the fetus will not be hurt
in a crash. For pregnant women, as for anyone,
the key to making safety belts effective is wearing
them properly.
Right Front Passenger Position
To learn how to wear the right front passenger’s
safety belt properly, seeDriver Position on
page 31.
The right front passenger’s safety belt works the
same way as the driver’s safety belt — except
for one thing. If you ever pull the shoulder portion
of the belt out all the way, you will engage the
child restraint locking feature which may turn off
the passenger’s frontal airbag. If this happens, just
let the belt go back all the way and start again.
41
Page 67 of 562
{CAUTION:
Children can be seriously injured or
strangled if a shoulder belt is wrapped
around their neck and the safety belt
continues to tighten. Secure any unused
safety belts behind the child restraint so
children cannot reach them. Pull the
shoulder belt all the way out of the
retractor to set the lock, if your vehicle
has one, after the child restraint has been
installed. Be sure to follow the
instructions of the child restraint
manufacturer.
Notice:Contact between the child restraint or
the LATCH attachment parts and the vehicle’s
safety belt assembly may cause damage to
these parts. Make sure when securing unused
safety belts behind the child restraint that
there is no contact between the child restraint
or the LATCH attachment parts and the
vehicle’s safety belt assembly.Folding an empty rear seat with the safety
belts secured may cause damage to the safety
belt or the seat. When removing the child
restraint, always remember to return the safety
belts to their normal, stowed position before
folding the rear seat.
1. Attach and tighten the lower attachments to
the lower anchors. If the child restraint does
not have lower attachments or the desired
seating position does not have lower anchors,
secure the child restraint with the top tether
and the safety belts. Refer to your child
restraint manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower
attachments on the child restraint to the
lower anchors.
67
Page 75 of 562
6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If the airbag or airbags are off, the off indicator
on the instrument panel will be lit and stay lit
when the key is turned to RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your dealer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be ready
to work for an adult or larger child passenger.
75
Page 97 of 562
Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons. They could operate the power
windows or other controls or even make
the vehicle move. The children or others
could be badly injured or even killed. Do
not leave the keys in a vehicle with
children.
This vehicle has one key for the ignition and the
driver’s door lock.
97
Page 106 of 562
Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of
amoving vehicle. When a door
islocked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)
Young children who get into unlocked
vehicles may be unable to get out. A
child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock your
vehicle.
From the outside, use your key or the remote
keyless entry transmitter.
To unlock the driver’s door from the outside with
the key, insert the key and turn it toward the
front of the vehicle. To lock the driver’s door from
the outside with your key, insert the key and
turn it toward the rear of the vehicle.
106
Page 111 of 562
Lock either sliding door from inside the vehicle by
moving the manual lever down. Unlock it by
moving the lever up.
With the power door locks, the sliding door lock
has a delay feature. SeeDelayed Locking on
page 108andDIC Vehicle Personalization
(Uplevel Only) on page 249.
Sliding Door Security Lock
Your vehicle is equipped with sliding door security
locks that helps prevent young children or other
passengers from opening the sliding door(s) using
the inside door handle. To use one of these
locks, do the following:
1. Open the sliding door.
2. On the inside of the
sliding door(s), on
the front edge of the
door will be a lock.
Push the lever up to
engage the lock.
3. Close the door.
4. Repeat Steps 1 through 3 for the other door.
111
Page 112 of 562

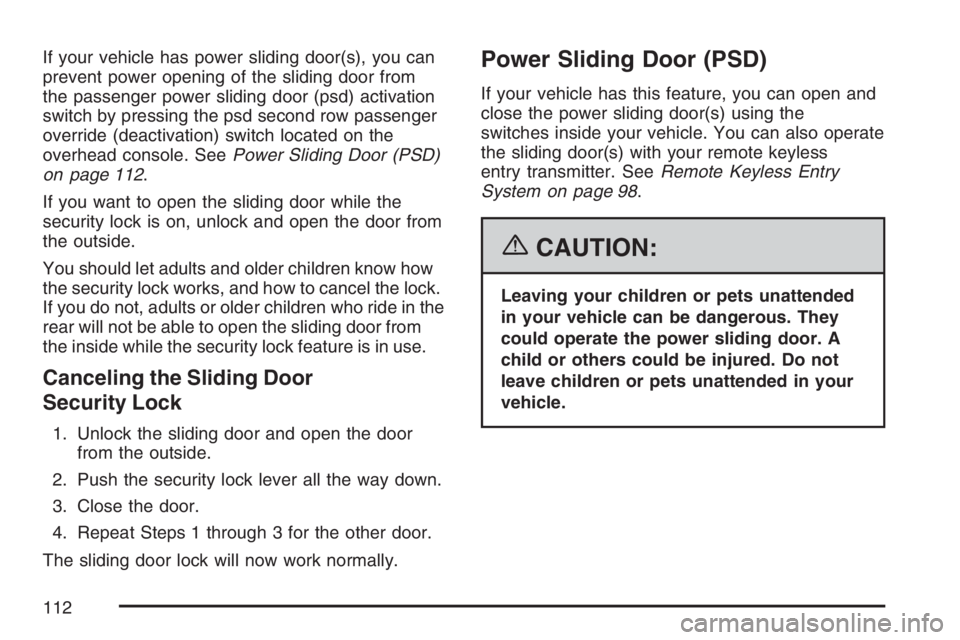

If your vehicle has power sliding door(s), you can
prevent power opening of the sliding door from
the passenger power sliding door (psd) activation
switch by pressing the psd second row passenger
override (deactivation) switch located on the
overhead console. SeePower Sliding Door (PSD)
on page 112.
If you want to open the sliding door while the
security lock is on, unlock and open the door from
the outside.
You should let adults and older children know how
the security lock works, and how to cancel the lock.
If you do not, adults or older children who ride in the
rear will not be able to open the sliding door from
the inside while the security lock feature is in use.
Canceling the Sliding Door
Security Lock
1. Unlock the sliding door and open the door
from the outside.
2. Push the security lock lever all the way down.
3. Close the door.
4. Repeat Steps 1 through 3 for the other door.
The sliding door lock will now work normally.
Power Sliding Door (PSD)
If your vehicle has this feature, you can open and
close the power sliding door(s) using the
switches inside your vehicle. You can also operate
the sliding door(s) with your remote keyless
entry transmitter. SeeRemote Keyless Entry
System on page 98.
{CAUTION:
Leaving your children or pets unattended
in your vehicle can be dangerous. They
could operate the power sliding door. A
child or others could be injured. Do not
leave children or pets unattended in your
vehicle.
112
Page 261 of 562
XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in
the 48 contiguous United States and Canada.
XM™ offers a large variety of coast-to-coast
channels including music, news, sports, talk,
traffic/weather (U.S. subscribers), and children’s
programming. XM™ provides digital quality
audio and text information that includes song title
and artist name. A service fee is required in
order to receive the XM™ service. For more
information, contact XM™; In the U.S. at
www.xmradio.com or call 1-800-852-XMXM (9696)
or in Canada at www.xmradio.ca or call
1-877-GET-XMSR (438-9677).
Playing the Radio
Top Knob (Power/Volume):Press this knob
to turn the system on and off. Turn this knob
clockwise or counterclockwise to increase or
to decrease the volume.
4(Information):For RDS, press this button to
change what appears on the display while
using RDS. The display options are station name,
RDS station frequency, PTY (program type),
and the name of the program (if available).For XM™ (if equipped), press the information
button while in XM™ mode to retrieve four different
categories of information related to the current
song or channel: Artist, Song Title, Category
or PTY, Channel Number/Channel Name.
To change the default on the display, press the
information button until you see the desired
display, then hold the button for two seconds.
The radio produces one beep and the selected
display becomes the default.
AUTO
n(Automatic Volume):With automatic
volume, the audio system adjusts automatically
to make up for road and wind noise as you drive,
by increasing the volume as the vehicle speed
increases.
Set the volume at the desired level. Press this
button to select AUTO VOLUME MIN (minimum),
AUTO VOLUME MED (medium), or AUTO
VOLUME MAX (maximum). Each higher setting
provides more volume compensation at faster
vehicle speeds. To turn automatic volume
off, press this button until AUTO VOLUME OFF
appears on the display.
261
