technical data CADILLAC ATS V COUPE 2017 1.G Owners Manual

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . . . . . 27
Seats and Restraints . . . . . . . . . . . . . . . 49
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Instruments and Controls . . . . . . . . . . 99
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Infotainment System . . . . . . . . . . . . . 153
Climate Controls . . . . . . . . . . . . . . . . . . 160
Driving and Operating . . . . . . . . . . . . 170
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 231
Service and Maintenance . . . . . . . . . 306
Technical Data . . . . . . . . . . . . . . . . . . . . 318
Customer Information . . . . . . . . . . . . 323
Index . . . . . . . . . . . . . . . . . . . . . . . . 325

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
318 TECHNICAL DATA
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . . . . . 318
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Vehicle Data
Capacities and Specifications . . . . 319
Engine Drive Belt Routing . . . . . . . 322
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on the
driver side of the vehicle. It can be
seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service Parts
labels and certificates of title and
registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See “Engine
Specifications” underCapacities and
Specifications 0319 for the vehicle's
engine code.
Service Parts Identification
Label
This label, on the load floor under the
spare tire cover in the trunk, has the
following information:
. Vehicle Identification
Number (VIN).
. Model designation.
. Paint information.
. Production options and special
equipment.
Do not remove this label from the
vehicle.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
TECHNICAL DATA 319
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and Lubricants
0 314 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Cooling System –Engine
2.0L L4 Engine 7.6 L 8.0 qt
2.5L L4 Engine 8.3 L 8.8 qt
3.6L V6 Engine 10.2 L 10.8 qt
Engine Oil with Filter
2.0L L4 Engine 4.7 L5.0 qt
2.5L L4 Engine 4.7 L5.0 qt
3.6L V6 Engine RWD (with oil cooler) 5.7 L6.0 qt
3.6L V6 Twin Turbo Engine 6.6 L7.0 qt
Fuel Tank 62.5 L16.5 gal
Wheel Nut Torque –ATS 140Y 100 lb ft

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
320 TECHNICAL DATA
ApplicationCapacities
Metric English
Wheel Nut Torque –ATS-V 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual.
Recheck fluid level after filling.
Engine Specifications
Engine VIN Code Horsepower TorqueSpark Plug Gap
2.0L L4 Engine X203 kW@ 5600 rpm
(272 hp@ 5600 rpm) 400
Y@ 3800 rpm
(295 lb ft @ 3800 rpm) 0.75–0.90 mm (0.030–
0.035 in)
2.5L L4 Engine A151 kW@ 6300 rpm
(202 hp@ 6300 rpm) 258
Y@ 4400 rpm
(190 lb ft @ 3800 rpm) 0.95–1.10 mm (0.037–
0.043 in)
3.6L V6 Engine S239 kW@ 6800 rpm
(321 hp@ 6800 rpm) 372
Y@ 4800 rpm
(274 lb ft @ 4800 rpm) 0.80–0.90 mm (0.031–
0.035 in)
3.6L V6 Twin Turbo
Engine Y
339 kW@ 5750 rpm
(455 hp@ 5750 rpm) 603
Y@ 3500 rpm
(445 lb ft @ 3500 rpm) 0.75–0.90 mm (0.030–
0.035 in)
Vehicle Top Speed
Engine MetricEnglish
2.0L L4 Engine 240 km/h149 mph

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
TECHNICAL DATA 321

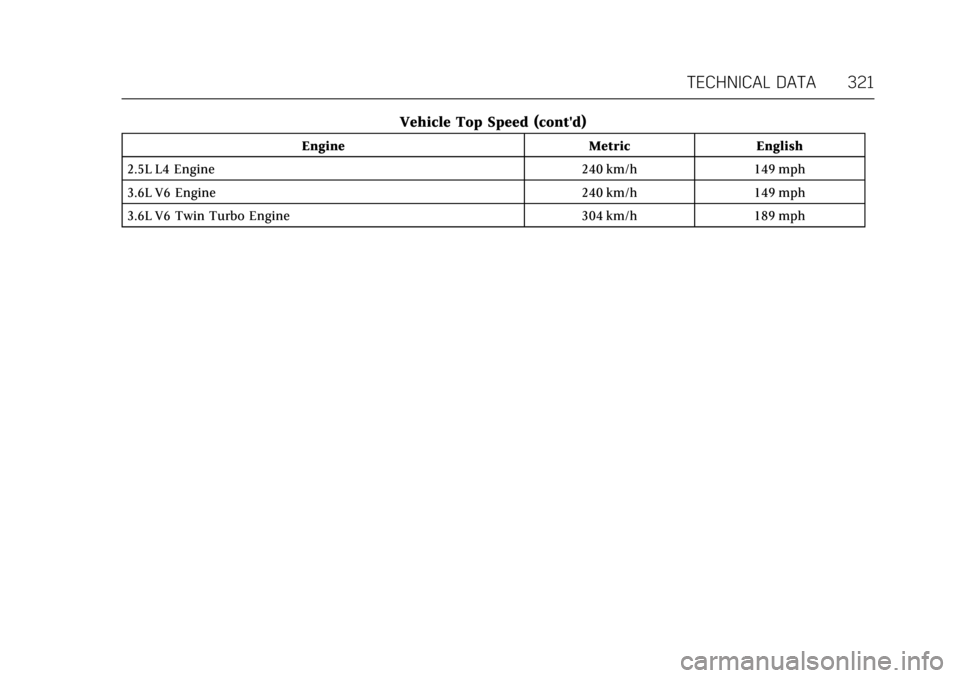

Vehicle Top Speed (cont'd)
EngineMetricEnglish
2.5L L4 Engine 240 km/h149 mph
3.6L V6 Engine 240 km/h149 mph
3.6L V6 Twin Turbo Engine 304 km/h189 mph

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
322 TECHNICAL DATA

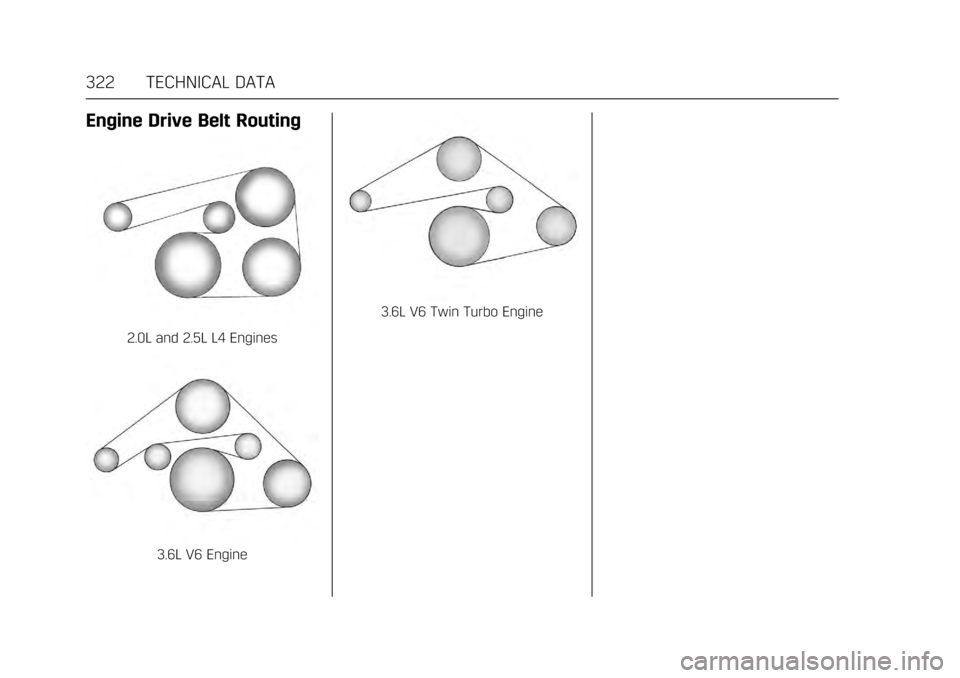

Engine Drive Belt Routing
2.0L and 2.5L L4 Engines
3.6L V6 Engine
3.6L V6 Twin Turbo Engine
