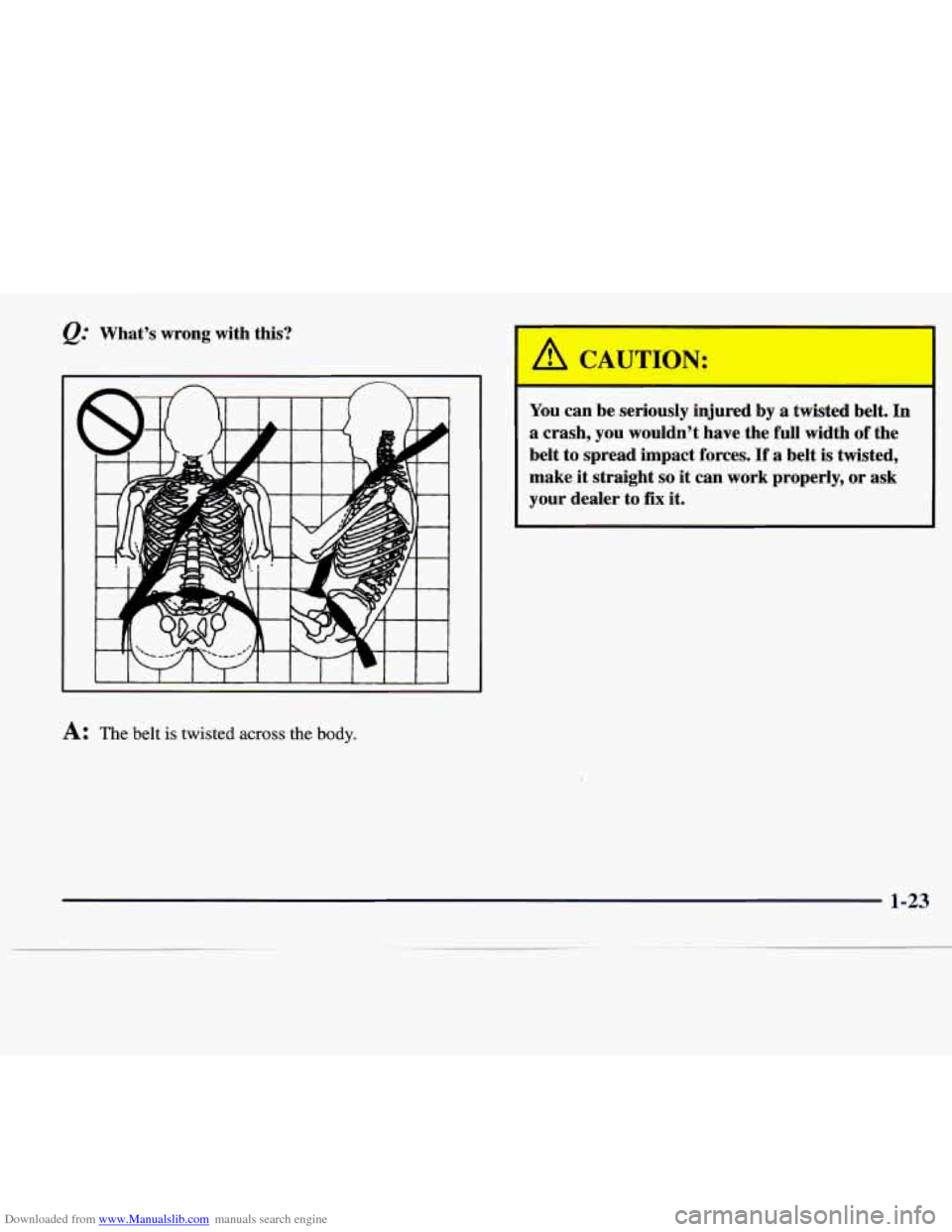

Downloaded from www.Manualslib.com manuals search engine @ What’s wrong with this? You can be seriously injured by a twisted belt.
In
a crash, you wouldn’t have the full width of the
belt to spread impact forces.
If a belt is twisted,
make it straight
so it can work properly, or ask
your dealer to
fix it.
A: The belt is twisted across the body.
1-23

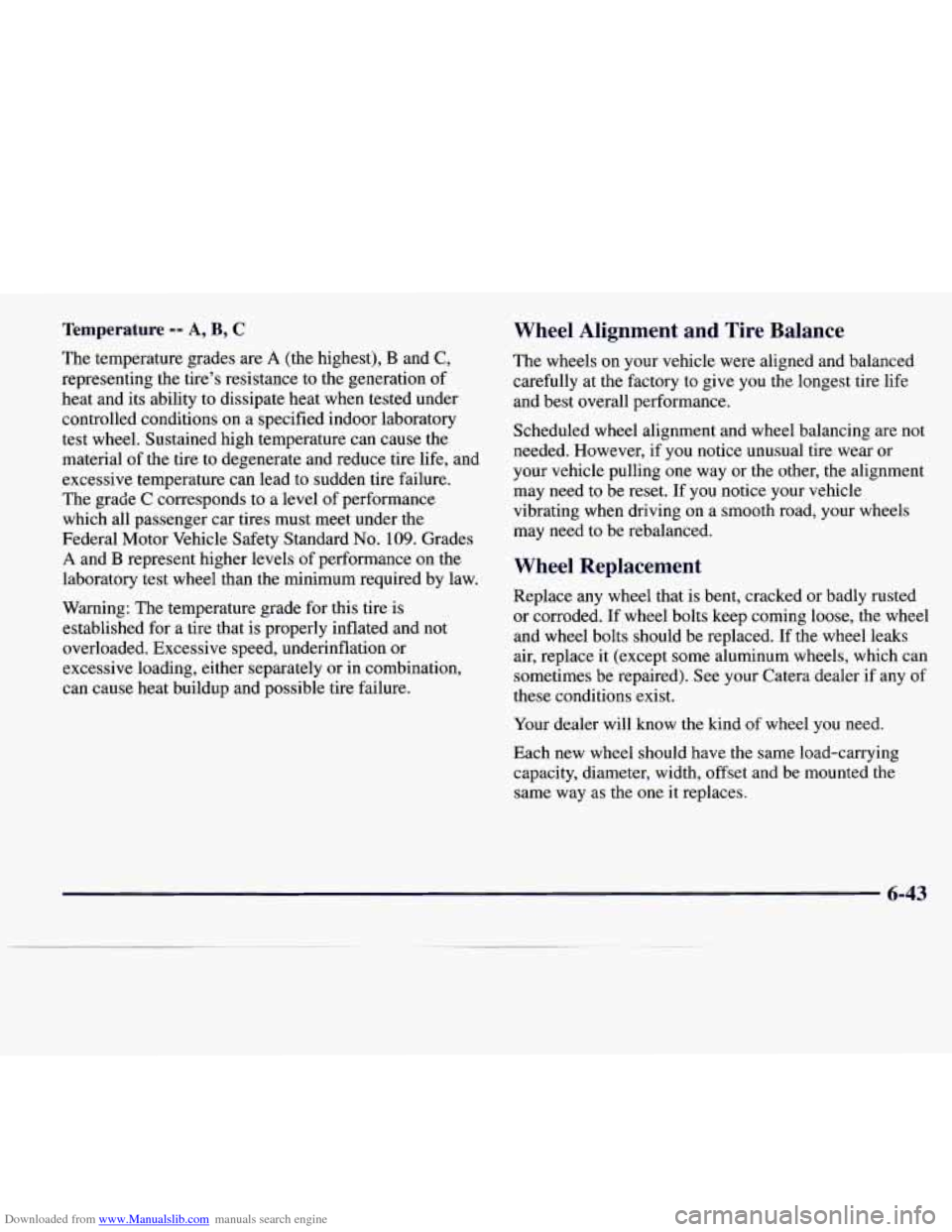

Downloaded from www.Manualslib.com manuals search engine Temperature -- A, B, C
The temperature grades are A (the highest), B and C,
representing the tire’s resistance to the generation of
heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure.
The grade
C corresponds to a level of performance
which all passenger car tires must meet under the
Federal Motor Vehicle Safety Standard
No. 109. Grades
A and B represent higher levels of performance on the
laboratory test wheel than the minimum required by law.
Warning: The temperature grade for this tire is
established for
a tire that is properly inflated and not
overloaded. Excessive speed, underinflation or
excessive loading, either separately or
in combination,
can cause heat buildup and possible tire failure.
Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
Scheduled wheel alignment and wheel balancing are not
needed. However, if you notice unusual tire wear
or
your vehicle pulling one way or the other, the alignment
may need to be reset. If you notice your vehicle
vibrating when driving on a smooth road, your wheels
may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked or badly rusted
or corroded. If wheel bolts keep coming loose, the wheel
and wheel bolts should be replaced. If the wheel leaks
air, replace
it (except some aluminum wheels, which can
sometimes be repaired). See your Catera dealer if any of
these conditions exist.
Your dealer will know the kind
of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way
as the one it replaces.
6-43

Downloaded from www.Manualslib.com manuals search engine Capacities
Engine Crankcase
Transmission
................. 7.0 quarts (6.6 L)
Oil Change With Filter* ...... 6.1 quarts (5.75 L)
Engine Cooling System ......... 10.6 quarts ( IO L)
Fuel Tank ................... 18 gallons (68. I L)
R- i 34a
Refrigerant,. ............. 2.9 lbs. (0.95 kg)
Wheel Base ............. 107.4 inches (272.8 cm)
Length ................... 194 inches (492.8 cm)
Height.. ................. 56.3 inches (143.1 cm)
Width ................... 70.3 inches (178.6 cm)
Front Tread
............... 59.3 inches ( 150.6 cm)
Rear Tread ................ .59.8 inches (152 cm)
Wheel Bolt Torque ............ 80 lb-ft (I 10 N-m)
Oil Change Without Filter* .... 5.8 quarts (5.5 L)
Vehicle Dimensions
* Recheck the oil level after filling. See “Engine Oil” in
the Index.
Air Conditioning Refrigerants
Normal Maintenance
Replacement Parts
Air Filter Element ................... 905093 18
Fuel Filter Element
.................. 90437575
Engine
Oil Filter .................... 93 156300
Passenger’s Compartment Air Filter
......................... 90510338
Thermostat
......................... 90502201
Windshield Wiper Blade
.......... 905 12807 (RH)
905 12808
(LH)
Spark Plugs ... 90541059 (Bosch Plug = FLR9LTE)
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant,
be sure the proper refrigerant is used.
If you’re not sure, ask your Catera dealer.
6-63
