set clock CADILLAC CATERA 1998 1.G Owners Manual
[x] Cancel search | Manufacturer: CADILLAC, Model Year: 1998, Model line: CATERA, Model: CADILLAC CATERA 1998 1.GPages: 346, PDF Size: 19.13 MB
Page 3 of 346
Downloaded from www.Manualslib.com manuals search engine I o set the clock, press and hold. HR
ange. Release the button tis yoit--;
1 .--I
4
Page 103 of 346

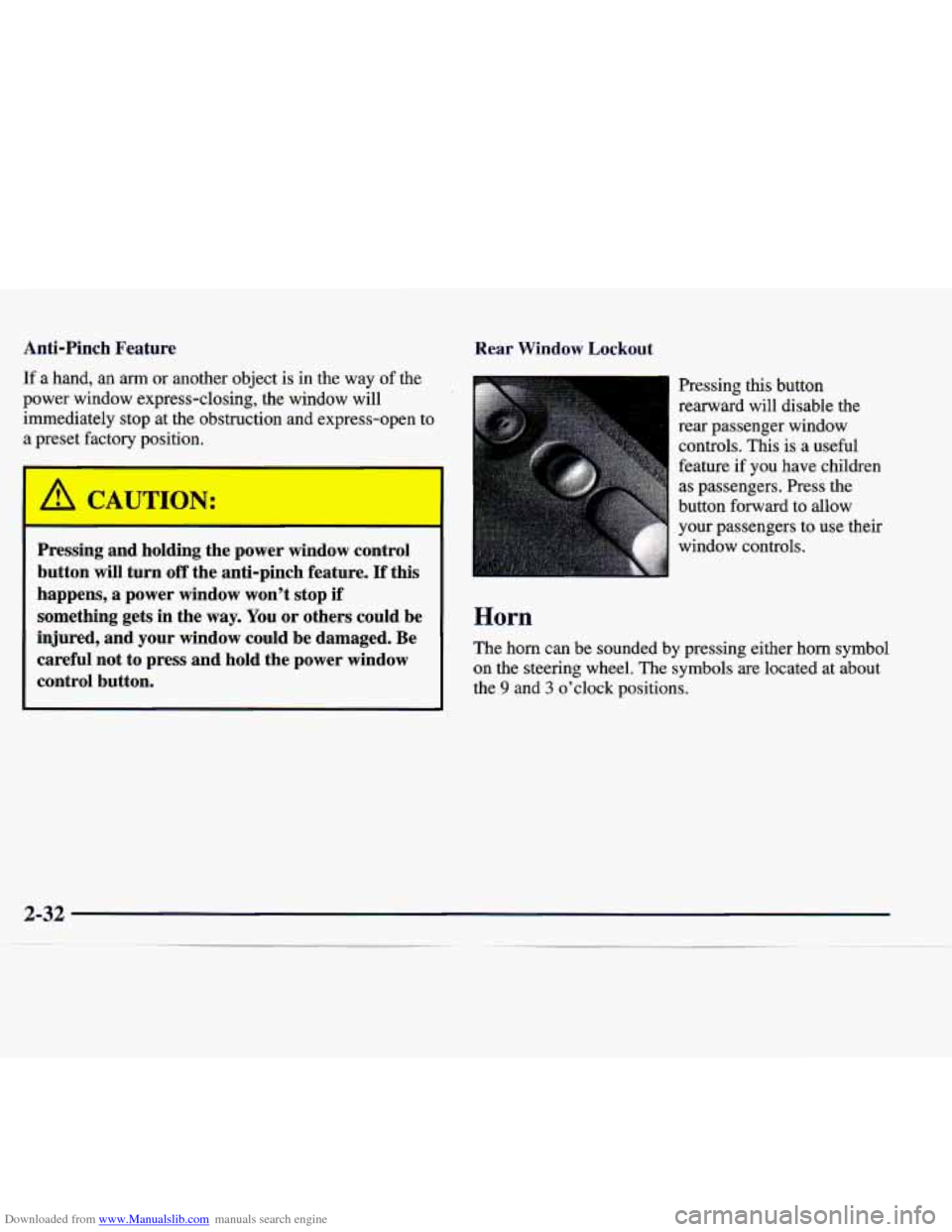

Downloaded from www.Manualslib.com manuals search engine Anti-Pinch Feature
If a hand, an am or another object is in the
way of the
power window express-closing, the window will
immediately stop at the obstruction and express-open to
a preset factory position.
LA C. LJTION:
Pressing and holding the power window control
button will turn
off the anti-pinch feature. If this
happens,
a power window won’t stop if
something gets in the
way. You or others could be
injured, and your window could be damaged. Be
careful not to press and hold the power window
control button.
I
Rear Window Lockout
I
Pressing this button
rearward will disable the
rear passenger window controls. This is a useful
feature
if you have children
as passengers. Press the
button forward to allow
your passengers to use their
window controls.
Horn
The horn can be sounded by pressing either horn symbol
on the steering wheel. The symbols are located at about
the 9 and
3 o’clock positions.
Page 148 of 346

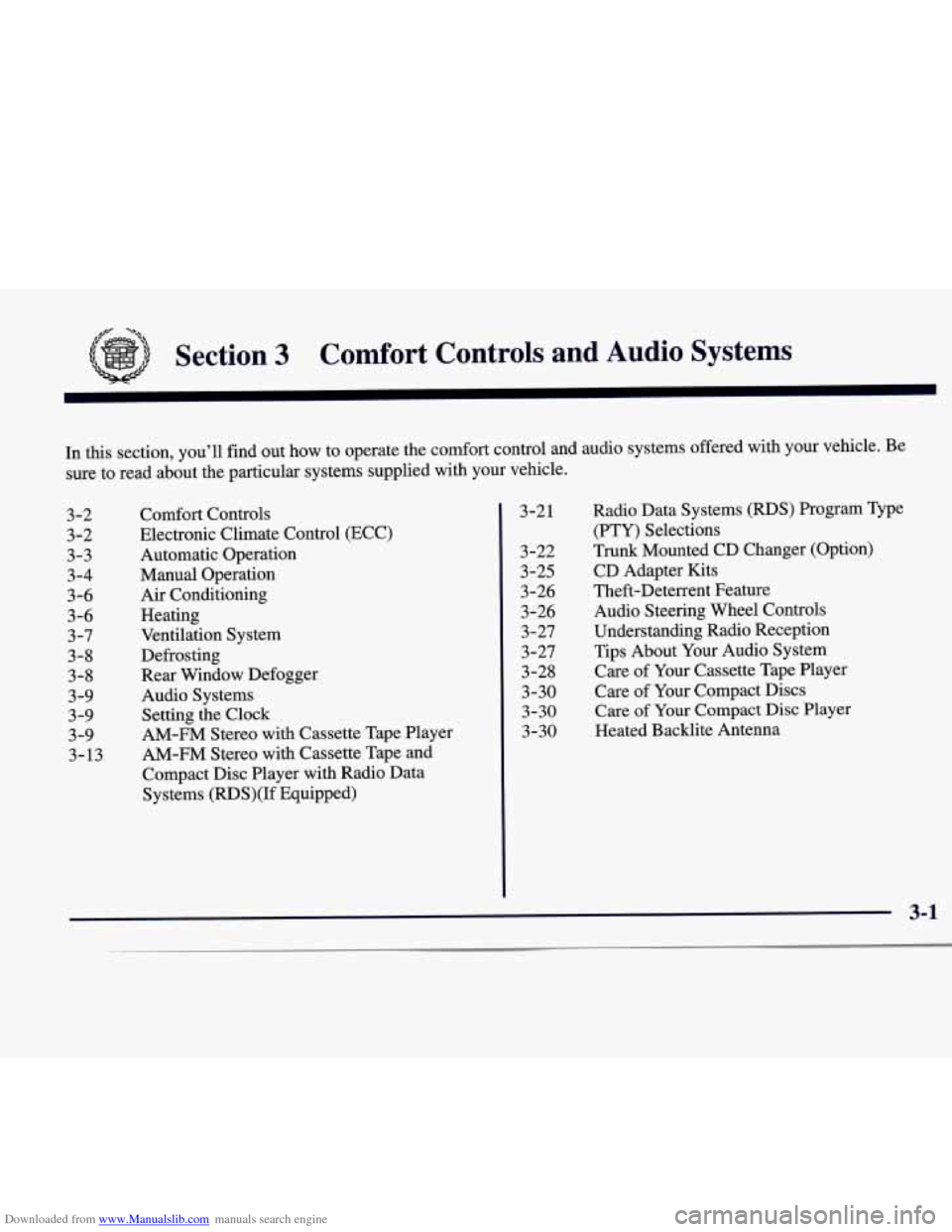

Downloaded from www.Manualslib.com manuals search engine Section 3 Comfort Controls and Audio Systems
In this section, you’ll find out how to operate the comfort control and audio systems offered with your vehicle. Be
sure to read about the particular systems supplied with your vehicle.
3 -2
3-2 3-3
3-4
3-6
3-6 3 -7
3-8
3-8 3-9
3-9
3-9 3-13 Comfort
Controls
Electronic Climate Control (ECC)
Automatic Operation
Manual Operation Air Conditioning
Heating
Ventilation System
Defrosting
Rear Window Defogger
Audio Systems
Setting the Clock
AM-FM Stereo with Cassette Tape Player
AM-FM Stereo with Cassette Tape and
Compact Disc Player with Radio Data
Systems (RDS)(If Equipped) 3-21
3-22
3-25 3-26
3
-26
3-27 3-27
3-28
3-30
3-30 3-30 Radio Data Systems
(RDS) Program Type
(PTY) Selections
Trunk Mounted CD Changer (Option) CD Adapter Kits
Theft-Deterrent Feature
Audio Steering Wheel Controls
Understanding Radio Reception Tips About Your Audio System
Care of Your Cassette Tape Player
Care of Your Compact Discs
Care
of Your Compact Disc Player
Heated Backlite Antenna
3-1
Page 156 of 346

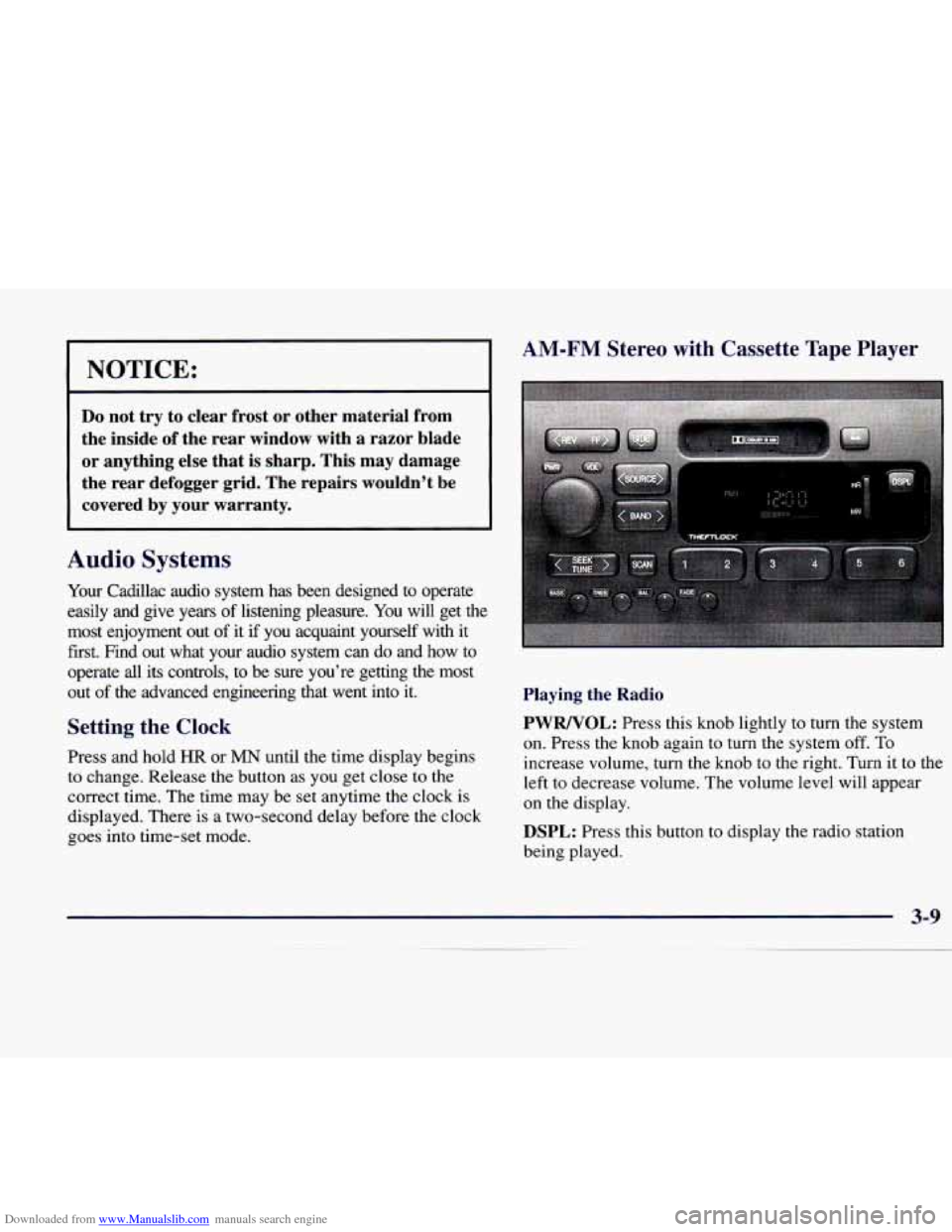

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Do not try to clear frost or other material from
the inside
of the rear window with a razor blade
or anything else that
is sharp. This may damage
the rear defogger grid. The repairs wouldn’t be
covered by your warranty.
Audio Systems
Your Cadillac audio system has been designed to operate
easily and give years
of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audlo system can do and how to
operate all its controls,
to be sure you’re getting the most
out
of the advanced engineering that went into it.
Setting the Clock
Press and hold HR or MN until the time display begins
to change. Release the button as you get close to the
correct time. The time may be set anytime the clock is
displayed. There is a two-second delay before the clock
goes into time-set mode.
AM-FM Stereo with Cassette Tape Player
Playing the Radio
PWRNOL: Press this knob lightly to turn the system
on. Press the knob again to turn the system off. To
increase volume, turn the knob to
the right. Turn it to the
left to decrease volume. The volume level will appear
on the display.
DSPL: Press this button to display the radio station
being played.
Page 164 of 346

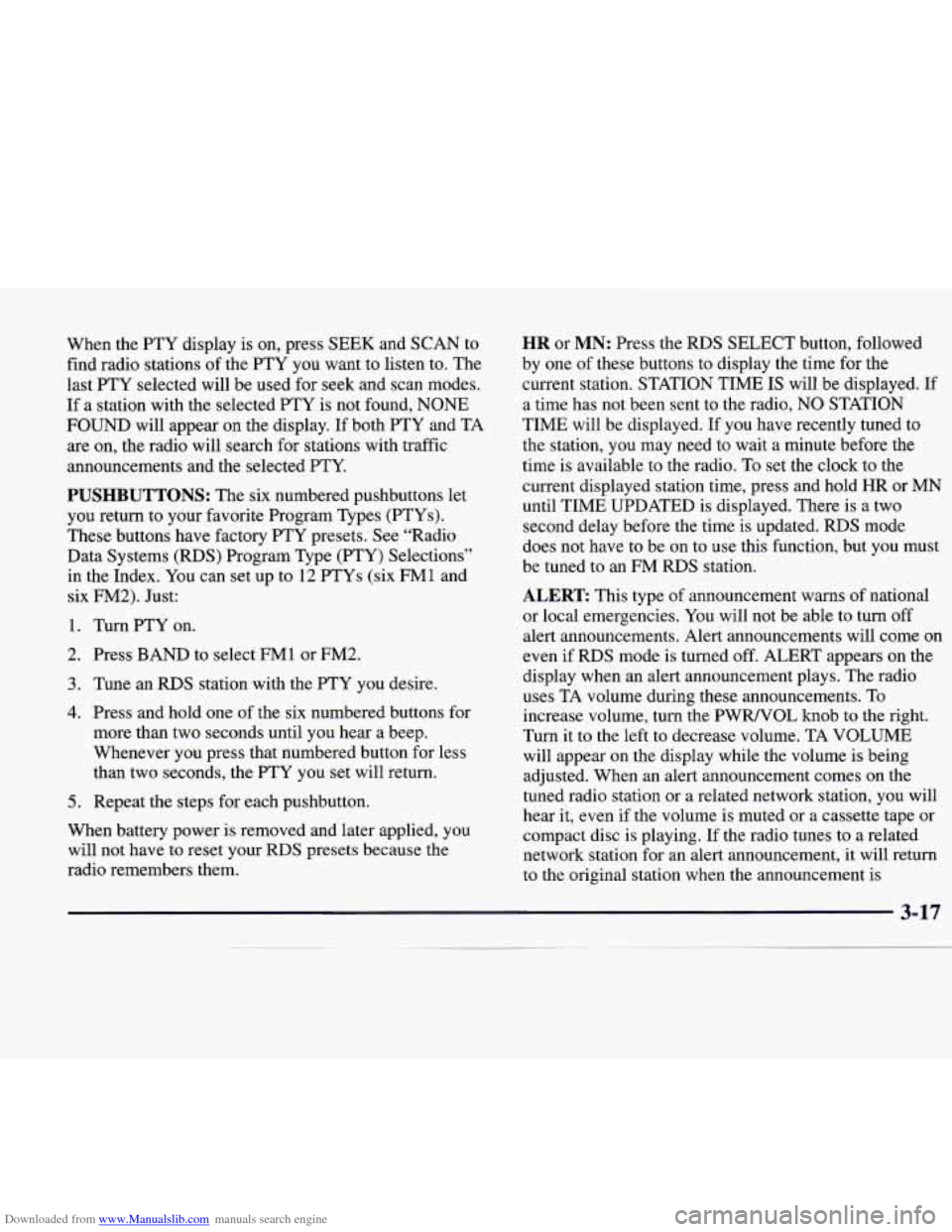

Downloaded from www.Manualslib.com manuals search engine When the PTY display is on, press SEEK and SCAN to
find radio stations of the PTY you want to listen to. The
last PTY selected will be used for seek and scan modes.
If a station with the selected PTY is not found, NONE
FOUND will appear on the display. If both PTY and TA
are on, the radio will search for stations with traffic
announcements and the selected
PTY.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite Program Types (PTYs).
These buttons have factory PTY presets.
See “Radio
Data Systems (RDS) Program Type (PTY) Selections”
in the Index. You can set up to
12 PTYs (six FMl and
six FM2). Just:
1. Turn PTY on.
2. Press BAND to select
FMl or FM2.
3. Tune an RDS station with the PTY you desire.
4. Press and hold one of the six numbered buttons for
more than two seconds until you hear a beep.
Whenever you press that numbered button for less
than two seconds, the PTY you set will return.
5. Repeat the steps for each pushbutton.
When battery power is removed and later applied, you
will not have to reset your RDS presets because
the
radio remembers them.
HR or MN: Press the RDS SELECT button, followed
by one
of these buttons to display the time for the
current station. STATION TIME IS will be displayed. If
a time has not been sent to the radio, NO STATION
TIME will be displayed. If
you have recently tuned to
the station, you may need
to wait a minute before the
time is available to the radio. To set the clock to the
current displayed station time, press and hold HR or MN
until TIME UPDATED is displayed. There
is a two
second delay before the time is updated. RDS mode
does not have to be on to use this function, but you must
be tuned to an FM RDS station.
ALERT This type of announcement warns of national
or local emergencies.
You will not be able to turn off
alert announcements. Alert announcements will come on
even if RDS mode is turned off. ALERT appears on the
display when an alert announcement plays. The radio
uses TA volume during these announcements.
To
increase volume, turn the PWRNOL knob to the right.
Turn it to the left to decrease volume. TA VOLUME
will appear on the display while the volume is being
adjusted. When an alert announcement comes on the
tuned radio station or a related network station, you will
hear it, even
if the volume is muted or a cassette tape or
compact disc
is playing. If the radio tunes to a related
network station for an alert announcement,
it will return
to
the original station when the announcement is
Page 332 of 346
Downloaded from www.Manualslib.com manuals search engine Cleaning Aluminum or Chrome Wheels
................... 6-50
Exterior LampsLenses
........................ 6-49
Fabric
................................. 6.46. 6.47
Glass Surfaces
............................... 6-48
Inside of Your Vehicle
......................... 6-46
Interior Plastic Components
..................... 6-48
Leather
..................................... 6-47
Outside of Your Vehicle
........................ 6-49
Speakercovers
.............................. 6-48
Special Problems
............................. 6-47
Tires
....................................... 6-51
Top of the Instrument Panel
..................... 6-48
Vinyl
....................................... 6-47
Wheels
..................................... 6-50
Climate Control System
........................... 3-2
Clock. Setting the
................................ 3-9
Comfort Controls
................................ 3-2
Compact Disc Changer Errors
..................... 3-25
Console Shift Lever
............................. 2-25
ConsoleStorage
................................ 2-48
Control
of a Vehicle .............................. 4-6
ConvenienceNet
............................... 2-49
Convex Outside Mirror
.......................... 2-47
Coolant
....................................... 6-20
Adding
..................................... 6-23
Heater. Engine
............................... 2- 19
Outside
of the Windshield and Wiper Blades
....... 6-49
Checking
................................... 6-22 SurgeTank
................................... .. 5-14
WhattoUse
................................. 6-21
Cooling System
................................ 5-14
Cornering Lamps
............................... 2-43
Cruise Control
................................. 2-36
Cruise Control Light
............................ 2-74
Customer Assistance for Text Telephone (TTY) Users
.................................. 7-4
Customer Assistance Information
................... 7-1
Customer Satisfaction Procedure .................... 7-2
Damage. Finish
............................... 6-51
Damage. Sheet Metal
............................ 6-51
Daytime Running Lamps
......................... 2-41
DeadBattery
................................... 5-3
Defects. Reporting Safety
................... 7- 12. 7- 13
Defensive Driving
............................... 4-2
Defogger. Rear Window
.......................... 3-8
Defrosting
..................................... 3-8
Dimensions. Vehicle
............................ 6-64
Dolby B Noise Reduction
................... 3.12. 3.19
Door Central Unlocking System
....................... 2-5
Locks
....................................... 2-4
Drive Position. Automatic Transmission
............. 2-22
Driver Position
................................. 1-19
Driver’s Side Instrument Panel Fuse Block
........... 6-57
Driver’s Side Temperature Knob
.................... 3-2
