CADILLAC CATERA 2000 1.G Owners Manual

3-7 Rear Window Defogger
The lines you see on the
rear window warm the
glass. With your vehicle's
engine running, press
this button to turn on
the rear defogger.
The rear window defogger heats the rear window
and both outside rearview mirrors. The system will
automatically shut off after about 15 minutes.
If further defogging is desired, press the button again.
Do not attach a temporary vehicle license, tape or
decals across the defogger grid on the rear window.
NOTICE:
Do not try to clear frost or other material from
the inside of the rear window with a razor blade
or anything else that is sharp. This may damage
the rear defogger grid. The repairs wouldn't be
covered by your warranty.
Ventilation System
The ventilation system supplies outside air into the vehicle
when it is moving. Outside air will also enter the vehicle
when the heater or the air conditioning fan is running.
The front outlets are located in the center and at each
side of the instrument panel. You can adjust the
direction of airflow by moving the center control levers
or you can stop the airflow by moving the dial located
on each side of the outlets to the ªOº position.

3-8
The direction of airflow for the rear seats can also be
adjusted. Move the center control dial between each
vent up or down to adjust the airflow from low to high.
Turn the dial to the ªOº position to stop airflow.
Move the lever in the center of each vent to direct
airflow toward the upper or floor outlets.
The airflow temperature from the rear outlets is the
same as the driver's temperature setting.
Ventilation Tips

Keep the hood and front air inlet free of ice, snow or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of the windows.

When you enter a vehicle in cold weather, adjust the
fan to the highest speed for a few moments before
driving off. This helps clear the intake outlets of
snow and moisture, and reduces the chance of
fogging the inside of the windows.

Keep the air path under the front seats clear of
objects. This helps circulate air throughout
your vehicle.Passenger Compartment Air Filter
This ventilation system includes a charcoal air filter that
helps to remove dust, pollen, etc. from air flowing into
your vehicle. A restriction in the airflow coming into
the passenger compartment could be the result of dirt
in the filter. For more information, see ªPassenger
Compartment Air Filterº in the Index. Also see the
Maintenance Schedule booklet for when to change
the filter.
Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all its controls, to be sure you're getting the
most out of the advanced engineering that went into it.
Setting the Clock
Press and hold HR or MN until the time display begins
to change. Release the button as you get close to the
correct time. The time may be set anytime the clock is
displayed. There is a two
-second delay before the clock
goes into time
-set mode.

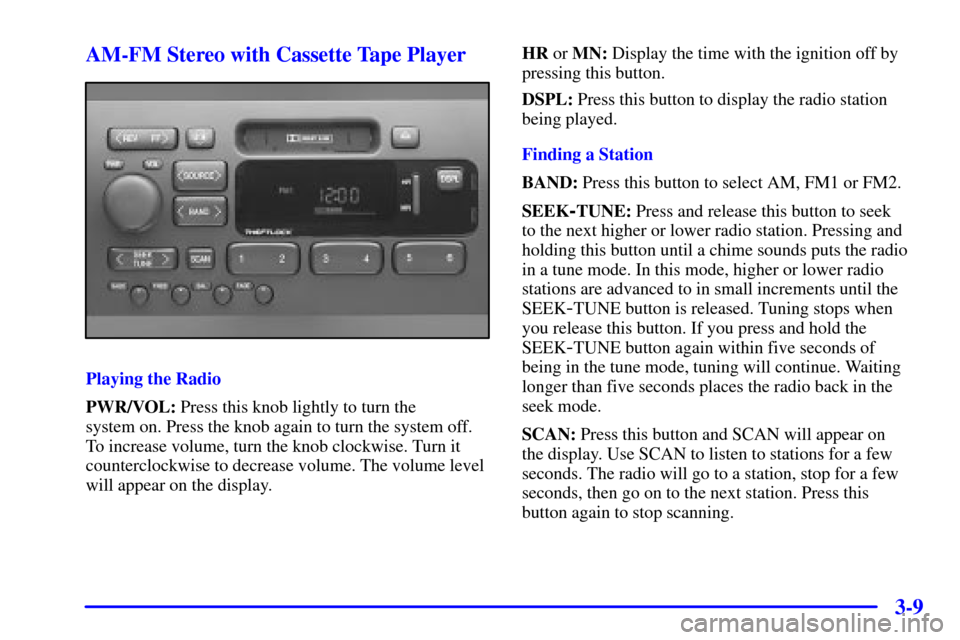

3-9 AM-FM Stereo with Cassette Tape Player
Playing the Radio
PWR/VOL: Press this knob lightly to turn the
system on. Press the knob again to turn the system off.
To increase volume, turn the knob clockwise. Turn it
counterclockwise to decrease volume. The volume level
will appear on the display.HR or MN: Display the time with the ignition off by
pressing this button.
DSPL: Press this button to display the radio station
being played.
Finding a Station
BAND: Press this button to select AM, FM1 or FM2.
SEEK
-TUNE: Press and release this button to seek
to the next higher or lower radio station. Pressing and
holding this button until a chime sounds puts the radio
in a tune mode. In this mode, higher or lower radio
stations are advanced to in small increments until the
SEEK
-TUNE button is released. Tuning stops when
you release this button. If you press and hold the
SEEK
-TUNE button again within five seconds of
being in the tune mode, tuning will continue. Waiting
longer than five seconds places the radio back in the
seek mode.
SCAN: Press this button and SCAN will appear on
the display. Use SCAN to listen to stations for a few
seconds. The radio will go to a station, stop for a few
seconds, then go on to the next station. Press this
button again to stop scanning.

3-10
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press BAND to select AM, FM1 or FM2.
3. Tune in the desired station.
4. Press and hold one of the six numbered buttons
for more than two seconds until you hear a beep.
Whenever you press that numbered button for less
than two seconds, the station you set will return.
5. Repeat the steps for each pushbutton.
When battery power is removed and later applied, you
will not have to reset your radio presets because the
radio remembers them.
PRESET SCAN: Press and hold SCAN for two to
three seconds until PRESET SCAN appears on the
display to listen to each of your preset stations for
a few seconds (factory presets which have not been
reprogrammed with your stations will be ignored).
The radio will go to the first preset station stored on
your pushbuttons, stop for a few seconds, then go on
to the next preset station. Press SCAN again to stop
scanning. If a preset station has weak reception,
the radio will not stop at the preset station.Setting the Tone
BASS: Press this knob lightly so it extends. Turn the
knob clockwise to increase and counterclockwise to
decrease bass.
TREB: Press this knob lightly so it extends. Turn the
knob clockwise to increase and counterclockwise to
decrease treble. If a station is weak or noisy, you may
want to decrease the treble.
Push these knobs back into their stored positions when
you're not using them.
Adjusting the Speakers
BAL: Press this knob lightly so it extends. Turn the
knob clockwise to adjust sound to the right speakers
and counterclockwise for the left speakers. The middle
position balances the sound between the speakers.
FADE: Press this knob lightly so it extends. Turn the
knob clockwise to adjust the sound to the front speakers
and counterclockwise for the rear speakers. The middle
position balances the sound between the speakers.
Push these knobs back into their stored positions when
you're not using them.

3-11
Playing a Cassette Tape
With the radio on, insert a cassette tape. The tape will
begin playing as soon as it is inserted. When one side
of your cassette tape is done playing, auto reverse plays
the other side of your cassette tape. If you want to insert
a cassette tape when the ignition is off, first press the
eject button.
While the tape is playing, use the VOL, FADE, BAL,
BASS and TREB controls just as you do for the radio.
Other controls may have different functions when a tape
is inserted. The display will show TAPE with an arrow
to indicate which side of the tape is playing. PLAY will
appear on the display temporarily when a tape is playing.
The display will then revert back to showing the time.
If an error occurs while trying to play a cassette tape,
it could be that:

The cassette tape is tight and the cassette player
cannot turn the hubs of the tape. Hold the cassette
tape with the open end down and try turning the
right hub counterclockwise with a pencil. Flip the
tape over and repeat. If the hubs do not turn easily,
your cassette tape may be damaged and should not
be used in the player. Try a new tape to be sure your
player is working properly.

The cassette tape is broken. (Check to see if your
tape is broken. Try a new tape.)REV: Press the left arrow to rewind the tape rapidly.
The radio will play while the tape reverses and REV
will appear on the display. You may use your station
pushbuttons to tune to another radio station while in
REV mode. Press the left arrow again to return to
playing speed.
FF: Press the right arrow to fast forward to another
part of the tape. The radio will play while the tape
advances and FF will appear on the display. You may
use your station pushbuttons to tune to another radio
station while in FF mode. Press the right arrow again to
return to playing speed.
SEEK
-TUNE: Press the right arrow to seek to the next
selection on the tape. Press the left arrow to search for
the previous selection on the tape (REP will appear on
the display). Your tape must have at least three seconds
of silence between each selection for SEEK
-TUNE to
work. The sound will mute while seeking.
SCAN: Press this button. SCAN FF will appear on the
display until the next selection is found and then SCAN
PLAY will appear on the display. Use SCAN to listen
to selections for a few seconds. The tape will go to a
selection, stop for a few seconds, then go on to the next
selection. Press this button again to stop scanning.

3-12
SIDE: Press this button to change the side of the
tape that is playing. (PLAY shows on the display.)
SOURCE: Press this button to select a source.
If no cassette tape is in the tape player, CASS appears
on the display and then the radio station appears briefly.
The display then reverts back to showing the time of
day. Press this button again or press BAND to switch
back to the radio.
EJECT: Press the upward triangle button to
remove a tape. The radio will play. Eject may be
activated with the radio off. Cassette tapes may be
loaded with the radio off but they will not start playing
until the PWR button is pressed. Press PWR or
turn the ignition off to stop the cassette tape player.
The tape will stay in the player and resume play at
the point where it stopped.CLN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you
clean the player, press and hold the eject button for
five seconds to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
Your cassette tape player automatically reduces
background noise from tapes. Dolby Noise Reduction is
manufactured under a license from Dolby Laboratories
Licensing Corporation. Dolby and the double
-D
symbol are trademarks of Dolby Laboratories
Licensing Corporation.

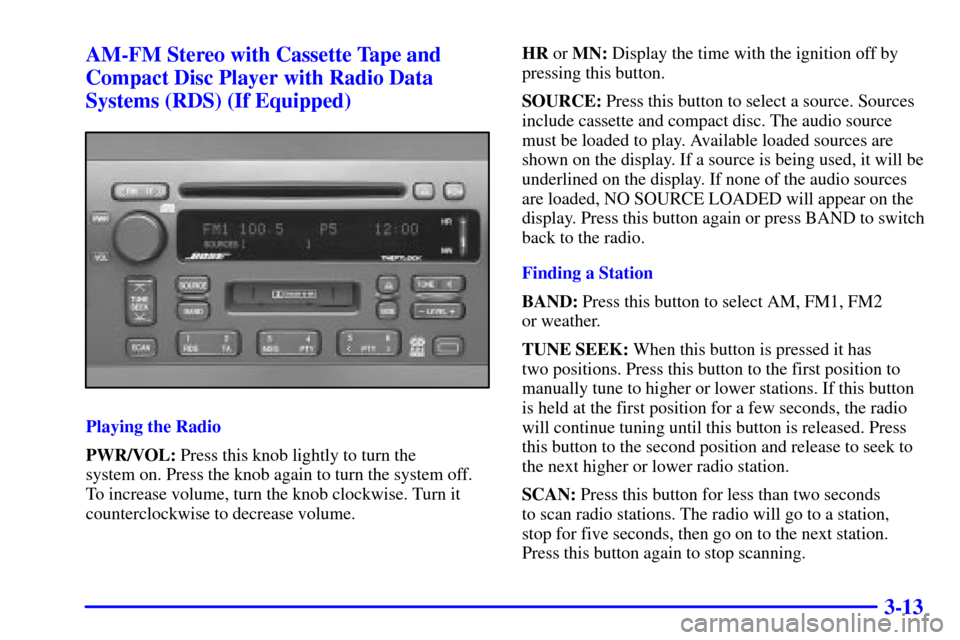

3-13 AM-FM Stereo with Cassette Tape and
Compact Disc Player with Radio Data
Systems (RDS) (If Equipped)
Playing the Radio
PWR/VOL: Press this knob lightly to turn the
system on. Press the knob again to turn the system off.
To increase volume, turn the knob clockwise. Turn it
counterclockwise to decrease volume.HR or MN: Display the time with the ignition off by
pressing this button.
SOURCE: Press this button to select a source. Sources
include cassette and compact disc. The audio source
must be loaded to play. Available loaded sources are
shown on the display. If a source is being used, it will be
underlined on the display. If none of the audio sources
are loaded, NO SOURCE LOADED will appear on the
display. Press this button again or press BAND to switch
back to the radio.
Finding a Station
BAND: Press this button to select AM, FM1, FM2
or weather.
TUNE SEEK: When this button is pressed it has
two positions. Press this button to the first position to
manually tune to higher or lower stations. If this button
is held at the first position for a few seconds, the radio
will continue tuning until this button is released. Press
this button to the second position and release to seek to
the next higher or lower radio station.
SCAN: Press this button for less than two seconds
to scan radio stations. The radio will go to a station,
stop for five seconds, then go on to the next station.
Press this button again to stop scanning.

3-14
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations and associated tone
and DSP settings. The RDS PTY mode must be off to
use this mode. You can set up to 24 stations (six AM,
six FM1, six FM2 and six weather). Just:
1. Turn the radio on.
2. Press BAND to select AM, FM1, FM2 or weather.
3. Tune in the desired station.
4. Press and hold one of the six numbered buttons
for more than two seconds. Whenever you press
that numbered button for less than two seconds,
the station you set will return.
5. Repeat the steps for each pushbutton.
When battery power is removed and later applied, you
will not have to reset your radio presets because the
radio remembers them.
PRESET SCAN: Press and hold SCAN for more
than two seconds until you hear a beep to listen to each
of your preset stations for five seconds. The radio will
go to the first preset station stored on your pushbuttons,
stop for five seconds, then go on to the next preset
station. Press SCAN again to stop scanning. If a preset
station has weak reception, the radio will not stop at the
preset station.Using RDS Mode
Your audio system is equipped with Radio Data Systems
(RDS). RDS mode gives you many useful new features.
When RDS is on, the radio can:

seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies,

receive and display messages from radio stations and

search for a stronger station when a station is too
weak for listening.
RDS features are only available for use on FM stations
which broadcast RDS information.
RDS SELECT: Press this button to use the
alternate RDS functions (RDS, TA, MSG, PTY and

PTY) located on the six numbered pushbuttons.
RDS SELECT: will appear on the display. The alternate
RDS functions are only available when you are using
the FM band of your radio.

3-15
RDS (1): With RDS off, press the RDS SELECT
button, followed by this button to turn RDS on.
The RDS display will turn on. You must have RDS
on to use the new RDS functions. The RDS display
will also turn on if one of the other RDS function
buttons has been pressed on. If you are tuned to a
station broadcasting RDS information, the station's
call letters and Program Type (PTY) will replace the
station's frequency on the display. After five seconds,
the program type will be replaced on the display by the
station's program type name. The program type and
program type name may be the same or different.
Press BAND to recall the frequency and program type
displays. If the radio is tuned to a station that is not
broadcasting RDS information, the station's frequency
will remain on the display. While RDS is on, the radio
will search for a stronger station in the network when
a station gets too weak for listening. Press the RDS
SELECT button, followed by this button again to turn
RDS off. All RDS functions will be turned off.
REGION: You can also use the RDS button to access
the region function. When an RDS station becomes
weak, this function searches for a stronger station within
the same network. A network can span a great distance.
One network can have stations spread across a country
or continent. Each network breaks down into regions.With regions, local news items like weather and traffic
are available to you. When the region function is on,
the radio only searches for stations in the same network
and region. You can only use the region function when
RDS is already on. Press the RDS SELECT button.
Then press and hold the RDS button for two seconds.
REGION: ON will appear on the display. While
REGION: ON appears on the display, press the RDS
button again to turn the region function off. REGION:
OFF will appear on the display. The region function can
be turned on again by pressing the RDS button.
TA (2): Press the RDS SELECT button, followed
by this button to receive traffic announcements.
The radio will turn on the TA display. TP will appear
on the display if the tuned station broadcasts traffic
announcements. You may also receive traffic
announcements from stations in the network related to
the tuned station. If the current tuned station does not
broadcast traffic announcements, the radio will seek to
a station which does. When the radio finds a station
which broadcasts traffic announcements, it will stop.
If no station is found, NONE FOUND will appear on
the display and the TA icon will turn off. When SEEK
or SCAN is pressed with the traffic announcement
function on, the radio will only stop at stations which
broadcast traffic announcements.

3-16
While a traffic announcement plays, the radio uses a
special type of volume called TA volume. To increase
TA volume, turn the PWR/VOL knob clockwise.
Turn it counterclockwise to decrease volume.
TA VOLUME will appear on the display while the
volume is being adjusted.
When a traffic announcement comes on the tuned radio
station or a related network station, you will hear it,
even if the volume is muted or a cassette tape or
compact disc is playing. If the radio tunes to a related
network station for a traffic announcement, it will
return to the original station when the announcement is
finished. If the cassette tape or compact disc player was
being used, the tape or compact disc will stay in the
player and resume play at the point where it stopped.
Press the RDS SELECT button, followed by this button
again to turn TA off.
MSG (3): When RDS is on, if the current station has
a message, MSG will appear on the display. Press the
RDS SELECT button, followed by this button to see
the message. If the whole message does not appear
on the display, parts of the message will appear every
three seconds until the message is completed. To see the parts of the message faster than every three
seconds, press this button again. A new group of words
will appear on the display. Once the complete message
has been displayed, MSG will disappear from the
display until another new MSG is received.
PTY (4): This button is used to turn on and off Program
Type (PTY) seeks and scans. Press the RDS SELECT
button, followed by this button. The PTY display will
turn on. RDS SELECT: PTY NEWS will appear on the
display for three seconds. (The PTY shown will be the
last PTY selected.) Press the RDS SELECT button,
followed by this button again to turn the PTY display off.

PTY (5) (6): With RDS on, press the RDS SELECT
button, followed by
or . The PTY display will turn
on, if it is not already on. RDS SELECT: PTY NEWS
will appear on the display for three seconds. (The PTY
shown will be the last PTY selected.) While this message
is displayed, use
and  to move up and down the
PTY list. If you pause on a PTY for three seconds,
PRESET PTY: NEWS will appear on the display.
While this message is displayed, you can save the
PTY in a preset by pressing one of the six numbered
pushbuttons until you hear a beep. Allow three seconds
for the message to disappear if you do not want to save
the PTY in a preset. See ªRadio Data Systems (RDS)
Program Type (PTY) Selectionsº in the Index.
