CADILLAC CATERA 2000 1.G User Guide

ix
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important
for you and
your passengers
whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
SPEAKER
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle.

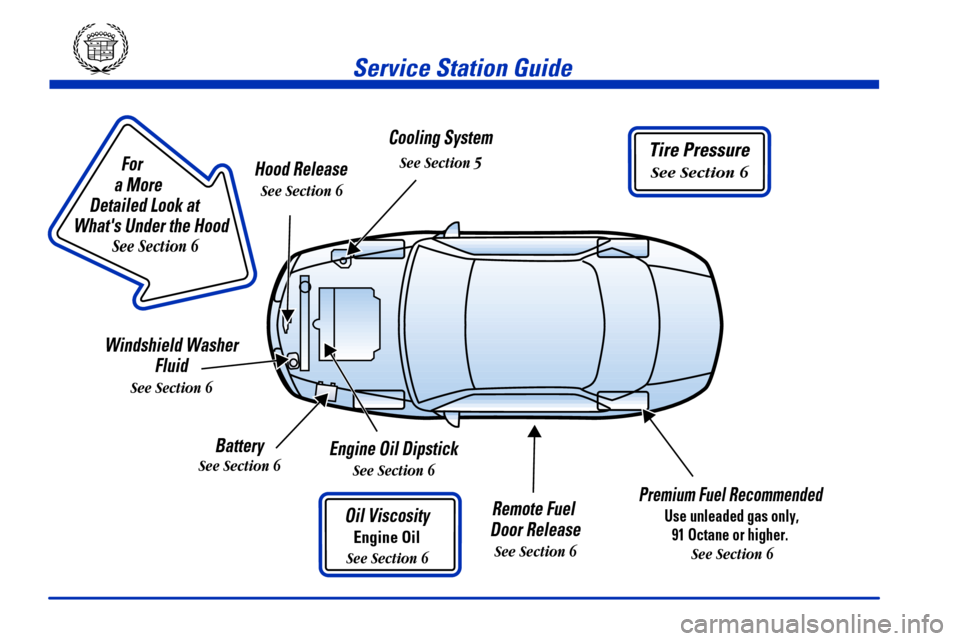

For
a More
Detailed Look at
What's Under the Hood
See Section 6
Tire Pressure
See Section 6
Service Station Guide
Oil Viscosity
Engine Oil
See Section 6
Engine Oil Dipstick
See Section 6
Remote Fuel
Door Release
See Section 6
Premium Fuel Recommended
Use unleaded gas only,
91 Octane or higher.

See Section 6
Cooling System
See Section 5Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Battery
See Section 6

1-
1-1
Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-11 Safety Belts: They're for Everyone
1
-16 Here are Questions Many People Ask About
Safety Belts
-- and the Answers
1
-17 How to Wear Safety Belts Properly
1
-17 Driver Position
1
-24 Safety Belt Use During Pregnancy
1
-25 Right Front Passenger Position
1
-25 Air Bag Systems1
-33 Safety Belt Pretensioners
1
-33 Rear Seat Passengers
1
-37 Children
1
-40 Child Restraints
1
-50 Larger Children
1
-53 Checking Your Restraint Systems
1
-53 Replacing Restraint System Parts
After a Crash

1-2
Seats and Seat Controls
This section tells you about the seats -- how to adjust
them, and also about reclining front seatbacks, lumbar
adjustments, heated seats and head restraints.
Manual Lumbar Support
The lumbar control is
located on the outboard
side of each front seatback.
The control provides
additional support to your
lower back and works
independently of other
seat controls.
Use the seat controls first to get the proper seating
position. Then proceed with the lumbar adjustment.
The upper and lower seatback can be adjusted using the
small hand
-wheel control. Turn the control forward to
increase support and rearward to decrease support.Keep in mind that as your seating position changes,
as it may during long trips, so should the position of
the lumbar support. Adjust the seat as needed.
Power Seats
The power seat controls are located on the outboard side
of each front seat cushion.

Move the front of the control up or down to adjust
the front portion of the cushion up or down.

Move the rear of the control up or down to adjust the
rear portion of the cushion up or down.

1-3

To adjust the seat height, lift up or push down on the
center of the control.

To move the seat forward or rearward, slide the
control in the desired direction.
If a failure in the power supply system occurs, the
power seats can be manually adjusted by inserting the
crank handle into the slot located below the seat cushion
(as shown in the above illustration).The crank handle is provided in the tool kit located in
the trunk (with the jack).
Turn the crank handle clockwise until you've reached
your desired seating position (note that manually
moving the seat requires turning the crank handle
many times).
Sport Seats (If Equipped)
If your vehicle has this feature, the bottom of the
seat cushion extends outward to provide additional
leg support.
To extend the bottom of the seat cushion, grasp the
front portion of the cushion and pull it towards the
front of the vehicle.
When additional support is no longer needed, return
the cushion to its original position by pushing it towards
the rear of the vehicle.

1-4 Memory Seat and Mirrors
After adjusting the driver's seat to a comfortable position,
also adjust the interior and exterior mirrors. To program
the memory seat and mirrors, press memory button ªMº
and memory button ª1º at the same time and hold
for five seconds.These buttons are located on the outboard side of
the driver's seat. Seat and mirror positions may be
programmed for two additional drivers by repeating the
above steps and pressing memory button ª2º or ª3º
instead of memory button ª1.º
If your vehicle is in PARK (P), you can recall mirror
and seating positions by pressing and holding one of
the three memory buttons. This will adjust the seat
and mirrors to where you have previously programmed
them. Seat and mirror movement is immediately stopped
if the memory button is released or if a seat or mirror
control is moved.
Also note that if you try to adjust the driver's memory
seat and it doesn't move, try opening the driver's door.
This will reactivate power to the driver's seat. (Power to
the driver's seat ªtimes outº after 30 seconds. Power
to the passenger's seat is always present.)

1-5 Heated Front Seats (Option)
The controls for the heated
front seats are located next
to the climate controls on
either side of the center
console. Turning the driver
or passenger side control
counterclockwise from the
off position activates the
heated seat.
The control can be adjusted to one of five heat settings,
numbered 1 through 5, with 1 being the lowest setting
and 5 being the highest setting.An indicator light in the control reminds you that the
heating system is in use. The heated seats can only be
used when the ignition is turned on.
To turn the heated seat off, turn the control clockwise to
the off position.
Reclining Front Seatbacks
The power control is
located on the outboard
side of each front seatback.
Press the control forward
or rearward to adjust
the seatback.

1-6

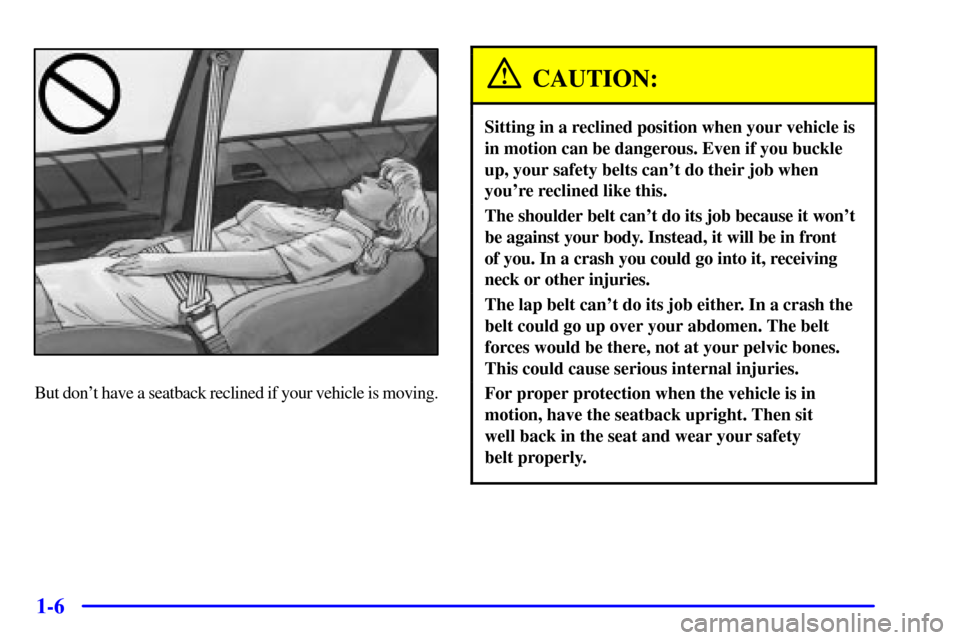

But don't have a seatback reclined if your vehicle is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it won't
be against your body. Instead, it will be in front
of you. In a crash you could go into it, receiving
neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.

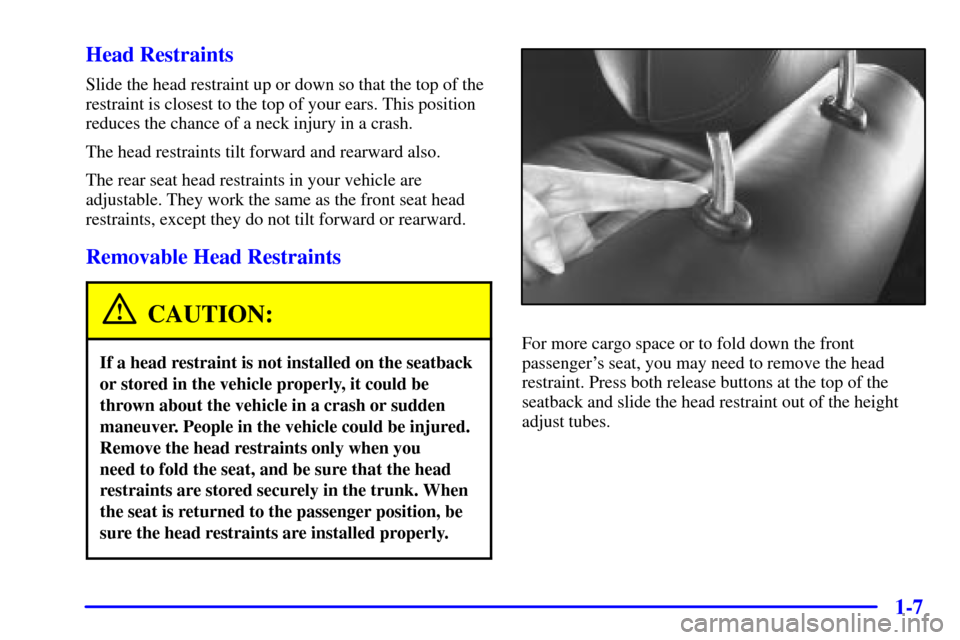

1-7 Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash.
The head restraints tilt forward and rearward also.
The rear seat head restraints in your vehicle are
adjustable. They work the same as the front seat head
restraints, except they do not tilt forward or rearward.
Removable Head Restraints
CAUTION:
If a head restraint is not installed on the seatback
or stored in the vehicle properly, it could be
thrown about the vehicle in a crash or sudden
maneuver. People in the vehicle could be injured.
Remove the head restraints only when you
need to fold the seat, and be sure that the head
restraints are stored securely in the trunk. When
the seat is returned to the passenger position, be
sure the head restraints are installed properly.
For more cargo space or to fold down the front
passenger's seat, you may need to remove the head
restraint. Press both release buttons at the top of the
seatback and slide the head restraint out of the height
adjust tubes.

1-8
The head restraint should be stored securely on the
driver's side of the trunk as shown.
Replace the head restraint when you have finished
carrying cargo or when the passenger's seat is returned
to its normal upright position.
Rear Seats
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person wearing
the belt could be seriously injured. After raising
the rear seatback, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
