CADILLAC CATERA 2000 1.G Owners Manual

6-27
There are only two reasons why the brake fluid level in
the reservoir might go down. The first is that the brake
fluid goes down to an acceptable level during normal
brake lining wear. When new linings are put in, the
fluid level goes back up. The other reason is that fluid
is leaking out of the brake system. If it is, you should
have your brake system fixed, since a leak means that
sooner or later your brakes won't work well, or won't
work at all.
So, it isn't a good idea to ªtop offº your brake fluid.
Adding brake fluid won't correct a leak. If you add fluid
when your linings are worn, then you'll have too much
fluid when you get new brake linings. You should add
(or remove) brake fluid, as necessary, only when work is
done on the brake hydraulic system.
CAUTION:
If you have too much brake fluid, it can spill on
the engine. The fluid will burn if the engine is hot
enough. You or others could be burned, and your
vehicle could be damaged. Add brake fluid only
when work is done on the brake hydraulic system.
When your brake fluid falls to a low level, your brake
warning light will come on. See ªBrake System Warning
Lightº in the Index.
What to Add
When you do need brake fluid, use only DOT
-3 brake
fluid. Use new brake fluid from a sealed container only.
Refer to ªRecommended Fluids and Lubricantsº in the
Maintenance Schedule booklet.
Always clean the brake fluid reservoir cap and the area
around the cap before removing it. This will help keep
dirt from entering the reservoir.
CAUTION:
With the wrong kind of fluid in your brake system,
your brakes may not work well, or they may
not even work at all. This could cause a crash.
Always use the proper brake fluid.

6-28
NOTICE:

Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops of mineral
-based oil, such as engine
oil, in your brake system can damage brake
system parts so badly that they'll have to
be replaced. Don't let someone put in the
wrong kind of fluid.

If you spill brake fluid on your vehicle's
painted surfaces, the paint finish can be
damaged. Be careful not to spill brake
fluid on your vehicle. If you do, wash it off
immediately. See ªAppearance Careº in
the Index.
Brake Wear
Your vehicle has four-wheel disc brakes.
Your vehicle has electronic wear sensors that let you
know when the front brake pads are significantly worn
and new pads are needed. The brake pad wear indicator
light will come on and stay on when the brake pads are
worn and need to be replaced. (See ªBrake Pad Wear
Indicator Lightº in the Index.)
CAUTION:
The brake pad wear indicator light means that
soon your brakes won't work well. That could
lead to an accident. When the brake pad wear
indicator light comes on and stays on, have your
vehicle serviced.

6-29
NOTICE:
Continuing to drive with worn-out brake pads
could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel bolts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly torque wheel bolts in the
proper sequence to GM specifications.
Brake linings should always be replaced as complete
axle sets.
See ªBrake System Inspectionº in the Maintenance
Schedule booklet under Part C ªPeriodic
Maintenance Inspections.º
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in pedal
travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you apply the brakes, with or without the
vehicle moving, your brakes adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together
if the vehicle is to have really good braking. Your
vehicle was designed and tested with top
-quality GM
brake parts. When you replace parts of your braking
system
-- for example, when your brake linings wear
down and you have to have new ones put in
-- be sure
you get new approved GM replacement parts. If you
don't, your brakes may no longer work properly.
For example, if someone puts in brake linings that
are wrong for your vehicle, the balance between your
front and rear brakes can change
-- for the worse.
The braking performance you've come to expect can
change in many other ways if someone puts in the
wrong replacement brake parts.

6-30
Battery
Your new vehicle comes with a maintenance free
ACDelco
battery. When it's time for a new battery,
get one that has the replacement number shown on
the original battery's label. We recommend an
ACDelco battery.
CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren't careful. See ªJump Startingº in the Index
for tips on working around a battery without
getting hurt.
After a power loss, such as disconnecting the battery
or removing the maxi fuses in the power distribution
fuse block, the following steps must be performed to
calibrate the Electronic Throttle Control. If this is not
done, the engine will not run properly.1. Turn the ignition key to the ON (II) position. Do not
start the engine.
2. Leave the ignition in the ON (II) position for at least
three minutes so that the electronic throttle control
will cycle and re
-learn its home position.
3. Turn the ignition to OFF.
4. Start and run the engine for at least 30 seconds.
Also, for your audio system, see ªTheft
-Deterrent
Featureº in the Index.
To reprogram your power windows and sunroof
(if equipped), see ªPower Windowsº and ªSunroofº
in the Index.
Bulb Replacement
For any bulb changing procedure not listed in this
section, contact your dealer service department.
For bulb types, see ªReplacement Bulbsº in the Index.

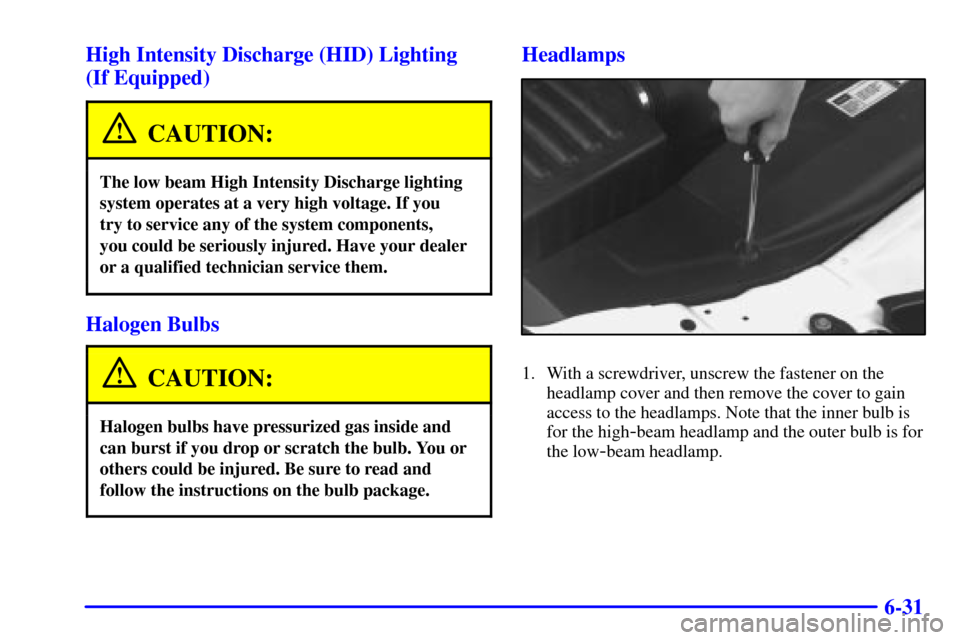

6-31 High Intensity Discharge (HID) Lighting
(If Equipped)
CAUTION:
The low beam High Intensity Discharge lighting
system operates at a very high voltage. If you
try to service any of the system components,
you could be seriously injured. Have your dealer
or a qualified technician service them.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Headlamps
1. With a screwdriver, unscrew the fastener on the
headlamp cover and then remove the cover to gain
access to the headlamps. Note that the inner bulb is
for the high
-beam headlamp and the outer bulb is for
the low
-beam headlamp.

6-32
2. Remove the black rubber cap that protects the bulb area.3. Remove the plug connector from the bulb.

6-33

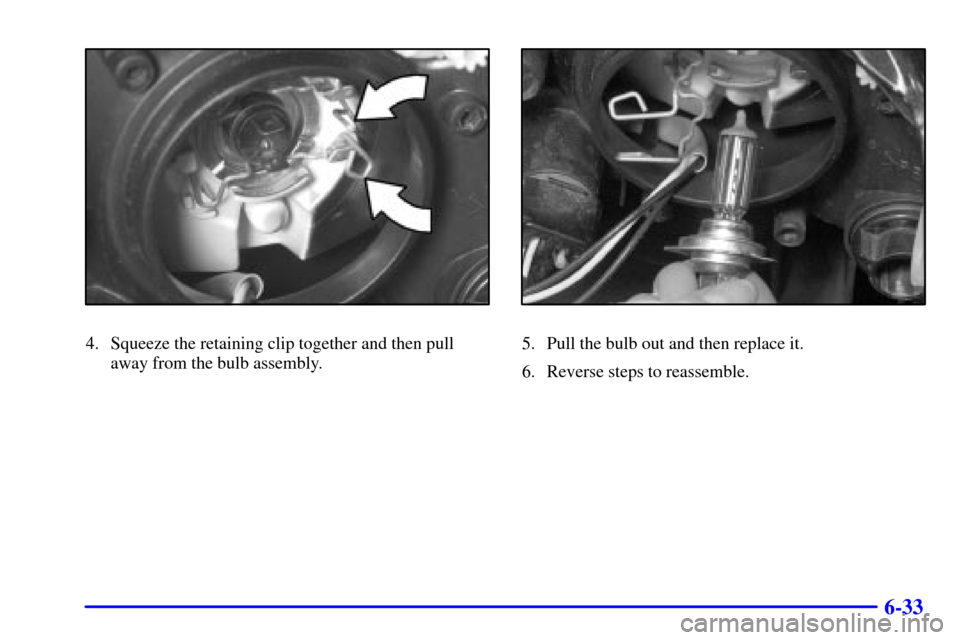

4. Squeeze the retaining clip together and then pull
away from the bulb assembly.5. Pull the bulb out and then replace it.
6. Reverse steps to reassemble.

6-34
Headlamp Aiming
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment to the low beam
may be necessary if it is difficult to see lane markers
(for horizontal aim), or if oncoming drivers flash their
high beams at you (for vertical aim). If you believe your
headlamps need to be re
-aimed, we recommend that you
take your vehicle to the dealer for service. However, it is
possible for you to re
-aim your headlamps by following
the procedure in the service manual for your vehicle.
NOTICE:
To make sure your headlamps are aimed properly,
read all the instructions before beginning. Failure
to follow these instructions could cause damage to
headlamp parts.
Front Turn Signal Lamp
1. With a screwdriver, unscrew the fastener on the
headlamp cover and then remove it to access the turn
signal lamps.

6-35

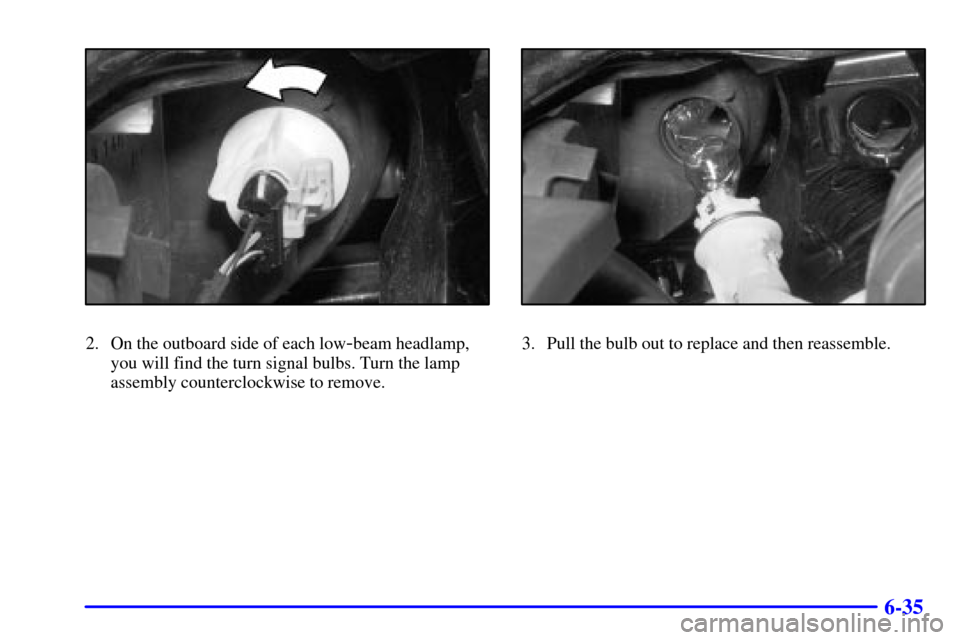

2. On the outboard side of each low-beam headlamp,
you will find the turn signal bulbs. Turn the lamp
assembly counterclockwise to remove.3. Pull the bulb out to replace and then reassemble.

6-36 Taillamp and Stop Lamp
1. Open the trunk to access the lamp housing.
2. Depending on which outer bulb needs replacing,
open either the spare tire cover on the driver's side or
the storage compartment on the passenger's side to
access the bulbs.
3. Turn the socket counterclockwise to remove.
4. To remove the bulb, turn it counterclockwise. When
you replace the bulb, you need to push it in and twist
it clockwise into place.5. Reinstall the socket by turning it clockwise in the
lamp housing.
Taillamp and Backup Lamp
1. Open the trunk to access the lamp housing.
2. Remove the plastic cover, located on the underside
of the trunk lid, by squeezing the two tabs together.
This will expose the back of the lamp housing.
3. Remove the back of the lamp housing, located on
the underside of the trunk lid, by squeezing the two
tabs as shown.
