Vehicle Care
General Information
General Information . . . . . . . . . . . . . 323
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . 323
Accessories and Modifications . . . . . . . . . . . . . . . . . . . 323
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . . . . . . 324
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . . . . . . 326
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 331
Engine Oil Life System . . . . . . . . . . . 333
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
Manual Transmission Fluid . . . . . 335
Hydraulic Clutch . . . . . . . . . . . . . . . . . 335
Engine Air Filter Life System . . . . 335
Engine Air Cleaner/Filter . . . . . . . . . 336
Cooling System . . . . . . . . . . . . . . . . . . . 338
Engine Overheating . . . . . . . . . . . . . . 342
Washer Fluid . . . . . . . . . . . . . . . . . . . . . 343
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344 Brake Pad Life System (If
Equipped) . . . . . . . . . . . . . . . . . . . . . . . 346
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . 348
Battery - North America . . . . . . . . . 349
All-Wheel Drive . . . . . . . . . . . . . . . . . . 349
Park Brake and P (Park) Mechanism Check . . . . . . . . . . . . . . 350
Wiper Blade Replacement . . . . . . . 350
Windshield Replacement . . . . . . . . 351
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . 351Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . 352
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . . . . . 352
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . 352
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . . . . . 352
LED Lighting . . . . . . . . . . . . . . . . . . . . . 353
Front Turn Signal Lamps . . . . . . . . 353
Electrical System
Electrical System Overload . . . . . . 353
Fuses and Circuit Breakers . . . . . . 355
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Instrument Panel Fuse Block . . . . 358
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
All-Season Tires . . . . . . . . . . . . . . . . . . 363
Winter Tires . . . . . . . . . . . . . . . . . . . . . . 364
Run-Flat Tires . . . . . . . . . . . . . . . . . . . . 364
Self-Sealing Tires . . . . . . . . . . . . . . . . . 365
Low-Profile Tires . . . . . . . . . . . . . . . . . 365
Summer Tires . . . . . . . . . . . . . . . . . . . . 365
Tire Sidewall Labeling . . . . . . . . . . . 366
Tire Designations . . . . . . . . . . . . . . . . . 367
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . . . . . 368
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 370
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . . . . . . 371
Tire Pressure Monitor System . . . 372
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . . . . . . 373
Tire Inspection . . . . . . . . . . . . . . . . . . . 376
Tire Rotation . . . . . . . . . . . . . . . . . . . . . 376
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378
Buying New Tires . . . . . . . . . . . . . . . . 379
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 380
Uniform Tire Quality Grading . . . 380
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Wheel Replacement . . . . . . . . . . . . . . 382
Tire Chains . . . . . . . . . . . . . . . . . . . . . . . 383

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
352 VEHICLE CARE
Trunk
Liftgate
Headlamp Aiming
Front Headlamp Aiming
Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.
Bulb Replacement
For the proper type of replacement
bulbs, or any bulb changing procedure
not listed in this section, contact your
dealer.
Caution
Do not replace incandescent bulbs
with aftermarket LED replacement
bulbs. This can cause damage to
the vehicle electrical system.
Halogen Bulbs
{Warning
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others
could be injured. Be sure to read
and follow the instructions on the
bulb package.
High Intensity Discharge
(HID) Lighting
{Warning
The High Intensity Discharge (HID)
lighting system operates at a very
high voltage. If you try to service
any of the system components, you
could be seriously injured. Have
your dealer or a qualified technician
service them.
After an HID headlamp bulb has been
replaced, the beam might be a slightly
different shade than it was originally.
This is normal.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
VEHICLE CARE 353
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
Front Turn Signal Lamps
Uplevel
See your dealer for turn signal
replacement.
Base level

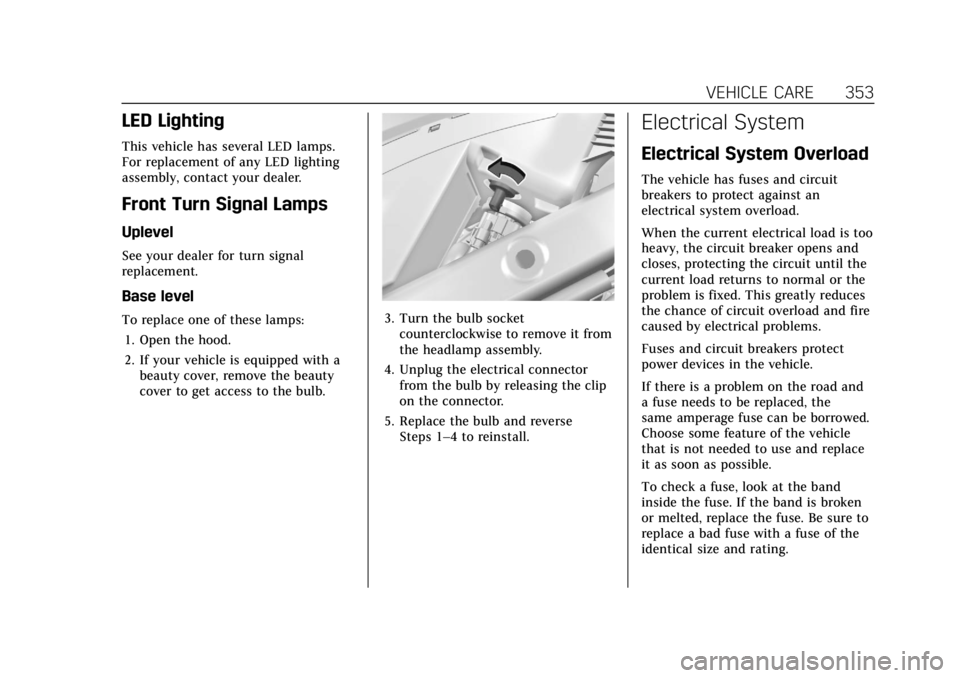

To replace one of these lamps:1. Open the hood.
2. If your vehicle is equipped with a beauty cover, remove the beauty
cover to get access to the bulb.3. Turn the bulb socketcounterclockwise to remove it from
the headlamp assembly.
4. Unplug the electrical connector from the bulb by releasing the clip
on the connector.
5. Replace the bulb and reverse Steps 1–4 to reinstall.
Electrical System
Electrical System Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is too
heavy, the circuit breaker opens and
closes, protecting the circuit until the
current load returns to normal or the
problem is fixed. This greatly reduces
the chance of circuit overload and fire
caused by electrical problems.
Fuses and circuit breakers protect
power devices in the vehicle.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be borrowed.
Choose some feature of the vehicle
that is not needed to use and replace
it as soon as possible.
To check a fuse, look at the band
inside the fuse. If the band is broken
or melted, replace the fuse. Be sure to
replace a bad fuse with a fuse of the
identical size and rating.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
VEHICLE CARE 355
Headlamp Wiring
An electrical overload may cause the
lamps to go on and off, or in some
cases to remain off. Have the
headlamp wiring checked right away if
the lamps go on and off or remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop. Wiper function is
available immediately after the wiper
switch is set to off, and back to on.
To protect the wiper motor from
overheating, the wipers may slow
down when the windshield is dry for a
long period of time. If a period of dry
operation, or little moisture, exceeds
10 minutes, the wipers may switch to
intermittent operation, and remain
there. When moisture is again
detected on the windshield, wiper
operation will return to the operator
selected speed.
Although the circuit is protected from
electrical overload, overload due to
heavy snow or ice may cause wiperlinkage damage. Always clear ice and
heavy snow from the windshield
before using the windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by electrical
problems.
{Danger
Fuses and circuit breakers are
marked with their ampere rating.
Do not exceed the
specified amperage rating when
replacing fuses and circuit breakers.
Use of an oversized fuse or circuit
breaker can result in a vehicle fire.
You and others could be seriously
injured or killed.
{Warning
Installation or use of fuses that do
not meet GM’s original fuse
specifications is dangerous. The
fuses could fail, and result in a fire.
You or others could be injured or
killed, and the vehicle could be
damaged.
See Accessories and Modifications
0 323 and
General Information 0323.
To check or replace a blown fuse, see
Electrical System Overload 0353.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
356 VEHICLE CARE
Engine Compartment Fuse
Block
The engine compartment fuse block is
on the driver side of the engine
compartment.
Lift the fuse block cover to access the
fuses.
The vehicle may not be equipped with
all of the fuses and relays shown.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the covers
on any electrical component.
FusesUsage
1 Long Range Radar Front Sensor
2 Park/Daytime Running Lamps
3 Exterior Lighting Module 4
4 Exterior Lighting Module 7
5 Headlamp Level Fuses
Usage
6 –
7 Electronic Brake Control Module
8 Washer Pump
9 –
10 –
11 –
12 Horn

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
360 VEHICLE CARE
FusesUsage
21 Driver Monitor System/Performance
Data Recorder
22 –
23 –
24 –
25 USB
26 –
27 –
28 –
29 –
30 –
31 Headlamp Level
32 –
33 Body Ignition/IP Ignition
34 Exhaust Valve Fuses
Usage
35 Transmission Control Module Ignition/
Engine Control
Module Ignition/Shift
Ignition/Brake
Ignition
36 Shift Module
37 Body Control Module 1/Electronic
Park Brake Switch
38 Center Stack Module
39 Steering Wheel Controls
40 Body Control Module 2
41 Body Control Module 3
42 Body Control Module 4 Circuit
Breakers Usage
CB1 Auxiliary Power Outlet 1
CB2 Auxiliary Power Outlet 2
Relays Usage
1 Run After Park/ Accessory
2 Run Crank
3 –
4 –
5 –

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
382 VEHICLE CARE
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned and
balanced at the factory to provide the
longest tire life and best overall
performance. Adjustments to wheel
alignment and tire balancing are not
necessary on a regular basis. Consider
an alignment check if there is unusual
tire wear or the vehicle is significantly
pulling to one side or the other. Some
slight pull to the left or right,
depending on the crown of the road
and/or other road surface variations
such as troughs or ruts, is normal.
If the vehicle is vibrating when driving
on a smooth road, the tires and
wheels may need to be rebalanced.
See your dealer for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts, and wheel nutsshould be replaced. If the wheel leaks
air, replace it. Some aluminum wheels
can be repaired. See your dealer if any
of these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the same
load-carrying capacity, diameter,
width, offset, and be mounted the
same way as the one it replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor System
(TPMS) sensors with new GM original
equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel nuts
can be dangerous. It could affect
the braking and handling of the
vehicle. Tires can lose air, and
cause loss of control, causing a
crash. Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or odometer
calibration, headlamp aim, bumper
height, vehicle ground clearance,
and tire or tire chain clearance to
the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one
is dangerous. How it has been used
or how far it has been driven may
be unknown. It could fail suddenly
and cause a crash. When replacing
wheels, use a new GM original
equipment wheel.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
SERVICE AND MAINTENANCE 415

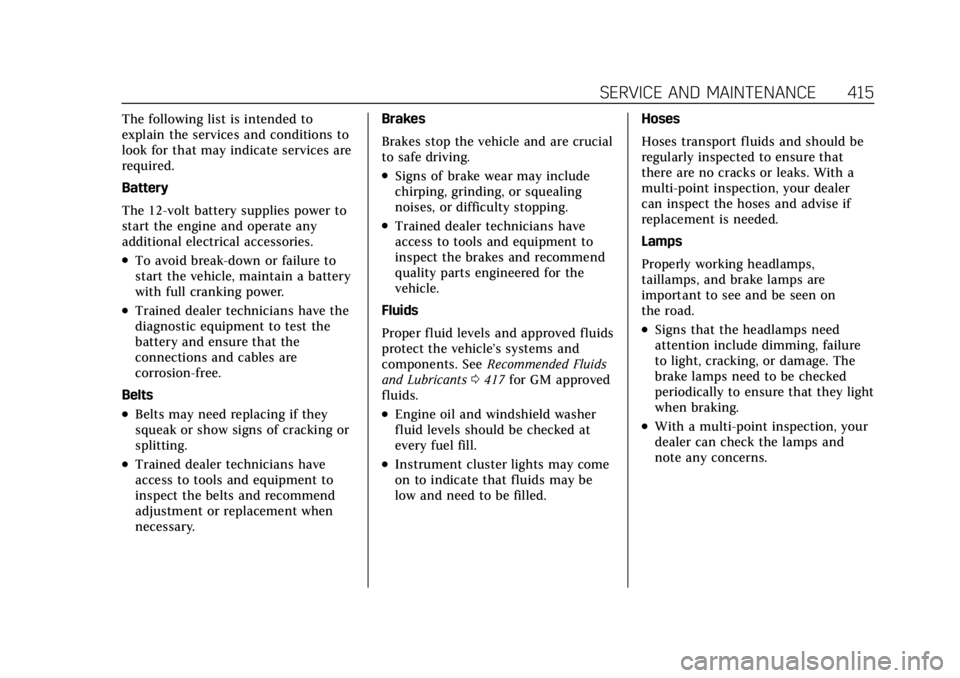

The following list is intended to
explain the services and conditions to
look for that may indicate services are
required.
Battery
The 12-volt battery supplies power to
start the engine and operate any
additional electrical accessories.
.To avoid break-down or failure to
start the vehicle, maintain a battery
with full cranking power.
.Trained dealer technicians have the
diagnostic equipment to test the
battery and ensure that the
connections and cables are
corrosion-free.
Belts
.Belts may need replacing if they
squeak or show signs of cracking or
splitting.
.Trained dealer technicians have
access to tools and equipment to
inspect the belts and recommend
adjustment or replacement when
necessary. Brakes
Brakes stop the vehicle and are crucial
to safe driving.
.Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping.
.Trained dealer technicians have
access to tools and equipment to
inspect the brakes and recommend
quality parts engineered for the
vehicle.
Fluids
Proper fluid levels and approved fluids
protect the vehicle’s systems and
components. See Recommended Fluids
and Lubricants 0417 for GM approved
fluids.
.Engine oil and windshield washer
fluid levels should be checked at
every fuel fill.
.Instrument cluster lights may come
on to indicate that fluids may be
low and need to be filled. Hoses
Hoses transport fluids and should be
regularly inspected to ensure that
there are no cracks or leaks. With a
multi-point inspection, your dealer
can inspect the hoses and advise if
replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage. The
brake lamps need to be checked
periodically to ensure that they light
when braking.
.With a multi-point inspection, your
dealer can check the lamps and
note any concerns.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
452 INDEX
Antilock Brake System (ABS) . . . . . . 253Warning Light . . . . . . . . . . . . . . . . . . . . 102
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . . . . . . 180
Assistance Systems for Driving . . . . 301
Assistance Systems for Parking and Backing . . . . . . . . . . . . . . . . . . . . . . . 295
Audio
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Auto Stop Stop/Start System . . . . . . . . . . . . . . . . 235
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . . . 25
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 17
Emergency Braking (AEB) . . . . . . . . 303
Headlamp System . . . . . . . . . . . . . . . . 130
Transmission . . . . . . . . . . . . . . . . 242, 244
Transmission Fluid . . . . . . . . . . . . . . . 334
Vehicle Hold Light . . . . . . . . . . . . . . . . 103
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . 248, 249
Automatic Vehicle Hold (AVH) . . . . 256
Avoiding Untrusted Media
Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147B
BatteryExterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Load Management . . . . . . . . . . . . . . . . 134
Power Protection . . . . . . . . . . . . . . . . . . 135
Battery - North America . . . . . .349, 390
Blade Replacement, Wiper . . . . . . . . . 350
Bluetooth Overview . . . . . . . . . . . . . . . . . . . . 175, 176
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . 150
Brake Electric Boost . . . . . . . . . . . . . . . . . . . . . 253
Parking, Electric . . . . . . . . . . . . . . . . . . 254
System Warning Light . . . . . . . . . . . . 101
Brake Pad Life System . . . . . . . . . . . . . . 346
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Pad Life System . . . . . . . . . . . . . . . . . . . 346
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 Automatic Emergency (AEB) . . . . . 303
Reverse Automatic . . . . . . . . . . . . . . . . 299
Braking System Front Pedestrian (FPB) . . . . . . . . . . . 305
Break-In, New Vehicle . . . . . . . . . . . . . . 231
Buckle To Drive . . . . . . . . . . . . . . . . . . . . . . 41 Bulb Replacement
Front Turn Signal Lamps . . . . . . . . 353
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . 352
Headlamp Aiming . . . . . . . . . . . . . . . . 352
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . 352
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . . . . . 352
Buying New Tires . . . . . . . . . . . . . . . . . . . 379
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . 323
California Proposition 65 Warning . . . . . . . . . . . . . . . . . . .349, 390, Back Cover
Camera Rear Vision (RVC) . . . . . . . . . . . . . . . . . 295
Canadian Vehicle Owners . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . 424
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . 241
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Winter Driving . . . . . . . . . . . . . . . . . . . . 226
Cargo
Management System . . . . . . . . . . . . . . 81
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
INDEX 455
Exterior Lamp Controls . . . . . . . . . . . . 128
Exterior Lamps Off Reminder . . . . . . 130
Exterior Lighting Battery Saver . . . . 135
F
Filter,Engine Air Cleaner . . . . . . . . . . . . . . . . 336
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . 130
Flashers, Hazard Warning . . . . . . . . . . 131
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
Fluid Automatic Transmission . . . . . . . . . 334
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . 23
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438
Front Pedestrian Braking (FPB)
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Front Seats Heated and Ventilated . . . . . . . . . . . . 37
Front Turn Signal Lamps . . . . . . . . . . 353
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Economy, Driving for Better . . . . . 209 Fuel (cont'd)
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . . . . . . 314
Filling the Tank . . . . . . . . . . . . . . . . . . . 312
Foreign Countries . . . . . . . . . . . . . . . . . 312
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Low Fuel Warning Light . . . . . . . . . 108
Prohibited Fuels . . . . . . . . . . . . . . . . . . 312
Recommended . . . . . . . . . . . . . . . . . . . . 311
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
Fuses Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Fuses and Circuit Breakers . . . . . . . 355
Instrument Panel Fuse Block . . . . 358
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
G
Garage Door Opener . . . . . . . . . . . . . . . . 125Programming . . . . . . . . . . . . . . . . . . . . . . 125
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . 351
Gauges
Engine CoolantTemperature . . . . . . . . . . . . . . . . . . 96, 97
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Speedometer . . . . . . . . . . . . . . . . . . . . . . . 95 Gauges (cont'd)
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . 95
Trip Odometer . . . . . . . . . . . . . . . . . . . . . 95
Warning Lights and Indicators . . . 89
General Information Service and Maintenance . . . . . . . . 407
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 323
Global Positioning System (GPS) . . . . . . . . . . . . . . . . . . . . . . 162
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432
Guidance Problems with the Route . . . . . . . . . 163
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . 352
Hazard Warning Flashers . . . . . . . . . . 131
HD Radio Technology . . . . . . . . . . . . . . 145
Head Restraints . . . . . . . . . . . . . . . . . . . . . . 30
Head-up Display . . . . . . . . . . . . . . . . . . . . 115
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 130
Bulb Replacement . . . . . . . . . . . . . . . . 352
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . . . . 130
