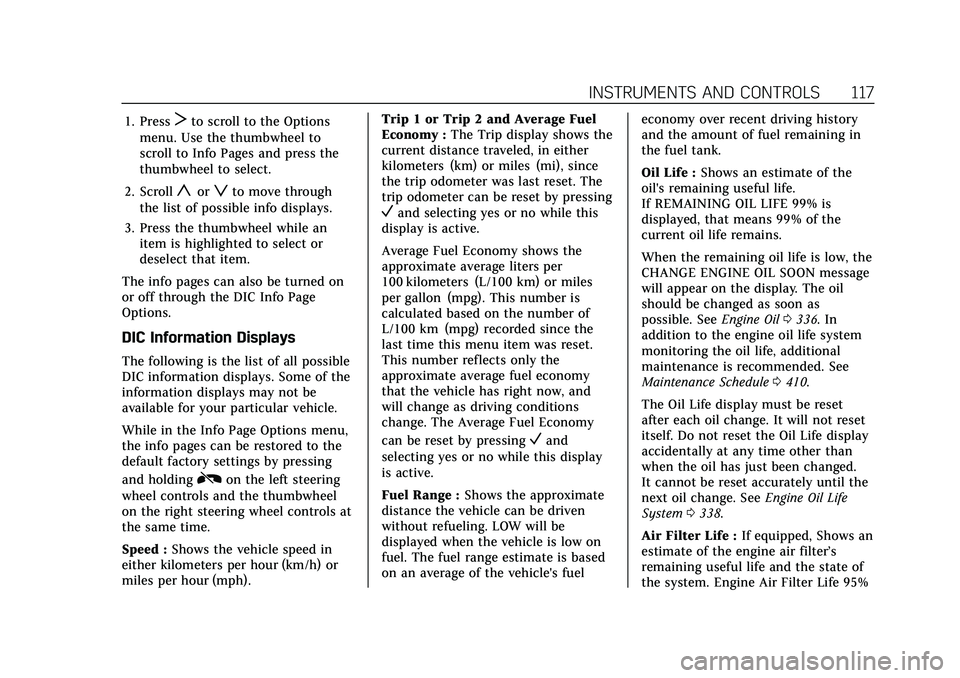

INSTRUMENTS AND CONTROLS 117
1. PressTto scroll to the Options
menu. Use the thumbwheel to
scroll to Info Pages and press the
thumbwheel to select.
2. Scroll
yorzto move through
the list of possible info displays.
3. Press the thumbwheel while an item is highlighted to select or
deselect that item.
The info pages can also be turned on
or off through the DIC Info Page
Options.
DIC Information Displays
The following is the list of all possible
DIC information displays. Some of the
information displays may not be
available for your particular vehicle.
While in the Info Page Options menu,
the info pages can be restored to the
default factory settings by pressing
and holding
Ron the left steering
wheel controls and the thumbwheel
on the right steering wheel controls at
the same time.
Speed : Shows the vehicle speed in
either kilometers per hour (km/h) or
miles per hour (mph). Trip 1 or Trip 2 and Average Fuel
Economy :
The Trip display shows the
current distance traveled, in either
kilometers (km) or miles (mi), since
the trip odometer was last reset. The
trip odometer can be reset by pressing
Vand selecting yes or no while this
display is active.
Average Fuel Economy shows the
approximate average liters per
100 kilometers (L/100 km) or miles
per gallon (mpg). This number is
calculated based on the number of
L/100 km (mpg) recorded since the
last time this menu item was reset.
This number reflects only the
approximate average fuel economy
that the vehicle has right now, and
will change as driving conditions
change. The Average Fuel Economy
can be reset by pressing
Vand
selecting yes or no while this display
is active.
Fuel Range : Shows the approximate
distance the vehicle can be driven
without refueling. LOW will be
displayed when the vehicle is low on
fuel. The fuel range estimate is based
on an average of the vehicle's fuel economy over recent driving history
and the amount of fuel remaining in
the fuel tank.
Oil Life :
Shows an estimate of the
oil's remaining useful life.
If REMAINING OIL LIFE 99% is
displayed, that means 99% of the
current oil life remains.
When the remaining oil life is low, the
CHANGE ENGINE OIL SOON message
will appear on the display. The oil
should be changed as soon as
possible. See Engine Oil0336. In
addition to the engine oil life system
monitoring the oil life, additional
maintenance is recommended. See
Maintenance Schedule 0410.
The Oil Life display must be reset
after each oil change. It will not reset
itself. Do not reset the Oil Life display
accidentally at any time other than
when the oil has just been changed.
It cannot be reset accurately until the
next oil change. See Engine Oil Life
System 0338.
Air Filter Life : If equipped, Shows an
estimate of the engine air filter’s
remaining useful life and the state of
the system. Engine Air Filter Life 95%

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
118 INSTRUMENTS AND CONTROLS
means 95% of the current air filter life
remains. Messages will display based
on the engine air filter life and the
state of the system. When the
REPLACE AT NEXT OIL CHANGE
message displays, the engine air filter
should be replaced at the time of the
next oil change. When the REPLACE
SOON message displays, the engine air
filter should be replaced at the earliest
convenience.
The Air Filter Life display must be
reset after the engine air filter
replacement. To reset, seeEngine Air
Filter Life System 0340.
Brake Pad Life : If equipped, This
displays an estimate of the remaining
life of the front and rear brake pads.
Messages will display based on brake
pad wear and the state of the system.
Reset the Brake Pad Life display after
replacing the brake pads. See Brake
Pad Life System (If Equipped) 0351.
Tire Pressure : Shows the
approximate pressures of all four tires.
Tire pressure is displayed in either
kilopascal (kPa) or in pounds per
square inch (psi). If the pressure is
low, the value for that tire is shown in amber. See
Tire Pressure Monitor
System 0376 and
Tire Pressure Monitor Operation 0377.
Fuel Economy : Displays average fuel
economy, the best fuel economy over
the selected distance, and a bar graph
showing instantaneous fuel economy.
Average Speed : Displays the average
vehicle speed of the vehicle in
kilometers per hour (km/h) or miles
per hour (mph). This average is based
on the various vehicle speeds recorded
since the last reset. Reset the average
speed by pressing the thumbwheel
while this display is active to show a
confirmation window to select yes
or no.
Timer : This display can be used as a
timer. To start the timer, press the
thumbwheel while this display is
active. The display will show the
amount of time that has passed since
the timer was last reset. To stop the
timer, press the thumbwheel briefly
while this display is active and the
timer is running.
Press the thumbwheel while this
display is active to reset the timer. Follow Distance/Gap Setting :
When
Adaptive Cruise Control (ACC) is not
engaged, the current follow time to
the vehicle ahead is displayed as a
time value on this page. When ACC
has been engaged, the display
switches to the gap setting page. This
page shows the current gap setting
along with the vehicle ahead telltale.
Driver Assistance : If equipped,
shows information for Lane Keep
Assist (LKA) and Forward Collision
Alert (FCA).
Battery Voltage : Shows the current
battery voltage.
Coolant Temperature : Shows the
engine coolant temperature in either
degrees Celsius (°C) or degrees
Fahrenheit (°F).
Oil Temperature : Shows the engine
oil temperature in either degrees
Celsius (°C) or degrees Fahrenheit (°F).
Engine Hours (Hourmeter) : Shows
the total number of hours the engine
has run. The display also shows the
engine idle hours.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
INSTRUMENTS AND CONTROLS 121
economy. Pressing the thumbwheel
opens a menu to change the selected
distance or reset the current values.
Trip Timer/Fuel Used :This display
can be used as a timer. To start/stop
the timer, press the thumbwheel while
this display is active and then select
the start/stop the timer. The display
shows the amount of time that has
passed since the timer was last reset.
To reset the timer to zero, press the
thumbwheel to access the menu while
this display is active.
Fuel Used displays the approximate
liters (L) or gallons (gal) of fuel that
have been used since last reset. The
fuel used can be reset by pressing the
thumbwheel and selecting Reset Fuel
Used in the menu.
Current Drive Cycle : Displays
information in relation to the current
drive cycle including Distance
Traveled, Average Fuel Economy, and
the Total Time. They will reset after
the drive cycle is completed.
Driver Assistance : If equipped,
displays the status of all active safety
systems. Oil Life :
Displays an estimate of the
remaining useful oil life.
If REMAINING OIL LIFE 99% is
displayed, that means 99% of the
current oil life remains.
When the remaining oil life is low, the
CHANGE ENGINE OIL SOON message
appears on the display. The oil should
be changed as soon as possible. See
Engine Oil 0336. In addition to the
engine oil life system monitoring the
oil life, additional maintenance is
recommended. See Maintenance
Schedule 0410.
The Oil Life display must be reset
after each oil change. It will not reset
itself. Do not reset the Oil Life display
accidentally at any time other than
when the oil has just been changed.
It cannot be reset accurately until the
next oil change. See Engine Oil Life
System 0338.
Air Filter Life : If equipped, shows an
estimate of the engine air filter’s
remaining useful life and the state of
the system. Engine Air Filter Life 95%
means 95% of the current air filter life
remains. Messages are displayed based
on the engine air filter life and the state of the system. When the
REPLACE AT NEXT OIL CHANGE
message displays, the engine air filter
should be replaced at the time of the
next oil change. When the REPLACE
NOW message displays, the engine air
filter should be replaced as soon as
possible.
Engine Hours :
Displays the total
number of hours the engine has run.
The display also shows the engine idle
hours.
Lifetime Revs : The display shows
total engine revolutions divided by
10,000.
Brake Pad Life : If equipped, this
displays an estimate of the remaining
life of the front and rear brake pads.
Messages are displayed based on
brake pad wear and the state of the
system. Reset the Brake Pad Life
display after replacing the brake pads.
See Brake Pad Life System (If Equipped)
0 351.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
194 INFOTAINMENT SYSTEM
.HD Radio: This allows HD Radio
reception to be turned on or off.
Touch the controls on the
infotainment display to disable or
enable.
.Explicit Content Filter: This setting
allows access to explicit content
SiriusXM channels.
Touch Off or On.
.Manage Phones: Select to connect
to a different phone source,
disconnect a phone, or delete a
phone.
.Reset Music Index: This allows the
music index to be reset if you are
having difficulty accessing all of the
media content on your device.
Touch Yes or No.
Climate
Touch and the following may display:
.Auto Fan Speed: This setting
specifies the amount of airflow
when the climate control fan setting
is Auto Fan.
Touch Low, Medium, or High.
.Air Quality Sensor: This setting
switches the system into
Recirculation Mode based on the
quality of the outside air.
Touch Off, Low Sensitivity, or High
Sensitivity.
.Auto Cooled Seats: This setting
automatically turns on and
regulates the ventilated seats when
the cabin temperature is warm.
Touch the controls on the
infotainment display to disable or
enable.
.Auto Heated Seats: This setting
automatically turns on and
regulates the heated seats when the
cabin temperature is cool. The auto
heated seats can be turned off by
using the heated seat controls on
the center stack.
Touch the controls on the
infotainment display to disable or
enable.
.Auto Defog: This setting
automatically turns the front
defogger on when the vehicle engine
is started. Touch the controls on the
infotainment display to disable or
enable.
.Auto Rear Defog: This setting
automatically turns the rear
defogger on when the vehicle engine
is started.
Touch the controls on the
infotainment display to disable or
enable.
.Ionizer: This setting purifies the air
in the interior of the vehicle..
Touch the controls on the
infotainment display to disable or
enable.
Navigation
Touch and the following may display:
.Destination Card Preferences
.Map Preferences
.Route Preferences
.Navigation Voice Control
.Traffic Preferences
.Alert Preferences
.Fuel Grade Preferences
.Manage History
.Predictive Navigation (if equipped)
.About

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
CLIMATE CONTROLS 209
Climate Controls
Climate Control Systems
Dual Automatic Climate ControlSystem . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Air Vents
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Maintenance
Passenger Compartment AirFilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Climate Control Systems
Dual Automatic Climate Control System
The climate control buttons on the center stack and on the climate control
display are used to adjust the heating, cooling, and ventilation.
Center Stack Climate Controls
1. ON/OFF (Power)
2. AUTO (Automatic Operation)
3. Air Delivery Mode Control
4. Driver Temperature Controls
5. Fan Control
6. Passenger Temperature Controls
7. A/C (Air Conditioning) 8. Recirculation
9. SYNC (Synchronized Temperature)
10. Defrost
11. Rear Window Defogger

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
214 CLIMATE CONTROLS
Maintenance
Passenger Compartment
Air Filter
The filter reduces dust, pollen, and
other airborne irritants from outside
air that is pulled into the vehicle. The
filter should be replaced as part of
routine scheduled maintenance. See
Maintenance Schedule0410.
See your dealer regarding replacement
of the filter.
Service
All vehicles have a label underhood
that identifies the refrigerant used in
the vehicle. The refrigerant system
should only be serviced by trained and
certified technicians. The air
conditioning evaporator should never
be repaired or replaced by one from a
salvage vehicle. It should only be
replaced by a new evaporator to
ensure proper and safe operation.
During service, all refrigerants should
be reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to the environment and may also create
unsafe conditions based on inhalation,
combustion, frostbite, or other
health-based concerns.
The air conditioning system requires
periodic maintenance. See
Maintenance Schedule
0410.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
VEHICLE CARE 327
Vehicle Care
General Information
General Information . . . . . . . . . . . . . 328
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . 328
Accessories and Modifications . . . . . . . . . . . . . . . . . . . 328
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . . . . . . 329
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . . . . . . 331
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 336
Engine Oil Life System . . . . . . . . . . . 338
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Manual Transmission Fluid . . . . . 339
Hydraulic Clutch . . . . . . . . . . . . . . . . . 340
Engine Air Filter Life System . . . . 340
Engine Air Cleaner/Filter . . . . . . . . . 341
Cooling System . . . . . . . . . . . . . . . . . . . 343
Engine Overheating . . . . . . . . . . . . . . 347
Washer Fluid . . . . . . . . . . . . . . . . . . . . . 348
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Brake Pad Life System (If Equipped) . . . . . . . . . . . . . . . . . . . . . . . 351
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . 352 Battery - North America . . . . . . . . . 353
All-Wheel Drive . . . . . . . . . . . . . . . . . . 354
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . . . . . 354
Wiper Blade Replacement . . . . . . . 355
Windshield Replacement . . . . . . . . 355
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . 356
Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . 357
Bulb Replacement
LED Lighting . . . . . . . . . . . . . . . . . . . . . 357
Electrical System
Electrical System Overload . . . . . . 357
Fuses and Circuit Breakers . . . . . . 359
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
Instrument Panel Fuse Block . . . . 362
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
All-Season Tires . . . . . . . . . . . . . . . . . . 367
Winter Tires . . . . . . . . . . . . . . . . . . . . . . 368
Run-Flat Tires . . . . . . . . . . . . . . . . . . . . 368
Self-Sealing Tires . . . . . . . . . . . . . . . . . 369
Low-Profile Tires . . . . . . . . . . . . . . . . . 369
Summer Tires . . . . . . . . . . . . . . . . . . . . 369
Tire Sidewall Labeling . . . . . . . . . . . 370 Tire Designations . . . . . . . . . . . . . . . . . 371
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . . . . . 372
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 374
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . . . . . . 375
Tire Pressure Monitor System . . . 376
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . . . . . . 377
Tire Inspection . . . . . . . . . . . . . . . . . . . 380
Tire Rotation . . . . . . . . . . . . . . . . . . . . . 380
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Buying New Tires . . . . . . . . . . . . . . . . 382
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Uniform Tire Quality Grading . . . 384
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 385
Wheel Replacement . . . . . . . . . . . . . . 386
Tire Chains . . . . . . . . . . . . . . . . . . . . . . . 386
If a Tire Goes Flat . . . . . . . . . . . . . . . . 387
Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . . . 388
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . . . 394
Jump Starting
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . . . . . 394

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
332 VEHICLE CARE
1. Windshield Washer Fluid Reservoir.See Washer Fluid 0348.
2. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
0 343.
3. Engine Air Cleaner/Filter 0341.
4. Engine Cooling Fan (Out of View). See Cooling System 0343.
5. Engine Oil Fill Cap. See Engine Oil
0 336.
6. Engine Oil Dipstick. See Engine Oil
0 336.
7. Remote Positive (+) Battery Terminal. See Jump Starting - North
America 0394.
8. Brake Fluid Reservoir. See Brake
Fluid 0352.
9. Remote Negative (-) Battery Terminal. See Jump Starting - North
America 0394.
10. Engine Compartment Fuse Block
0360.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
334 VEHICLE CARE
1. Windshield Washer Fluid Reservoir.See Washer Fluid 0348.
2. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
0 343.
3. Engine Oil Dipstick. See Engine Oil
0 336.
4. Engine Air Cleaner/Filter 0341.
5. Engine Cooling Fan (Out of View). See Cooling System 0343.
6. Engine Oil Fill Cap. See Engine Oil
0 336.
7. Remote Positive (+) Battery Terminal. See Jump Starting - North
America 0394.
8. Brake Fluid Reservoir. See Brake
Fluid 0352.
9. Remote Negative (-) Battery Terminal. See Jump Starting - North
America 0394.
10. Engine Compartment Fuse Block
0360.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
VEHICLE CARE 335
6.2L V8 Engine
1. Windshield Washer Fluid Reservoir. See Washer Fluid 0348.
2. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
0 343.
3. Engine Air Cleaner/Filter 0341. 4. Engine Oil Dipstick. See
Engine Oil
0 336.
5. Engine Cooling Fan (Out of View). See Cooling System 0343.
6. Engine Oil Fill Cap. See Engine Oil
0 336. 7. Remote Positive (+) Battery
Terminal. See Jump Starting - North
America 0394.
8. Brake/Clutch Fluid Reservoir. See Brake Fluid 0352.
