CADILLAC CT6 2016 User Guide

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-9235592) -
2016 - crc - 11/6/15
10 In Brief From inside, press
Q or
K . See
Power Door Locks 0 39 .
Trunk
To open the trunk:
.
Press
| .
.
Press
X twice quickly on the
Remote Keyless Entry (RKE)
transmitter.
.
Press the touch pad on the rear
of the trunk above the license
plate after unlocking all doors.
If equipped, these will also open the
power trunk. See Trunk 0 41 .Windows The power windows only operate
with the ignition in ACC/
ACCESSORY or ON/RUN, or when
Retained Accessory Power (RAP) is
active. See Retained Accessory
Power (RAP) 0 206 .
Press the switch to lower the
window. Pull the switch up to
raise it.
The switches on the driver door
control all windows. Each
passenger door has a switch that
controls only that window.
See Power Windows 0 52 .Seat Adjustment Power Seats
Platinum Seat Shown
To adjust the seat:
.
Move the seat forward or
rearward by sliding the control
forward or rearward.
.
Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.
Raise or lower the seat by
moving the rear of the control up
or down.
See Power Seat Adjustment 0 60 .

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-9235592) -
2016 - crc - 11/6/15
In Brief 11Uplevel Seat Adjustment If equipped, the ignition must be on
to use all uplevel seat features.
Platinum Seat
1. Feature Select
2. Up
3. Forward
4. Down
5. Rearward
.
Move Feature Select (1) to
display seat adjustments on the
center stack. Press and release
or hold to scroll through
features. .
Press Up (2) to make upward
adjustments of the selected
feature.
.
Press Forward (3) to make
forward adjustments of the
selected feature.
.
Press Down (4) to make
downward adjustments of the
selected feature.
.
Press Rearward (5) to make
rearward adjustments of the
selected feature.
Reclining Seatbacks
Platinum Seat Shown To adjust the seatback:
.
Tilt the top of the control
rearward to recline.
.
Tilt the top of the control forward
to raise.
See Reclining Seatbacks 0 62 .
Base Lumbar Adjustment
Base Seat Shown
To adjust lumbar support,
if equipped:
1. Forward
2. Rearward
.
Press Forward (1) to move
lumbar support inward.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-9235592) -
2016 - crc - 11/6/15
12 In Brief .
Press Rearward (2) to move
lumbar support outward.
Massage
Platinum Driver Seat Shown,
Passenger Seat Similar
If equipped, the ignition must be on
to use the massage feature. To activate and adjust the massage
feature:
1. Toggle the center selection
control (2) located on the door
to view adjustable massage
options on the center stack
display.
2. Select massage feature.
3. Press the control up (3) or
down (5) to select the
massage type.
4. Press the control forward (4) or
rearward (6) to change the
intensity.
5. Press the massage control
button (1) to recall the last
massage type and intensity.
See Massage 0 66 .Memory Features
Platinum Seat Driver Buttons
Shown, Passenger Buttons
Similar
If equipped, the SET, 1, 2, and
B (Exit) buttons on the driver door and
front passenger door are used to
manually store and recall memory
settings for the driver and
passenger seats. The driver
memory buttons also store outside
mirror, power tilt and telescoping
steering column positions, and
massage settings (if equipped).

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-9235592) -
2016 - crc - 11/6/15
In Brief 13When Auto Memory Recall is
enabled in the personalization
menu, positions previously stored to
memory buttons 1 and 2 are
recalled when the ignition is
changed from OFF to ON/RUN/
START or ACC/ACCESSORY.
When Easy Exit Options is enabled
in the personalization menu, the
seat will move rearward to the
stored position when the ignition is
changed to OFF and the driver door
is opened within a short time.
See Memory Seats 0 63 and
Vehicle Personalization 0 157 .Second Row Seats
If equipped, the armrest may have
seat adjustment controls.
1. Seatback Display and Lumbar
Adjustment Control
2. Power Seat Adjustment
3. Seatback Recline
4. Massage
See Rear Seats 0 66 . Rear Seat Armrest
The rear seat has an armrest in the
center of the seatback. Lower the
armrest and press button at the
front of the armrest to access the
cupholders.
To fold, press the cupholders into
the seat if they have been opened,
lift the armrest up, and push it
rearward until it is flush with the
seatback.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-9235592) -
2016 - crc - 11/6/15
14 In Brief Heated and Ventilated Rear
Seats
{ WarningIf you cannot feel temperature
change or pain to the skin, the
seat heater may cause burns.
See the Warning under Heated
and Ventilated Front Seats 0 64 .
Platinum Seat
If equipped, the buttons are on the
rear passenger doors. With the ignition in ON/RUN, press
M or
L to heat the left or right
outboard seat cushion.
With the ignition in ON/RUN, press
C or
{ to ventilate the left or right
outboard seat.
See Heated and Ventilated Rear
Seats 0 69 .
Heated and Ventilated
Seats
If equipped, the buttons are near the
climate controls on the center stack.
To operate, the ignition must be in
ON/RUN. Press
J or
z to heat the driver or
passenger seat cushion and
seatback.
Press
I or
+ to heat the driver or
passenger seatback only.
Press
C or
{ to ventilate the driver
or passenger seat.
Press the button once for the
highest setting. With each press of
the button, the seat will change to
the next lower setting, and then to
the off setting. The indicator lights
above the buttons indicate three for
the highest setting and one for the
lowest. If the front heated seats are
on high, the level may automatically
be lowered after approximately
30 minutes.
See Heated and Ventilated Front
Seats 0 64 .
Head Restraint
Adjustment Do not drive until the head restraints
for all occupants are installed and
adjusted properly.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-9235592) -
2016 - crc - 11/6/15

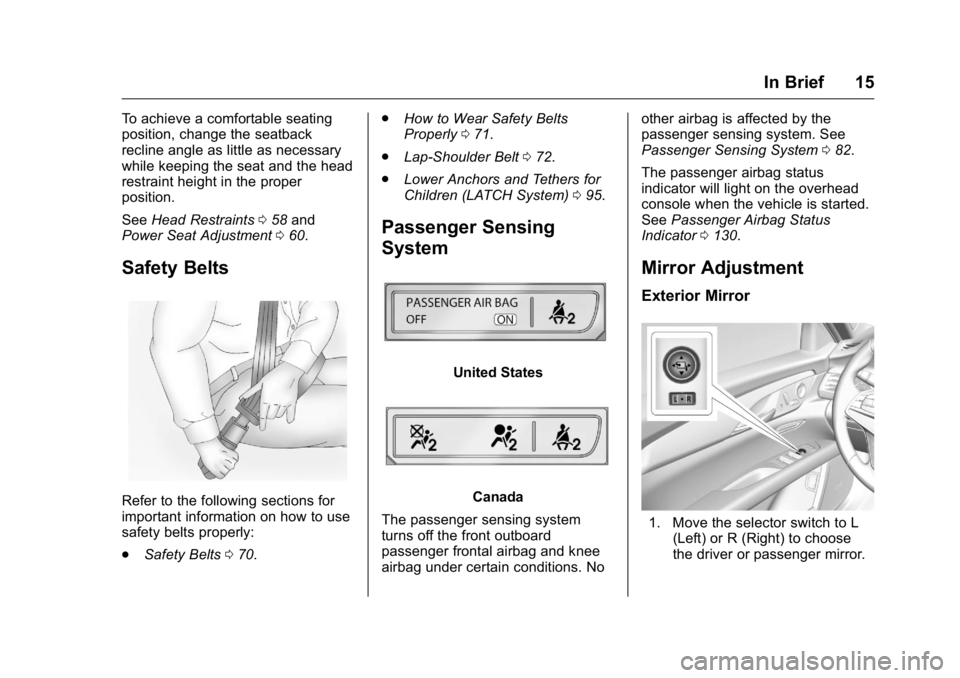

In Brief 15To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
See Head Restraints 0 58 and
Power Seat Adjustment 0 60 .
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.
Safety Belts 0 70 . .
How to Wear Safety Belts
Properly 0 71 .
.
Lap-Shoulder Belt 0 72 .
.
Lower Anchors and Tethers for
Children (LATCH System) 0 95 .
Passenger Sensing
System
United States
Canada
The passenger sensing system
turns off the front outboard
passenger frontal airbag and knee
airbag under certain conditions. No other airbag is affected by the
passenger sensing system. See
Passenger Sensing System 0 82 .
The passenger airbag status
indicator will light on the overhead
console when the vehicle is started.
See Passenger Airbag Status
Indicator 0 130 .
Mirror Adjustment Exterior Mirror
1. Move the selector switch to L
(Left) or R (Right) to choose
the driver or passenger mirror.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-9235592) -
2016 - crc - 11/6/15
16 In Brief 2. Press one of the four arrows to
move the mirror.
3. Move the selector switch to
)to deselect the mirror.
The vehicle has manual folding
mirrors or, if equipped, power folding
mirrors. See Power Mirrors 0 48 .
Interior Mirror Adjustment
Adjust the rearview mirror for a clear
view of the area behind your
vehicle.
Automatic Dimming Rearview
Mirror
Automatic dimming reduces the
glare of headlamps from behind.
The dimming feature comes on
when the vehicle is started.
Rear Camera Mirror
If equipped, this automatic dimming
rearview mirror provides a wide
angle camera view of the area
behind the vehicle. For ease of use,
adjust the mirror for a clear view of the area behind the vehicle while
the display is off. See Rear Camera
Mirror 0 50 .
Steering Wheel
Adjustment Power Tilt and Telescoping
Steering Wheel
Press the control to move the tilt
and telescoping steering wheel up
and down or forward and rearward.
Do not adjust the steering wheel
while driving. Interior Lighting Dome Lamp
The dome lamp is in the overhead
console.
To change the dome lamp settings,
press:
( OFF : Turns the lamp off, even
when a door is open.
+ ON/OFF : Turns the lamp on
or off.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-9235592) -
2016 - crc - 11/6/15
In Brief 17Reading Lamps
There are front and rear reading
lamps on the overhead console and
over the rear passenger doors.
These lamps come on automatically
when any door is opened.
To manually turn the reading lamps
on or off:
Press
m or
n next to each
overhead console reading lamp. Press the lamp lenses over the rear
passenger doors.
For more information on interior
lighting, see Instrument Panel
Illumination Control 0 174 .
Exterior Lighting
The exterior lamp control is on the
turn signal lever. Turn the control to the following
positions:
O : Turns off the exterior lamps.
The knob returns to the AUTO
position after it is released. Turn to
O again to reactivate the
AUTO mode.
AUTO : Automatically turns the
exterior lamps on and off,
depending on outside lighting.
; : Turns on the parking lamps
including all lamps, except the
headlamps.
5 : Turns on the headlamps
together with the parking lamps and
instrument panel lights.
See:
.
Exterior Lamp Controls 0 170 .
.
Turn and Lane-Change
Signals 0 173 .

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-9235592) -
2016 - crc - 11/6/15
18 In Brief
Windshield Wiper/Washer
With the ignition in ACC/
ACCESSORY or ON/RUN, move
the lever to select the wiper speed.
HI : Use for fast wipes.
LO : Use for slow wipes. AUTO : Use this setting for
intermittent wipes or Rainsense ™ ,
when enabled. For intermittent
wipes, move the lever up to AUTO,
then turn the band on the wiper
lever up for more frequent wipes or
down for less frequent wipes.
If Rainsense is enabled in vehicle
personalization, move the lever up
to AUTO, then turn the band on the
wiper lever to adjust the sensitivity
to moisture.
.
Turn the band up for more
sensitivity to moisture.
.
Turn the band down for less
sensitivity to moisture.
.
Move the windshield wiper lever
out of the AUTO position to
deactivate Rainsense. To enable or disable this feature,
see “ Rain Sense Wipers ” under
Vehicle Personalization 0 157 .
OFF : Use to turn the wipers off.
1X : For a single wipe, briefly move
the lever down. For several wipes,
hold the lever down.
f : Pull the lever toward you to
spray windshield washer fluid and
activate the wipers.
See Windshield Wiper/
Washer 0 111 .

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-9235592) -
2016 - crc - 11/6/15
In Brief 19
Climate Controls The climate control buttons and the touch screen are used to adjust the
heating, cooling, and ventilation.
Dual and Quad Zone Climate Control Buttons
1. Driver and Passenger
Temperature Controls
2. Fan Control
3. Driver and Passenger Heated
and Ventilated Seats (If
Equipped) 4. Rear Window Defogger
5. Defrost
6. OFF (Fan)
7. Recirculation
8. AUTO (Automatic Operation) Climate Touch Screen Controls
1. Outside Temperature Display
2. Driver and Passenger
Temperature Controls
3. Fan Control
4. A/C (Air Conditioning)
5. Climate Control Selection
(Application Tray Button)
6. SYNC (Synchronized
Temperature)
7. Driver and Passenger Air
Delivery Mode Controls
8. Defog
