spark plugs replace CADILLAC CT6 2017 1.G Owners Manual

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
SERVICE AND MAINTENANCE 313
Maintenance Schedule
Additional Required Services -
Normal12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi
180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires, if recommended for the vehicle, and
perform Required Services. Check engine oil level
and oil life percentage. Change engine oil and filter,
if needed. (1)@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (2)@ @@@@@
Inspect evaporative control system. (3)@ @@
Replace engine air cleaner filter. (4)@ @ @ @ @ @ @ @ @ @
Replace spark plugs. Inspect spark plug wires. (3.0L
Twin Turbo Engine)@ @
Replace spark plugs. Inspect spark plug wires. (3.6L
Engine)@
Drain and fill engine cooling system. (5)@
Change transfer case fluid. (6)@
Change front and rear axle fluid.@
Visually inspect accessory drive belts. (7)@
Replace brake fluid. (8)

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
SERVICE AND MAINTENANCE 315

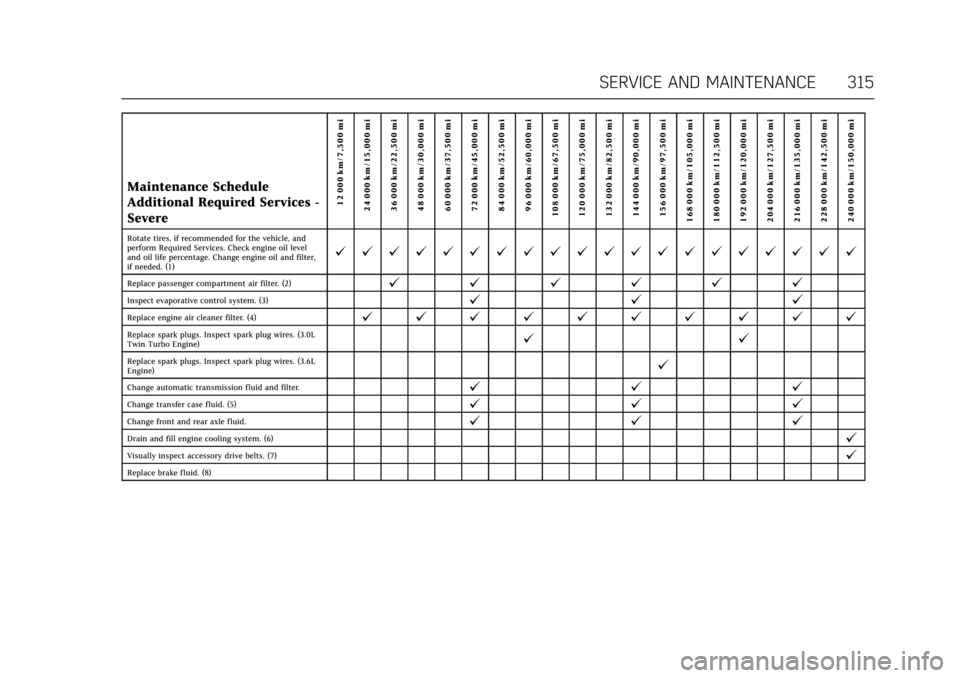

Maintenance Schedule
Additional Required Services -
Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi
180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires, if recommended for the vehicle, and
perform Required Services. Check engine oil level
and oil life percentage. Change engine oil and filter,
if needed. (1)@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (2)@ @@@@@
Inspect evaporative control system. (3)@ @@
Replace engine air cleaner filter. (4)@ @ @ @ @ @ @ @ @ @
Replace spark plugs. Inspect spark plug wires. (3.0L
Twin Turbo Engine)@ @
Replace spark plugs. Inspect spark plug wires. (3.6L
Engine)@
Change automatic transmission fluid and filter.@@@
Change transfer case fluid. (5)@@@
Change front and rear axle fluid.@@@
Drain and fill engine cooling system. (6)@
Visually inspect accessory drive belts. (7)@
Replace brake fluid. (8)

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
SERVICE AND MAINTENANCE 317
‐High use commercial vehicles
such as courier delivery vehicles,
private security patrol vehicles
or any vehicles that operate on
a 24 hour basis.
‐ Any vehicle consistently
operated in a high sand or dust
environment such as those used
on oil pipelines and similar
applications. .
Vehicles that are regularly used for
short trips of 6 kilometers or less
If your vehicle has an Oil Life
Indicator, the indicator will show
you when to change the oil and
filter. Under severe conditions the
indicator may come on before
10 000 km/6,000 mi. The indicator
won't detect dust in the oil, so if
you drive in a dusty area you may
have to change the oil and filter
sooner than every 10 000 km/
6,000 mi. Note: All vehicles with rear-wheel
drive
—change driveline axle oil
every 30 000 km/19,000 mi if
vehicle is used for towing
purposes.
* Footnote: Under extreme driving
conditions listed above, it may be
necessary to replace your spark
plugs at more frequent intervals.
For further assistance in
determining the most suitable
service maintenance intervals for
your vehicle, please contact your
authorized GM Dealer.

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
SERVICE AND MAINTENANCE 319
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter
3.0L V6 Twin Turbo Engine (Driver Side) 23441383 A3207C
3.0L V6 Twin Turbo Engine (Passenger Side) 23450879 A3206C
3.6L V6 Engine 23458700 A3204C
Engine Oil Filter
3.0L V6 Twin Turbo Engine 19330000 PF63E
3.6L V6 Engine 19330000 PF63E
Passenger Compartment Air Filter 13508023 CF185
Spark Plugs 3.0L V6 Twin Turbo Engine 12650283 41-131
3.6L V6 Engine 12646780 41-130
Wiper Blades
Driver Side –60 cm (23.62 in) 13227404 —
Passenger Side –45 cm (17.72 in) 25882578 —
