DRIVING AND OPERATING 231
Switching Between ACC and
Regular Cruise Control
To switch between ACC and regular
cruise control, press and hold
*.
A Driver Information Display (DIC)
message displays.
ACC IndicatorRegular Cruise
Control Indicator
When ACC is engaged, a green
\
indicator will be lit on the instrument
cluster. When the regular cruise
control is engaged, a green
J
indicator will be lit on the instrument
cluster.
When the vehicle is turned on, the
cruise control mode will be set to the
last mode used before the vehicle was
turned off.
{Warning
Always check the cruise control
indicator on the instrument cluster
to determine which mode cruise
control is in before using the
feature. If ACC is not active, the
vehicle will not automatically brake
for other vehicles, which could
cause an accident if the brakes are
not applied manually. You and
others could be seriously injured or
killed.
Setting Adaptive Cruise Control
If
Jis on when not in use, it could
get pressed and go into ACC when not
desired. Keep
Joff when cruise is
not being used.
Select the set speed desired for ACC.
This is the vehicle speed when no
vehicle is detected in its path.
While the vehicle is moving, ACC will
not set at a speed less than 25 km/h
(15 mph), although it can be resumed
when driving at lower speeds. To set ACC while moving:
1. Press
J.
2. Get up to the desired speed.
3. Press and release SET−.
4. Remove your foot from the accelerator.
After ACC is set, it may immediately
apply the brakes if a vehicle ahead is
detected closer than the selected
following gap.
ACC can also be set while the vehicle
is stopped if ACC is on and the brake
pedal is applied.
The ACC indicator displays on the
instrument cluster and Head-Up
Display (HUD), if equipped. When ACC
is turned on, the indicator will be lit
white. When ACC is engaged, the
indicator will turn green.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
234 DRIVING AND OPERATING
Approaching and Following a
Vehicle
The vehicle ahead indicator is on the
instrument cluster and HUD display.
This indicator only displays when a
vehicle is detected in your vehicle’s
path moving in the same direction.
If this indicator is not displaying, ACC
will not respond to or brake for
vehicles ahead.
ACC automatically slows the vehicle
down and adjusts vehicle speed to
follow the vehicle in front at the
selected follow gap. The vehicle speed
increases or decreases to follow the
vehicle in front of you, but will not
exceed the set speed. It may apply
limited braking, if necessary. When
braking is active, the brake lamps will
come on. The automatic braking mayfeel or sound different than if the
brakes were applied manually. This is
normal.
Stationary or Very Slow-Moving
Objects
{Warning
ACC may not detect and react to
stopped or slow-moving vehicles
ahead of you. For example, the
system may not brake for a vehicle
it has never detected moving. This
can occur in stop-and-go traffic or
when a vehicle suddenly appears
due to a vehicle ahead changing
lanes. Your vehicle may not stop
and could cause a crash. Use
caution when using ACC. Your
complete attention is always
required while driving and you
should be ready to take action and
apply the brakes.
ACC Automatically Disengages
ACC may automatically disengage and
you will need to manually apply the
brakes to slow the vehicle if:
.
The sensors are blocked.
. The Traction Control System (TCS)
or StabiliTrak/ESC system has
activated or been disabled.
. There is a fault in the system.
. The radar falsely reports blockage
when driving in a desert or remote
area with no other vehicles or
roadside objects. A DIC message
may display to indicate that ACC
is temporarily unavailable.
The ACC indicator will turn white
when ACC is no longer active.
In some cases, when ACC will not
activate, regular cruise control may be
used. See “Switching Between ACC and
Regular Cruise Control ”previously in
this section. Always consider driving
conditions before using either cruise
control system.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
DRIVING AND OPERATING 237
Other Vehicle Lane Changes
ACC will not detect a vehicle ahead
until it is completely in the lane. The
brakes may need to be manually
applied.
Do Not Use ACC on Hills and When
Towing a Trailer
Do not use ACC when driving on steep
hills or when towing a trailer. For
towing capability, seeTrailer Towing
0 284. ACC will not detect a vehicle in
the lane while driving on steep hills.
The driver will often need to take over
acceleration and braking on steep
hills, especially when towing a trailer.
If the brakes are applied, the ACC
disengages.
Disengaging ACC
There are three ways to
disengage ACC:
. Step lightly on the brake pedal.
. Press
*.
. Press
J.
Erasing Speed Memory
The ACC set speed is erased from
memory if
Jis pressed or if the
ignition is turned off.
Cleaning the Sensing System
The camera sensor on the windshield
behind the rearview mirror and the
radar sensors on the front of the
vehicle can become blocked by snow, ice, dirt, or mud. These areas need to
be cleaned for ACC to operate
properly.
If ACC will not operate, regular cruise
control may be available. See
“Switching Between ACC and Regular
Cruise Control
”previously in this
section. Always consider driving
conditions before using either cruise
control system.
For cleaning instructions, see
“Washing the Vehicle ”under Exterior
Care 0372.
System operation may also be limited
under snow, heavy rain, or road spray
conditions.
Super Cruise
If equipped, Super Cruise can steer to
maintain lane position under certain
conditions on limited access freeways
that are separated from opposing
traffic.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
238 DRIVING AND OPERATING
{Warning
Super Cruise can only assist to
maintain lane position when driving
on limited access freeways. You
must supervise the driving task and
monitor the freeway conditions.
You may need to respond to traffic
events by steering, braking,
or accelerating. SeeDefensive
Driving 0191.
Super Cruise is: . Not a self-driving system.
. Not a crash avoidance or
warning system.
. Not a substitute for proper
supervision of the
driving task.
Super Cruise uses the following to
detect the current lane position and
lane markings ahead on limited access
freeways under certain conditions:
. Cameras
. Global Positioning System (GPS)
sensing .
A high-precision map
. GPS-enhancement data
downloaded through OnStar
Super Cruise works with Adaptive
Cruise Control (ACC), which controls
acceleration and braking while Super
Cruise is enabled and operating.
Review and understand both this
section and the ACC section before
using Super Cruise. See Adaptive
Cruise Control 0229.
An active OnStar or connected service
plan that includes Emergency Services
is required to use Super Cruise.
{Warning
Super Cruise does not perform all
aspects of driving, nor does it do
everything a driver can do. Super
Cruise only steers to maintain lane
position. Super Cruise can only be
used with Adaptive Cruise Control.
Super Cruise does: . Not prevent crashes or warn
of possible crashes.
(Continued)
Warning (Continued)
.Not steer to avoid stopped or
slow-moving vehicles,
construction barriers or
cones, motorcycles, children,
pedestrians, animals, or other
objects on the freeway.
. Not steer in response to
vehicles or objects next to
your vehicle, including
vehicles attempting to enter
your lane.
. Not change lanes.
. Not steer to merge onto or to
exit freeways.
. Not detect, steer to avoid,
or steer through construction
zones.
. Not function on surface
streets.
. Not respond to crossing or
oncoming traffic.
. Not function in city driving
conditions.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
240 DRIVING AND OPERATING
Warning (Continued)
.Not on a road shoulder,
service drive, or under an
elevated freeway.
. Not in tunnels.
. Not when towing a trailer.
. Not in a freeway exit lane.
When Super Cruise is Available
Super Cruise Indicator
Super Cruise is designed to operate
only when:
. ACC is on. See Adaptive Cruise
Control 0229.
. Forward Automatic Braking is on.
See Forward Automatic Braking
(FAB) 0264.
. Teen Driver is not active. .
The GPS detects the vehicle is on
a limited access freeway.
. Both the camera and the radar
sensors are functioning and not
covered, obstructed, or damaged.
. The Driver Attention System
(DAS) detects the driver's head
and eyes are directed toward the
freeway.
. The lane markings are clearly
visible and able to be detected by
the system.
Poor Conditions
Poor Conditions
Using Super Cruise
{Warning
To prevent serious injury or death: . Always check that Super
Cruise is available
^before
pressing
].
. Only remove your hands from
the steering wheel if the
steering wheel light bar,
^,
and
\are green. Super
Cruise may not begin steering
immediately, even when
Super Cruise is available
and
]has been pressed.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
DRIVING AND OPERATING 241
To engage:1. Press
Jto turn on ACC. Make
sure the white
\indicator
displays in the instrument
cluster. See Adaptive Cruise
Control 0229.
2. Center the vehicle in the lane.
3. When Super Cruise is available, the white
^will display in the
instrument cluster.
4. Press
]to engage both Super
Cruise and ACC. ACC will set the speed at the
current vehicle speed. If ACC has
a previously set speed, it may
resume at that speed.
5. When engaged, the steering wheel light bar,
^, and\
will display green.
When Super Cruise is engaged, when
traffic and other conditions and laws
permit, and when it is safe to do so,
your hands can be taken off the
steering wheel.
Always pay attention to the road and
the operation of the vehicle. Always
monitor and be attentive of
surrounding traffic.
Super Cruise steering can be
overridden with manual steering at
any time. When Super Cruise is
engaged, always be prepared to take
immediate action —including
steering, accelerating, and braking
quickly, if necessary. Steering Manually and Changing
Lanes
The vehicle can always be manually
steered, even with Super Cruise
engaged; for example, when changing
lanes.
When the steering wheel is moved
manually, the steering wheel light bar
pulses blue and
^on the instrument
cluster turns blue to indicate Super
Cruise is not steering the vehicle.
When ready to allow Super Cruise to
resume steering again, position the
vehicle in the center of the lane, hold
the steering wheel until the steering
wheel light bar turns green, and then
release the steering wheel when it is
safe to do so.
Super Cruise does not respond to
vehicles in other lanes near your
vehicle.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
DRIVING AND OPERATING 243
{Warning
To prevent serious injury or death,
be alert and pay special attention
when passing freeway exits and
entrances with Super Cruise, and be
ready to take control of the vehicle
when necessary. Changes in lane
markings around freeway exits and
entrances can momentarily cause
Super Cruise to not detect the
correct lane. If this occurs, Super
Cruise may attempt steering inputs(Continued)
Warning (Continued)
to bring the vehicle back into the
correct lane and, in rare
circumstances, could over-correct
and cause the vehicle to
momentarily cross into a lane next
to your vehicle unless you manually
steer to maintain your lane
position.
The Driver Attention System (DAS) on
the steering column continually
monitors driver head and eye position
to estimate driver attention to the
road. The camera does not record or
share pictures, audio, or video. Sunglasses, hats, or other types of
clothing that change the shape of the
head may interfere with camera
performance. To improve camera
performance, raise or lower the
steering wheel, or change the seat
position.
Pay close attention to the road ahead
to avoid these three increasing alerts:

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
244 DRIVING AND OPERATING
First Alert.
If the steering wheel light bar flashes green, the system has detected that your head and eyes
may not be directed toward the freeway.
. The flashing will stop when the system detects that your head and eyes appear to be directed
toward the freeway.
Second Alert .
If the steering wheel light bar flashes green for too long, Super Cruise will alert the driver to
take control of steering immediately by flashing the light bar red. Also, either beeps will sound
or the Safety Alert Seat will vibrate. See “Collision/Detection Systems”underVehicle
Personalization 0157.
. Take over steering, then Super Cruise will disengage.
. To re-engage Super Cruise, press
]. See "Using Super Cruise" previously in this section.
Third Alert .
If the steering wheel light bar flashes red for too long, a voice command will tell you to take
control of the vehicle.
. Take control of the steering immediately; ACC and Super Cruise will disengage.
. A DIC message will indicate that Super Cruise is locked out. Super Cruise cannot be re-engaged
until the next ignition cycle.
. Continued failure to take over steering will cause the vehicle to brake to a stop and OnStar will
be called. The brake lamps and hazard warning flashers will come on.
. Take control of the vehicle and continue driving.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
DRIVING AND OPERATING 247
Steering WheelLight Bar Instrument Cluster Light Super Cruise Description
Off Off Super Cruise is off. There is no automatic steering. Operate the
vehicle manually.
Off White Super Cruise is available and can be engaged.
Solid Green Solid Green Super Cruise is steering. Pay attention to the road and vehicle
operation.
Pulsing Blue Solid Blue Super Cruise is not steering. Operate the vehicle manually. See
“Steering Manually and Changing Lanes”
previously in this section.
Flashing Green Solid Green Super Cruise has detected you are not paying sufficiently close
attention to the road. Pay attention to the road. See
“Attention to
the Road” previously in this section.
Flashing Red Solid Red Take over steering immediately. Super Cruise will disengage. See
“Take Over Alert
”previously in this section.
Disengaging Super Cruise
There are two ways to disengage
Super Cruise:
. Press
]while your hands are on
the steering wheel. The Super
Cruise steering will disengage. .
Press the brake pedal while your
hands are on the steering wheel.
Both Super Cruise steering and
Adaptive Cruise Control will
disengage. Super Cruise Messages
If
^does not appear,]can be
pressed to display a DIC message as to
why the system is unavailable.
Immediately after a disengagement,
pressing the
]within 10 seconds
will display a DIC message with the
reason for Super Cruise
disengagement.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
248 DRIVING AND OPERATING

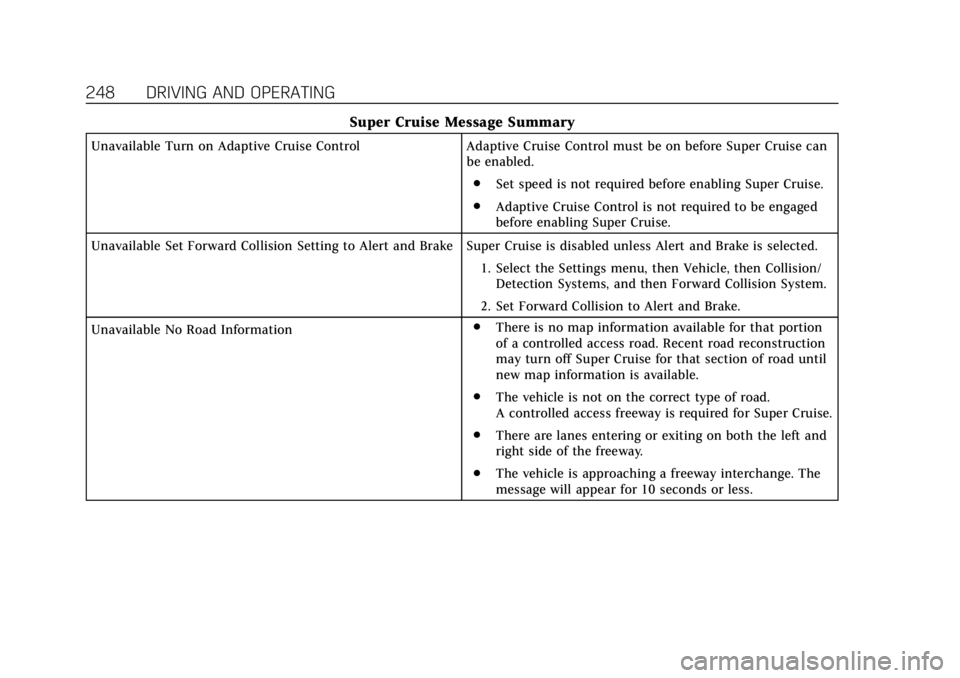

Super Cruise Message Summary
Unavailable Turn on Adaptive Cruise ControlAdaptive Cruise Control must be on before Super Cruise can
be enabled.
. Set speed is not required before enabling Super Cruise.
. Adaptive Cruise Control is not required to be engaged
before enabling Super Cruise.
Unavailable Set Forward Collision Setting to Alert and Brake Super Cruise is disabled unless Alert and Brake is selected. 1. Select the Settings menu, then Vehicle, then Collision/Detection Systems, and then Forward Collision System.
2. Set Forward Collision to Alert and Brake.
Unavailable No Road Information .
There is no map information available for that portion
of a controlled access road. Recent road reconstruction
may turn off Super Cruise for that section of road until
new map information is available.
. The vehicle is not on the correct type of road.
A controlled access freeway is required for Super Cruise.
. There are lanes entering or exiting on both the left and
right side of the freeway.
. The vehicle is approaching a freeway interchange. The
message will appear for 10 seconds or less.
