The vehicle has threaded nuts that are covered
with a plastic cap on the roof rails, that indicate the
mounting locations for a roof rack or luggage
carrier. Open the doors to access these locations.
Remove the plastic cap before attaching a roof
rack or luggage carrier.
For more information on purchasing the
rack/carrier as well as installation information,
contact your dealer.
Convenience Net
The convenience net attaches to the oor and
back wall of the trunk using four anchor points
which allows the net to be used two ways. It can
be attached like a hammock or anchored to
lay at across the oor of the trunk. Put small
loads, like grocery bags, behind the net. It can help
keep them from falling over during sharp turns
or quick starts and stops.
The net is not for larger, heavier loads. Store them
in the trunk as far forward as you can. When not
using the net, hook the net to the tabs securing
it to the sill plate.
Sunroof
Your vehicle may have a power sunroof. It will
operate when the ignition is turned on, or in
ACCESSORY, or when Retained Accessory Power
(RAP) is active. SeeRetained Accessory Power
(RAP) on page 119.
The sunroof controls are
located on the overhead
console.
@(Half Open):Turn the control clockwise to
this position to open the glass panel half way.
The sunshade will open with the glass panel, or it
can be opened manually.
161

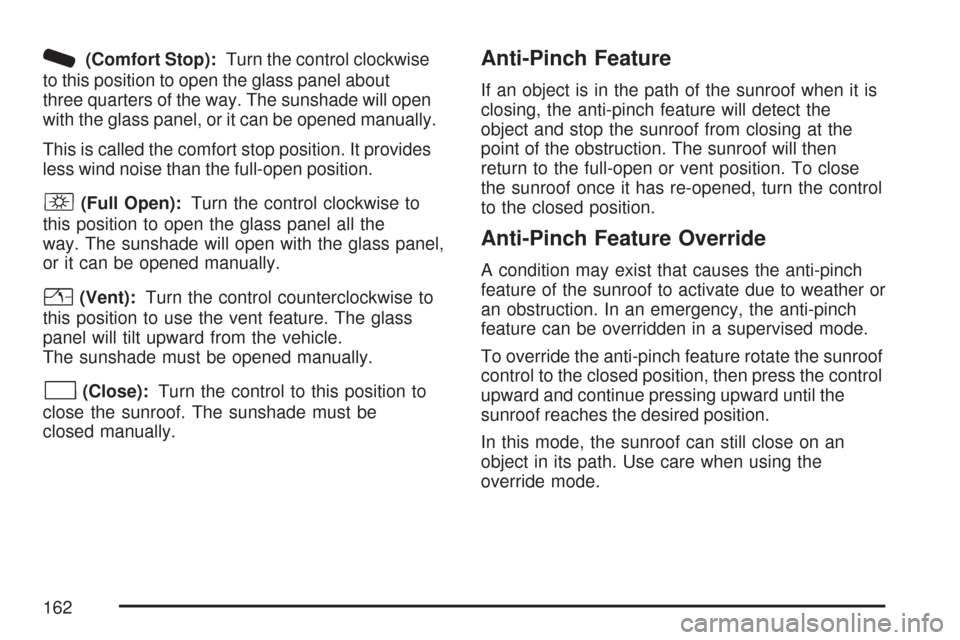

P(Comfort Stop):Turn the control clockwise
to this position to open the glass panel about
three quarters of the way. The sunshade will open
with the glass panel, or it can be opened manually.
This is called the comfort stop position. It provides
less wind noise than the full-open position.
A(Full Open):Turn the control clockwise to
this position to open the glass panel all the
way. The sunshade will open with the glass panel,
or it can be opened manually.
I(Vent):Turn the control counterclockwise to
this position to use the vent feature. The glass
panel will tilt upward from the vehicle.
The sunshade must be opened manually.
?(Close):Turn the control to this position to
close the sunroof. The sunshade must be
closed manually.
Anti-Pinch Feature
If an object is in the path of the sunroof when it is
closing, the anti-pinch feature will detect the
object and stop the sunroof from closing at the
point of the obstruction. The sunroof will then
return to the full-open or vent position. To close
the sunroof once it has re-opened, turn the control
to the closed position.
Anti-Pinch Feature Override
A condition may exist that causes the anti-pinch
feature of the sunroof to activate due to weather or
an obstruction. In an emergency, the anti-pinch
feature can be overridden in a supervised mode.
To override the anti-pinch feature rotate the sunroof
control to the closed position, then press the control
upward and continue pressing upward until the
sunroof reaches the desired position.
In this mode, the sunroof can still close on an
object in its path. Use care when using the
override mode.
162

Instrument Panel Overview........................ 166
Hazard Warning Flashers.......................... 168
Other Warning Devices............................. 168
Horn.......................................................... 168
Tilt Wheel.................................................. 169
Recongurable Steering Wheel
Controls (SWC) (CTS)........................... 169
Turn Signal/Multifunction Lever.................. 171
Turn and Lane-Change Signals................. 171
Headlamp High/Low-Beam Changer.......... 172
Flash-to-Pass............................................ 172
Windshield Wipers..................................... 173
Windshield Washer.................................... 174
Headlamp Washer..................................... 175
Cruise Control........................................... 176
Headlamps................................................ 180
Wiper Activated Headlamps....................... 180
Headlamps on Reminder........................... 181
Daytime Running Lamps (DRL)................. 181
Fog Lamps................................................ 183
Exterior Lighting Battery Saver.................. 183
Instrument Panel Brightness...................... 184
Entry Lighting............................................ 184Parade Dimming........................................ 185
Reading Lamps......................................... 185
Electric Power Management...................... 185
Battery Run-Down Protection..................... 186
Accessory Power Outlet(s)........................ 186
Ashtray(s) and Cigarette Lighter................ 188
Climate Controls......................................... 189
Dual Climate Control System..................... 189
Outlet Adjustment...................................... 194
Passenger Compartment Air Filter............. 195
Steering Wheel Climate Controls (CTS)..... 196
Warning Lights, Gages, and Indicators..... 197
Instrument Panel Cluster........................... 198
Speedometer and Odometer...................... 200
Trip Odometers......................................... 200
Tachometer............................................... 200
Engine Speed Limiter................................ 201
Safety Belt Reminder Light........................ 201
Airbag Readiness Light............................. 201
Passenger Airbag Status Indicator............. 202
Charging System Light.............................. 204
Brake System Warning Light..................... 205
Section 3 Instrument Panel
163

Anti-Lock Brake System Warning Light...... 206
Traction Control System (TCS)
Warning Light........................................ 206
Engine Coolant Temperature Warning
Light (CTS)............................................ 207
Engine Coolant Temperature Gage............ 208
Tire Pressure Light (CTS-V Only).............. 208
Malfunction Indicator Lamp........................ 209
Oil Pressure Light..................................... 212
Sport Mode Light (Automatic
Transmission/CTS)................................. 213
Security Light............................................ 213
Fog Lamp Light......................................... 213
Lights On Reminder.................................. 213
Cruise Control Light.................................. 214
Highbeam On Light................................... 214
Fuel Gage................................................. 214
Message Center.......................................... 215
Message Center (CTS-V).......................... 215
Transmission Fluid Hot Message............... 219
Hot Coolant Temperature Warning
Message................................................ 219
Check Engine Oil Pressure Message......... 220Oil Temperature Warning Message............ 220
Tire Pressure Warning Message................ 221
One-to-Four Shift Message
(CTS-V Only)......................................... 222
Driver Information Center (DIC).................. 222
System Controls........................................ 223
Status of Vehicle Systems......................... 223
DIC Main Menu......................................... 228
DIC Warnings and Messages.................... 232
DIC Vehicle Personalization....................... 242
Audio System(s)......................................... 258
Setting the Time........................................ 259
Radio with CD........................................... 260
XM Radio Messages................................. 277
Navigation/Radio System........................... 279
Theft-Deterrent Feature............................. 279
Audio Steering Wheel Controls (CTS)........ 279
Audio Steering Wheel Controls (CTS-V).... 280
Radio Reception........................................ 282
Care of Your CDs..................................... 283
Care of the CD Player.............................. 283
Diversity Antenna System.......................... 284
XM™ Satellite Radio Antenna System....... 284
Section 3 Instrument Panel
164

✍NOTES
165

Instrument Panel Overview
CTS shown, CTS-V similar
166

The main components of the instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on page 194.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 171.
C. Recongurable Steering Wheel Controls (CTS)
(If Equipped) or Message Center Controls
(CTS-V). SeeRecongurable Steering Wheel
Controls (SWC) (CTS) on page 169or
Message Center (CTS-V) on page 215.
Steering Wheel Climate Controls (CTS).
SeeSteering Wheel Climate Controls (CTS) on
page 196. Traction Control Disable Button
(CTS-V). SeeTraction Control System (TCS)
(CTS) on page 293orTraction Control
System (TCS) (CTS-V) on page 295.
D. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 198.
E. Windshield Wiper Lever. SeeWindshield
Wipers on page 173.
F. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 168.
G. Audio (Base Audio System) or Audio/Navigation
System (If Equipped). SeeAudio System(s)
on page 258orNavigation/Radio System
on page 279.H. Voice Recognition Button (If Equipped).
See Navigation System Supplement.
I. Audio Volume Knob and Source Button
(CTS Only). SeeAudio Steering Wheel
Controls (CTS) on page 279orAudio Steering
Wheel Controls (CTS-V) on page 280.
J. Storage Compartment or Ashtray (If Equipped).
SeeAshtray(s) and Cigarette Lighter on
page 188.
K. Transmission Shift Lever. SeeAutomatic
Transmission Operation on page 122or
Manual Transmission Operation on page 126.
L. Accessory Power Outlet or Cigarette Lighter
(If Equipped). SeeAccessory Power Outlet(s)
on page 186orAshtray(s) and Cigarette
Lighter on page 188.
M. Climate Control System. SeeDual Climate
Control System on page 189.
N. Glove Box. SeeGlove Box on page 159.
Traction Control Disable Button (CTS).
SeeTraction Control System (TCS) (CTS) on
page 293orTraction Control System (TCS)
(CTS-V) on page 295.
167

Hazard Warning Flashers
The hazard warning ashers let you warn the
police and others that you have a problem. The
front and rear turn signal lamps will ash on
and off.
The hazard warning
asher button is located
in the center of the
instrument panel.
Press the button to make the front and rear turn
signal lamps ash on and off. Press the button
again to turn the ashers off.
While the hazard warning ashers are on, the turn
signals do not work.
The hazard warning ashers work no matter what
position the key is in, and even if the key is not
in the ignition switch.
Other Warning Devices
If you carry reective triangles, you can set them up
at the side of the road about 300 feet (100 m)
behind your vehicle.
Horn
Press near or on the horn symbols on your
steering wheel pad to sound the horn.
168

Tilt Wheel
A tilt wheel allows you to adjust the steering wheel
before you drive. You can raise it to the highest
level to give your legs more room when you
exit and enter the vehicle.
The lever that allows you to tilt the steering wheel
is located on the left side of the steering column.
To tilt the wheel, hold the steering wheel and
pull the lever. Then move the steering wheel to a
comfortable position and release the lever to
lock the wheel in place.
Recongurable Steering Wheel
Controls (SWC) (CTS)
If your vehicle has this feature, it allows you to
customize the four steering wheel controls to work
with the OnStar
®, the climate controls, audio,
and traction control systems.
The controls for this
feature are located on
the left spoke of
the steering wheel.
If your vehicle has the base audio system, do the
following:
1. Access the main menu of the audio system by
pressing the TUNE/SEL (SELECT) knob
located at the lower right of the audio system.
2. Scroll through the menu by turning the knob.
3. When SETUP appears on the display,
press the knob once to select it.
169

4. Scroll through the SETUP menu by turning
the knob.
5. When CONFIGURE SWC KEYS appears on
the display, press the knob once to select it.
6. Scroll through the buttons (1, 2, 3 or 4). Press
the knob to select the desired number.
7. Choose a new function for the control by
scrolling through the list of available functions.
8. Once you have highlighted your choice, press
the knob once to select it.
The control you selected is now programmed
with the function you selected.
9. Press the CLR (CLEAR) button to exit each
menu. To program another control, repeat the
procedure.
If your vehicle has the Navigation system, do the
following:
1. Press the MAIN button located to the lower
left of the display.
2. Press the multi-function button next to the
Setup prompt at the right of the display.3. Press the multi-function button next to Prog
SWC located at the right of the screen.
4. Turn the TUNE/SEL knob to scroll through the
available functions.
5. Once the function desired is highlighted, press
and hold the multi-function button next to the
control you want to program (1, 2, 3 or 4).
The buttons are located at the right of
the display.
When a control is successfully programmed,
the function you selected will appear next
to the number of the control at the right of
the display.
6. Press the multi-function button next to the
Back prompt to exit each menu. To program
another control, repeat the procedure.
When a control is programmed with a function,
that function cannot be used with any other control.
It becomes available again only when another
function is programmed to the control.
170
