Lockout Protection
If you press the power door lock switch when the
key is in the ignition and any door is open, all
the doors will lock and only the driver’s door will
unlock. If you close the doors, you can lock
them using the remote keyless entry transmitter.
Be sure to remove the key from the ignition
when locking your vehicle.
This feature can be overridden by pressing
the lock button on the remote keyless entry
transmitter or by pressing the power lock switch
a second time.
Trunk
{CAUTION:
It can be dangerous to drive with the
trunk lid open because carbon monoxide
(CO) gas can come into your vehicle.
You cannot see or smell CO. It can cause
unconsciousness and even death. If you
must drive with the trunk lid open or
if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
and select the control setting that will
force outside air into your vehicle.
See Climate Control System.
If you have air outlets on or under
the instrument panel, open them all
the way.
SeeEngine Exhaust on page 134.
104

Power Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome from
extreme heat in warm or hot weather and
suffer permanent injuries or even death
from heat stroke.
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The windows
will function with the keys in the ignition
and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave keys in a vehicle
with children.
CAUTION: (Continued)
CAUTION: (Continued)
When there are children in the rear seat use
the window lockout button to prevent
unintentional operation of the windows.
The power window
switches are located on
the armrest near
each window.
Press the up or down arrows on the switches to
raise or lower the windows.
108

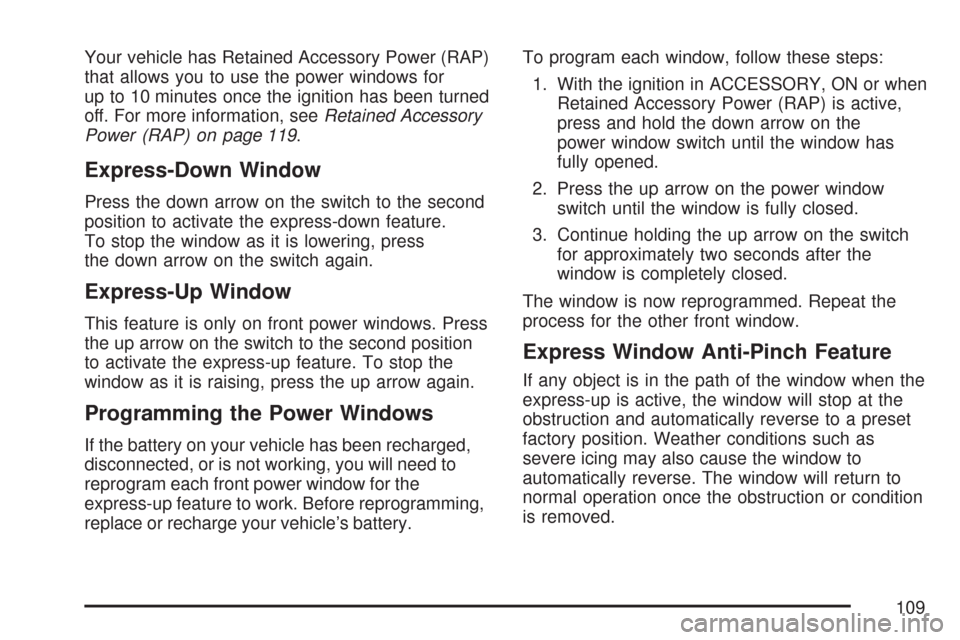

Your vehicle has Retained Accessory Power (RAP)
that allows you to use the power windows for
up to 10 minutes once the ignition has been turned
off. For more information, seeRetained Accessory
Power (RAP) on page 119.
Express-Down Window
Press the down arrow on the switch to the second
position to activate the express-down feature.
To stop the window as it is lowering, press
the down arrow on the switch again.
Express-Up Window
This feature is only on front power windows. Press
the up arrow on the switch to the second position
to activate the express-up feature. To stop the
window as it is raising, press the up arrow again.
Programming the Power Windows
If the battery on your vehicle has been recharged,
disconnected, or is not working, you will need to
reprogram each front power window for the
express-up feature to work. Before reprogramming,
replace or recharge your vehicle’s battery.To program each window, follow these steps:
1. With the ignition in ACCESSORY, ON or when
Retained Accessory Power (RAP) is active,
press and hold the down arrow on the
power window switch until the window has
fully opened.
2. Press the up arrow on the power window
switch until the window is fully closed.
3. Continue holding the up arrow on the switch
for approximately two seconds after the
window is completely closed.
The window is now reprogrammed. Repeat the
process for the other front window.
Express Window Anti-Pinch Feature
If any object is in the path of the window when the
express-up is active, the window will stop at the
obstruction and automatically reverse to a preset
factory position. Weather conditions such as
severe icing may also cause the window to
automatically reverse. The window will return to
normal operation once the obstruction or condition
is removed.
109

Sun Visors
Swing down the primary visor to block out glare.
It can also be detached from the center mount
and moved to the side to block glare from
that direction.
The driver’s visor may also have buttons for a
built-in garage door opener. SeeUniversal Home
Remote System on page 147for more
information.
Lighted Visor Vanity Mirror
Pull the visor down and lift the cover to access the
mirror. A light comes on when the cover is lifted
and goes out when it is closed.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Theft-Deterrent System
If your vehicle has this
feature, the security
light is located on
the instrument panel
cluster.
If the ignition is off and a door is open, the
security light will ash, reminding you to arm the
theft-deterrent system.
111

Immobilizer Operation
Your vehicle has a
passive theft-deterrent
system.
The system works when the key is turned to ON.
The key uses a transponder that matches an
immobilizer control unit in your vehicle. Only the
correct key will start the vehicle. If the key is ever
damaged, you may not be able to start your vehicle.When trying to start the vehicle, if the engine does
not start and the security light comes on, the
key may have a damaged transponder. Turn the
ignition off and try again.
If the engine still does not start, and the key
appears to be undamaged, try another ignition
key. At this time, you may also want to check
the fuse. SeeFuses and Circuit Breakers on
page 447. If the engine still does not start with the
other key, your vehicle needs service. If your
vehicle does start, the rst key may be faulty.
See your dealer who can service the
theft-deterrent system and have a new key made.
It is possible for the theft-deterrent system decoder
to learn the transponder value of a new or
replacement key. Up to 10 additional keys may be
programmed for the vehicle. The following
procedure is for programming additional keys only.
114

Canadian Owners:If you lose or damage your
keys, only a GM dealer can service the
theft-deterrent system to have new keys made.
To program additional keys you will require
two current driver’s keys. You must add a step to
the following procedure. After Step 2, repeat
Steps 1 and 2 with the second current driver’s key.
Then continue with Step 3.
To program a new key do the following:
1. Verify that the new key has PK3+ stamped
on it.
2. Insert the current driver’s key in the ignition
and start the engine. If the engine will not
start see your dealer for service.
3. After the engine has started, turn the key to
OFF, and remove the key.4. Insert the key to be programmed and turn it to
ON within ten seconds of removing the
previous key.
5. The security light will turn off once the key
has been programmed. It may not be
apparent that the security light went on due to
how quickly the key is programmed.
6. Repeat the Steps 1 through 4 if additional
keys are to be programmed.
If the security light comes on and stays on while
driving, you will be able to restart the engine if you
turn it off. The theft-deterrent system, however,
is not working properly and must be serviced
by your dealer. Your vehicle is not protected by
the theft-deterrent system at this time.
In an emergency, contact Cadillac Roadside
Service
®. SeeRoadside Service on page 488.
115

Ignition Positions
With the key in the ignition switch, you can turn
the key to four different positions.
Notice:Using a tool to force the key from its
cylinder could cause damage or break the key.
Use the correct key and turn the key only with
your hand. Make sure the key is all the way in.
If it is and you have a manual transmission
vehicle, turn the steering wheel left and right
while you turn the key hard. If none of this
works, then your vehicle needs service.A (OFF):This is the only position in which the
key can be inserted or removed. This position
locks the ignition and shifter on automatic
transmission vehicles, and the ignition and steering
wheel on manual transmission vehicles.
B (ACCESSORY):This position allows you to use
things like the radio and the windshield wipers
when the engine is off. This position will allow you
to turn off the engine.
C (ON):This position is for driving. If your vehicle
has an automatic transmission and you turn off
the engine, the transmission will lock. If you need
to shift the transmission out of PARK (P), the
ignition key has to be in ACCESSORY or ON.
The battery could be drained if you leave the key
in the ACCESSORY or ON position with the
engine off. You may not be able to start your
vehicle if the battery is allowed to drain for
an extended period of time.
D (START):This position starts the engine.
117

Key In the Ignition
Never leave your vehicle with the keys inside, as it
is an easy target for joy riders or thieves. If you
leave the key in the ignition and park your vehicle,
a chime will sound, when you open the driver’s
door. Always remember to remove the key
from the ignition and take it with you. This will lock
the ignition and transmission. Also, always
remember to lock the doors.
The battery could be drained if you leave the
key in the ignition while your vehicle is parked.
You may not be able to start your vehicle
after it has been parked for an extended period
of time.
Key Release Button
(Manual Transmission)
The key cannot be
removed from the
ignition of a manual
transmission vehicle,
unless the key release
button is used.
To remove the key, do the following:
1. Turn the key to ACCESSORY.
2. Press and release the button and then turn
the key to OFF.
Do not hold the button in while turning the key
to OFF.
3. Pull the key straight out of the ignition switch.
118

Retained Accessory Power (RAP)
The following accessories on your vehicle may be
used for up to 10 minutes after the ignition key
is turned from ON to OFF:
Radio
Power Windows
Audio Steering Wheel Controls
Sunroof
Power to these accessories stops after 10 minutes
or if a door is opened. If an additional 10 minutes
of power is needed, close all the doors and
turn the ignition key to ON and then back to OFF.
Starting the Engine
Automatic Transmission
Move your shift lever to PARK (P) or
NEUTRAL (N). Your engine will not start in
any other position — that is a safety feature.
To restart when you are already moving,
use NEUTRAL (N) only.
Notice:Do not try to shift to PARK (P) if your
vehicle is moving. If you do, you could
damage the transmission. Shift to PARK (P)
only when your vehicle is stopped.
Manual Transmission
The shift lever should be in NEUTRAL and the
parking brake engaged. Hold the clutch pedal
to the oor and start the engine. Your vehicle
will not start if the clutch pedal is not all the way
down — that is a safety feature.
1. With your foot off the accelerator pedal, turn
your ignition key to START. Then, let go of
the key; the engine will start automatically.
The idle speed will go down as your engine
gets warm. Do not race the engine
immediately after starting it. Operate the
engine and transmission gently until the oil
warms up and lubricates all moving parts.
Your vehicle has a Computer-Controlled
Cranking System. This feature assists in
starting the engine and protects the electrical
system. If the ignition key is turned to the
START position, and then released when the
engine begins cranking, the engine will
continue cranking until the vehicle starts or
until it exceeds the maximum cranking
time allowed, approximately 15 seconds
to prevent cranking motor damage.
119

To prevent starter-motor gear damage, this
system also prevents cranking if the engine is
already running. The engine cranking can
be stopped by turning the ignition switch to the
ACCESSORY or OFF position.
2. If your engine will not start, or starts but then
stops, it could be ooded with too much
gasoline. Try pushing your accelerator pedal
all the way to the oor and holding it there
as you turn the key to START. If the vehicle
starts briey but then stops again, do the
same thing.
Notice:Your engine is designed to work with
the electronics in your vehicle. If you add
electrical parts or accessories, you could
change the way the engine operates. Before
adding electrical equipment, check with
your dealer. If you do not, your engine might
not perform properly. Any resulting damage
would not be covered by your vehicle’s
warranty.Engine Coolant Heater
Your vehicle may have an engine coolant heater.
In very cold weather, 0°F (−18°C) or colder,
the engine coolant heater can help. You will get
easier starting and better fuel economy during
engine warm-up.
Usually, the coolant heater should be plugged in
a minimum of four hours prior to starting your
vehicle. At temperatures above 32°F (0°C), use of
the coolant heater is not required. Your vehicle
may also have an internal thermostat in the
plug end of the cord. This will prevent operation of
the engine coolant heater when the temperature
is at or above 0°F (−18°C) as noted on the cord.
120
