How to Reset the Engine Oil Life
System and the Oil Life Indicator
The Engine Oil Life System calculates when to
change your engine oil and lter based on vehicle
use. Anytime your oil is changed, reset the system
so it can calculate when the next oil change is
required. If a situation occurs where you change
your oil prior to a change engine oil message in the
DIC being turned on, reset the system.
After the oil has been changed, the change engine
oil message and the oil life indicator must be
reset. To reset the message and indicator, use one
of the following procedures:
Base Audio System
Press the CLR button located to the right of the
DIC display to acknowledge the change engine oil
message. This will clear the message from the
display and reset it.To reset the oil life indicator, use the following
steps:
1. Press the up or down arrow on the INFO
button located to the right of the DIC
display to access the DIC menu.
2. Once XXX% ENGINE OIL LIFE menu item is
highlighted, press and hold the CLR button.
The percentage will return to 100, and
the oil life indicator will be reset. Repeat the
steps if the percentage does not return to 100.
3. Turn the key to OFF.
If the change engine oil message comes back on
when you start your vehicle, the engine oil life
system has not reset. Repeat the procedure.Navigation System
If you have the navigation system, see “Vehicle
Customization” in the Navigation System Manual
for how to reset the oil life indicator.
350

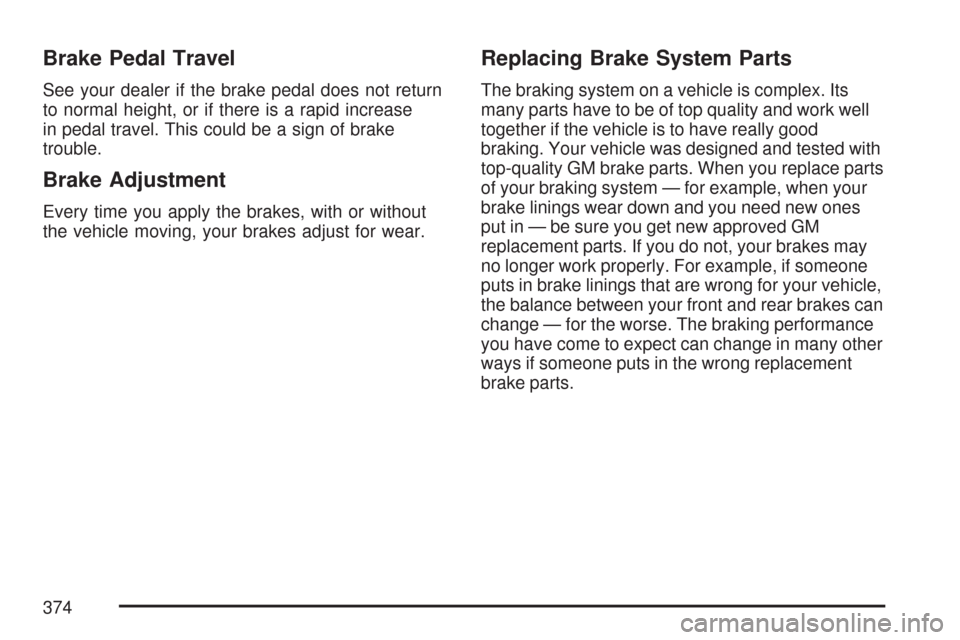

Brake Pedal Travel
See your dealer if the brake pedal does not return
to normal height, or if there is a rapid increase
in pedal travel. This could be a sign of brake
trouble.
Brake Adjustment
Every time you apply the brakes, with or without
the vehicle moving, your brakes adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is complex. Its
many parts have to be of top quality and work well
together if the vehicle is to have really good
braking. Your vehicle was designed and tested with
top-quality GM brake parts. When you replace parts
of your braking system — for example, when your
brake linings wear down and you need new ones
put in — be sure you get new approved GM
replacement parts. If you do not, your brakes may
no longer work properly. For example, if someone
puts in brake linings that are wrong for your vehicle,
the balance between your front and rear brakes can
change — for the worse. The braking performance
you have come to expect can change in many other
ways if someone puts in the wrong replacement
brake parts.
374

Federal Communications Commission
(FCC) and Industry and Science Canada
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
Tire Inspection and Rotation
Tires should be rotated every 5,000 to 8,000 miles
(8 000 to 13 000 km).
If your vehicle has P245/45ZR18 96W size tires,
GM recommends rotating these tires at 3,000 mile
(4 800 km) intervals. These tires are optimized for
dry traction and handling performance. Tread life
may be 15,000 miles (24 140 km) or less for these
tires, depending on how and where you drive.
Any time you notice unusual wear, rotate your
vehicle’s tires as soon as possible and check
wheel alignment. Also check for damaged tires or
wheels. SeeWhen It Is Time for New Tires on
page 411andWheel Replacement on page 416for
more information.
The purpose of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The
rst rotation is the most important. SeeScheduled
Maintenance on page 462.
409

When rotating your vehicle’s tires, always use the
correct rotation pattern shown here.
If your vehicle has a compact spare tire, do not
include it in the tire rotation.
After the tires have been rotated, adjust the front
and rear ination pressures as shown on the Tire
and Loading Information label. SeeLoading Your
Vehicle on page 321, for an example of the tire and
loading information label and its location on your
vehicle.
If your vehicle has the Tire Pressure Monitor
System (TPMS) the TPMS sensors will need to be
reset and matched to the tire/wheel position. A
special TPMS diagnostic tool is used to reset the
sensor identication codes. See your dealer for
service.Make certain that all wheel nuts are properly
tightened. See “Wheel Nut Torque” under
Capacities and Specications on page 457.
{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after time. The wheel could
come off and cause an accident. When
you change a wheel, remove any rust or
dirt from places where the wheel attaches
to the vehicle. In an emergency, you can
use a cloth or a paper towel to do this;
but be sure to use a scraper or wire brush
later, if needed, to get all the rust or dirt
off. SeeChanging a Flat Tire (CTS Only)
on page 424.
410

7. Raise the vehicle by turning the wheel wrench
clockwise. Raise the vehicle far enough off
the ground for the compact spare tire to
t under the vehicle.8. Remove all the
wheel nuts and take
off the at tire.
{CAUTION:
Rust or dirt on the wheel, or on the parts
to which it is fastened, can make the
wheel nuts become loose after time.
The wheel could come off and cause an
accident. When you change a wheel,
remove any rust or dirt from the places
where the wheel attaches to the vehicle.
CAUTION: (Continued)
430

When you go to your GM Goodwrench®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.
If you want to purchase service information,
seeService Publications Ordering Information
on page 501.
Owner Checks and Services on page 469tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle in
good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 473andNormal
Maintenance Replacement Parts on page 475.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of
genuine GM parts.Scheduled Maintenance
When the Change Engine Oil message in the
Driver Information Center (DIC) comes on,
it means that service is required for your vehicle.
Have your vehicle serviced as soon as possible
within the next 600 miles (1 000 km). It is possible
that, if you are driving under the best conditions,
the engine oil life system may not indicate
that vehicle service is necessary for over a year.
However, your engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your GM Goodwrench
®
dealer has GM-trained service technicians who will
perform this work using genuine GM parts and
reset the system.
If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 349for information on the Engine Oil Life
System and resetting the system.
462

Calling for Assistance
For prompt and efficient assistance when calling,
please provide the following to the Roadside
Service Representative:
A description of the problem
Name, home address, home telephone
number
Location of your Cadillac and number you are
calling from
The model year, Vehicle Identication Number
(VIN), odometer reading, and date of delivery
While we hope you never have the occasion to use
our service, it is added security while traveling
for you and your family. Remember, we are only a
phone call away. In the United States or Canada,
customers call Roadside Service:1-800-882-1112.
Any customer who has access to a (TTY) or a
conventional teletypewriter can communicate with
Cadillac by dialing from the United States or
Canada1-888-889-2438— daily, 24 hours.Cadillac and General Motors of Canada Limited
reserve the right to limit services or reimbursement
to an owner or driver when, in their sole
discretion, the claims become excessive in
frequency or type of occurrence.
Roadside Service is not part of or included in the
coverage provided by the New Vehicle Limited
Warranty. Cadillac General Motors of Canada
Limited reserve the right to make any changes or
discontinue the Roadside Service program at
any time without notication.Towing and Road Service Exclusions
Specically excluded from Roadside Service
coverage are towing or services for vehicles
operated on a non-public roadway or highway,
nes, impound towing caused by a violation
of local, Municipal, State, Provincial or Federal
law, and mounting, dismounting or changing
of snow tires, chains, or other traction devices.
491

Additional Program Information
All program options, such as shuttle service, may
not be available at every dealer. Please contact
your dealer for specic information about
availability. All Courtesy Transportation
arrangements will be administered by appropriate
dealer personnel.
Cadillac and General Motors of Canada reserve
the right to unilaterally modify, change or
discontinue Courtesy Transportation at any time
and to resolve all questions of claim eligibility
pursuant to the terms and conditions described
herein at their sole discretion.
Vehicle Data Collection and Event
Data Recorders
Your vehicle, like other modern motor vehicles,
has a number of sophisticated computer
systems that monitor and control several
aspects of the vehicle’s performance.Your vehicle uses on-board vehicle computers
to monitor emission control components to
optimize fuel economy, to monitor conditions
for airbag deployment and, if the vehicle
has the Anti-lock Brake System (ABS), to
provide anti-lock braking and to help the
driver control the vehicle in difficult driving
situations. Some information may be stored
during regular operations to facilitate repair of
detected malfunctions; other information is
stored only in a crash event by computer
systems, such as those commonly called
Event Data Recorders (EDR).
In a crash event, computer systems, such as
the airbag Sensing and Diagnostic Module
(SDM) in your vehicle may record information
about the condition of the vehicle and how
it was operated, such as data related to
engine speed, brake application, throttle
position, vehicle speed, safety belt usage,
airbag readiness, airbag performance,
and the severity of a collision.
494

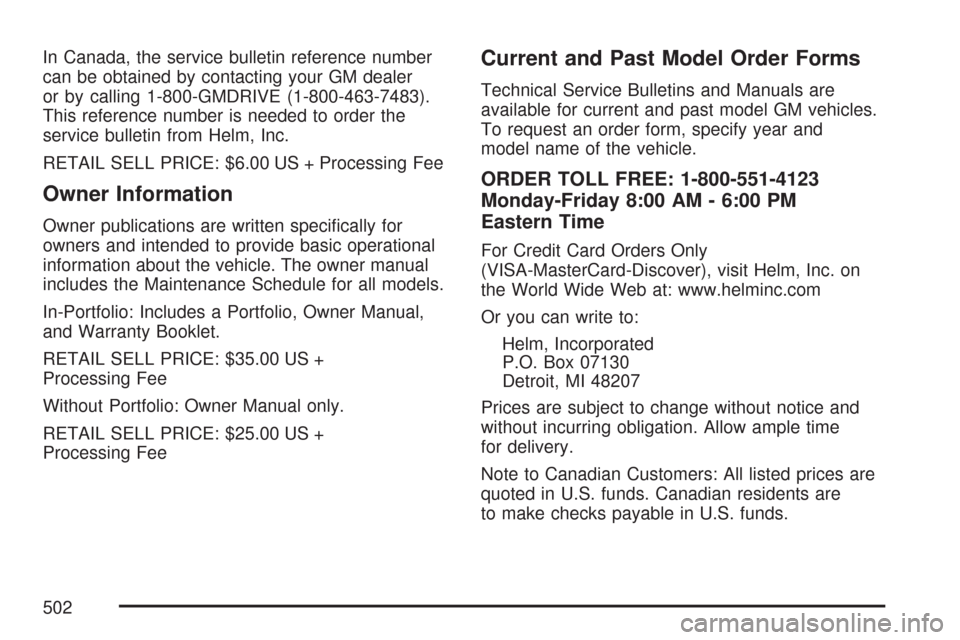

In Canada, the service bulletin reference number
can be obtained by contacting your GM dealer
or by calling 1-800-GMDRIVE (1-800-463-7483).
This reference number is needed to order the
service bulletin from Helm, Inc.
RETAIL SELL PRICE: $6.00 US + Processing Fee
Owner Information
Owner publications are written specically for
owners and intended to provide basic operational
information about the vehicle. The owner manual
includes the Maintenance Schedule for all models.
In-Portfolio: Includes a Portfolio, Owner Manual,
and Warranty Booklet.
RETAIL SELL PRICE: $35.00 US +
Processing Fee
Without Portfolio: Owner Manual only.
RETAIL SELL PRICE: $25.00 US +
Processing Fee
Current and Past Model Order Forms
Technical Service Bulletins and Manuals are
available for current and past model GM vehicles.
To request an order form, specify year and
model name of the vehicle.
ORDER TOLL FREE: 1-800-551-4123
Monday-Friday 8:00 AM - 6:00 PM
Eastern Time
For Credit Card Orders Only
(VISA-MasterCard-Discover), visit Helm, Inc. on
the World Wide Web at: www.helminc.com
Or you can write to:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Prices are subject to change without notice and
without incurring obligation. Allow ample time
for delivery.
Note to Canadian Customers: All listed prices are
quoted in U.S. funds. Canadian residents are
to make checks payable in U.S. funds.
502

H
Hazard Warning Flashers............................ 168
Head Restraints............................................ 17
Headlamp
Aiming..................................................... 383
Headlamps.................................................. 180
Bulb Replacement.................................... 386
Daytime Running Lamps.......................... 181
Flash-to-Pass........................................... 172
Front Turn Signal and Fog Lamps............ 387
Halogen Bulbs......................................... 386
High Intensity Discharge (HID) Lighting.... 386
High/Low Beam Changer......................... 172
On Reminder........................................... 181
Washer.................................................... 175
Wiper Activated........................................ 180
Heated Seats................................................ 10
Heater......................................................... 189
Highbeam On Light..................................... 214
High-Speed Operation, Tires........................ 404
Highway Hypnosis....................................... 313
Hill and Mountain Roads............................. 314Hood
Checking Things Under............................ 340
Release................................................... 341
Horn............................................................ 168
Hot Coolant Temperature Warning
Message.................................................. 219
How to Use This Manual................................ 4
How to Wear Safety Belts Properly............... 25
Hydraulic Clutch.......................................... 356
I
Ignition Positions......................................... 117
Immobilizer.................................................. 113
Immobilizer Operation.................................. 114
Infants and Young Children, Restraints.......... 45
Ination - Tire Pressure............................... 402
Instrument Panel
Overview.................................................. 166
Instrument Panel (I/P)
Brightness................................................ 184
Cluster..................................................... 198
509
