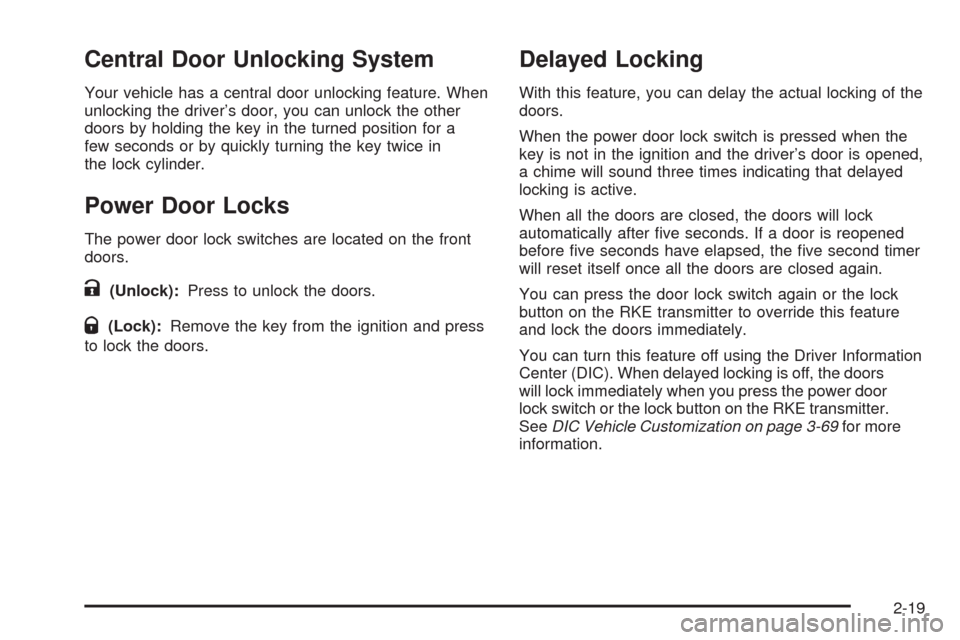

Central Door Unlocking System
Your vehicle has a central door unlocking feature. When
unlocking the driver’s door, you can unlock the other
doors by holding the key in the turned position for a
few seconds or by quickly turning the key twice in
the lock cylinder.
Power Door Locks
The power door lock switches are located on the front
doors.
K(Unlock):Press to unlock the doors.
Q(Lock):Remove the key from the ignition and press
to lock the doors.
Delayed Locking
With this feature, you can delay the actual locking of the
doors.
When the power door lock switch is pressed when the
key is not in the ignition and the driver’s door is opened,
a chime will sound three times indicating that delayed
locking is active.
When all the doors are closed, the doors will lock
automatically after ve seconds. If a door is reopened
before ve seconds have elapsed, the ve second timer
will reset itself once all the doors are closed again.
You can press the door lock switch again or the lock
button on the RKE transmitter to override this feature
and lock the doors immediately.
You can turn this feature off using the Driver Information
Center (DIC). When delayed locking is off, the doors
will lock immediately when you press the power door
lock switch or the lock button on the RKE transmitter.
SeeDIC Vehicle Customization on page 3-69for more
information.
2-19

Programmable Automatic Door
Locks
If your vehicle has an automatic transmission, the
vehicle is programmed so that the doors will lock
automatically when all doors are closed, the ignition
is on, and the shift lever is moved out of PARK (P).
The doors will automatically unlock when you stop the
vehicle and move the shift lever back into PARK (P).
If your vehicle has a manual transmission, the vehicle is
programmed so that the doors will lock automatically after
the vehicle speed reaches 5 mph (8 km). The doors will
automatically unlock when the ignition is turned off and
the key is removed from the ignition.
If someone needs to exit the vehicle once the doors
are locked, have that person use the manual lever
or power door lock switch. When the door is closed
again, it will not lock automatically. Use the manual
lever or the power door lock switch to lock the door.
The power door locks can be programmed through
prompts displayed on the Driver Information
Center (DIC). These prompts allow you to choose
various lock and unlock settings. For more information
on programming, seeDIC Vehicle Customization on
page 3-69.
Rear Door Security Locks
Your vehicle has rear door security locks. These
prevent passengers from opening the rear doors from
the inside.
The rear door security
locks are located on the
inside edge of each rear
door. The rear doors must
be open to access them.
The label showing lock and
unlock positions is located
near the lock.
To set the locks, do the following:
1. Insert the key into the security lock slot and turn it
so the slot is in the horizontal position.
2. Close the door.Lock Label shown
2-20

When you want to open a rear door when the security
lock is on, do the following:
1. Unlock the door using the Remote Keyless Entry
(RKE) or Keyless Access System transmitter, if
the vehicle has one, the power door lock switch,
or the rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot and turn it
so the slot is in the vertical position.
Lockout Protection
If the power door lock switch is pressed when the key
is in the ignition and a door is open, all the doors will lock
and only the driver’s door will unlock. If you close the
doors, they can be locked by using the Remote Keyless
Entry (RKE) transmitter. Be sure to remove the key from
the ignition when locking your vehicle.
This feature can be overridden by pressing the lock
button on the RKE transmitter or by pressing the power
lock switch a second time.
On vehicles with a Keyless Access System, the system
can be programmed to alert you when all the doors
are closed and a transmitter has been left inside of the
vehicle. SeeDIC Vehicle Customization on page 3-69
for more information.
Trunk
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and
even death. If you must drive with the trunk
lid open or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See Climate Control
System.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-48.
2-21

Trunk Lock Release
The remote trunk release
button is located on the
lower portion of the
driver’s door.
To use the remote trunk release, the shift lever must
be in PARK (P) or NEUTRAL (N) for a vehicle with
an automatic transmission. The shift lever must be
in NEUTRAL, with the parking brake set for a vehicle
with a manual transmission.
Press the button to open the trunk. You can also
press the button with the trunk symbol on the Remote
Keyless Entry (RKE) transmitter to open the trunk.
On vehicles with a Keyless Access System, squeeze
the trunk release button located on the rear of the trunk
lid above the license plate, as long as you have your
transmitter with you. Entry occurs when the buttonis being pressed and the vehicle recognizes the
transmitter. The vehicle must be in PARK (P) and
the valet mode turned off.
If your vehicle is ever without power, the trunk area
can still be manually accessed by using one of
the following procedures.
On vehicles with a rear seat pass-through door:
1. Fold the rear armrest down and open the
pass-through door. See “Rear-Seat Pass Through”
following for more information.
2. Reach upward through the opening to locate the
emergency trunk release handle. See “Emergency
Trunk Release Handle” for more information.
3. Pull forward on the trunk release handle to open
the trunk lid.
On vehicles with a split folding rear seat:
1. Fold down the rear seatback. SeeSplit Folding
Rear Seat on page 1-11for more information.
2. Reach upward through the opening to locate the
trunk release handle.
3. Pull forward on the trunk release handle to open
the trunk lid.
2-22

Power Windows
{CAUTION:
Leaving children in a vehicle with the keys is
dangerous for many reasons, children or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
The windows will function and they could be
seriously injured or killed if caught in the path
of a closing window. Do not leave keys in a
vehicle with children.
When there are children in the rear seat
use the window lockout button to prevent
unintentional operation of the windows.The power window
switches are located
on the driver’s door.
In addition, each door has a switch for its own window.
The front power window switch operates with two
positions for both up and down movement and the rear
power window switch operates with one position for up
and two positions for down movement. Press the switch
to the rst position to lower the window to the desired
level. Pull the switch up to raise the window. Your vehicle
has Retained Accessory Power (RAP) that allows you to
use the power windows once the ignition has been turned
off. For more information, seeRetained Accessory Power
(RAP) on page 2-35.
2-25

Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
This vehicle has theft-deterrent features, however,
they do not make it impossible to steal.
Theft-Deterrent System
If your vehicle has this
feature, the security light is
located on the instrument
panel cluster.
To activate the theft-deterrent system:
1. Open the door.
2. Lock the door with the transmitter. The security light
should come on and stay on.
3. Close all doors. The security light should go off
after about 30 seconds. The alarm is not armed
until the security light goes off.If a locked door or trunk is opened without using the
key in the driver’s door key cylinder or the transmitter, a
ten second pre-alarm will occur. The horn will chirp and
the lights will ash. If the key is not placed in the ignition
and turned to START or the door is not unlocked by
pressing the unlock button on the transmitter during the
ten second pre-alarm, the alarm will go off. Your vehicle’s
headlamps will ash and the horn will sound for about
30 seconds, then will turn off to save the battery power.
The theft-deterrent system will not activate if the doors
are locked with the vehicle’s key or the manual door
lock. It activates only if the power door lock switch
is used while the door is open or with the transmitter.
You should also remember that you can start your
vehicle with the correct ignition key if the alarm has
been set off.
To avoid setting off the alarm by accident:
Lock the vehicle with the door key after the doors
are closed.
Always unlock a door with the transmitter. Unlocking
a door any other way will set off the alarm.
If you set off the alarm by accident, turn off the alarm by
pressing the unlock button on the transmitter. The alarm
will not stop if you try to unlock a door any other way.
2-28

Immobilizer Operation (Key Access)
Your vehicle has a passive theft-deterrent system.
The system is automatically armed when the key
is removed from the ignition.
The theft-deterrent system is disarmed when the key is
turned to ON/RUN.
You do not have to manually arm or disarm the system.
The security light will come on if there is a problem
with arming or disarming the theft-deterrent system.
The key uses a transponder that matches an immobilizer
control unit in your vehicle and automatically disarms
the system. Only the correct key will start the vehicle.
If the key is ever damaged, you may not be able to start
your vehicle.
When trying to start the vehicle, if the engine does not
start and the security light comes on, there may be
a problem with your theft-deterrent system. Turn
the ignition off and try again.
If the engine still does not start, and the key appears
to be undamaged, try another ignition key. At this time,
you may also want to check the fuse. SeeFuses
and Circuit Breakers on page 5-123. If the engine still
does not start with the other key, your vehicle needs
service. If your vehicle does start, the rst key may be
faulty. See your dealer/retailer who can service the
theft-deterrent system and have a new key made.It is possible for the theft-deterrent system decoder to
learn the transponder value of a new or replacement
key. Up to 10 keys can be programmed for the vehicle.
The following procedure is for programming additional
keys only.
To program a new key do the following:
1. Verify that the new key has
1stamped on it.
2. Insert the current driver’s key in the ignition and
start the engine. If the engine will not start see
your dealer/retailer for service.
3. After the engine has started, turn the key to
LOCK/OFF, and remove the key.
4. Insert the key to be programmed and turn it to
ON/RUN within ve seconds of the ignition being
turned to LOCK/OFF in Step 3.
5. The security light will turn off once the key has
been programmed. It may not be apparent that
the security light went on due to how quickly the
key is programmed.
6. Repeat the Steps 1 through 4 if additional keys are
to be programmed.
In an emergency, contact Cadillac Roadside Service.
SeeRoadside Service on page 7-7.
Do not leave the key or device that disarms or
deactivates the theft deterrent system in the vehicle.
2-30

Immobilizer Operation
(Keyless Access)
Your vehicle has a passive theft-deterrent system.
The system is automatically armed when the ignition
control knob is turned to LOCK/OFF.
The immobilization system is disarmed when the ignition
control knob is pushed in and a valid transmitter is
found in the vehicle.
You do not have to manually arm or disarm the system.
The security light will come on if there is a problem
with arming or disarming the theft-deterrent system.
The system has one or more keyless access
transmitters that are matched to an immobilizer control
unit in your vehicle. Only a correctly matched keyless
access transmitter will start the vehicle. If the keyless
access transmitter is ever damaged, you may not
be able to start your vehicle.
When trying to start the vehicle, if the engine does not
start and the security light comes on, there may be
a problem with your immobilizer system. Turn the
ignition control knob off and try again.If the ignition control knob does not rotate, and the
keyless access transmitter appears to be undamaged,
try another keyless access transmitter. Or, you may try
placing the transmitter in the transmitter pocket located in
the center console. See “Electronic Key Not Detected”
underDIC Warnings and Messages on page 3-56. At this
time, you may also want to check the fuse. SeeFuses
and Circuit Breakers on page 5-123. If the ignition control
knob still does not rotate with the other transmitter, your
vehicle needs service. If the ignition control knob does
rotate, the rst transmitter may be faulty. See your
dealer/retailer who can service the theft-deterrent system
and have a new keyless access transmitter programmed
to the vehicle.
It is possible for the immobilizer system to learn new or
replacement keyless access transmitters. Up to 4 keyless
access transmitters can be programmed for the vehicle.
To program additional transmitters, see “Matching
transmitter(s) to Your Vehicle” underKeyless Access
System Operation on page 2-10.
Do not leave the key or device that disarms or
deactivates the theft deterrent system in the vehicle.
2-31

Starting and Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an elaborate
break-in. But it will perform better in the long run if
you follow these guidelines for the rst 500 miles
(805 km):
Do not drive at any one constant speed, fast
or slow.
Do not exceed 70 mph (113 km/h).
Do not make full-throttle starts; also refrain
from using the full throttle while driving.
Avoid downshifting to brake or slow the vehicle.
If these procedures are not followed, the engine,
axle, or other parts could be damaged.
Avoid making hard stops for the rst 200 miles
(322 km) or so. During this time the new brake linings
are not yet broken in. Hard stops with new linings
can mean premature wear and earlier replacement.
Follow this break-in guideline every time you get
new linings.Do not tow a trailer during break-in. SeeTowing a
Trailer on page 4-30for the trailer towing capabilities
of your vehicle and more information.
Following break-in, engine speed and load can be
gradually increased.
Ignition Positions (Key Access)
The key can be turned to four different positions.
To shift out of PARK (P), ignition must be in the
ON/RUN or ACC/ACCESSORY and the regular brake
pedal must be applied.
2-32

Notice:Using a tool to force the key from its
cylinder could cause damage or break the key.
Use the correct key and turn the key only with
your hand. Make sure the key is all the way in. If it
is and you have a manual transmission vehicle, turn
the steering wheel left and right while you turn
the key hard. If none of this works, then your vehicle
needs service.
A (LOCK/OFF):This is the only position in which the
key can be inserted or removed. This position locks the
ignition and shifter on automatic transmission vehicles,
and the ignition and steering wheel on manual
transmission vehicles.
B (ACC/ACCESSORY):This position lets you use
things like the radio and the windshield wipers when
the engine is off. This position allows you to turn off
the engine.
C (ON/RUN):This position is for driving. It is the
position the ignition switch returns to after the engine
starts, and the key is released.To shift the transmission out of PARK (P), the ignition
key has to be in ACC/ACCESSORY or ON/RUN.
The battery could be drained if the key is left in the
ACC/ACCESSORY or ON/RUN position with the engine
off. The vehicle might not start if the battery is allowed
to drain for an extended period of time.
D (START):This position starts the engine.
Key In the Ignition
Never leave your vehicle with the keys inside, as it is
an easy target for joy riders or thieves. A chime sounds
when the driver’s door is opened while the vehicle is
parked and the key is left in the ignition. Always
remember to remove the key from the ignition and take
it with you. This will lock the ignition and transmission.
Also, always remember to lock the doors.
The battery could be drained if the key is left in the
ignition while your vehicle is parked. The vehicle might
not start after it has been parked for an extended
period of time.
2-33
