Oil Pressure Light
Your vehicle may have this
feature.
If the vehicle has an oil problem, this light may stay on
after the engine is started, or come on while you are
driving.
This light indicates that oil is not going through the
engine quickly enough to keep it lubricated. The engine
could be low on oil or could have some other oil
problem. Have it xed right away.The oil light could also come on in the following
situations:The light will come on briey when the ignition is
turned on to show that it is working properly. If it
does not come on with the ignition on, there may
be a problem with the fuse or bulb. Have it
xed right away.
Sometimes when the engine is idling at a stop, a
chime will sound and the light may blink on and
off. This is normal.
{CAUTION:
Do not keep driving if the oil pressure is low.
The engine can become so hot that it catches
re. You or others could be burned. Check the
oil as soon as possible and have the vehicle
serviced.
Notice:Lack of proper engine oil maintenance may
damage the engine. The repairs would not be
covered by the vehicle warranty. Always follow the
maintenance schedule in this manual for changing
engine oil.
3-44

Engine Oil Pressure Gage
Your vehicle may have an engine oil pressure gage.
It shows the engine oil pressure in psi (pounds per
square inch) when the engine is running. Canadian
vehicles indicate pressure in kPa (kilopascals).
Oil pressure may vary with engine speed, outside
temperature and oil viscosity, but if readings are outside
the normal operating range, the oil pressure light will
come on. SeeOil Pressure Light on page 3-44for more
information.A reading outside the normal operating range may be
caused by a dangerously low oil level or some other
problem causing low oil pressure. Check your oil as
soon as possible. See Oil pressure Low Stop Engine
underDIC Warnings and Messages on page 3-56
andEngine Oil on page 5-16.
{CAUTION:
Do not keep driving if the oil pressure is low.
The engine can become so hot that it catches
re. You or others could be burned. Check the
oil as soon as possible and have the vehicle
serviced.
Notice:Lack of proper engine oil maintenance
may damage the engine. The repairs would not be
covered by the vehicle warranty. Always follow
the maintenance schedule in this manual for
changing engine oil. United States
Canada
3-45

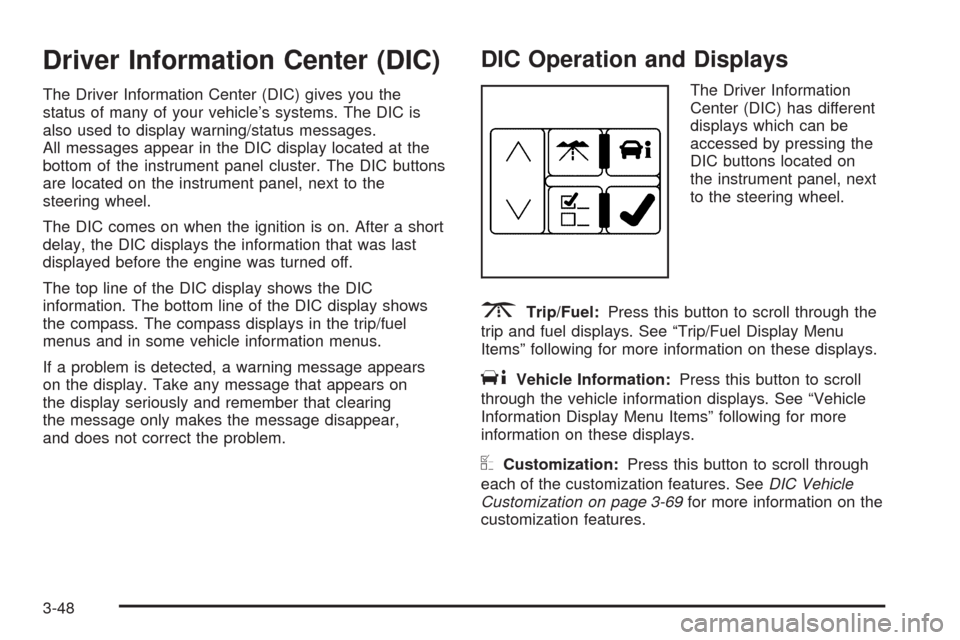

Driver Information Center (DIC)
The Driver Information Center (DIC) gives you the
status of many of your vehicle’s systems. The DIC is
also used to display warning/status messages.
All messages appear in the DIC display located at the
bottom of the instrument panel cluster. The DIC buttons
are located on the instrument panel, next to the
steering wheel.
The DIC comes on when the ignition is on. After a short
delay, the DIC displays the information that was last
displayed before the engine was turned off.
The top line of the DIC display shows the DIC
information. The bottom line of the DIC display shows
the compass. The compass displays in the trip/fuel
menus and in some vehicle information menus.
If a problem is detected, a warning message appears
on the display. Take any message that appears on
the display seriously and remember that clearing
the message only makes the message disappear,
and does not correct the problem.
DIC Operation and Displays
The Driver Information
Center (DIC) has different
displays which can be
accessed by pressing the
DIC buttons located on
the instrument panel, next
to the steering wheel.
3Trip/Fuel:Press this button to scroll through the
trip and fuel displays. See “Trip/Fuel Display Menu
Items” following for more information on these displays.
TVehicle Information:Press this button to scroll
through the vehicle information displays. See “Vehicle
Information Display Menu Items” following for more
information on these displays.
UCustomization:Press this button to scroll through
each of the customization features. SeeDIC Vehicle
Customization on page 3-69for more information on the
customization features.
3-48

Vehicle Information Display Menu Items
T
(Vehicle Information):The following display
menu items can be displayed by pressing the vehicle
information button:
Oil Life Remaining
If the vehicle has this display, it shows the estimated oil
life remaining. If you see 99% Oil Life Remaining on
the display, that means that 99% of the current oil life
remains.
When the oil life is depleted, the Change Engine Oil
Soon message appears on the display. You should
change the oil as soon as possible. In addition to the
engine oil life system monitoring the oil life, additional
maintenance is recommended in the Maintenance
Schedule in this manual. SeeScheduled Maintenance
on page 6-4andEngine Oil on page 5-16.
Remember, you must reset the Oil Life yourself after
each oil change. It does not reset itself. Also, be careful
not to reset the Oil Life accidentally at any time other
than when the oil has just been changed. It cannot
be reset accurately until the next oil change. To reset
the engine oil life system, SeeEngine Oil Life System on
page 5-19. The display shows 100% when the system
is reset.
Units
This display allows you to select between English or
Metric units of measurement. Once in this display,
press the set/reset button to select between English or
Metric units.
Parking Assist
If your vehicle has the Ultrasonic Rear Parking Assist
(URPA) system, this display allows the system to
be turned on or off. Once in this display, press the
set/reset button to select between On or Off. If you
choose On, the system turns on. If you choose Off,
the system turns off. The URPA system automatically
turns back on after each vehicle start. When the URPA
system is turned off and the vehicle is shifted out of
PARK (P), the DIC displays the Parking Assist Off
message as a reminder that the system has been turned
off. SeeDIC Warnings and Messages on page 3-56
andUltrasonic Rear Parking Assist (URPA) on
page 2-52for more information.
3-51

Automatic Light Control Off
This message displays when the automatic headlamps
are turned off.
Automatic Light Control On
This message displays when the automatic headlamps
are turned on.
Battery Saver Active
This message displays when the system detects that
the battery voltage is dropping below expected levels.
The battery saver system starts reducing certain
features of the vehicle that you may be able to notice.
At the point that the features are disabled, this message
is displayed. It means that the vehicle is trying to save
the charge in the battery.
Turn off all unnecessary accessories to allow the battery
to recharge.
The normal battery voltage range is 11.5 to 15.5 volts.
You can monitor battery voltage on the DIC by pressing
the vehicle information button until Battery Voltage is
displayed.
Battery Volts Low
This message displays when the electrical system is
charging less than 10 volts or the battery has been
drained.
If this message appears immediately after starting the
engine, it is possible that the generator can still recharge
the battery. The battery should recharge while driving,
but may take a few hours to do so. Consider using
an auxiliary charger to boost the battery after returning
home or to a nal destination. Make sure you follow
the manufacturer’s instructions.
If this message appears while driving or after starting
your vehicle and stays on, have it checked immediately
to determine the cause of this problem.
To help the generator recharge the battery quickly,
you can reduce the load on the electrical system
by turning off the accessories.
The normal battery voltage range is 11.5 to 15.5 volts.
You can monitor battery voltage on the DIC by pressing
the vehicle information button until Battery Voltage is
displayed.
3-57

Calibrating Drive In Circles
This message displays when calibrating the compass.
Drive the vehicle in circles at less than 5 mph (8 km/h)
to complete the calibration. SeeDIC Compass on
page 3-53for more information.
Calibration Complete
This message displays when the compass calibration is
complete. SeeDIC Compass on page 3-53for more
information.
Change Engine Oil Soon
When this message displays, it means that service is
required for your vehicle. See your dealer/retailer.
SeeEngine Oil on page 5-16andScheduled
Maintenance on page 6-4for more information.
When you reset the Change Engine Oil Soon message
by clearing it from the display, you still must reset
the engine oil life system separately. For more
information on resetting the engine oil life system,
seeEngine Oil Life System on page 5-19.
Check Tire Pressure
This message displays when the pressure in one or
more of the vehicle’s tires needs to be checked.
This message also displays Left Front, Right Front,
Left Rear, or Right Rear to indicate which tire needs
to be checked. You can receive more than one tire
pressure message at a time. To read the other
messages that may have been sent at the same time,
press the set/reset button. If a tire pressure message
appears on the DIC, stop as soon as you can. Have the
tire pressures checked and set to those shown on the
Tire Loading Information label. SeeTires on page 5-58,
Loading the Vehicle on page 4-22, andInflation - Tire
Pressure on page 5-66. The DIC display also shows the
tire pressure values. SeeDIC Operation and Displays
on page 3-48. If the tire pressure is low, the low tire
pressure warning light comes on. SeeTire Pressure
Light on page 3-41.
Cruise Set To XXX MPH (km/h)
This message displays whenever the cruise control is set.
SeeCruise Control on page 3-14for more information.
Driver Door Open
This message displays when the driver door is not closed
completely. Make sure that the door is closed completely.
3-58

Electronic Key Not Detected Restart
Allowed
If your vehicle has the keyless access system, this
message displays when the keyless access transmitter
is not detected inside the vehicle while you are trying
to turn the ignition off. Your vehicle may be near a strong
radio antenna signal causing the keyless access
system to be jammed. The vehicle will remain in
ACC/ACCESSORY until the vehicle is turned off or is
started, or ve minutes has expired. If you turn the
ignition off and you cannot nd the keyless access
transmitter, you will not be able to restart the vehicle.
The keyless access transmitter needs to be inside of the
vehicle in order for the vehicle to start. SeeStarting
the Engine on page 2-35for more information.
Engine Hot A/C (Air Conditioning) Off
This message displays when the engine coolant
becomes hotter than the normal operating temperature.
SeeEngine Coolant Temperature Gage on page 3-40.
To avoid added strain on a hot engine, the air
conditioning compressor automatically turns off. When
the coolant temperature returns to normal, the air
conditioning compressor turns back on. You can
continue to drive your vehicle.
If this message continues to appear, have the system
repaired by your dealer/retailer as soon as possible
to avoid damage to the engine.
Engine Oil Low Add Oil
If your vehicle has an oil level sensor, this message
displays if the oil level in the vehicle is low. Check the oil
level and correct it as necessary. You may need to let
the vehicle cool or warm up and cycle the ignition
to be sure this message clears.
This message clears itself after 10 seconds, until the
next ignition cycle. SeeEngine Oil on page 5-16
for additional information.
Engine Overheated Idle Engine
Notice:If you drive your vehicle while the engine is
overheating, severe engine damage may occur.
If an overheat warning appears on the instrument
panel cluster and/or DIC, stop the vehicle as soon as
possible. Do not increase the engine speed above
normal idling speed. SeeEngine Overheating
on page 5-31for more information.
This message displays when the engine coolant
temperature is too hot. Stop and allow the vehicle to
idle until it cools down. SeeEngine Coolant
Temperature Warning Light on page 3-40.
SeeOverheated Engine Protection Operating Mode on
page 5-33for information on driving to a safe place
in an emergency.
3-60

Engine Power Is Reduced
This message displays when the engine power is
being reduced to protect the engine from damage.
There could be several malfunctions that might cause
this message. Reduced engine power can affect
the vehicle’s ability to accelerate. If this message is on,
but there is no reduction in performance, proceed to
your destination. The performance may be reduced the
next time the vehicle is driven. The vehicle may be
driven at a reduced speed while this message is on, but
acceleration and speed may be reduced. Anytime this
message stays on, the vehicle should be taken to
your dealer/retailer for service as soon as possible.
Fuel Level Low
This message displays when your vehicle is low on fuel.
Rell the fuel tank as soon as possible. A chime may
sound when this message displays. SeeFilling the Tank
on page 5-9.
Heated Washer Fluid Wash (Washer)
Wipes Pending
If your vehicle has this feature, this message displays
when you turn on the heated windshield washer
uid system. See “Heated Windshield Washer” under
Windshield Washer on page 3-12for more information.
Heated Washer Fluid System Off
If your vehicle has this feature, this message displays
when you manually turn off the heated windshield
washer uid system or when the system automatically
turns off. See “Heated Windshield Washer” under
Windshield Washer on page 3-12for more information.
This message clears itself after 10 seconds.
Hood Open
This message displays when the hood is not closed
completely. Make sure that the hood is closed
completely.
Ice Possible Drive With Care
This message displays when the outside temperature is
cold enough to create icy road conditions. Adjust your
driving accordingly.
Learn Delay Active Wait XX Min
(Minutes)
If your vehicle has the keyless access system, this
message displays when matching new transmitters to
the vehicle. SeeKeyless Access System Operation
on page 2-10for more information.
3-61

Left Rear Door Open
This message displays when the driver side rear door is
not closed completely. Make sure that the door is
closed completely.
Maximum # Electronic Keys Learned
If your vehicle has the keyless access system, this
message displays when the maximum number of
transmitters have been learned. SeeKeyless Access
System Operation on page 2-10for more information.
Oil Pressure Low Stop Engine
Notice:If you drive your vehicle while the engine
oil pressure is low, severe engine damage may
occur. If a low oil pressure warning appears on
the instrument panel cluster and/or DIC, stop the
vehicle as soon as possible. Do not drive the vehicle
until the cause of the low oil pressure is corrected.
SeeEngine Oil on page 5-16for more information.
This message displays when the vehicle’s engine
oil pressure is low. The oil pressure light may also
appear on the instrument panel cluster. SeeOil
Pressure Light on page 3-44. SeeEngine Oil on
page 5-16for more information.Stop the vehicle immediately, as engine damage can
result from driving a vehicle with low oil pressure.
Have the vehicle serviced by your dealer/retailer as soon
as possible when this message is displayed.
Parking Assist Off
If your vehicle has the Ultrasonic Rear Parking Assist
(URPA) system, after the vehicle has been started, this
message displays to remind the driver that the URPA
system has been turned off. Press the set/reset button to
acknowledge this message and clear it from the DIC
display. To turn the URPA system back on, see “Parking
Assist” underDIC Operation and Displays on page 3-48.
SeeUltrasonic Rear Parking Assist (URPA) on
page 2-52for more information.
Passenger Door Open
This message displays when the passenger side front
door is not closed completely. Make sure that the door is
closed completely.
3-62

Press Brake To Start Engine
(Automatic Transmission Only)
If your vehicle has the keyless access system, this
message displays if you try to start the engine without
having the brake pressed. The brake needs to be
pressed when starting the engine. SeeIgnition Positions
(Key Access) on page 2-32orIgnition Positions
(Keyless Access) on page 2-34for more information.
Press Start Control To Learn Keys
If your vehicle has the keyless access system, this
message displays when matching new transmitters to
the vehicle. SeeKeyless Access System Operation
on page 2-10for more information.
Rainsense Wipers Active
If your vehicle has this feature, this message
displays while the Rainsense™ wipers are active.
SeeRainsense™ Wipers on page 3-10for
more information.
Ready To Learn Electronic Key # X
If your vehicle has the keyless access system, this
message displays while matching new transmitters to
the vehicle. SeeKeyless Access System Operation
on page 2-10for more information.
Remote Key Learning Active
If your vehicle has the Remote Keyless Entry (RKE)
system, this message displays while matching new
transmitters to the vehicle. See “Matching Transmitter(s)
to Your Vehicle” underRemote Keyless Entry (RKE)
System Operation on page 2-7andDIC Operation and
Displays on page 3-48for more information.
Replace Battery In Remote Key
This message displays when the battery in the Remote
Keyless Entry (RKE) or keyless access transmitter
needs to be replaced. To replace the battery, see
“Battery Replacement” underRemote Keyless Entry
(RKE) System Operation on page 2-7orKeyless Access
System Operation on page 2-10.
Right Rear Door Open
This message displays when the passenger side rear
door is not closed completely. Make sure that the door is
closed completely.
3-63
