Mirrors
Automatic Dimming Rearview Mirror
with OnStar
®
This vehicle has an automatic dimming inside rearview
mirror with OnStar®controls. For more information
about OnStar®, seeOnStar®System on page 2-55.
O(On/Off):The on/off button on the lower left side of
the mirror, is used for the automatic dimming functions
of the rearview mirror.
Mirror Operation
The automatic dimming feature comes on each time
the vehicle is started. Automatic dimming reduces
the glare of lights from behind the vehicle.
To turn the automatic dimming feature on or off, press
and release the on/off button. The indicator light
comes on when this feature is on.
Cleaning the Mirror
While cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.
Outside Power Mirrors
Controls for the outside
power mirrors are located
on the driver door armrest.
To adjust each mirror:
1. Press (A) or (B) to select the driver or passenger
side mirror.
2. Press one of the four arrows located on the control
pad to move the mirror to the desired direction.
3. Adjust each outside mirror so that you can see a
little of your vehicle, and the area behind your
vehicle.
4. Press either (A) or (B) again to deselect the mirror.
2-50
Page 129 of 490

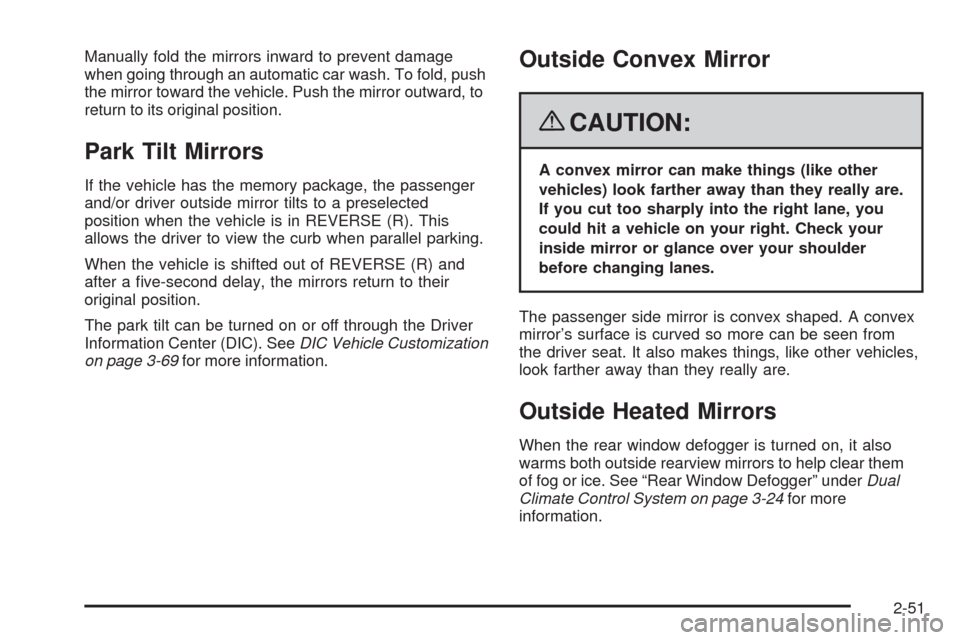

Manually fold the mirrors inward to prevent damage
when going through an automatic car wash. To fold, push
the mirror toward the vehicle. Push the mirror outward, to
return to its original position.
Park Tilt Mirrors
If the vehicle has the memory package, the passenger
and/or driver outside mirror tilts to a preselected
position when the vehicle is in REVERSE (R). This
allows the driver to view the curb when parallel parking.
When the vehicle is shifted out of REVERSE (R) and
after a ve-second delay, the mirrors return to their
original position.
The park tilt can be turned on or off through the Driver
Information Center (DIC). SeeDIC Vehicle Customization
on page 3-69for more information.
Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
The passenger side mirror is convex shaped. A convex
mirror’s surface is curved so more can be seen from
the driver seat. It also makes things, like other vehicles,
look farther away than they really are.
Outside Heated Mirrors
When the rear window defogger is turned on, it also
warms both outside rearview mirrors to help clear them
of fog or ice. See “Rear Window Defogger” underDual
Climate Control System on page 3-24for more
information.
2-51
Page 152 of 490
1 (Low Speed):Move the lever to this position for
slow, steady wiping cycles.
2 (High Speed):Move the lever to this position for
rapid wiping cycles.
If the windshield wipers are in use for about six seconds
while you are driving, the exterior lamps come on
automatically if the exterior lamp control is in AUTO.
SeeWiper Activated Headlamps on page 3-17for
more information.
Be sure to clear ice and snow from the wiper blades
before using them. If they are frozen to the windshield,
gently loosen or thaw them. If the blades do become
damaged, install new blades. For more information, see
Windshield Wiper Blade Replacement on page 5-57.
Heavy snow or ice can overload the wiper motor.
A circuit breaker will stop the motor until it cools down.
Clear away snow or ice to prevent an overload.Rainsense™ Wipers
Vehicles with Rainsense™ windshield wipers, have a
moisture sensor for this feature mounted on the interior
side of the windshield behind the rearview mirror.
This sensor automatically operates the wipers by
monitoring the amount of moisture build-up on the
windshield. Wipes occur as needed to clear the
windshield depending on driving conditions and the
sensitivity setting. In light rain or snow, fewer wipes
will occur. In heavy rain or snow, wipes occur more
frequently. If the system is left on for long periods of
time, occasional wipes may occur without any moisture
on the windshield. This is normal and indicates that
the Rainsense™ system is activated.
The wiper control should be left in the off position,
unless the wiper is needed.
The Rainsense™ system is sensitive to vibration and
can activate if something hits the windshield or if
the vehicle hits a bump.
3-10
Page 169 of 490
Defogging and Defrosting
Fog on the inside of windows is a result of high humidity
(moisture) condensing on the cool window glass.
This can be minimized if the climate control system
is used properly. There are two modes to clear fog
from the windshield. Use the defog mode to clear the
windows of fog or moisture and warm the passengers.
Use the defrost mode to remove fog or frost from
the windshield more quickly.
HG(Mode):Press the mode buttons until defog
appears on the display.
-(Defog):This mode directs the air between the
windshield, oor outlets and side windows. When this
mode is selected, the system turns off recirculation and
runs the air-conditioning compressor unless the outside
temperature is at or below freezing. If recirculation mode
is selected while in defog mode, it will be cancelled after
10 minutes.
0(Defrost):Pressing defrost directs most of the air
to the windshield, with some air directed to the side
windows. In this mode, the system automatically turns off
recirculation and runs the air-conditioning compressor,
unless the outside temperature is at or below freezing.
This mode may also cause the fan speed and air
temperature to increase.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
The rear window defogger will only work when the
ignition is in ON/RUN.
=(Rear Window Defogger):Press this button to turn
the rear window defogger on or off. Be sure to clear
as much snow from the rear window as possible.
The rear window defogger turns off about 15 minutes
after the button is rst pressed if the vehicle is moving
at slower speeds. At higher speeds, the rear window
defogger may stay on continuously. With each additional
press, the defogger runs for about 10 minutes.
The defogger can also be turned off by pressing the
button again or by turning off the engine.
The heated outside rearview mirrors will heat to help
clear fog or frost from the surface of the mirror when
the rear window defogger button is on. SeeOutside
Heated Mirrors on page 2-51.
Notice:Do not try to clear frost or other material
from the inside of the front windshield and rear
window with a razor blade or anything else that is
sharp. This may damage the rear window defogger
grid and affect your radio’s ability to pick up
stations clearly. The repairs wouldn’t be covered by
your warranty.
3-27
Page 282 of 490
Competitive Driving
See your warranty book before using your vehicle for
competitive driving.
Notice:If you use your vehicle for competitive
driving, the engine may use more oil than it would
with normal use. Low oil levels can damage the
engine. Be sure to check the oil level often during
competitive driving and keep the level at or near the
upper mark that shows the proper operating range
on the engine oil dipstick. For information on how to
add oil, seeEngine Oil on page 5-16.
Driving at Night
Night driving is more dangerous than day driving
because some drivers are likely to be impaired — by
alcohol or drugs, with night vision problems, or by fatigue.
Night driving tips include:
Drive defensively.
Do not drink and drive.
Reduce headlamp glare by adjusting the inside
rearview mirror.
Slow down and keep more space between you and
other vehicles because headlamps can only light up
so much road ahead.
Watch for animals.
When tired, pull off the road.
Do not wear sunglasses.
Avoid staring directly into approaching headlamps.
Keep the windshield and all glass on your vehicle
clean — inside and out.
Keep your eyes moving, especially during turns or
curves.
No one can see as well at night as in the daytime.
But, as we get older, these differences increase.
A 50-year-old driver might need at least twice as much
light to see the same thing at night as a 20-year-old.
4-14
Page 284 of 490
Before Leaving on a Long Trip
To prepare your vehicle for a long trip, consider having
it serviced by your dealer/retailer before departing.
Things to check on your own include:
Windshield Washer Fluid:Reservoir full? Windows
clean — inside and outside?
Wiper Blades:In good shape?
Fuel, Engine Oil, Other Fluids:All levels checked?
Lamps:Do they all work and are lenses clean?
Tires:Are treads good? Are tires in ated to
recommended pressure?
Weather and Maps:Safe to travel? Have
up-to-date maps?
Highway Hypnosis
Always be alert and pay attention to your surroundings
while driving. If you become tired or sleepy, nd a
safe place to park your vehicle and rest.
Other driving tips include:
Keep the vehicle well ventilated.
Keep interior temperature cool.
Keep your eyes moving — scan the road ahead
and to the sides.
Check the rearview mirror and vehicle instruments
often.
Hill and Mountain Roads
Driving on steep hills or through mountains is different
than driving on at or rolling terrain. Tips for driving
in these conditions include:
Keep the vehicle serviced and in good shape.
Check all uid levels and brakes, tires, cooling
system, and transmission.
Going down steep or long hills, shift to a
lower gear.
4-16
Page 484 of 490
Lighting
Entry.........................................................3-20
Parade Dimming..........................................3-20
Lights............................................................3-17
Flash-to-Pass............................................... 3-9
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-17
Limited-Slip Rear Axle....................................... 4-7
Loading Your Vehicle.......................................4-22
Lockout Protection..........................................2-21
Locks
Central Door Unlocking System.....................2-19
Delayed Locking..........................................2-19
Door ..........................................................2-18
Lockout Protection.......................................2-21
Power Door ................................................2-19
Programmable Automatic Door Locks.............2-20
Rear Door Security Locks.............................2-20
Loss of Control...............................................4-12
Lumbar
Power Controls............................................. 1-6
M
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill.........................................6-10
At Least Once a Month................................6-10
At Least Once a Year..................................6-11Maintenance Schedule (cont.)
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-8
Maintenance Record....................................6-18
Maintenance Replacement Parts....................6-16
Maintenance Requirements............................. 6-2
Owner Checks and Services.........................6-10
Recommended Fluids and Lubricants.............6-14
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-3
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-41
Manual Seats................................................... 1-4
Manual Transmission
Fluid..........................................................5-26
Operation...................................................2-42
Manual, Using.................................................... iii
Memory Seat, Mirrors, Steering Wheel Controls.... 1-7
Message
DIC Warnings and Messages........................3-56
Mirrors
Automatic Dimming Rearview with OnStar
®.....2-50
Outside Convex Mirror.................................2-51
Outside Heated Mirrors................................2-51
Outside Power Mirrors..................................2-50
Park Tilt.....................................................2-51
MP3 ............................................................3-106
MyGMLink.com................................................ 7-5
8
Page 486 of 490
Power (cont.)
Lumbar Controls........................................... 1-6
Retained Accessory (RAP)............................2-35
Seat ............................................................ 1-5
Steering Fluid.............................................5-39
Tilt Wheel and Telescopic Steering Column....... 3-7
Windows....................................................2-25
Privacy..........................................................7-18
Event Data Recorders..................................7-19
Navigation System.......................................7-20
OnStar .......................................................7-20
Radio Frequency Identi cation.......................7-20
Programmable Automatic Door Locks.................2-20
R
Radio Frequency Identi cation (RFID), Privacy....7-20
Radio(s)........................................................3-83
Radios
Navigation/Radio System,
see Navigation Manual............................3-111
Reception.................................................3-125
Theft-Deterrent..........................................3-124
Rainsense™ Wipers........................................3-10
Reading Lamps..............................................3-21
Rear Axle......................................................5-51
Limited-Slip.................................................. 4-7
Rear Door Security Locks................................2-20Rearview Mirror, Automatic Dimming with
OnStar
®.....................................................2-50
Reclining Seatbacks.......................................... 1-8
Recommended Fluids and Lubricants.................6-14
Recreational Vehicle Towing.............................4-28
Remote, Keyless Access System........................ 2-9
Remote Keyless Entry (RKE) System.................. 2-6
Remote Keyless Entry (RKE) System, Operation . . . 2-7
Remote Vehicle Start.......................................2-16
Removing the Flat Tire and Installing the
Spare Tire................................................5-105
Removing the Spare Tire and Tools.................5-104
Replacement Bulbs.........................................5-57
Replacement Parts, Maintenance......................6-16
Reporting Safety Defects
Canadian Government..................................7-17
General Motors...........................................7-17
United States Government............................7-16
Restraint System Check
Checking the Restraint Systems....................1-72
Replacing Restraint System Parts
After a Crash..........................................1-73
Retained Accessory Power (RAP)......................2-35
Roadside
Service........................................................ 7-7
Rocking Your Vehicle to Get it Out....................4-22
Routing, Engine Drive Belt...............................6-17
Running Out of Fuel........................................2-49
10
