window CADILLAC CTS 2008 2.G Owners Manual

Seats and Restraint Systems........................... 1-1
Head Restraints
......................................... 1-2
Front Seats
............................................... 1-4
Rear Seats
..............................................1-11
Safety Belts
.............................................1-12
Child Restraints
.......................................1-32
Airbag System
.........................................1-56
Restraint System Check
............................1-72
Features and Controls..................................... 2-1
Keys
........................................................ 2-4
Doors and Locks
......................................2-18
Windows
.................................................2-24
Theft-Deterrent Systems
............................2-28
Starting and Operating Your Vehicle
...........2-32
Mirrors
....................................................2-50
Object Detection Systems
..........................2-52
OnStar
®System
......................................2-55
Universal Home Remote System
................2-58
Storage Areas
.........................................2-62
Sunroof
..................................................2-63
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-24
Warning Lights, Gages, and Indicators
........3-30
Driver Information Center (DIC)
..................3-48
Audio System(s)
.......................................3-82Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and the Vehicle
....... 4-2
Towing
...................................................4-28
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-4
Fuel
......................................................... 5-6
Checking Things Under the Hood
...............5-12
All-Wheel Drive
........................................5-50
Rear Axle
...............................................5-51
Headlamp Aiming
.....................................5-52
Bulb Replacement
....................................5-55
Windshield Wiper Blade Replacement
.........5-57
Tires
......................................................5-58
Appearance Care
...................................5-112
Vehicle Identication
...............................5-121
Electrical System
....................................5-122
Capacities and Specications
...................5-129
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-16
Vehicle Data Recording and Privacy
...........7-18
Index................................................................ 1
2008 Cadillac CTS Owner ManualM

A booster seat (C-D) is a child restraint designed to
improve the t of the vehicle’s safety belt system.
A booster seat can also help a child to see out the
window.
Securing an Add-On Child Restraint in
the Vehicle
{CAUTION:
A child can be seriously injured or killed in
a crash if the child restraint is not properly
secured in the vehicle. Secure the child restraint
properly in the vehicle using the vehicle’s
safety belt or LATCH system, following the
instructions that came with that child restraint
and the instructions in this manual.
1-40

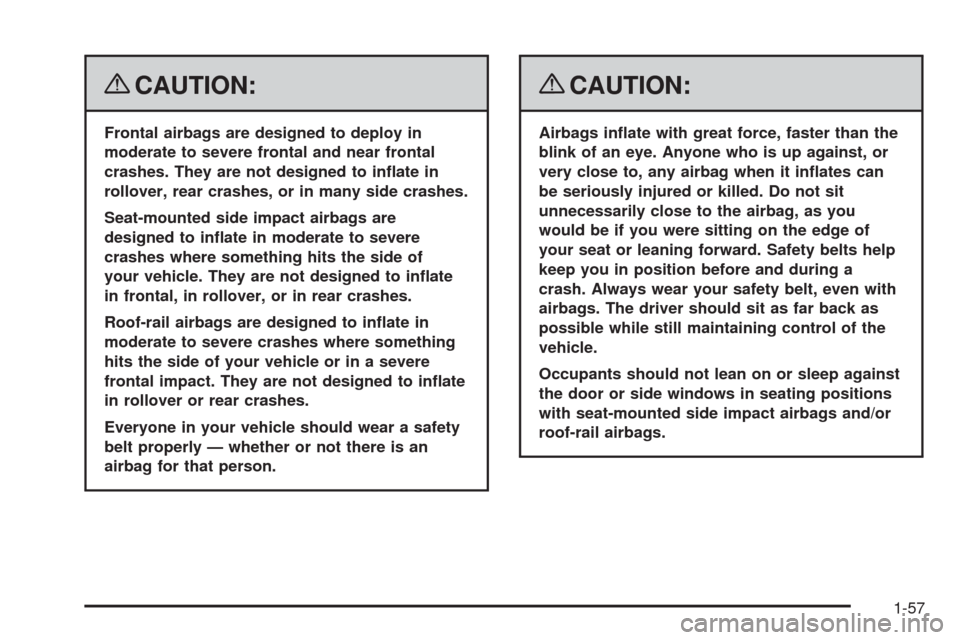

{CAUTION:
Frontal airbags are designed to deploy in
moderate to severe frontal and near frontal
crashes. They are not designed to inate in
rollover, rear crashes, or in many side crashes.
Seat-mounted side impact airbags are
designed to inate in moderate to severe
crashes where something hits the side of
your vehicle. They are not designed to inate
in frontal, in rollover, or in rear crashes.
Roof-rail airbags are designed to inate in
moderate to severe crashes where something
hits the side of your vehicle or in a severe
frontal impact. They are not designed to inate
in rollover or rear crashes.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
{CAUTION:
Airbags inate with great force, faster than the
blink of an eye. Anyone who is up against, or
very close to, any airbag when it inates can
be seriously injured or killed. Do not sit
unnecessarily close to the airbag, as you
would be if you were sitting on the edge of
your seat or leaning forward. Safety belts help
keep you in position before and during a
crash. Always wear your safety belt, even with
airbags. The driver should sit as far back as
possible while still maintaining control of the
vehicle.
Occupants should not lean on or sleep against
the door or side windows in seating positions
with seat-mounted side impact airbags and/or
roof-rail airbags.
1-57

The roof-rail airbags for the driver, right front passenger,
and second row outboard passengers are in the
ceiling above the side windows.
{CAUTION:
If something is between an occupant and an
airbag, the airbag might not inate properly
or it might force the object into that person
causing severe injury or even death. The path
of an inating airbag must be kept clear.
Do not put anything between an occupant and
an airbag, and do not attach or put anything
on the steering wheel hub or on or near any
other airbag covering.
Do not use seat accessories that block the
ination path of a seat-mounted side impact
airbag.
Never secure anything to the roof of a vehicle
with roof-rail airbags by routing a rope or tie
down through any door or window opening.
If you do, the path of an inating roof-rail
airbag will be blocked. Driver Side shown, Passenger Side similar
1-60

What Makes an Airbag Inate?
In a deployment event, the sensing system sends an
electrical signal triggering a release of gas from the
inator. Gas from the inator lls the airbag causing the
bag to break out of the cover and deploy. The inator, the
airbag, and related hardware are all part of the airbag
module.
Frontal airbag modules are located inside the
steering wheel and instrument panel. For vehicles
with seat-mounted side impact airbags, there are
airbag modules in the side of the front seatbacks
closest to the door. For vehicles with roof-rail airbags,
there are airbag modules in the ceiling of the vehicle,
near the side windows that have occupant seating
positions.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle.
Airbags supplement the protection provided by safety
belts. Frontal airbags distribute the force of the impact
more evenly over the occupant’s upper body, stopping
the occupant more gradually. Seat-mounted side impact
and roof-rail airbags distribute the force of the impact
more evenly over the occupant’s upper body.
But airbags would not help in many types of collisions,
primarily because the occupant’s motion is not toward
those airbags. SeeWhen Should an Airbag Inflate? on
page 1-61for more information.
Airbags should never be regarded as anything more
than a supplement to safety belts.
1-63

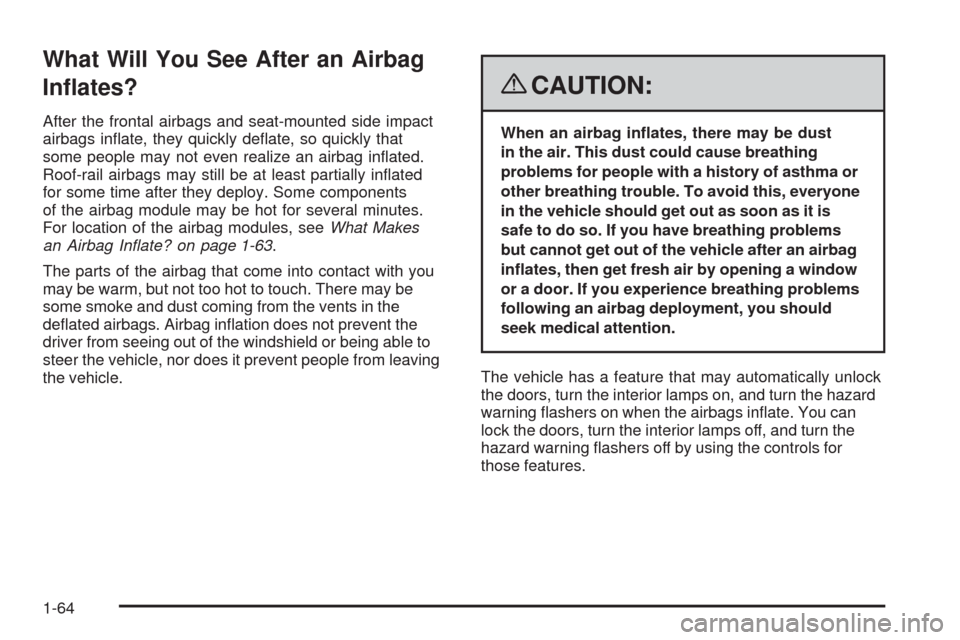

What Will You See After an Airbag
Inates?
After the frontal airbags and seat-mounted side impact
airbags inate, they quickly deate, so quickly that
some people may not even realize an airbag inated.
Roof-rail airbags may still be at least partially inated
for some time after they deploy. Some components
of the airbag module may be hot for several minutes.
For location of the airbag modules, seeWhat Makes
an Airbag Inflate? on page 1-63.
The parts of the airbag that come into contact with you
may be warm, but not too hot to touch. There may be
some smoke and dust coming from the vents in the
deated airbags. Airbag ination does not prevent the
driver from seeing out of the windshield or being able to
steer the vehicle, nor does it prevent people from leaving
the vehicle.
{CAUTION:
When an airbag inates, there may be dust
in the air. This dust could cause breathing
problems for people with a history of asthma or
other breathing trouble. To avoid this, everyone
in the vehicle should get out as soon as it is
safe to do so. If you have breathing problems
but cannot get out of the vehicle after an airbag
inates, then get fresh air by opening a window
or a door. If you experience breathing problems
following an airbag deployment, you should
seek medical attention.
The vehicle has a feature that may automatically unlock
the doors, turn the interior lamps on, and turn the hazard
warning ashers on when the airbags inate. You can
lock the doors, turn the interior lamps off, and turn the
hazard warning ashers off by using the controls for
those features.
1-64

Keys...............................................................2-4
Remote Keyless Entry (RKE) System................2-6
Remote Keyless Entry (RKE) System
Operation...................................................2-7
Keyless Access System...................................2-9
Keyless Access System Operation..................2-10
Remote Vehicle Start....................................2-16
Doors and Locks............................................2-18
Door Locks..................................................2-18
Central Door Unlocking System......................2-19
Power Door Locks........................................2-19
Delayed Locking...........................................2-19
Programmable Automatic Door Locks..............2-20
Rear Door Security Locks..............................2-20
Lockout Protection........................................2-21
Trunk..........................................................2-21
Windows........................................................2-24
Power Windows............................................2-25
Sun Visors...................................................2-27
Theft-Deterrent Systems..................................2-28
Theft-Deterrent System..................................2-28
Immobilizer..................................................2-29
Immobilizer Operation (Key Access)................2-30
Immobilizer Operation (Keyless Access)...........2-31Starting and Operating Your Vehicle................2-32
New Vehicle Break-In....................................2-32
Ignition Positions (Key Access).......................2-32
Ignition Positions (Keyless Access)..................2-34
Retained Accessory Power (RAP)...................2-35
Starting the Engine.......................................2-35
Engine Coolant Heater..................................2-37
Automatic Transmission Operation...................2-38
Manual Transmission Operation......................2-42
Parking Brake..............................................2-44
Shifting Into Park (Automatic Transmission)
......2-45
Shifting Out of Park......................................2-47
Parking the Vehicle (Manual Transmission).......2-47
Parking Over Things That Burn.......................2-48
Engine Exhaust............................................2-48
Running the Vehicle While Parked..................2-49
Mirrors...........................................................2-50
Automatic Dimming Rearview Mirror
with OnStar
®............................................2-50
Outside Power Mirrors...................................2-50
Park Tilt Mirrors............................................2-51
Outside Convex Mirror...................................2-51
Outside Heated Mirrors..................................2-51
Section 2 Features and Controls
2-1

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons, children
or others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
The windows will function with the keys in the
ignition and children could be seriously injured
or killed if caught in the path of a closing
window. Do not leave the keys in a vehicle
with children.
{CAUTION:
Leaving children in a vehicle with the keyless
access transmitter is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate the
power windows or other controls or even make
the vehicle move. The windows will function
with the keyless access transmitter in the
vehicle and they could be seriously injured
or killed if caught in the path of a closing
window. Do not leave the keyless access
transmitter in a vehicle with children.
2-4

Remote Vehicle Start
This vehicle may have a remote starting feature that
starts the engine from outside of the vehicle. It may also
start the vehicle’s automatic climate control system.
When the remote start system is active, the climate
control system heats and cools the inside of the vehicle
according to the previous settings of the system
before turning the vehicle off. The windshield defroster
or rear window defogger turn on if it is cold outside.
If the vehicle has heated seats, they also turn on. See
Heated and Ventilated Seats on page 1-6for additional
information. Normal operation of the climate control
system returns after the ignition is turned to ON/RUN.
SeeDual Climate Control System on page 3-24.
Laws in some communities may restrict the use of
remote starters. For example, some laws may require a
person using remote start to have the vehicle in view
when doing so. Check local regulations for any
requirements on remote starting of vehicles.
Do not use the remote start feature if the vehicle is low
on fuel. The vehicle may run out of fuel.
If this vehicle has the remote start feature, the RKE
transmitter functions have an increased range of
operation. However, the range may be less while
the vehicle is running.There are other conditions which can affect the
performance of the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-6orKeyless Access
System on page 2-9for additional information.
/(Remote Start):Press and release the lock button
and then press and hold this button to use the remote
start feature.
To start the vehicle using the remote start feature:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock button,
then immediately press and hold the transmitter’s
remote start button until the turn signal lights ash or
if the vehicle’s lights are not visible, press and hold
the remote start button for at least four seconds.
The vehicle’s doors lock. Pressing the remote start
button again after the vehicle has started turns off
the ignition.
When the vehicle starts, the parking lamps turn on
and remain on while the vehicle is running.
3. If it is the rst remote start since the vehicle has
been driven, repeat these steps, while the engine is
still running, to extend the engine running time by
10 minutes. Remote start can be extended one time.
After entering the vehicle during a remote start, press
the brake pedal and turn the ignition to ON/RUN to drive
the vehicle.
2-16

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can easily
open the doors and fall out of a moving
vehicle. When a door is locked, the handle
will not open it. You increase the chance
of being thrown out of the vehicle in a
crash if the doors are not locked. So, wear
safety belts properly and lock the doors
whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.There are several ways to lock and unlock your vehicle.
From the inside, use the manual lock levers located
on the door panels near the windows.
Push down on the manual lock lever to lock the door.
To unlock the door, pull up on the lever.
If the windows are down and the doors are locked, do
not reach in to manually unlock the vehicle because you
will set off the alarm.
From the outside, use the key, or press the lock or
unlock button on the Remote Keyless Entry (RKE)
transmitter. SeeRemote Keyless Entry (RKE) System
Operation on page 2-7for more information.
On vehicles with the Remote Keyless Access system,
the door unlocks by pulling the door handle when
you have the transmitter with you. SeeKeyless Access
System Operation on page 2-10for more information.
2-18
