To access the spare tire and jacking
equipment:
1. Remove the spare tire cover.
2. Remove the stow rod cap bypulling it straight up off of
the rod.
3. Turn the wing nut (A) on the compact spare tire (B)
counterclockwise to remove.
4. Remove the spare tire and place it next to the flat tire.
5. The tools you will be using next include the jack (C), wheel
wrench (D), and extension (E).Removing the Spare Tire and
Tools (Wagon)
A. Wing Nut
B. Spare Tire
C. Jack
D. Subwoofer
E. Wheel Wrench
F. Extension
G. Cable

Black plate (104,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-104 Vehicle Care
To access the spare tire and jacking
equipment:
1. Remove the spare tire cover.
2. Remove the subwoofer (D),if the vehicle has one.
To remove the subwoofer:
2.1. Turn the nut (A) counterclockwise to
remove.
2.2. Disconnect the connector wire.
2.3. Pull the subwoofer (D) up to remove it from the stow rod.
3. Remove the spare tire (B) and place it next to the flat tire.
4. Remove the jack (C), wheel wrench (E), and extension (F). To remove the jack:
1. Remove the retainer nut (A).
2. Remove the jack stowage
bracket (B).
3. Slide the jack (C) forward to remove it from the floor storage
bracket.
Removing the Flat Tire and
Installing the Spare Tire
1. Do a safety check beforeproceeding. See If a Tire Goes
Flat on page 10‑90
2. Loosen the wheel nuts, but do not remove them yet, using the
wheel wrench. Turn the handle
about 180 degrees, then return
the handle back to the starting
position. This avoids taking the
wrench off the lug nut for
each turn.

Black plate (105,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-105
3. Find the jacking location usingthe diagram above and
corresponding V-shaped locating
notches located in the plastic
molding.4. Insert the hooked end of theextension handle through the
jack and the flat end through the
wheel wrench.
{WARNING
Getting under a vehicle when it is
jacked up is dangerous. If the
vehicle slips off the jack, you
could be badly injured or killed.
Never get under a vehicle when it
is supported only by a jack.
{WARNING
Lifting a vehicle and getting
under it to do maintenance or
repairs is dangerous without the
appropriate safety equipment and
training. If a jack is provided with
the vehicle, it is designed only for
changing a flat tire. If it is used for
anything else, you or others could
be badly injured or killed if the
vehicle slips off the jack. If a jack
is provided with the vehicle, only
use it for changing a flat tire.
{WARNING
Raising your vehicle with the jack
improperly positioned can
damage the vehicle and even
make the vehicle fall. To help
avoid personal injury and vehicle
damage, be sure to fit the jack lift
head into the proper location
before raising the vehicle.

Black plate (106,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-106 Vehicle Care
Notice:If you position the jack
under the rocker molding and
attempt to raise the vehicle, you
could break the molding and/or
cause other damage to your
vehicle. Always position the jack
so that when the jack head is
raised, it will fit firmly in the notch
located inboard from the rocker
molding.
5. Turn the wheel wrench
counterclockwise to lower the
jack lift head until the jack fits
under the vehicle.
6. Raise the jack by turning thewheel wrench clockwise until the
slots in the jack head fit into the
metal flange located behind the
V‐shaped locating notches on
the plastic molding as shown.
7. Put the compact spare tire near you.
8. Raise the vehicle by turning the wheel wrench clockwise. Raise
the vehicle far enough off the
ground for the compact spare
tire to fit under the vehicle.9. Remove all the wheel nuts and
the flat tire.
{WARNING
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
make wheel nuts become loose
after time. The wheel could come
off and cause an accident. When
changing a wheel, remove any
rust or dirt from places where the
wheel attaches to the vehicle. In
an emergency, use a cloth or a
(Continued)

Black plate (107,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-107
WARNING (Continued)
paper towel to do this; but be sure
to use a scraper or wire brush
later, if needed, to get all the rust
or dirt off. SeeIf a Tire Goes Flat
on page 10‑90.
{WARNING
Never use oil or grease on bolts
or nuts because the nuts might
come loose. The vehicle's wheel
could fall off, causing a crash.10. Remove any rust or dirt from
the wheel bolts, mounting
surfaces, and spare wheel.
11. Install the spare tire.
12. Put the wheel nuts back on with the rounded end of the
nuts toward the wheel.
13. Tighten each wheel nut by turning it clockwise with your
hand until the wheel is held
against the hub.
14. Lower the vehicle by turning the wheel wrench
counterclockwise. Lower the
jack completely.
{WARNING
Wheel nuts that are improperly or
incorrectly tightened can cause
the wheels to become loose or
come off. The wheel nuts should
be tightened with a torque wrench
to the proper torque specification
after replacing. Follow the torque
specification supplied by the
aftermarket manufacturer when
using accessory locking wheel
nuts. See Capacities and
Specifications
on page 12‑2for
original equipment wheel nut
torque specifications.
Notice: Improperly tightened
wheel nuts can lead to brake
pulsation and rotor damage. To
avoid expensive brake repairs,
evenly tighten the wheel nuts in
the proper sequence and to the
proper torque specification. See
Capacities and Specifications
on
page 12‑2for the wheel nut
torque specification.

Black plate (108,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-108 Vehicle Care
15. Tighten the wheel nuts firmly ina crisscross sequence as
shown.
Storing a Flat or Spare Tire
and Tools
{WARNING
Storing a jack, a tire, or other
equipment in the passenger
compartment of the vehicle could
cause injury. In a sudden stop or
collision, loose equipment could
strike someone. Store all these in
the proper place.
Storing the Flat Tire with a Flat
Load Floor (Sedan)
1. Put back all tools as they werestored in the rear storage
compartment and put the
compartment cover back on.
2. Put the flat tire in the tire storage bag, if there is one.
3. Place the tire, lying flat, in the rear storage compartment.
4. Route the loop end of thestrap (C) through one of the
cargo tie-downs (A) located in
the rear of the vehicle.
5. Route the hook (B) through the loop (C).
6. Pull the strap to tighten it around the cargo tie-down (A).

Black plate (109,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-109
7. Route the hook end of the strapthrough the wheel.
8. Attach the hook to the cargo tie-down in the rear of the
vehicle.
9. Slide the buckle to tighten the cargo tie-down strap.
Use the following diagram as a
guide for storing the compact spare
tire in the trunk.
Storing the Flat Tire with a Flat
Load Floor (Wagon)
1. Return all tools as they were stored in the rear storage
compartment and put the
compartment cover on.
2. Put the flat tire in the tire storage bag, if there is one.
3. Place the tire, lying flat, in the rear storage compartment.
4. Route one of the hooks (A), atthe end of the cable provided,
through the liftgate striker (B). 5. Slide both D-rings (E) on each
side of the vehicle as far
rearward as they will go.
6. Route one hook (A) under the wheel spoke (C) and place the
hook into the slot in the cargo
rail on the driver side of the
vehicle.
7. Slide the D-ring (E) on that side forward to engage the hook.
8. Route the other hook under the wheel spoke (D) and place the
hook into the slot in the cargo
rail on the passenger side of the
vehicle.
9. Slide the D-ring (E) on that side forward to engage the hook.

Black plate (110,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-110 Vehicle Care

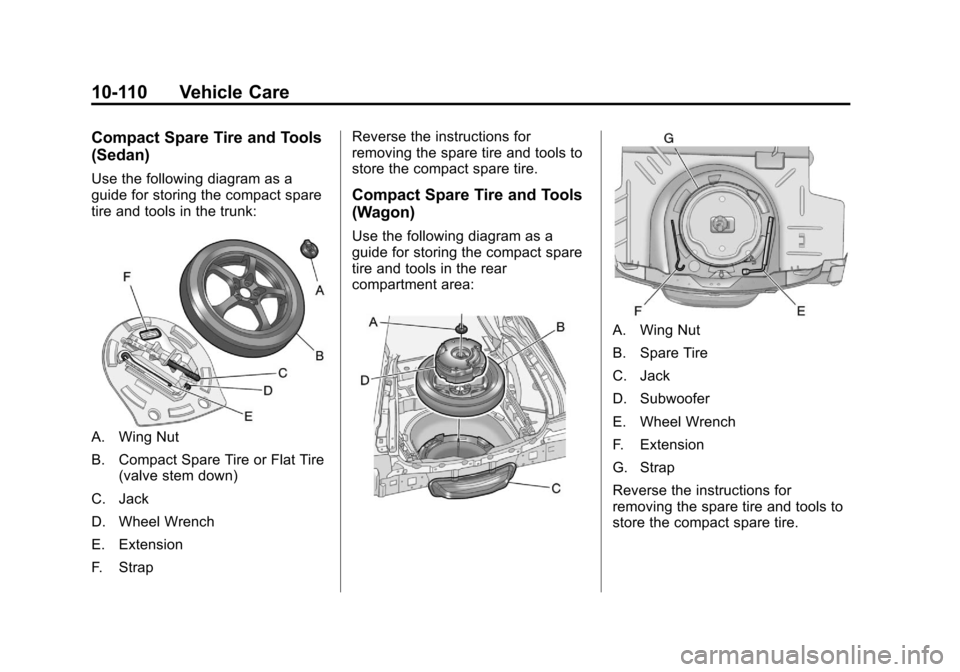

Compact Spare Tire and Tools
(Sedan)
Use the following diagram as a
guide for storing the compact spare
tire and tools in the trunk:
A. Wing Nut
B. Compact Spare Tire or Flat Tire(valve stem down)
C. Jack
D. Wheel Wrench
E. Extension
F. Strap Reverse the instructions for
removing the spare tire and tools to
store the compact spare tire.
Compact Spare Tire and Tools
(Wagon)
Use the following diagram as a
guide for storing the compact spare
tire and tools in the rear
compartment area:
A. Wing Nut
B. Spare Tire
C. Jack
D. Subwoofer
E. Wheel Wrench
F. Extension
G. Strap
Reverse the instructions for
removing the spare tire and tools to
store the compact spare tire.

Black plate (111,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-111
Compact Spare Tire
{WARNING
Driving with more than one
compact spare tire at a time could
result in loss of braking and
handling. This could lead to a
crash and you or others could be
injured. Use only one compact
spare tire at a time.
If your vehicle is equipped with a
compact spare tire it was fully
inflated when the vehicle was new, it
can lose air after a time. Check the
inflation pressure regularly. It should
be 60 psi (420 kPa). After installing the compact spare
on the vehicle, stop as soon as
possible and make sure the spare
tire is correctly inflated. The
compact spare is made to perform
well at speeds up to 65 mph
(105 km/h) for distances up to
3,000 miles (5 000 km), so you can
finish your trip and have the full-size
tire repaired or replaced at your
convenience. Of course, it is best to
replace the spare with a full-size tire
as soon as possible. The spare tire
will last longer and be in good
shape in case it is needed again.
Notice:
When the compact spare
is installed, do not take the
vehicle through an automatic car
wash with guide rails. The
compact spare can get caught on
the rails which can damage the
tire, wheel and other parts of the
vehicle. Do not use the compact spare on
other vehicles.
And do not mix the compact spare
tire or wheel with other wheels or
tires. They will not fit. Keep the
spare tire and its wheel together.
Notice:
Tire chains will not fit the
compact spare. Using them can
damage the vehicle and can
damage the chains too. Do not
use tire chains on the compact
spare.

Black plate (112,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-112 Vehicle Care
Jump Starting
If the vehicle battery has run down,
you may want to use another
vehicle and some jumper cables to
start your vehicle. Be sure to use
the following steps to do it safely.
{WARNING
Batteries can hurt you. They can
be dangerous because:
.They contain acid that can
burn you.
.They contain gas that can
explode or ignite.
.They contain enough
electricity to burn you.
If you do not follow these steps
exactly, some or all of these
things can hurt you. Notice:
Ignoring these steps
could result in costly damage to
the vehicle that would not be
covered by the warranty.
Trying to start the vehicle by
pushing or pulling it will not
work, and it could damage the
vehicle.
1. Check the other vehicle. It must
have a 12-volt battery with a
negative ground system.
Notice: If the other vehicle's
system is not a 12-volt system
with a negative ground, both
vehicles can be damaged. Only
use vehicles with 12-volt systems
with negative grounds to jump
start your vehicle. 2. Get the vehicles close enough
so the jumper cables can reach,
but be sure the vehicles are not
touching each other. If they are,
it could cause a ground
connection you do not want. You
would not be able to start your
vehicle and the bad grounding
could damage the electrical
systems.
To avoid the possibility of the
vehicles rolling, set the parking
brake firmly on both vehicles
involved in the jump start
procedure. Put an automatic
transmission in P (Park) or a
manual transmission in Neutral
before setting the parking brake.
