Black plate (13,1)Cadillac CTS/CTS-V Owner Manual - 2013 - crc2 - 8/22/12
Keys, Doors, and Windows 2-13
WARNING (Continued)
and can suffer permanent
injuries or even death from
heat stroke. Always lock the
vehicle whenever leaving it.
.Outsiders can easily enter
through an unlocked door
when you slow down or stop
the vehicle. Locking the doors
can help prevent this from
happening.
Sedan and Wagon Base Model
From the inside, use the door lock
knob on the top of doors.
Sedan and Wagon Uplevel Model
From the inside, for a front door pull
the door handle. Pulling the door
handle again unlatches the door.
For a rear door use the door lock
knob on the top of the door. Sedan and Wagon Model
From the outside, turn the key
toward the front or rear of the
vehicle, or press
QorKon the
Remote Keyless Entry
(RKE) transmitter. See Remote
Keyless Entry (RKE) System
Operation (Key Access) on
page 2‑4 orRemote Keyless Entry
(RKE) System Operation (Keyless
Access) on page 2‑6.
Door Locks (Coupe)
{WARNING
Unlocked doors can be
dangerous.
.Passengers —especially
children —can easily open
the doors and fall out of a
moving vehicle. When a door
is locked it will not open. You
increase the chance of being
thrown out of the vehicle in a
(Continued)
WARNING (Continued)
crash if the doors are not
locked. So, wear safety belts
properly and lock the doors
whenever you drive.
.Young children who get into
unlocked vehicles may be
unable to get out. A child can
be overcome by extreme heat
and can suffer permanent
injuries or even death from
heat stroke. Always lock your
vehicle whenever you
leave it.
.Outsiders can easily enter
through an unlocked door
when you slow down or stop
your vehicle. Locking your
doors can help prevent this
from happening.
From the outside, press
QorKon
the Remote Keyless Entry
transmitter (RKE).

Black plate (14,1)Cadillac CTS/CTS-V Owner Manual - 2013 - crc2 - 8/22/12
2-14 Keys, Doors, and Windows
1. Door Handle Sensor
2. Door Latch Button
3. Power Door Lock Switch
With the RKE transmitter within
range, grip the door handle
sensor (1). SeeRemote Keyless
Entry (RKE) System Operation (Key
Access) on page 2‑4 orRemote
Keyless Entry (RKE) System
Operation (Keyless Access) on
page 2‑6. When the passenger door
is opened first, the driver door will
also unlock. From the inside, use the power door
lock switch (3). See
Power Door
Locks on page 2‑15.
To open a door from the inside,
press the door latch button (2).
A tone will sound when the button is
pressed.
If the vehicle has lost battery power,
the driver door can be opened
manually.
.From inside the vehicle, pull the
manual door release handle.
.From outside the vehicle, use
the key to unlock the trunk.
Then, pull the door release tab,
under the package shelf at the
top of the trunk, to unlock and
unlatch the driver door.

Black plate (15,1)Cadillac CTS/CTS-V Owner Manual - 2013 - crc2 - 8/22/12

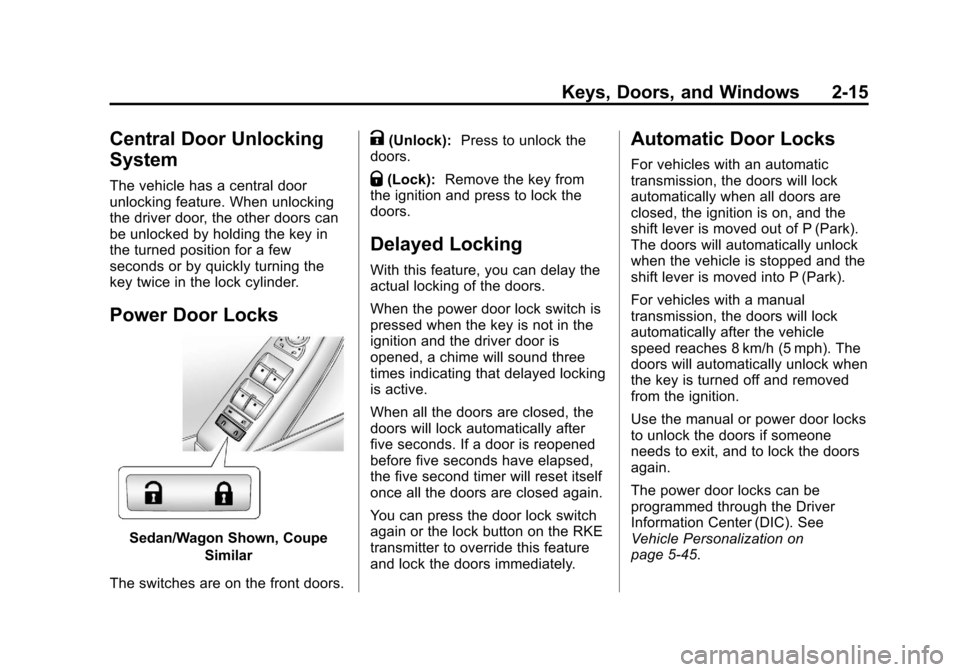

Keys, Doors, and Windows 2-15
Central Door Unlocking
System
The vehicle has a central door
unlocking feature. When unlocking
the driver door, the other doors can
be unlocked by holding the key in
the turned position for a few
seconds or by quickly turning the
key twice in the lock cylinder.
Power Door Locks
Sedan/Wagon Shown, CoupeSimilar
The switches are on the front doors.
K(Unlock): Press to unlock the
doors.
Q(Lock): Remove the key from
the ignition and press to lock the
doors.
Delayed Locking
With this feature, you can delay the
actual locking of the doors.
When the power door lock switch is
pressed when the key is not in the
ignition and the driver door is
opened, a chime will sound three
times indicating that delayed locking
is active.
When all the doors are closed, the
doors will lock automatically after
five seconds. If a door is reopened
before five seconds have elapsed,
the five second timer will reset itself
once all the doors are closed again.
You can press the door lock switch
again or the lock button on the RKE
transmitter to override this feature
and lock the doors immediately.
Automatic Door Locks
For vehicles with an automatic
transmission, the doors will lock
automatically when all doors are
closed, the ignition is on, and the
shift lever is moved out of P (Park).
The doors will automatically unlock
when the vehicle is stopped and the
shift lever is moved into P (Park).
For vehicles with a manual
transmission, the doors will lock
automatically after the vehicle
speed reaches 8 km/h (5 mph). The
doors will automatically unlock when
the key is turned off and removed
from the ignition.
Use the manual or power door locks
to unlock the doors if someone
needs to exit, and to lock the doors
again.
The power door locks can be
programmed through the Driver
Information Center (DIC). See
Vehicle Personalization on
page 5‑45.

Black plate (16,1)Cadillac CTS/CTS-V Owner Manual - 2013 - crc2 - 8/22/12
2-16 Keys, Doors, and Windows
Lockout Protection
If the power door lock switch is
pressed when the key is in the
ignition and a door is open, all the
doors will lock and only the driver
door will unlock. If the doors are
closed, they can be locked by using
the Remote Keyless Entry (RKE)
transmitter. Be sure to remove the
key from the ignition when locking
the vehicle.
This feature can be overridden by
pressing the lock button on the RKE
transmitter or by pressing the power
lock switch a second time.
Safety Locks (Sedan and
Wagon)
The vehicle has rear door security
locks. These prevent passengers
from opening the rear doors from
the inside.
Lock Label shown
The rear door security locks are on
the inside edge of each rear door.
The rear doors must be open to
access them. The label showing
lock and unlock positions is near
the lock.
To set the locks:
1. Insert the key into the security lock slot and turn it so the slot is
in the horizontal position.
2. Close the door. When you want to open a rear door
when the security lock is on:
1. Unlock the door using the
Remote Keyless Entry (RKE) or
Keyless Access System
transmitter, if the vehicle has
one, the power door lock switch,
or the rear door manual lock.
2. Open the door from the outside.
To cancel the rear door
security lock:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot and turn it so the slot is
in the vertical position.

Black plate (17,1)Cadillac CTS/CTS-V Owner Manual - 2013 - crc2 - 8/22/12
Keys, Doors, and Windows 2-17
Doors
Trunk
{WARNING
Exhaust gases can enter the
vehicle if it is driven with the
liftgate or trunk/hatch open,
or with any objects that pass
through the seal between the
body and the trunk/hatch or
liftgate. Engine exhaust contains
carbon monoxide (CO) which
cannot be seen or smelled. It can
cause unconsciousness and even
death.
If the vehicle must be driven with
the liftgate or trunk/hatch open:
.Close all of the windows.
.Fully open the air outlets on
or under the instrument
panel.(Continued)
WARNING (Continued)
.Adjust the climate control
system to a setting that
brings in only outside air and
set the fan speed to the
highest setting. See “Climate
Control Systems” in the
Index.
.If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
See Engine Exhaust on
page 9‑24.
Trunk Lock Release
The remote trunk release button is
on the driver door, inside the
storage compartment under the
armrest.
On vehicles with an automatic
transmission, the shift lever must be
in P (Park) or N (Neutral). On
vehicles with a manual
transmission, the shift lever must be
in Neutral, and the parking
brake set.

Black plate (18,1)Cadillac CTS/CTS-V Owner Manual - 2013 - crc2 - 8/22/12

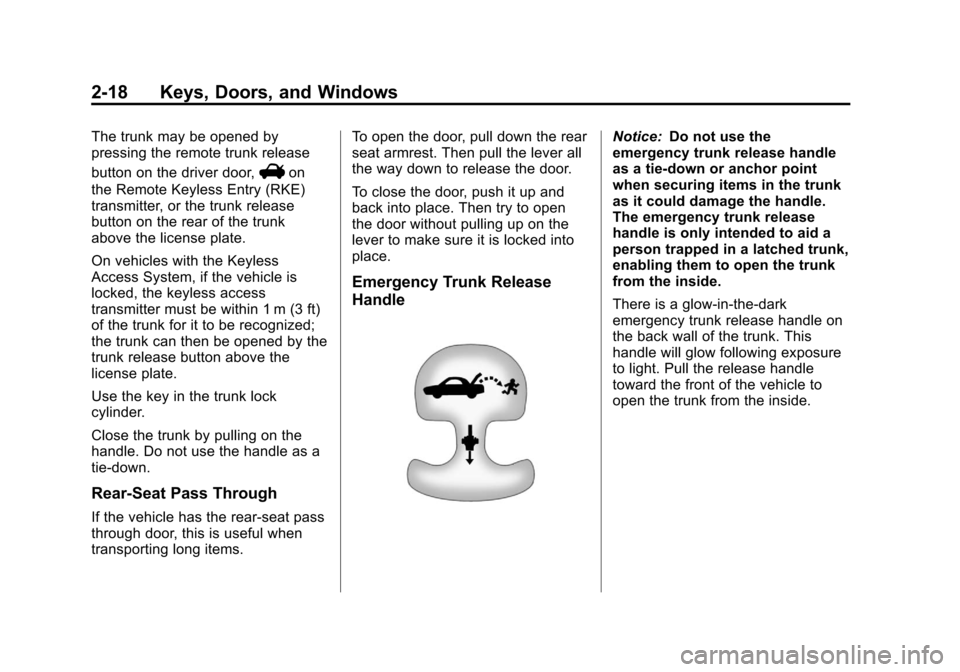

2-18 Keys, Doors, and Windows
The trunk may be opened by
pressing the remote trunk release
button on the driver door,
Von
the Remote Keyless Entry (RKE)
transmitter, or the trunk release
button on the rear of the trunk
above the license plate.
On vehicles with the Keyless
Access System, if the vehicle is
locked, the keyless access
transmitter must be within 1 m (3 ft)
of the trunk for it to be recognized;
the trunk can then be opened by the
trunk release button above the
license plate.
Use the key in the trunk lock
cylinder.
Close the trunk by pulling on the
handle. Do not use the handle as a
tie-down.
Rear-Seat Pass Through
If the vehicle has the rear-seat pass
through door, this is useful when
transporting long items. To open the door, pull down the rear
seat armrest. Then pull the lever all
the way down to release the door.
To close the door, push it up and
back into place. Then try to open
the door without pulling up on the
lever to make sure it is locked into
place.
Emergency Trunk Release
Handle
Notice:
Do not use the
emergency trunk release handle
as a tie-down or anchor point
when securing items in the trunk
as it could damage the handle.
The emergency trunk release
handle is only intended to aid a
person trapped in a latched trunk,
enabling them to open the trunk
from the inside.
There is a glow-in-the-dark
emergency trunk release handle on
the back wall of the trunk. This
handle will glow following exposure
to light. Pull the release handle
toward the front of the vehicle to
open the trunk from the inside.

Black plate (19,1)Cadillac CTS/CTS-V Owner Manual - 2013 - crc2 - 8/22/12
Keys, Doors, and Windows 2-19
Liftgate
Power Liftgate Operation
{WARNING
Exhaust gases can enter the
vehicle if it is driven with the
liftgate or trunk/hatch open,
or with any objects that pass
through the seal between the
body and the trunk/hatch or
liftgate. Engine exhaust contains
carbon monoxide (CO) which
cannot be seen or smelled. It can
cause unconsciousness and even
death.
If the vehicle must be driven with
the liftgate or trunk/hatch open:
.Close all of the windows.
.Fully open the air outlets on
or under the instrument
panel.(Continued)
WARNING (Continued)
.Adjust the climate control
system to a setting that
brings in only outside air and
set the fan speed to the
highest setting. See “Climate
Control Systems” in the
Index.
.If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
See Engine Exhaust on
page 9‑24.
{WARNING
You, or others, could be injured if
caught in the path of the power
liftgate. Make sure there is no one
in the way of the liftgate as it is
opening and closing. Notice:
To avoid damage to the
liftgate or liftgate glass, make
sure the area above and behind
the liftgate is clear before
opening it.
Vehicles with an automatic
transmission must be in P (Park)
and a manual transmission must be
in Neutral to operate the power
liftgate. The taillamps flash when
the power liftgate moves.

Black plate (20,1)Cadillac CTS/CTS-V Owner Manual - 2013 - crc2 - 8/22/12
2-20 Keys, Doors, and Windows
Turn the selector switch to choose
one of three modes:
MAX:The liftgate power opens to
the full open height.
3/4: The liftgate power opens to a
reduced open height that can be set
in a range of approximately ¾ open
to full open. Use this setting to
prevent the liftgate from opening
into overhead obstructions such as
a garage door or roof mounted
cargo during power operation. The
liftgate can still be opened fully
manually.
OFF: The liftgate only operates
manually in this position.
Manual operation of a liftgate that
also has power operation requires
more effort than a standard manual
liftgate. In either the MAX or the ¾ mode,
the liftgate can be power opened
and closed by:
.Pressing and holding the power
liftgate button
8on the Remote
Keyless Entry (RKE) transmitter
until the liftgate starts moving.
See Remote Keyless Entry
(RKE) System Operation (Key
Access) on page 2‑4 orRemote
Keyless Entry (RKE) System
Operation (Keyless Access) on
page 2‑6.
.Pressing the power liftgate
button in the center of the mode
selector switch on the driver
door, with the driver door
unlocked.
.Pressing the touch pad on the
liftgate outside handle, with all
doors unlocked, to open the
liftgate.
.Pressing and releasing the
power liftgate button on the
liftgate adjacent to the latch to
close the liftgate.
Pressing any button that operates
the power liftgate, or the touch pad
while the liftgate is moving, stops it.
Pressing the button or RKE again
reverses the direction. There is a
minimum that the power liftgate
must already be open for the
system to hold it open. If movement
is stopped below that minimum, the
liftgate closes.

Black plate (21,1)Cadillac CTS/CTS-V Owner Manual - 2013 - crc2 - 8/22/12
Keys, Doors, and Windows 2-21
Do not force the liftgate open or
closed during a power cycle.
The power liftgate may be
temporarily disabled under extreme
temperatures or low battery
conditions. If this occurs, the liftgate
can still be operated manually.
If the transmission is shifted out of
P (Park) while the power function is
in progress, the liftgate power
function will continue to completion.
If the transmission is shifted out of
P (Park) and the vehicle accelerates
before the power liftgate latch is
closed, the liftgate may reverse to
the open position. Cargo could fall
out of the vehicle. Close and latch
the power liftgate before driving.
If the liftgate is powered open and
the liftgate support struts have lost
pressure, the turn signals will flash
and a chime will sound. The liftgate
will stay open, and then slowly
close. See your dealer for service
before using the liftgate.Obstacle Detection Features
If the liftgate encounters an obstacle
during a power open or close cycle,
a warning chime will sound and the
liftgate will automatically reverse
direction to the full closed or open
position. After removing the
obstacle, the power liftgate
operation can be used again. If the
liftgate encounters multiple
obstacles on the same power cycle,
the power function will deactivate.
After removing the obstacles, the
liftgate will resume normal power
operation.
The vehicle has pinch sensors on
the side edges of the liftgate. If an
object is caught between the liftgate
and the body and presses against
this sensor, the liftgate will reverse
direction and open fully. The liftgate
will remain open until it is activated
again or closed manually.
Setting the Power Liftgate
Intermediate Mode
To change the liftgate stop position:
1. Turn the liftgate switch to eitherthe MAX, or the ¾ mode position
and power open the liftgate.
2. Stop the liftgate movement at the desired height by pressing
any button that operates the
power liftgate, or the touch pad.
Manually adjust the liftgate
position if required.
3. Press and hold the button on the liftgate adjacent to the latch until
the turn signals flash and a beep
sounds to indicate that the new
setting is recorded.
When power opened with the ¾
mode selected, the liftgate stops at
the new set position.

Black plate (22,1)Cadillac CTS/CTS-V Owner Manual - 2013 - crc2 - 8/22/12
2-22 Keys, Doors, and Windows
If an audible and visual response is
not received when setting the
intermediate stop position, the
liftgate height is below the ¾ open
height minimum, approximately
1.52 m (5 ft) at the edge of the
liftgate.
Manual Operation of Power
Liftgate
To change the liftgate to manual
operation, with the vehicle in
P (Park) for an automatic
transmission or Neutral for a manual
transmission, turn the mode selector
switch to OFF.
With the power liftgate disabled and
all of the doors unlocked, the liftgate
can be manually opened and
closed. Manual operation of a
vehicle with a power liftgate requires
more effort than a standard
non-power liftgate.To open the liftgate, press the touch
pad under the liftgate handle and
lift. To close the liftgate, use the pull
cup. With the power liftgate
disabled, the liftgate electric latch
will still power latch once contact is
made with the striker. Always close
the liftgate before driving.
If the RKE button is pressed while
power operation is disabled, the turn
signals will flash and the liftgate will
not move.
The liftgate has an electric latch.
If the battery is disconnected or has
low voltage, the liftgate will not
open. The liftgate will resume
operation when the battery is
reconnected and charged.
Vehicle Security
This vehicle has theft-deterrent
features; however, they do not make
the vehicle impossible to steal.
Vehicle Alarm System
This vehicle may have an anti-theft
alarm system.
The security light, located in the
instrument panel cluster, comes on
when the system is arming.
Arming the System
To arm the system, do one of the
following:
1. Close all of the windows and
doors, then lock the doors with
the RKE transmitter.
