Malfunction Indicator Lamp
Check Engine Light
Your vehicle is equipped
with a computer which
monitors operation of the
fuel, ignition, and emission
control systems.
This system is called OBD II (On-Board Diagnostics
Second Generation) and is intended to assure that
emissions are at acceptable levels for the life of
the vehicle, helping to produce a cleaner environment.
The check engine light comes on to indicate that
there is a problem and service is required. Malfunctions
often will be indicated by the system before any
problem is apparent. This may prevent more serious
damage to your vehicle. This system is also designed to
assist your service technician in correctly diagnosing
any malfunction.
Notice:If you keep driving your vehicle with this
light on, after awhile, your emission controls
may not work as well, your fuel economy may notbe as good, and your engine may not run as
smoothly. This could lead to costly repairs that
may not be covered by your warranty.
Notice:Modications made to the engine,
transmission, exhaust, intake, or fuel system of
your vehicle or the replacement of the original tires
with other than those of the same Tire Performance
Criteria (TPC) can affect your vehicle’s emission
controls and may cause this light to come on.
Modications to these systems could lead to costly
repairs not covered by your warranty. This may
also result in a failure to pass a required Emission
Inspection/Maintenance test.
This light should come on, as a check to show you it is
working, when the ignition is on and the engine is
not running. If the light does not come on, have it
repaired. This light will also come on during a
malfunction in one of two ways:
Light Flashing— A misre condition has been
detected. A misre increases vehicle emissions and
may damage the emission control system on your
vehicle. Diagnosis and service may be required.
Light On Steady— An emission control system
malfunction has been detected on your vehicle.
Diagnosis and service may be required.
3-47

Check Brake Fluid
This symbol appears
with the Check Brake
Fluid message.
This message will display if the ignition is in ON to
inform the driver that the brake uid level is low.
Have the brake system serviced by your GM dealer as
soon as possible. SeeBrake System Warning Light
on page 3-43for more information.
Check Coolant Level
This symbol appears
with the Check Coolant
Level message.This message will appear when there is a low level of
engine coolant. Have the cooling system serviced
by your GM dealer as soon as possible. SeeEngine
Coolant on page 5-29for more information.
Check Gas Cap
This symbol appears
with the Check Gas
Cap message.
When this message appears on the display, the gas cap
has not been fully tightened. You should recheck the
gas cap to ensure that it is on and tightened properly.
See “If the Light Is On Steady” underMalfunction
Indicator Lamp on page 3-47for more information.
3-74

Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing additive
called methylcyclopentadienyl manganese tricarbonyl
(MMT); ask the attendant where you buy gasoline
whether the fuel contains MMT. General Motors does
not recommend the use of such gasolines. Fuels
containing MMT can reduce the life of spark plugs and
the performance of the emission control system may
be affected. The malfunction indicator lamp may turn on.
If this occurs, return to your authorized GM dealer
for service.
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard
to nd. Never use leaded gasoline or any other fuel
not recommended in the previous text on fuel. Costly
repairs caused by use of improper fuel would not
be covered by your warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you will be driving.
Filling Your Tank
{CAUTION:
Fuel vapor burns violently and a fuel re can
cause bad injuries. To help avoid injuries to you
and others, read and follow all the instructions
on the pump island. Turn off your engine when
you are refueling. Do not smoke if you are near
fuel or refueling your vehicle. Keep sparks,
ames and smoking materials away from fuel.
Do not leave the fuel pump unattended when
refueling your vehicle — this is against the law
in some places. Keep children away from the
fuel pump; never let children pump fuel.
5-7

When the system has calculated that oil life has been
diminished, it will indicate that an oil change is
necessary. A Change Engine Oil message in the DIC
will come on. Change your oil as soon as possible within
the next two times you stop for fuel. It is possible that,
if you are driving under the best conditions, the oil
life system may not indicate that an oil change is
necessary for over a year. However, your engine oil and
lter must be changed at least once a year and at
this time the system must be reset. Your dealer has
GM-trained service people who will perform this
work using genuine GM parts and reset the system. It is
also important to check your oil regularly and keep it
at the proper level.
If the system is ever reset accidentally, you must
change your oil at 3,000 miles (5 000 km) since your
last oil change. Remember to reset the oil life system
whenever the oil is changed.
How to Reset the Change Engine Oil
Message and the Oil Life Indicator
The GM Oil Life System calculates when to change
your engine oil and lter based on vehicle use.
Anytime your oil is changed, reset the system so it can
calculate when the next oil change is required. If a
situation occurs where you change your oil prior to a
Change Engine Oil Message in the DIC being turned on,
reset the system.After the oil has been changed, the Change Engine Oil
message and the oil life indicator must be reset.
To reset the message and indicator, use one of the
following procedures:
Base Audio System
Press the CLR button located to the right of the DIC
display to acknowledge the Change Engine Oil
message. This will clear the message from the display
and reset it.
To reset the oil life indicator, use the following steps:
1. Press the up or down arrow on the INFO button
located to the right of the DIC display to access
the DIC menu.
2. Once XXX% ENGINE OIL LIFE menu item is
highlighted, press and hold the CLR button.
The percentage will return to 100, and the oil life
indicator will be reset. Repeat the steps if the
percentage does not return to 100.
3. Turn the key to OFF.
If the Change Engine Oil message comes back on
when you start your vehicle, the engine oil life system
has not reset. Repeat the procedure.
5-22

Navigation System
Press the multi-function button, next to the OK prompt
in the upper right of the display to acknowledge the
Change Engine Oil message. This will clear the
message from the display and reset it.
To reset the oil life indicator, use the following steps:
1. Turn the system on by pressing the PWR/VOL knob
once. The PWR/VOL knob is located to the lower
left of the DIC display.
2. Press the INFO button located to the left of the display
to access the Vehicle Info (Information) menu.
3. Turn the TUNE/SEL knob located to the lower right
of the display until Engine Oil Life is highlighted.
Press the knob once to select it.
4. Once XXX% Engine Oil Life is displayed, press the
multi-function button next to the Reset prompt in the
upper right corner of the display.
The percentage will return to 100, and the oil life
indicator will be reset. Repeat the steps if the
percentage does not return to 100.
5. Turn the key to OFF.
If the Change Engine Oil message comes back on
when you start your vehicle, the engine oil life system
has not reset. Repeat the procedure.
What to Do with Used Oil
Used engine oil contains certain elements that may be
unhealthy for your skin and could even cause cancer.
Do not let used oil stay on your skin for very long.
Clean your skin and nails with soap and water, or a
good hand cleaner. Wash or properly dispose of
clothing or rags containing used engine oil. See the
manufacturer’s warnings about the use and disposal
of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from
the lter before disposal. Never dispose of oil by
putting it in the trash, pouring it on the ground, into
sewers, or into streams or bodies of water. Instead,
recycle it by taking it to a place that collects used oil.
If you have a problem properly disposing of your
used oil, ask your dealer, a service station or a local
recycling center for help.
5-23

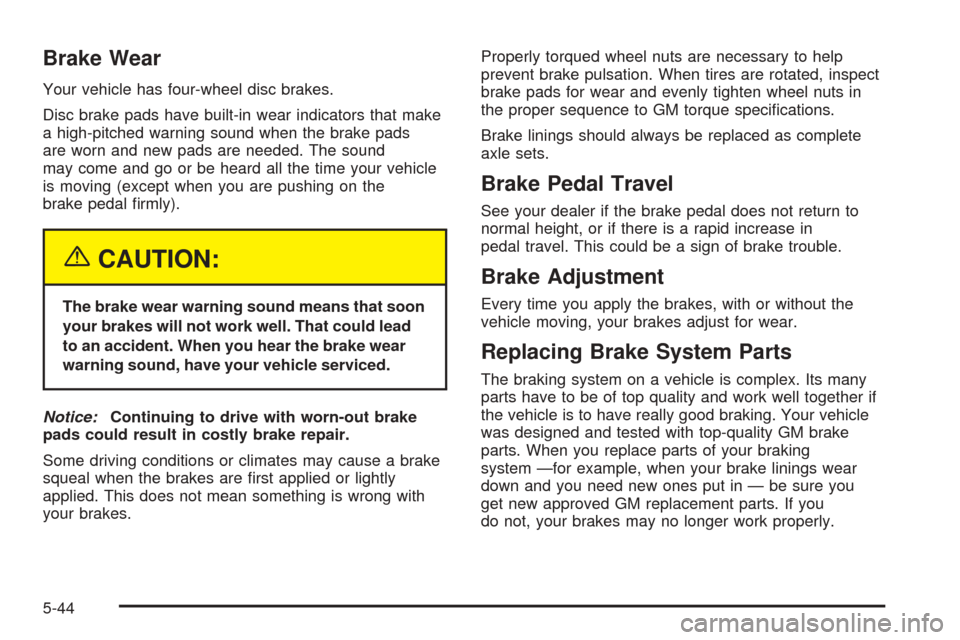

Brake Wear
Your vehicle has four-wheel disc brakes.
Disc brake pads have built-in wear indicators that make
a high-pitched warning sound when the brake pads
are worn and new pads are needed. The sound
may come and go or be heard all the time your vehicle
is moving (except when you are pushing on the
brake pedal rmly).
{CAUTION:
The brake wear warning sound means that soon
your brakes will not work well. That could lead
to an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
Notice:Continuing to drive with worn-out brake
pads could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are rst applied or lightly
applied. This does not mean something is wrong with
your brakes.Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly tighten wheel nuts in
the proper sequence to GM torque specications.
Brake linings should always be replaced as complete
axle sets.
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in
pedal travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you apply the brakes, with or without the
vehicle moving, your brakes adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together if
the vehicle is to have really good braking. Your vehicle
was designed and tested with top-quality GM brake
parts. When you replace parts of your braking
system —for example, when your brake linings wear
down and you need new ones put in — be sure you
get new approved GM replacement parts. If you
do not, your brakes may no longer work properly.
5-44

M
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill.........................................6-10
At Least Once a Month................................6-10
At Least Once a Year..................................6-10
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-8
Maintenance Record....................................6-16
Maintenance Requirements............................. 6-2
Normal Maintenance Replacement Parts.........6-15
Owner Checks and Services........................... 6-9
Recommended Fluids and Lubricants.............6-13
Scheduled Maintenance................................. 6-4
Using Your................................................... 6-2
Your Vehicle and the Environment................... 6-2
Maintenance When Trailer Towing.....................4-45
Making Turns.................................................4-43
Malfunction Indicator Light................................3-47
Manual Passenger Seat.................................... 1-2
Manual Transmission.......................................2-25
Fluid..........................................................5-27
Operation...................................................2-33
Map Pocket...................................................2-51
Matching Transmitter(s) to Your Vehicle............... 2-6Memory Mirrors..............................................2-53
Memory Seat.................................................2-53
Message
Center.......................................................3-53
Check Engine Oil Pressure...........................3-58
DIC Warnings and Messages........................3-70
Hot Coolant Temperature Warning..................3-57
Oil Temperature Warning..............................3-58
Tire Pressure Warning..................................3-59
Transmission Fluid Hot.................................3-57
Mexico, Central America and Caribbean
Islands/Countries (Except Puerto Rico and
U.S. Virgin Islands) — Customer Assistance........ 7-5
Mirror Operation.....................................2-41, 2-42
Mirrors
Automatic Dimming Rearview with OnStar
®.......2-41
Automatic Dimming Rearview with OnStar®
and Compass...........................................2-41
Memory.....................................................2-53
Outside Convex Mirror.................................2-44
Outside Curb View Assist Mirror....................2-44
Outside Heated Mirrors................................2-45
Outside Power Mirrors..................................2-43
MyGMLink.com................................................ 7-3
10

U
Underhood Fuse Block...................................5-101
Understanding Radio Reception.......................3-125
Uniform Tire Quality Grading............................5-75
United States — Customer Assistance................. 7-4
Used Replacement Wheels..............................5-78
Using DSP...................................................3-114
Using HomeLink
®...........................................2-49
Using the Single CD Player............................3-119
Using the Six-Disc CD Changer......................3-120
V
Vehicle
Control........................................................ 4-5
Damage Warnings........................................... iv
Loading......................................................4-34
Parking Your...............................................2-38
Symbols......................................................... iv
Vehicle Data Collection and Event
Data Recorders............................................. 7-9
Vehicle Identication
Number (VIN).............................................5-99
Service Parts Identication Label...................5-99
Vehicle Information Menu
(Base Audio System)...................................3-62Vehicle Information Menu Item Descriptions........3-63
Vehicle Information Menu
(Navigation System).....................................3-62
Vehicle Personalization
DIC ...........................................................3-88
Memory Seat and Mirrors.............................2-53
Ventilation Adjustment......................................3-34
Visors...........................................................2-17
W
Warning Lights, Gages and Indicators................3-37
Warnings
DIC Warnings and Messages........................3-70
Hazard Warning Flashers............................... 3-6
Other Warning Devices.................................. 3-7
Safety and Symbols......................................... iii
Vehicle Damage.............................................. iv
Washing Your Vehicle......................................5-95
Weight of the Trailer........................................4-40
Weight of the Trailer Tongue.............................4-41
What Kind of Engine Oil to Use........................5-20
What to Do with Used Oil................................5-23
What to Use..........................5-29, 5-40, 5-41, 5-51
Wheels
Alignment and Tire Balance..........................5-77
Replacement...............................................5-77
17
