Mirrors...........................................................2-39
Automatic Dimming Rearview Mirror
with OnStar
®............................................2-39
Automatic Dimming Rearview Mirror
with OnStar
®and Compass........................2-39
Outside Power Mirrors...................................2-42
Outside Curb View Assist Mirror.....................2-42
Outside Convex Mirror...................................2-43
Outside Heated Mirrors..................................2-43
OnStar
®System.............................................2-43
Universal Home Remote System......................2-45
Universal Home Remote System Operation......2-46Storage Areas................................................2-49
Glove Box...................................................2-49
Cupholder(s)................................................2-49
Center Console Storage Area (CTS Only)........2-49
Map Pocket.................................................2-49
Roof Rack ...................................................2-50
Convenience Net..........................................2-50
Sunroof.........................................................2-51
Vehicle Personalization...................................2-52
Memory Seat and Mirrors..............................2-52
Section 2 Features and Controls
2-2

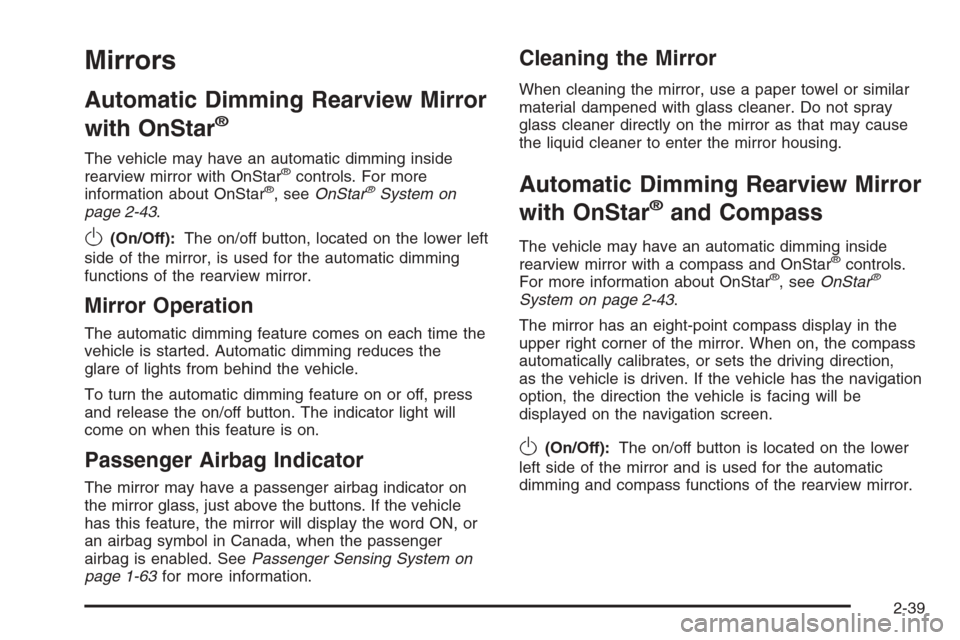

Mirrors
Automatic Dimming Rearview Mirror
with OnStar
®
The vehicle may have an automatic dimming inside
rearview mirror with OnStar®controls. For more
information about OnStar®, seeOnStar®System on
page 2-43.
O(On/Off):The on/off button, located on the lower left
side of the mirror, is used for the automatic dimming
functions of the rearview mirror.
Mirror Operation
The automatic dimming feature comes on each time the
vehicle is started. Automatic dimming reduces the
glare of lights from behind the vehicle.
To turn the automatic dimming feature on or off, press
and release the on/off button. The indicator light will
come on when this feature is on.
Passenger Airbag Indicator
The mirror may have a passenger airbag indicator on
the mirror glass, just above the buttons. If the vehicle
has this feature, the mirror will display the word ON, or
an airbag symbol in Canada, when the passenger
airbag is enabled. SeePassenger Sensing System on
page 1-63for more information.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.
Automatic Dimming Rearview Mirror
with OnStar
®and Compass
The vehicle may have an automatic dimming inside
rearview mirror with a compass and OnStar®controls.
For more information about OnStar®, seeOnStar®
System on page 2-43.
The mirror has an eight-point compass display in the
upper right corner of the mirror. When on, the compass
automatically calibrates, or sets the driving direction,
as the vehicle is driven. If the vehicle has the navigation
option, the direction the vehicle is facing will be
displayed on the navigation screen.
O(On/Off):The on/off button is located on the lower
left side of the mirror and is used for the automatic
dimming and compass functions of the rearview mirror.
2-39

Outside Power Mirrors
The control on the driver’s
door armrest operates both
outside rearview mirrors.
Press the left or right mirror symbol on the selector switch
to choose the driver’s side or passenger’s side mirror.
The center position turns the control off so that the
mirrors will not move if the control pad is touched.
Once a mirror is selected, use the arrows on the control
pad to move the mirror to the correct direction. Adjust
each mirror so you can see the side of your vehicle and
the area behind your vehicle.
The mirrors can be manually folded inward to prevent
damage when going through an automatic car
wash. To fold, push the mirror toward the vehicle.To return the mirror to its original position, push outward.
Be sure to return both mirrors to their original unfolded
position before driving.
If the vehicle has the memory package, the mirrors can
be programmed for personalization and curb view
assist. For more information, seeMemory Seat and
Mirrors on page 2-52andDIC Vehicle Personalization
on page 3-70.
Outside Curb View Assist Mirror
If the vehicle has the memory seat and mirrors,
the passenger’s mirror can be tilted to a preselected
position when the vehicle is shifted into REVERSE (R).
Use this outside curb view assist feature to view the
curb when parallel parking.
When the vehicle is shifted out of REVERSE (R) and
after a ve-second delay, the passenger’s mirror
will return to its original position.
If further adjustment is needed after the mirror is in a tilted
position, the mirror controls can be used. SeeOutside
Power Mirrors on page 2-42for more information.
The outside curb view assist can be turned or off
through the Driver Information Center (DIC). See
DIC Vehicle Personalization on page 3-70for more
information.
2-42

Press one of the numbered memory buttons to recall
the stored setting. Each time a memory button is
pressed, a single beep will sound.
Three chimes will sound and the setting will not be
recalled if you press button 1 or 2 when the vehicle is
not in PARK (P) on an automatic transmission or
the parking brake is not set on a manual transmission.
If you would like the stored driving positions to be
recalled when unlocking your vehicle with the remote
keyless entry transmitter or when you place the
key in the ignition, seeDIC Vehicle Personalization on
page 3-70.
To stop recall movement of the memory feature at any
time, press one of the power seat or mirror controls.
Two personalized exit positions can also be
programmed. Use the following steps to program exit
positions:
1. Press memory seat button 1 or the button with the
unlock symbol on the remote keyless entry
transmitter with the number 1 on the back to recall
the driving position.
2. Adjust the driver’s seat to the desired exit position.
3. Press and hold the exit button located above
buttons 1 and 2 on the driver’s door armrest
for at least three seconds.
Two beeps will sound to conrm that the exit
position has been saved.4. Repeat the procedure for a second driver using
memory seat button 2 or the remote keyless
entry transmitter with the number 2 on the back.
To recall the stored exit positions, press and release the
exit button. One beep will sound, and the seat will
move to the previously stored exit position for the
currently identied driver. If an exit position has not
been stored for this driver, the seat will move all the way
back. The position of the outside mirrors is not stored
or recalled for the exit position.
If your vehicle has an automatic transmission, the
vehicle must be in PARK (P) to recall the exit positions.
For a manual transmission, the parking brake must
be set to recall the stored exit positions.
Three chimes will sound and the exit setting will not be
recalled if you press the exit button when the vehicle
is not in PARK (P) on an automatic transmission or the
parking brake is not set on a manual transmission.
If you would like your stored exit position to be recalled
when unlocking the vehicle with the remote keyless
entry transmitter or when the ignition is turned off and
the driver’s door is opened, seeDIC Vehicle
Personalization on page 3-70.
2-53

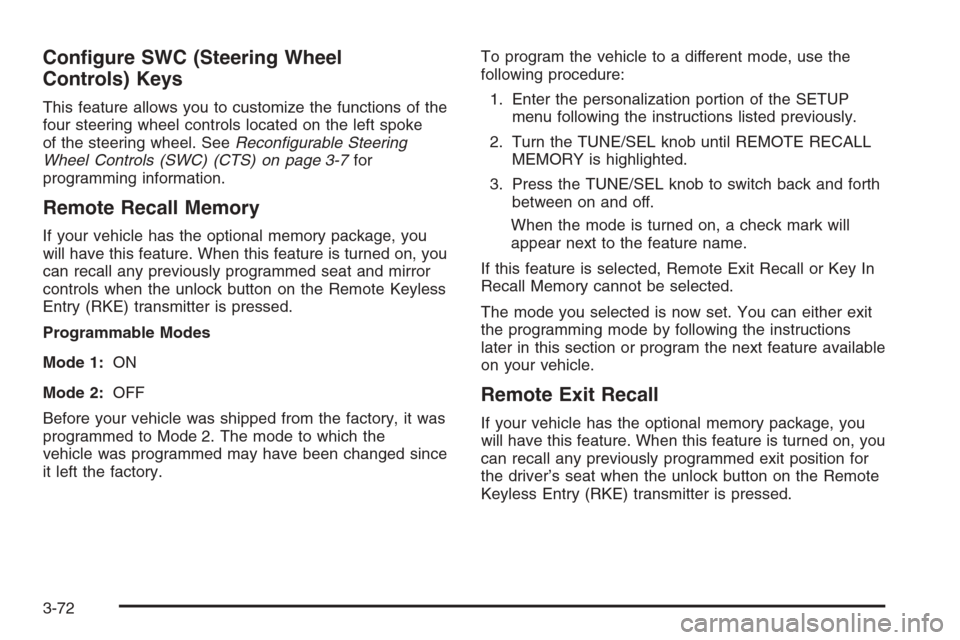

Congure SWC (Steering Wheel
Controls) Keys
This feature allows you to customize the functions of the
four steering wheel controls located on the left spoke
of the steering wheel. SeeRecongurable Steering
Wheel Controls (SWC) (CTS) on page 3-7for
programming information.
Remote Recall Memory
If your vehicle has the optional memory package, you
will have this feature. When this feature is turned on, you
can recall any previously programmed seat and mirror
controls when the unlock button on the Remote Keyless
Entry (RKE) transmitter is pressed.
Programmable Modes
Mode 1:ON
Mode 2:OFF
Before your vehicle was shipped from the factory, it was
programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed since
it left the factory.To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Turn the TUNE/SEL knob until REMOTE RECALL
MEMORY is highlighted.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
If this feature is selected, Remote Exit Recall or Key In
Recall Memory cannot be selected.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Remote Exit Recall
If your vehicle has the optional memory package, you
will have this feature. When this feature is turned on, you
can recall any previously programmed exit position for
the driver’s seat when the unlock button on the Remote
Keyless Entry (RKE) transmitter is pressed.
3-72

Oil
Engine.......................................................5-16
Pressure Light.............................................3-44
Oil, Engine Oil Life System..............................5-20
Oil Temperature Warning Message....................3-51
Older Children, Restraints................................1-30
One-to-Four Shift Message...............................3-52
Online Owner Center........................................ 7-4
OnStar
®System, see OnStar®Manual...............2-43
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-28
Outlet(s), Accessory Power...............................3-21
Outside
Convex Mirror.............................................2-43
Curb View Assist Mirror................................2-42
Heated Mirrors............................................2-43
Power Mirrors.............................................2-42
Overheated Engine Protection
Operating Mode..........................................5-30
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
P
Paint, Damage..............................................5-101
Panic Brake Assist..........................................4-13
Parade Dimming.............................................3-21Park (P)
Shifting Into................................................2-34
Shifting Out of............................................2-36
Parking
Brake........................................................2-33
Over Things That Burn.................................2-37
Parking Your Vehicle.......................................2-36
Passenger Airbag Status Indicator.....................3-35
Passenger Compartment Air Filter.....................3-29
Passenger Sensing System..............................1-63
Passing.........................................................4-16
Power
Accessory Outlet(s)......................................3-21
Door Locks.................................................. 2-9
Electrical System.......................................5-104
Lumbar Controls........................................... 1-3
Retained Accessory (RAP)............................2-24
Seat............................................................ 1-3
Steering Fluid.............................................5-36
Windows....................................................2-15
Pretensioners, Safety Belt................................1-29
Programmable Automatic Door Locks.................2-10Q
Questions and Answers About Safety Belts.........1-15
9

R
Radios..........................................................3-83
Care of Your CD Player..............................3-104
Care of Your CDs ......................................3-103
Navigation/Radio System, see Navigation
Manual.................................................3-101
Radio with CD............................................3-85
Setting the Time..........................................3-85
Theft-Deterrent..........................................3-101
Understanding Reception............................3-102
Reading Lamps..............................................3-21
Rear Axle......................................................5-48
Limited-Slip.................................................4-12
Rear Door Security Locks................................2-10
Rear Safety Belt Comfort Guides......................1-26
Rear Seat Passengers, Safety Belts..................1-23
Rearview Mirror, Automatic Dimming with
OnStar
®.....................................................2-39
Rearview Mirror, Automatic Dimming with
OnStar
®and Compass.................................2-39
Reclining Seatbacks.......................................... 1-5
Recommended Fluids and Lubricants.................6-13
Recongurable Steering Wheel Controls............... 3-7
Recreational Vehicle Towing.............................4-37
Remote Keyless Entry (RKE) System.................. 2-4
Remote Keyless Entry (RKE) System,
Operation..................................................... 2-5
Removing the Flat Tire and Installing the
Spare Tire..................................................5-87Removing the Spare Tire and Tools...................5-85
Replacement Bulbs.........................................5-55
Reporting Safety Defects
Canadian Government..................................7-15
General Motors...........................................7-16
United States Government............................7-15
Restraint System Check
Checking the Restraint Systems....................1-69
Replacing Restraint System Parts
After a Crash..........................................1-70
Retained Accessory Power (RAP)......................2-24
Right Front Passenger Position, Safety Belts......1-23
Roadside
Service........................................................ 7-7
Rocking Your Vehicle to Get it Out....................4-32
Roof Rack Provisions......................................2-50
Routing, Engine Drive Belt...............................6-16
Run-Flat Tires................................................5-64
Running the Engine While Parked.....................2-38
S
Safety Belt
Pretensioners..............................................1-29
Reminder Light............................................3-34
Safety Belts
Care of ......................................................5-97
Driver Position............................................1-16
How to Wear Safety Belts Properly................1-16
10
