Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 8
Rear Seats
............................................. 18
Safety Belts
............................................ 20
Child Restraints
...................................... 42
Airbag System
........................................ 70
Restraint System Check
......................... 90
Features and Controls
................................ 93
Keys
....................................................... 95
Doors and Locks
.................................. 100
Windows
............................................... 107
Theft-Deterrent Systems
....................... 111
Starting and Operating Your Vehicle
..... 116
Mirrors
.................................................. 136
OnStar
®System
................................... 142Universal Home Remote System
............ 146
Storage Areas
...................................... 159
Sunroof
................................................ 161
Instrument Panel
....................................... 163
Instrument Panel Overview
................... 166
Climate Controls
................................... 189
Warning Lights, Gages,
and Indicators
................................... 197
Message Center
................................... 215
Driver Information Center (DIC)
............ 222
Audio System(s)
................................... 258
Driving Your Vehicle
................................. 285
Your Driving, the Road, and
Your Vehicle
..................................... 286
Towing
................................................. 326
2007 Cadillac CTS/CTS-V Owner ManualM
1

If your vehicle has an automatic transmission,
the vehicle must be in PARK (P) to recall
the stored driving positions.
If your vehicle has a manual transmission and the
engine is running, the parking brake must be
set to recall the memory seat driving positions.
The stored driving positions can be recalled
without setting the parking brake if the vehicle
is off.
Press one of the numbered memory buttons to
recall the stored setting. Each time a memory
button is pressed, a single beep will sound.
Three chimes will sound and the setting will not
be recalled if you press button 1 or 2 when
the vehicle is not in PARK (P) on an automatic
transmission or the parking brake is not set on a
manual transmission.If you would like the stored driving positions to be
recalled when unlocking your vehicle with the
Remote Keyless Entry transmitter or after the
key is placed in the ignition, seeDIC Vehicle
Personalization on page 242.
To stop recall movement of the memory feature at
any time, press one of the power seat or mirror
controls.
Two personalized exit positions can also be
programmed. Use the following steps to program
exit positions:
1. Press memory seat button 1 or the unlock
button on the RKE transmitter, that has the
number 1 on the back of it, to recall the
driving position.
2. Adjust the driver’s seat to the desired exit
position.
12

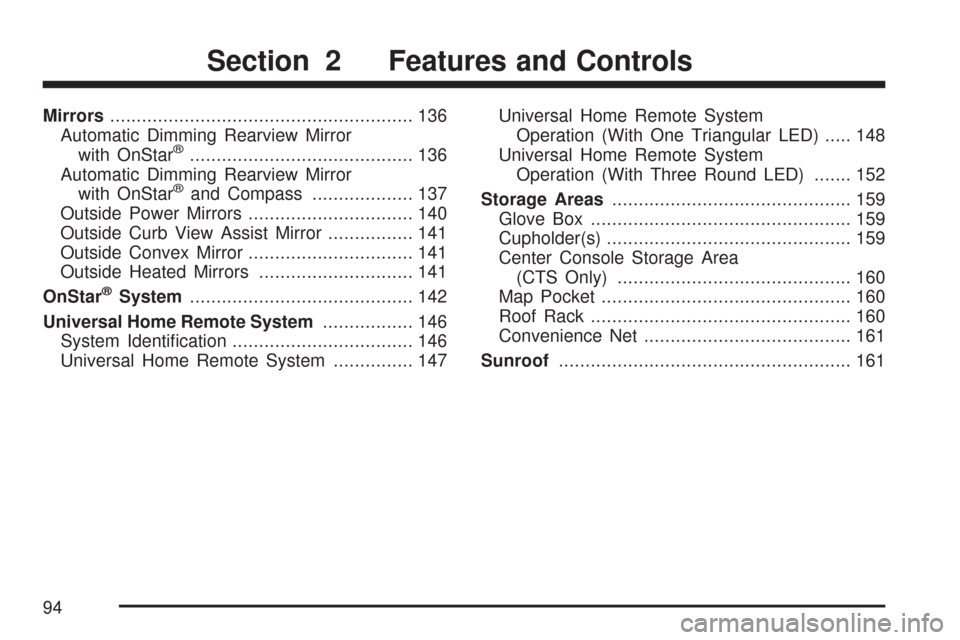

Mirrors......................................................... 136
Automatic Dimming Rearview Mirror
with OnStar
®.......................................... 136
Automatic Dimming Rearview Mirror
with OnStar
®and Compass................... 137
Outside Power Mirrors............................... 140
Outside Curb View Assist Mirror................ 141
Outside Convex Mirror............................... 141
Outside Heated Mirrors............................. 141
OnStar
®System.......................................... 142
Universal Home Remote System................. 146
System Identication.................................. 146
Universal Home Remote System............... 147Universal Home Remote System
Operation (With One Triangular LED)..... 148
Universal Home Remote System
Operation (With Three Round LED)....... 152
Storage Areas............................................. 159
Glove Box................................................. 159
Cupholder(s).............................................. 159
Center Console Storage Area
(CTS Only)............................................ 160
Map Pocket............................................... 160
Roof Rack................................................. 160
Convenience Net....................................... 161
Sunroof....................................................... 161
Section 2 Features and Controls
94

Mirrors
Automatic Dimming Rearview Mirror
with OnStar
®
The vehicle may have an automatic dimming
inside rearview mirror with OnStar®controls.
For more information about OnStar®, seeOnStar®
System on page 142.
O(On/Off):The on/off button, located on the
lower left side of the mirror, is used for the
automatic dimming functions of the rearview mirror.
Mirror Operation
The automatic dimming feature comes on each
time the vehicle is started. Automatic dimming
reduces the glare of lights from behind the vehicle.
To turn the automatic dimming feature on or off,
press and release the on/off button. The indicator
light will come on when this feature is on.
Passenger Airbag Indicator
The mirror may have a passenger airbag indicator
on the mirror glass, just above the buttons.
If the vehicle has this feature, the mirror will
display the word ON, or an airbag symbol
in Canada, when the passenger airbag is enabled.
SeePassenger Sensing System on page 82for
more information.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or
similar material dampened with glass cleaner.
Do not spray glass cleaner directly on the mirror
as that may cause the liquid cleaner to enter
the mirror housing.
136

Automatic Dimming Rearview Mirror
with OnStar
®and Compass
The vehicle may have an automatic dimming
inside rearview mirror with a compass and
OnStar
®controls. For more information about
OnStar®, seeOnStar®System on page 142.
The mirror has an eight-point compass display in
the upper right corner of the mirror. When on,
the compass automatically calibrates, or sets the
driving direction, as the vehicle is driven. If the
vehicle has the navigation option, the direction the
vehicle is facing will be displayed on the
navigation screen.
O(On/Off):The on/off button is located on the
lower left side of the mirror and is used for
the automatic dimming and compass functions of
the rearview mirror.
Mirror Operation
The automatic dimming feature comes on each
time the vehicle is started.
To turn the automatic dimming feature on or off,
press the on/off button. The indicator light will
illuminate when this feature is on.
Compass Operation
Press the on/off button once to turn the compass
on or off.
When the ignition and the compass feature are
on, the compass will show two character boxes for
approximately two seconds. After two seconds,
the mirror will display the current compass
direction.
137

Outside Curb View Assist Mirror
If the vehicle has the memory seat and mirrors,
the passenger’s mirror can be tilted to a
preselected position when the vehicle is shifted into
REVERSE (R). Use this outside curb view assist
feature to view the curb when parallel parking.
When the vehicle is shifted out of REVERSE (R)
and after a ve-second delay, the passenger’s
mirror will return to its original position.
If further adjustment is needed after the mirror is
in a tilted position, the mirror controls can be used.
SeeOutside Power Mirrors on page 140for more
information.
The outside curb view assist can be turned on or
off through the Driver Information Center (DIC).
SeeDIC Vehicle Personalization on page 242for
more information.
Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like
other vehicles) look farther away than they
really are. If you cut too sharply into the
right lane, you could hit a vehicle on your
right. Check your inside mirror or glance
over your shoulder before changing lanes.
The passenger’s side mirror is convex. A convex
mirror’s surface is curved so that more can be
seen from the driver’s seat. The mirror does not
have a dimming feature.
Outside Heated Mirrors
When the rear window defogger is turned on,
it also warms both outside rearview mirrors to help
clear them of fog or ice. See “Rear Window
Defogger” underDual Climate Control System on
page 189for more information.
141

4. Press the TUNE/SEL knob once to select the
letter. The letter will then appear on the display.
If you make a mistake, press the CLR button.
This will exit the menu. You can then go
back into the menu and edit the name. You
can also press the TUNE/SEL knob repeatedly
to cycle through all the characters until you
reach the character you wish to change.
5. Repeat Steps 3 and 4 until the name you
want is complete. You can program up to
16 characters.
The name you selected is now set. You can either
exit the programming mode by following the
instructions later in this section or program the
next feature available on your vehicle. To program
the next feature, enter the personalization
portion of the SETUP menu following the
instructions listed previously.
Congure Display Keys
This feature allows you to customize the functions
of the four soft keys located to the left and right
of the audio display. See “Congurable Radio
Display Keys” underRadio with CD on page 260
for programming information.
Congure SWC (Steering Wheel
Controls) Keys
This feature allows you to customize the functions
of the four steering wheel controls located on
the left spoke of the steering wheel. See
Recongurable Steering Wheel Controls (SWC)
(CTS) on page 169for programming information.
Remote Recall Memory
If your vehicle has the optional memory package,
you will have this feature. When this feature is
turned on, you can recall any previously
programmed seat and mirror controls when the
unlock button on the Remote Keyless Entry (RKE)
transmitter is pressed.
Programmable Modes
Mode 1:ON
Mode 2:OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to
which the vehicle was programmed may have
been changed since it left the factory.
245

Loss of Control........................................... 303
Lumbar
Power Controls.......................................... 10
M
Maintenance Schedule
Additional Required Services.................... 465
At Each Fuel Fill...................................... 469
At Least Once a Month............................ 470
At Least Once a Year.............................. 470
Introduction.............................................. 460
Maintenance Footnotes............................ 467
Maintenance Record................................ 477
Maintenance Requirements...................... 460
Normal Maintenance Replacement
Parts.................................................... 475
Owner Checks and Services.................... 469
Recommended Fluids and Lubricants....... 473
Scheduled Maintenance........................... 462
Using....................................................... 461
Your Vehicle and the Environment............ 460
Malfunction Indicator Light........................... 209
Manual Seats.................................................. 8Manual Transmission
Fluid........................................................ 354
Operation................................................. 126
Map Pocket................................................. 160
Memory Seat and Mirrors.............................. 11
Message
Center..................................................... 215
Check Engine Oil Pressure...................... 220
DIC Warnings and Messages................... 232
Hot Coolant Temperature Warning............ 219
Oil Temperature Warning.......................... 220
One-to-Four Shift..................................... 222
Tire Pressure Warning............................. 221
Transmission Fluid Hot............................. 219
Mirrors
Automatic Dimming Rearview with
OnStar
®................................................ 136
Automatic Dimming Rearview with
OnStar
®and Compass......................... 137
Outside Convex Mirror............................. 141
Outside Curb View Assist Mirror............... 141
Outside Heated Mirrors............................ 141
Outside Power Mirrors............................. 140
MyGMLink.com............................................ 485
511

Passenger Compartment Air Filter............... 195
Passenger Sensing System........................... 82
Passing....................................................... 301
Power
Door Locks.............................................. 101
Electrical System..................................... 446
Lumbar Controls........................................ 10
Retained Accessory (RAP)....................... 119
Seat............................................................ 9
Steering Fluid.......................................... 368
Windows.................................................. 108
Pretensioners, Safety Belt............................. 41
Programmable Automatic Door Locks.......... 102
Q
Questions and Answers About
Safety Belts............................................... 24
R
Radios........................................................ 258
Care of Your CD Player........................... 283
Care of Your CDs.................................... 283
Navigation/Radio System, see
Navigation Manual................................ 279
Radio with CD......................................... 260Radios (cont.)
Setting the Time...................................... 259
Theft-Deterrent......................................... 279
Understanding Reception......................... 282
Reading Lamps........................................... 185
Rear Axle.................................................... 382
Limited-Slip.............................................. 297
Rear Door Security Locks........................... 103
Rear Safety Belt Comfort Guides.................. 38
Rear Seat Passengers, Safety Belts.............. 34
Rearview Mirror, Automatic Dimming
with OnStar
®............................................ 136
Rearview Mirror, Automatic Dimming
with OnStar
®and Compass..................... 137
Reclining Seatbacks...................................... 14
Recommended Fluids and Lubricants.......... 473
Recongurable Steering Wheel Controls...... 169
Recreational Vehicle Towing........................ 326
Remote Keyless Entry (RKE) System............ 96
Remote Keyless Entry (RKE) System,
Operation................................................... 97
Removing the Flat Tire and Installing
the Spare Tire.......................................... 426
Removing the Spare Tire and Tools............ 425
Replacement Bulbs..................................... 389
Reporting Safety Defects
Canadian Government............................. 500
513
