2 INTRODUCTION
Introduction
The names, logos, emblems, slogans,
vehicle model names, and vehicle
body designs appearing in this manual
including, but not limited to, GM, the
GM logo, CADILLAC, the CADILLAC
Emblem, and CTS are trademarks and/
or service marks of General Motors
LLC, its subsidiaries, affiliates,
or licensors.
This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle,
model variants, country specifications,
features/applications that may not be
available in your region, or changes
subsequent to the printing of this
owner manual.Refer to the purchase documentation
relating to your specific vehicle to
confirm the features.
Danger, Warning, and
Caution
Warning messages found on vehicle
labels and in this manual describe
hazards and what to do to avoid or
reduce them.
{Danger
Danger indicates a hazard with a
high level of risk which will result
in serious injury or death.
{Warning
Warning indicates a hazard that
could result in injury or death.
Caution
Caution indicates a hazard that
could result in property or vehicle
damage.
A circle with a slash through it is a
safety symbol which means
“Do Not,”
“Do not do this,” or“Do not let this
happen.”
Symbols
The vehicle has components and
labels that use symbols instead of
text. Symbols are shown along with
the text describing the operation or
information relating to a specific
component, control, message, gauge,
or indicator.
Litho in U.S.A.
Part No. 23228870_US©2016 General Motors LLC. All Rights Reserved.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
INTRODUCTION 3
M:Shown when the owner manual
has additional instructions or
information.
*: Shown when the service manual
has additional instructions or
information.
0: Shown when there is more
information on another page —
“see page.”
Vehicle Symbol Chart
Here are some additional symbols that
may be found on the vehicle and what
they mean.
9: Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
g: Audio Steering Wheel Controls
$:Brake System Warning Light
":Charging System
I: Cruise Control
`:Do Not Puncture
^:Do Not Service
B:Engine Coolant Temperature
O:Exterior Lamps
_:Flame/Fire Prohibited
.:Fuel Gauge
+: Fuses
3:Headlamp High/Low-Beam
Changer
(: Heated Steering Wheel
j:LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
O:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7: Tire Pressure Monitor
d:Traction Control/StabiliTrak®
a:Under Pressure
M: Windshield Washer Fluid

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
4 INTRODUCTION
2NOTES

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
IN BRIEF 5
In Brief
Instrument Panel
Instrument Panel . . . . . . . . . . . . . . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . . 8
Stop/Start System . . . . . . . . . . . . . . . . . . . 8
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . . . . . 8
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Seat Adjustment . . . . . . . . . . . . . . . . . . . 10
Memory Features . . . . . . . . . . . . . . . . . . 13
Heated and Ventilated Seats . . . . . . 13
Head Restraint Adjustment . . . . . . . 14
Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . 14
Passenger Sensing System . . . . . . . . 15
Mirror Adjustment . . . . . . . . . . . . . . . . 15
Steering Wheel Adjustment . . . . . . . 15
Interior Lighting . . . . . . . . . . . . . . . . . . . 16
Exterior Lighting . . . . . . . . . . . . . . . . . . . 17
Windshield Wiper/Washer . . . . . . . . 17
Climate Controls . . . . . . . . . . . . . . . . . . . 18
Transmission . . . . . . . . . . . . . . . . . . . . . . . 19
Starting the Engine . . . . . . . . . . . . . . . . 19
Vehicle Features
Infotainment System . . . . . . . . . . . . . . 19
Steering Wheel Controls . . . . . . . . . . 19
Cruise Control . . . . . . . . . . . . . . . . . . . . . 20
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . . . . 20
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Forward Automatic Braking (FAB) . . . . . . . . . . . . . . . . . . . . 21
Lane Keep Assist (LKA) . . . . . . . . . . . 21
Lane Change Alert (LCA) . . . . . . . . . . 21
Surround Vision (CTS Only) . . . . . . 21
Curb View Camera (CTS-V Only) . . . . . . . . . . . . . . . . . . . . . 22
Rear Vision Camera (RVC) . . . . . . . . 22
Rear Cross Traffic Alert (RCTA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Parking Assist . . . . . . . . . . . . . . . . . . . . . . 22
Automatic Parking Assist (APA) . . . . . . . . . . . . . . . . . . . . . . 22
Reverse Automatic Braking (RAB) . . . . . . . . . . . . . . . . . . . . 22
Power Outlets . . . . . . . . . . . . . . . . . . . . . . 23
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Performance and Maintenance
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . 24
Tire Pressure Monitor . . . . . . . . . . . . . 24 Fuel (LTG 2.0L L4 Turbo
Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Fuel (LGX 3.6L V6 Engine) . . . . . . . . 25
Fuel (LF3 3.6L V6 Twin Turbo and LT4 6.2L V8 Engines) . . . . . . . . . . . . 25
Engine Oil Life System . . . . . . . . . . . . 26
Car Wash Guidelines . . . . . . . . . . . . . . 26
Driving for Better Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
6 IN BRIEF

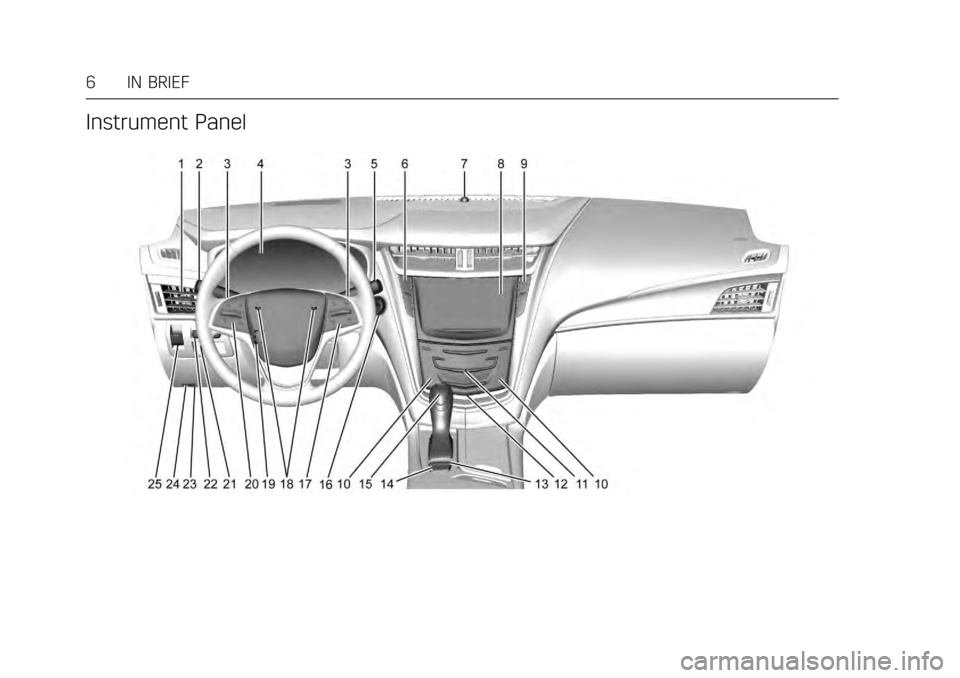

Instrument Panel

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
IN BRIEF 7
1.Air Vents 0179.
2. Turn Signal Lever. See Turn and
Lane-Change Signals 0161.
3. Manual Mode 0205 (If
Equipped).
4. Instrument Cluster 0114.
5. Windshield Wiper/Washer 0106.
6. Hazard Warning Flashers 0161.
Lane Keep Assist (LKA) 0241 (If
Equipped).
Start/Stop Disable Switch (If
Equipped). See Starting the
Engine 0198.
7. Light Sensor (If Equipped). See Automatic Headlamp
System 0160.
Solar Sensor. See Dual Automatic
Climate Control System 0172.
8. Infotainment 0165.
9. Glove Box Button. See Glove
Box 0100.
Automatic Parking Assist Button
(If Equipped). See Assistance
Systems for Parking or
Backing 0228. Parking Assist Button. See
Assistance Systems for Parking or
Backing
0228.
10. Heated and Ventilated Front Seats
060 (If Equipped).
11. Dual Automatic Climate Control
System 0172.
12. Instrument Panel Storage 0100.
Wireless Charging Pad (If
Equipped) (Out of View). See
Wireless Charging 0110.
13. Traction Control/Electronic
Stability Control 0209.
14. MODE Switch. See Driver Mode
Control 0211.
15. Shift Lever. See Automatic
Transmission 0203.
Manual Mode Button. See
Automatic Transmission 0203.
16. ENGINE START/STOP Button. SeeIgnition Positions 0196.
17. Steering Wheel Controls 0106.
Driver Information Center (DIC)
Controls. See Driver Information
Center (DIC) 0132. 18.
Horn 0106.
19. Steering Wheel Adjustment 0105.
20. Cruise Control 0218 (If
Equipped).
Adaptive Cruise Control 0220 (If
Equipped).
Forward Collision Alert (FCA)
System 0235 (If Equipped).
Heated Steering Wheel 0106 (If
Equipped).
21. Instrument Panel Illumination
Control 0162.
22. Head-Up Display (HUD) 0135 (If
Equipped).
23. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp (Check Engine
Light) 0123.
24. Hood Release. See Hood0249.
25. Electric Parking Brake (EPB) Switch. See Electric Parking
Brake 0207.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
8 IN BRIEF
Initial Drive Information
This section provides a brief overview
about some of the important features
that may or may not be on your
specific vehicle.
For more detailed information, refer to
each of the features which can be
found later in this owner manual.
Stop/Start System
The vehicle is equipped with a fuel
saving stop/start system to shut off
the engine and help conserve fuel.
When the brakes are applied and the
vehicle is at a complete stop, the
engine may turn off. When the brake
pedal is released or the accelerator
pedal is pushed, the engine will
restart.
SeeStarting the Engine 0198.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
transmitter may work up to 60 m
(197 ft) away.
Press the button to remove the key.
The key can be used for the driver
door, rear folding seats and the rear
seat pass-through door.
Press
Kto unlock the driver door or
all doors, depending on the vehicle
personalization settings.
Press
Qto lock all doors, depending
on the vehicle personalization
settings.
Lock and unlock feedback can be
personalized. See Vehicle
Personalization 0149.
Press
Xtwice quickly to release the
trunk. Press
7and release to initiate vehicle
locator.
Press and hold
7for more than
three seconds to sound the panic
alarm.
Press
7again to cancel the panic
alarm.
See Keys 028 and Remote Keyless
Entry (RKE) System Operation 029.
Remote Vehicle Start
The engine can be started from
outside of the vehicle.
Starting the Vehicle
1. Press and releaseQon the RKE
transmitter.
2. Immediately press and hold
/
for at least four seconds or until
the turn signal lamps flash.
Start the vehicle normally after
entering.
When the vehicle starts, the parking
lamps will turn on.
Remote start can be extended.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
IN BRIEF 9
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.Press and hold
/until the
parking lamps turn off.
. Turn on the hazard warning
flashers.
. Turn the vehicle on and then off.
See Remote Vehicle Start 034.
Door Locks
Keyless Access
Press the button on the door handle
and pull the handle when the Remote
Keyless Entry (RKE) transmitter is
within range. See Remote Keyless Entry
(RKE) System Operation 029.
Manual Operation
From outside, use the key in the
driver door. The key cylinder is
covered by a cap. See Door Locks035. From the inside rear doors, push down
on the door lock knob on top of the
door. To unlock a door, pull once on
the door handle to unlock it, and
again to open it.
Power Door Locks
From outside, pressQorKon the
RKE transmitter. See Remote Keyless
Entry (RKE) System Operation 029.
From inside, pressQorK. The
indicator light in the switch will
illuminate when locked. See Power
Door Locks 037.
Trunk
To open the trunk, press|on the
driver door, press
Xtwice quickly on
the Remote Keyless Entry (RKE)
transmitter, or press the touch pad on
the rear of the vehicle after unlocking
all doors.
Press the touch pad on the rear of the
trunk above the license plate when
the RKE transmitter is in range. See
Remote Keyless Entry (RKE) System
Operation 029 and Trunk 039.
