100 STORAGE
Storage
Storage Compartments
Storage Compartments . . . . . . . . . . 100
Instrument Panel Storage . . . . . . . . 100
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . 100
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . 101
Armrest Storage . . . . . . . . . . . . . . . . . . 101
Center Console Storage . . . . . . . . . . 101
Additional Storage Features
Cargo Tie-Downs . . . . . . . . . . . . . . . . . 102
Convenience Net . . . . . . . . . . . . . . . . . 102
Safety Kit . . . . . . . . . . . . . . . . . . . . . . . . . 102
Storage Compartments
{Warning
Do not store heavy or sharp objects
in storage compartments. In a
crash, these objects may cause the
cover to open and could result in
injury.
Instrument Panel Storage
Touch the bottom of the climate
control system panel until the door
automatically starts to open. The
storage area may contain a USB port.
See the infotainment manual.
Keep the storage area door closed
while driving.
Touch the bottom of the climate
control system again until the door
automatically starts to close.
Glove Box
To open, press the button. Close the
glove box manually.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
STORAGE 101
Cupholders
Cupholders in the front center console
have a power retractable cover. Push
the handle forward to express open.
Pull the handle rearward to express
close.
The power cover will operate when
the vehicle door is opened and in ACC,
RUN, or Retained Accessory Power
(RAP) mode. The cover can be opened
or closed manually by pushing or
pulling the handle. SeeRetained
Accessory Power (RAP) 0200.
Power Retractable Cover
Anti-Pinch Feature
If any object is in the path of the
power cover when it is active, the
cover will stop at the obstruction and
auto-reverse to a preset position. The
cover will return to normal operation
after the obstruction is removed.
Armrest Storage
Pull the armrest down to access the
rear seat storage area and cupholders.
Press the latch to open the
storage area.
Center Console Storage
Press the button to access the storage
area in front of the armrest cover.
Press the button on the driver side of
the cover to access the storage area
under the armrest. There are two USB
ports, a power outlet, and an input
jack inside.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
102 STORAGE

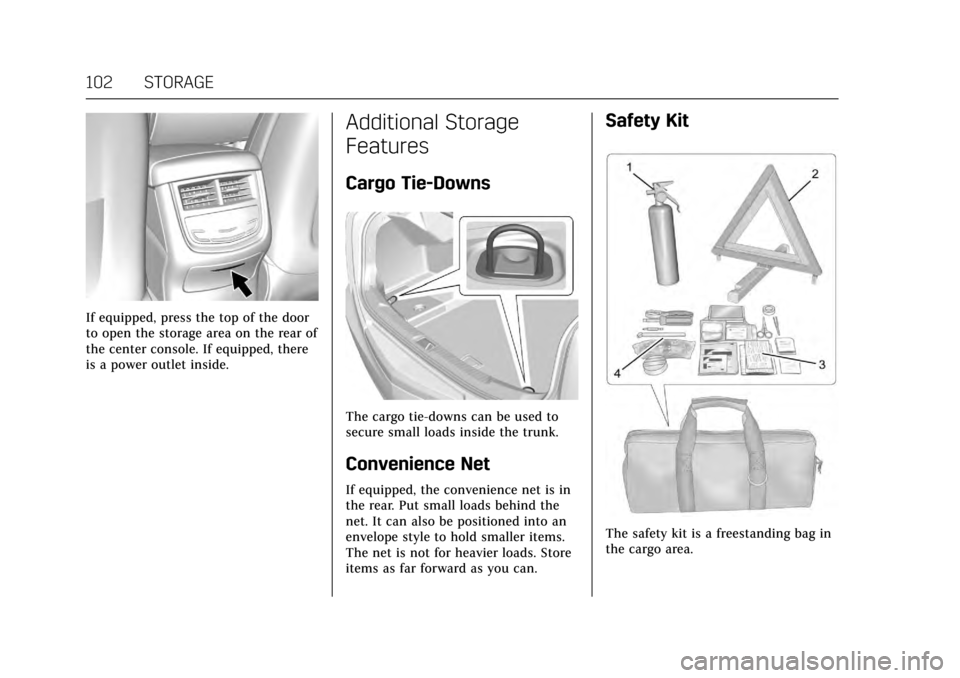

If equipped, press the top of the door
to open the storage area on the rear of
the center console. If equipped, there
is a power outlet inside.
Additional Storage
Features
Cargo Tie-Downs
The cargo tie-downs can be used to
secure small loads inside the trunk.
Convenience Net
If equipped, the convenience net is in
the rear. Put small loads behind the
net. It can also be positioned into an
envelope style to hold smaller items.
The net is not for heavier loads. Store
items as far forward as you can.
Safety Kit
The safety kit is a freestanding bag in
the cargo area.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
STORAGE 103
The items stored in the safety kit bag
include:1. Fire Extinguisher
2. Warning Triangle
3. First Aid Kit
4. Highway Safety Kit

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
104 INSTRUMENTS AND CONTROLS
Instruments and
Controls
Controls
Steering Wheel Adjustment . . . . . 105
Steering Wheel Controls . . . . . . . . . 106
Heated Steering Wheel . . . . . . . . . . 106
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Windshield Wiper/Washer . . . . . . . 106
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Power Outlets . . . . . . . . . . . . . . . . . . . . . 109
Wireless Charging . . . . . . . . . . . . . . . . 110
Cigarette Lighter . . . . . . . . . . . . . . . . . . 112
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Warning Lights, Gauges, and
Indicators
Warning Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . . . . . 113
Instrument Cluster . . . . . . . . . . . . . . . 114
Speedometer . . . . . . . . . . . . . . . . . . . . . . 118
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 118
Trip Odometer . . . . . . . . . . . . . . . . . . . . 118
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 118
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . 118
Boost Gauge (Performance Configuration Only) . . . . . . . . . . . . 119
Engine Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Safety Belt Reminders . . . . . . . . . . . . 121
Airbag Readiness Light . . . . . . . . . . 122
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 122
Charging System Light . . . . . . . . . . . 123
Malfunction Indicator Lamp
(Check Engine Light) . . . . . . . . . . . 123
Brake System Warning Light . . . . 125
Parking Brake Light . . . . . . . . . . . . . . 125
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . . . . 126
Lane Keep Assist (LKA) Light . . . 126
Vehicle Ahead Indicator . . . . . . . . . 127
Traction Off Light . . . . . . . . . . . . . . . . 127
StabiliTrak
®OFF Light . . . . . . . . . . . 127
Traction Control System (TCS)/ StabiliTrak
®Light . . . . . . . . . . . . . . 128
Engine Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . . 128
Tire Pressure Light . . . . . . . . . . . . . . . 128
Engine Oil Pressure Light . . . . . . . . 129
Low Fuel Warning Light . . . . . . . . . 129
Auto Stop Mode (Uplevel Cluster Only) . . . . . . . . . . . . . . . . . . . . 130
Security Light . . . . . . . . . . . . . . . . . . . . . 130
High-Beam On Light . . . . . . . . . . . . . 130
Adaptive Forward Lighting (AFL) Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Lamps On Reminder . . . . . . . . . . . . . 131 Cruise Control Light . . . . . . . . . . . . . . 131
Door Ajar Light . . . . . . . . . . . . . . . . . . . 131
Information Displays
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . . . . 132
Head-Up Display (HUD) . . . . . . . . . 135
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . . . . . 138
Battery Voltage and Charging Messages . . . . . . . . . . . . . . . . . . . . . . . . 138
Brake System Messages . . . . . . . . . . 138
Cruise Control Messages . . . . . . . . . 139
Door Ajar Messages . . . . . . . . . . . . . . 139
Engine Cooling System Messages . . . . . . . . . . . . . . . . . . . . . . . . 140
Engine Oil Messages . . . . . . . . . . . . . 140
Engine Power Messages . . . . . . . . . . 140
Fuel System Messages . . . . . . . . . . . 141
Key and Lock Messages . . . . . . . . . . 141
Lamp Messages . . . . . . . . . . . . . . . . . . . 141
Object Detection System Messages . . . . . . . . . . . . . . . . . . . . . . . . 142
Ride Control System Messages . . . . . . . . . . . . . . . . . . . . . . . . 144
Airbag System Messages . . . . . . . . . 146
Safety Belt Messages . . . . . . . . . . . . . 146
Security Messages . . . . . . . . . . . . . . . . 146
Service Vehicle Messages . . . . . . . . 146
Starting the Vehicle Messages . . . 147

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
INSTRUMENTS AND CONTROLS 105
Tire Messages . . . . . . . . . . . . . . . . . . . . 147
Transmission Messages . . . . . . . . . . 147
Vehicle Reminder Messages . . . . . 148
Vehicle Speed Messages . . . . . . . . . 148
Washer Fluid Messages . . . . . . . . . . 148
Vehicle Personalization
Vehicle Personalization . . . . . . . . . . 149
Controls
Steering Wheel Adjustment
To adjust the steering wheel:1. Pull the lever down.
2. Move the steering wheel up or down.
3. Pull or push the steering wheel closer or away from you.
4. Pull the lever up to lock the steering wheel in place. Power Tilt and Telescoping Wheel
If equipped, the control is on the left
side of the steering column.
.
Push the control up or down to tilt
the steering wheel up or down.
. Push the control forward or
rearward to move the steering
wheel toward the front or rear of
the vehicle.
Do not adjust the steering wheel while
driving.
To set the power tilt wheel memory
position, see Memory Seats 058.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
106 INSTRUMENTS AND CONTROLS
Steering Wheel Controls
The infotainment system can be
operated by using the steering wheel
controls. See "Steering Wheel
Controls" in the infotainment manual.
Heated Steering Wheel
(:If equipped, press to turn the
heated steering wheel on or off.
A light next to the button displays
when the feature is turned on.
The steering wheel takes about
three minutes to be fully heated.
Horn
Pressaon the steering wheel pad to
sound the horn.
Windshield Wiper/Washer
With the ignition in ACC/ACCESSORY
or ON/RUN/START, move the
windshield wiper lever to select the
wiper speed.
HI : Use for fast wipes.
LO : Use for slow wipes.
INT : Use this setting for intermittent
wipes or for Rainsense ™wipes, when
Rainsense is enabled. For intermittent
wipes, move the lever up to INT, then
turn the
xINT band up for more
frequent wipes or down for less frequent wipes. If Rainsense is
enabled, see
“Rainsense”later in this
section.
If the windshield wipers are in use for
a while when driving, the exterior
lamps come on automatically if the
exterior lamp control is in AUTO. See
“Wiper-Activated Headlamps” later in
this section.
OFF : Use to turn the wipers off.
1X : For a single wipe, briefly move
the wiper lever down. For several
wipes, hold the wiper lever down.
n L: Pull the windshield wiper lever
toward you to spray windshield
washer fluid and activate the wipers.
The wipers will continue until the
lever is released or the maximum
wash time is reached. When the
windshield wiper lever is released,
additional wipes may occur depending
on how long the windshield washer
had been activated. See Washer Fluid
0 269 for information on filling the
windshield washer fluid reservoir.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
INSTRUMENTS AND CONTROLS 107
{Warning
In freezing weather, do not use the
washer until the windshield is
warmed. Otherwise the washer fluid
can form ice on the windshield,
blocking your vision.
Clear snow and ice from the wiper
blades and windshield before using
them. If frozen to the windshield,
carefully loosen or thaw them.
Damaged blades should be replaced.
See Wiper Blade Replacement 0274.
Heavy snow or ice can overload the
wiper motor. See Electrical System
Overload 0278.
Wiper Parking
If the ignition is put in OFF while the
wipers are on LO, HI, or INT, they will
immediately stop.
If the windshield wiper lever is then
moved to OFF before the driver door is
opened or within 10 minutes, the
wipers will restart and move to the
base of the windshield. If the ignition is put in OFF while the
wipers are performing wipes due to
windshield washing or Rainsense
wipes, the wipers continue to run
until they reach the base of the
windshield.
Rainsense™
If equipped, there is a sensor near the
top center of the windshield detects
the amount of water on the
windshield and controls the frequency
of the windshield wiper. To turn this
feature on or off, see
“Rain Sense
Wipers ”under Vehicle
Personalization 0149.
Keep this area of the windshield clear
of debris to allow for best system
performance.
INT : When enabled, move the
windshield wiper lever to INT. Turn
the
xINT band on the wiper lever
to adjust the sensitivity.
. Turn the band up for more
sensitivity to moisture.
. Turn the band down for less
sensitivity to moisture.
. Move the windshield wiper lever
out of the INT position to
deactivate Rainsense.
Wiper Arm Assembly Protection
If equipped with wiper arm assembly
protection, when using an automatic
car wash, move the windshield wiper
lever to OFF. This disables the
automatic Rainsense windshield
wipers.
With Rainsense, if the transmission is
in N (Neutral) and the vehicle speed is
very slow, the wipers will
automatically stop at the base of the
windshield.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
108 INSTRUMENTS AND CONTROLS
The wiper operations return to normal
when the transmission is no longer in
N (Neutral) or the vehicle speed has
increased.
Wiper-Activated Headlamps
This feature activates the headlamps
and parking lamps after the
windshield wipers have been in use
for a while. The transition time for the
lamps coming on varies based on the
wiper speed. For this feature to work,
the exterior lamp control must be
in AUTO.
The wiper-activated headlamps
immediately turn off when the
ignition is turned to LOCK/OFF, or the
windshield wiper control is turned off.
Rear Camera Mirror Washer
If equipped, push the windshield
wiper lever forward to spray washer
fluid on the rear camera mirror. Thelever returns to its starting position
when released. See
Rear Camera
Mirror 045.
Clock
The infotainment system controls are
used to access the time and date
settings through the menu system.
See “Overview” in the infotainment
manual for information about how to
use the menu system.
Setting the Time
To set the time:
1. Touch the SETTINGS screen button and touch Time and Date.
2. Touch Set Time and touch + or −
to increase or decrease hours,
minutes, and AM or PM. Touch
12Hr or 24Hr for 12 or 24 hour
clock.
3. Touch
}to go back to the
previous menu.
If auto timing is set, the time
displayed on the clock may not update
immediately when driving into a new
time zone. To set the date:
1. Touch the SETTINGS screen button and touch Time and Date.
2. Touch Set Date and touch + or −
to increase or decrease month,
day, or year.
3. Touch
}to go back to the
previous menu.
To set the clock display: 1. Touch the SETTINGS screen button and touch Time and Date.
2. Touch Clock Display and touch OFF or ON to turn the clock
display off or on.
3. Touch
}to go back to the
previous menu.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
INSTRUMENTS AND CONTROLS 109
Power Outlets
Power Outlets 12 Volt Direct Current
Accessory power outlets can be used
to plug in electrical equipment, such
as a cell phone or MP3 player.
The vehicle has three 12-volt
accessory power outlets on the center
console:
.Inside the center console storage
in front of the armrest cover.
. Inside the storage area under the
armrest cover.
. Inside the storage area on the rear
of the center console, if equipped.
These outlets are powered while the
vehicle is in ON/RUN/START or ACC/
ACCESSORY mode, or until the driver
door is opened within 10 minutes of
turning off the vehicle.
Lift the cover to access the accessory
power outlet.
Certain electrical accessories may not
be compatible with the accessory
power outlet and could overload a
vehicle circuit breaker or adapter fuse.
If overloaded, the circuit breaker will reset after all devices are disconnected
or if Retained Accessory Power (RAP)
is turned off and then back on. See
Retained Accessory Power (RAP)
0200.
Wait one minute to allow the circuit
breaker to reset before reconnecting
devices or turning RAP back on. If the
problem continues, the issue could be
within your device. Try another
known good device to make sure the
circuit breaker is operating properly.
If this does not resolve your problem,
see your dealer.
It is possible to replace the factory
power outlet with a cigar lighter
receptacle, if desired. This requires the
factory installed circuit breaker to be
replaced with a standard minifuse by
the dealer. A minifuse will not reset
and will have to be replace if blown.
Caution
Failure to replace the circuit
breaker with the minifuse could
overheat the cigar lighter and
damage the vehicle. Always unplug electrical equipment
when not in use and do not plug in
equipment that exceeds the maximum
15 amps rating.
When adding electrical equipment, be
sure to follow the proper installation
instructions included with the
equipment. See
Add-On Electrical
Equipment 0246.
Caution
Adding any electrical equipment to
the vehicle may damage it or keep
other components from working as
they should. The repairs would not
be covered by the vehicle warranty.
Do not use equipment exceeding
maximum amperage rating of
15 amperes. Check with your dealer
before adding electrical equipment.
