278 VEHICLE CARE
Electrical System
Electrical System Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is too
heavy, the circuit breaker opens and
closes, protecting the circuit until the
current load returns to normal or the
problem is fixed. This greatly reduces
the chance of circuit overload and fire
caused by electrical problems.
Fuses and circuit breakers protect
power devices in the vehicle.
Replace a bad fuse with a new one of
the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be borrowed.
Choose some feature of the vehicle
that is not needed to use and replace
it as soon as possible.
Headlamp Wiring
An electrical overload may cause the
lamps to go on and off, or in some
cases to remain off. Have the
headlamp wiring checked right away if
the lamps go on and off or remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop. Wiper function is
available immediately after the wiper
switch is set to off, and back to on.
To protect the wiper motor from
overheating, the wipers may slow
down when the windshield is dry for a
long period of time. If a period of dry
operation, or little moisture, exceeds
10 minutes, the wipers may switch to
intermittent operation, and remain
there. When moisture is again
detected on the windshield, wiper
operation will return to the operator
selected speed.
Although the circuit is protected from
electrical overload, overload due to
heavy snow or ice may cause wiperlinkage damage. Always clear ice and
heavy snow from the windshield
before using the windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by electrical
problems.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace a
bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage can be
temporarily borrowed from another
fuse location, if a fuse goes out.
Replace the fuse as soon as possible.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
VEHICLE CARE 279
To identify and check fuses, circuit
breakers, and relays, seeEngine
Compartment Fuse Block 0279,
Instrument Panel Fuse Block 0282, and
Rear Compartment Fuse Block 0284.
Engine Compartment Fuse
Block
The underhood fuse block is on the
passenger side of the engine
compartment.
Lift the fuse block cover to access the
fuses.
The vehicle may not be equipped with
all of the fuses and relays shown.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the covers
on any electrical component.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
280 VEHICLE CARE
FusesUsage
1 –
2 –
*3 Passenger motorized safety belt
4 –
5 –
6 Driver power seat
7 –
9 –
10 –
11 –
12 –
13 Passenger power seat
14 –
15 Passive entry/Passive start/Front wipers
16 –
*17 Headlamp washers 18 –
19 ABS pump
20 ABS valve

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
VEHICLE CARE 281
FusesUsage
*21 –
22 Driver motorized safety belt
*26 –
27 –/Heated seat 2
28 –/Reverse lock out
*29 AFS AHL/Pedestrian protection
30 –
31 Passenger window switch
32 –
33 Sunroof
34 Front wiper
35 Steering column lock
36 RBEC/Ignition
37 –/MIL/Ignition
38 Aeroshutter
39 O2 sensor/Emissions
40 Ignition coil/Injectors Fuses
Usage
41 –/Ignition coil/
Injectors
*42 Engine control module
43 –
44 –
45 Washer
48 Instrument panel/ Body/Ignition
49 FSCM/Ignition
*50 Heated steering wheel
*51 Engine control module/Ignition
*52 TCM/Ignition 53 Coolant pump
55 –
*56 TCM/–
*64 Automatic headlamp leveling
*65 Left HID headlamp 66 Right HID headlamp Fuses
Usage
67 High-beam headlamps
68 Headlamp leveling motor
69 Horn
71 Coolant fan
72 Starter 2
*73 Brake vacuum pump 74 Starter
75 A/C clutch
76 –
Relays Usage
*8 Headlamp washer
23 Wiper control relay
24 Wiper speed
25 Engine control module
46 Rear washer
47 Front washer
*54 Coolant pump

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
282 VEHICLE CARE
RelaysUsage
57 Low-beam headlamp
58 High-beam headlamp
59 Run/Crank
60 Starter 2
*61 Vacuum pump
62 Starter
*63 A/C control 70 Horn
* Optional
Instrument Panel Fuse
Block
The instrument panel fuse block is in
the end of the driver side of the
instrument panel.
To access the fuses, remove the end
panel by gently prying with a plastic
tool near each clip, beginning at the
point shown.
To install the end cover, insert the
tabs on the back of the cover into the
slots in the instrument panel at the
points shown. Align the clips with the
slots in the instrument panel, and
press the cover into place.
The vehicle may not be equipped with
all of the fuses and relays shown.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
VEHICLE CARE 283
FusesUsage
2 Motorized cupholder
3 Electric steering column lock
4 –
5 HVAC control
6 Tilt/Telescoping steering column
8 Data link connector
9 Glove box release
10 Shunt
11 Body control module 1
12 Body control module 5
13 Body control module 6
14 –
15 Body control module 7
16 Transmission control module
17 –

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
284 VEHICLE CARE
FusesUsage
18 –
19 Auxiliary power outlet
20 Lighter
21 Wireless charger
22 Sensing diagnostic module/ Automatic
occupant sensing
23 Radio/DVD/HVAC control
24 Display
25 Heated steering wheel
26 Wireless charger
27 Steering wheel switches
28 –
29 Visor
30 –
31 –
32 Retained accessory power Fuses
Usage
33 Front HVAC blower
CB1 Accessory power outlet
CB7 –
K10 Retained accessory power
K605 Logistics
K644 Retained accessory power/Glove box
releaseRear Compartment Fuse
Block

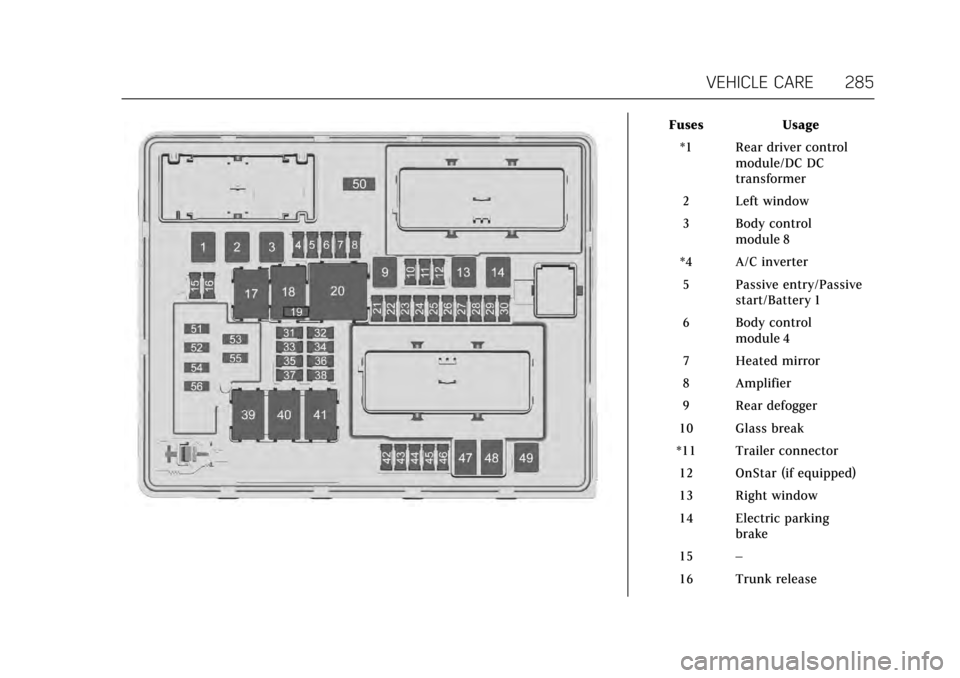

The rear compartment fuse block is
behind a cover on the driver side of
the rear compartment.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
VEHICLE CARE 285
FusesUsage
*1 Rear driver control module/DC DC
transformer
2 Left window
3 Body control module 8
*4 A/C inverter 5 Passive entry/Passive start/Battery 1
6 Body control module 4
7 Heated mirror
8 Amplifier
9 Rear defogger
10 Glass break
*11 Trailer connector
12 OnStar (if equipped)
13 Right window
14 Electric parking brake
15 –
16 Trunk release

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
286 VEHICLE CARE
FusesUsage
*17 RUN relay
*18 Logistics relay
*19 –
20 Rear window defogger relay
21 Mirror window module
22 –
23 Canister vent
24 Body control module 2
*25 Rear vision camera
*26 Front ventilated seats
*27 SBZA/LDW/EOCM
*28 Trailer/Sunshade
*29 Rear heated seats
*30 Semi-active damping system
*31 Traction control module/Rear control
drive module Fuses
Usage
32 Theft deterrent module/Universal
garage door opener/
Rain sensor
*33 UPA
*34 Radio/DVD
35 Exhaust valve
*36 Trailer 37 Fuel pump/Fuel system control
module
38 Fuel pump
39 –
40 Exhaust valve
41 Run/Crank 2
*42 Memory seat module
43 Body control module 3
44 –
45 Battery regulated voltage control
46 Engine control module/Battery Fuses
Usage
47 –
48 –
*49 Trailer module 50 Door lock security
51 Rear closure release
52 Rear closure
53 –
54 Door lock security
55 –
*56 Fuel door
* Optional

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
344 INDEX
Control of a Vehicle . . . . . . . . . . . . . . . . 182
Convenience Net . . . . . . . . . . . . . . . . . . . . 102
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . 43
CoolantEngine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Engine Temperature Gauge . . . . . . 120
Engine Temperature WarningLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Cooling . . . . . . . . . . . . . . . . . . . . . . . . .172, 177
Cooling System . . . . . . . . . . . . . . . . . . . . . 263 Engine Messages . . . . . . . . . . . . . . . . . . 140
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . 162
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . 218 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Cruise Control, Adaptive . . . . . . . . . . . 220
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . 101
D
Danger, Warning, and Caution . . . . . . . . 2
Data Collection
Infotainment System . . . . . . . . . . . . . 341
Data Recorder Performance . . . . . . . . . . . . . . . . . . . . . . . 165
Data Recorders, Event . . . . . . . . . . . . . . 340
Daytime Running Lamps (DRL) . . . 159
Defensive Driving . . . . . . . . . . . . . . . . . . . 182
Delayed Locking . . . . . . . . . . . . . . . . . . . . . 37
Differential, Limited-Slip . . . . . . . . . . . 217 Distracted Driving . . . . . . . . . . . . . . . . . . 182
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . 162
Door
Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . 131
Ajar Messages . . . . . . . . . . . . . . . . . . . . . 139
Delayed Locking . . . . . . . . . . . . . . . . . . . . 37
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . 37
Rear Seat Pass-Through . . . . . . . . . . . . 64
Drive Belt Routing, Engine . . . . . . . . . 338
Drive Systems All-Wheel Drive . . . . . . . . . . . . . . 206, 272
Driver Assistance Systems . . . . . . . . . 227
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . . . . . 132
Driver Mode Control . . . . . . . . . . . . . . . . 211
Driving
Assistance Systems . . . . . . . . . . . . . . . 235
Competitive . . . . . . . . . . . . . . . . . . . . . . . 214
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . 182
For Better Fuel Economy . . . . . . . . . . . 26
Hill and Mountain Roads . . . . . . . . 189
If the Vehicle is Stuck . . . . . . . . . . . . 191
Loss of Control . . . . . . . . . . . . . . . . . . . . 184
Off-Road Recovery . . . . . . . . . . . . . . . . 184
Track Events and Competitive . . . 185
Vehicle Load Limits . . . . . . . . . . . . . . 192
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . 189 Driving (cont'd)
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . . . . . 172
E
Electric Parking Brake . . . . . . . . . . . . . . 207
Electrical Equipment, Add-On . . . . . 246
Electrical SystemEngine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Fuses and Circuit Breakers . . . . . . . 278
Instrument Panel Fuse Block . . . . 282
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . 261
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . . . . . . 123
Compartment Overview . . . . . . . . . . 250
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Coolant Temperature Gauge . . . . . 120
Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . . . 128
Cooling System . . . . . . . . . . . . . . . . . . . 263
Cooling System Messages . . . . . . . . 140
Drive Belt Routing . . . . . . . . . . . . . . . . 338
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
