Page 298 of 352
Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
VEHICLE CARE 297
Use this rotation pattern when
rotating tires of the same size
installed on all four wheel
positions.
If the vehicle has a compact spare
tire, do not include it in the tire
rotation.
Adjust the front and rear tires to
the recommended inflation
pressure on the Tire and Loading
Information label after the tires
have been rotated. SeeTire
Pressure 0290 and Vehicle Load
Limits 0192. Reset the Tire Pressure Monitor
System. See
Tire Pressure Monitor
Operation 0293.
Check that all wheel nuts are
properly tightened. See “Wheel
Nut Torque ”under Capacities and
Specifications 0336.
{Warning
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
make wheel nuts become loose
after time. The wheel could come
off and cause an accident. When
changing a wheel, remove any rust
or dirt from places where the wheel
attaches to the vehicle. In an
emergency, a cloth or a paper towel
can be used; however, use a scraper
or wire brush later to remove all
rust or dirt.
Lightly coat the center of the
wheel hub with wheel bearing
grease after a wheel change or tire
rotation to prevent corrosion or
rust build-up. Do not get grease on the flat wheel mounting
surface or on the wheel nuts or
bolts.
When It Is Time for New
Tires
Factors such as maintenance,
temperatures, driving speeds, vehicle
loading, and road conditions affect the
wear rate of the tires.
Treadwear indicators are one way to
tell when it is time for new tires.
Treadwear indicators appear when the
tires have only 1.6 mm (1/16 in) or

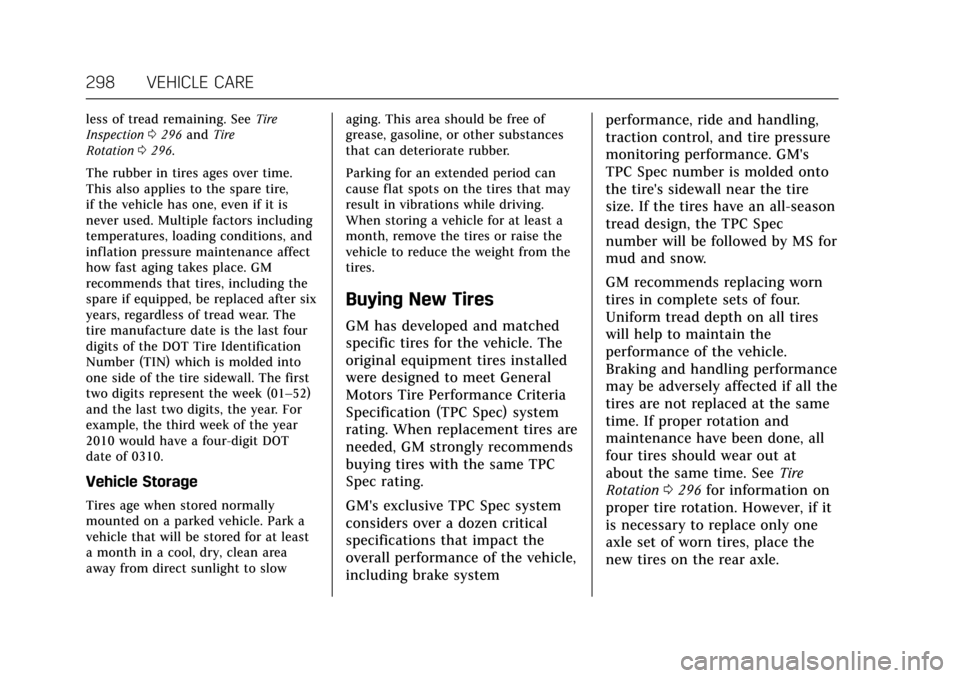

Page 299 of 352
Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
298 VEHICLE CARE
less of tread remaining. SeeTire
Inspection 0296 and Tire
Rotation 0296.
The rubber in tires ages over time.
This also applies to the spare tire,
if the vehicle has one, even if it is
never used. Multiple factors including
temperatures, loading conditions, and
inflation pressure maintenance affect
how fast aging takes place. GM
recommends that tires, including the
spare if equipped, be replaced after six
years, regardless of tread wear. The
tire manufacture date is the last four
digits of the DOT Tire Identification
Number (TIN) which is molded into
one side of the tire sidewall. The first
two digits represent the week (01–52)
and the last two digits, the year. For
example, the third week of the year
2010 would have a four-digit DOT
date of 0310.
Vehicle Storage
Tires age when stored normally
mounted on a parked vehicle. Park a
vehicle that will be stored for at least
a month in a cool, dry, clean area
away from direct sunlight to slow aging. This area should be free of
grease, gasoline, or other substances
that can deteriorate rubber.
Parking for an extended period can
cause flat spots on the tires that may
result in vibrations while driving.
When storing a vehicle for at least a
month, remove the tires or raise the
vehicle to reduce the weight from the
tires.
Buying New Tires
GM has developed and matched
specific tires for the vehicle. The
original equipment tires installed
were designed to meet General
Motors Tire Performance Criteria
Specification (TPC Spec) system
rating. When replacement tires are
needed, GM strongly recommends
buying tires with the same TPC
Spec rating.
GM's exclusive TPC Spec system
considers over a dozen critical
specifications that impact the
overall performance of the vehicle,
including brake system
performance, ride and handling,
traction control, and tire pressure
monitoring performance. GM's
TPC Spec number is molded onto
the tire's sidewall near the tire
size. If the tires have an all-season
tread design, the TPC Spec
number will be followed by MS for
mud and snow.
GM recommends replacing worn
tires in complete sets of four.
Uniform tread depth on all tires
will help to maintain the
performance of the vehicle.
Braking and handling performance
may be adversely affected if all the
tires are not replaced at the same
time. If proper rotation and
maintenance have been done, all
four tires should wear out at
about the same time. See
Tire
Rotation 0296 for information on
proper tire rotation. However, if it
is necessary to replace only one
axle set of worn tires, place the
new tires on the rear axle.
Page 300 of 352
Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
VEHICLE CARE 299
{Warning
Tires could explode during
improper service. Attempting to
mount or dismount a tire could
cause injury or death. Only your
dealer or authorized tire service
center should mount or
dismount the tires.
Winter tires with the same speed
rating as the original equipment
tires may not be available for H, V,
W, Y, and ZR speed rated tires.
Never exceed the winter tire's
maximum speed capability when
using winter tires with a lower
speed rating.
{Warning
Never drive faster than the speed
the tires are rated, regardless of the
legal speed limit. When frequently
driving the vehicle at high speeds
and/or for prolonged periods of (Continued)
Warning (Continued)
time, check with your vehicle/tire
dealer for the proper type of tires to
use for the specific driving and
weather conditions.
{Warning
Mixing tires of different sizes (other
than those originally installed on
the vehicle), brands, or types may
cause loss of control of the vehicle,
resulting in a crash or other vehicle
damage. Use the correct size, brand,
and type of tire on all four wheels.
{Warning
Using bias-ply tires on the
vehicle may cause the wheel rim
flanges to develop cracks after
many miles of driving. A tire
and/or wheel could fail suddenly
(Continued)
Warning (Continued)
and cause a crash. Use only
radial-ply tires with the wheels
on the vehicle.
If the vehicle tires must be
replaced with a tire that does not
have a TPC Spec number, make
sure they are the same size, load
range, speed rating, and
construction (radial) as the
original tires.
Vehicles that have a tire pressure
monitoring system could give an
inaccurate low-pressure warning if
non-TPC Spec rated tires are
installed. See Tire Pressure Monitor
Operation 0293.
The Tire and Loading Information
label indicates the original
equipment tires on the vehicle.
See Vehicle Load Limits 0192 for
the label location and more
information about the Tire and
Loading Information label.
Page 301 of 352
Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
300 VEHICLE CARE
Different Size Tires and
Wheels
If wheels or tires are installed that are
a different size than the original
equipment wheels and tires, vehicle
performance, including its braking,
ride and handling characteristics,
stability, and resistance to rollover
may be affected. If the vehicle has
electronic systems such as antilock
brakes, rollover airbags, traction
control, electronic stability control,
or All-Wheel Drive, the performance
of these systems can also be affected.
{Warning
If different sized wheels are used,
there may not be an acceptable
level of performance and safety if
tires not recommended for those
wheels are selected. This increases
the chance of a crash and serious
injury. Only use GM specific wheel
and tire systems developed for the
vehicle, and have them properly
installed by a GM certified
technician.See
Buying New Tires 0298 and
Accessories and Modifications 0248.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned and
balanced at the factory to provide the
longest tire life and best overall
performance. Adjustments to wheel
alignment and tire balancing are not
necessary on a regular basis. Consider
an alignment check if there is unusual
tire wear or the vehicle is significantly
pulling to one side or the other. Some
slight pull to the left or right,
depending on the crown of the road
and/or other road surface variations
such as troughs or ruts, is normal.
If the vehicle is vibrating when driving
on a smooth road, the tires and
wheels may need to be rebalanced.
See your dealer for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts, and wheel nuts
should be replaced. If the wheel leaks air, replace it. Some aluminum wheels
can be repaired. See your dealer if any
of these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the same
load-carrying capacity, diameter,
width, offset, and be mounted the
same way as the one it replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor System
(TPMS) sensors with new GM original
equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel nuts
can be dangerous. It could affect
the braking and handling of the
vehicle. Tires can lose air, and
cause loss of control, causing a
crash. Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.
Page 302 of 352
Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
VEHICLE CARE 301
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or odometer
calibration, headlamp aim, bumper
height, vehicle ground clearance,
and tire or tire chain clearance to
the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one
is dangerous. How it has been used
or how far it has been driven may
be unknown. It could fail suddenly
and cause a crash. When replacing
wheels, use a new GM original
equipment wheel.
Tire Chains
{Warning
If the vehicle has P245/40R18, 245/
40R18, 275/35R18, 255/35R19, 265/
35ZR19, or 295/30ZR19 size tires,
do not use tire chains. There is not
enough clearance. Tire chains used
on a vehicle without the proper
amount of clearance can cause
damage to the brakes, suspension,
or other vehicle parts. The area
damaged by the tire chains could
cause loss of control and a crash.
Use another type of traction device
only if its manufacturer
recommends it for the vehicle's tire
size combination and road
conditions. Follow that
manufacturer's instructions. To
avoid vehicle damage, drive slow
and readjust or remove the traction
device if it contacts the vehicle. Do
not spin the wheels. If traction
devices are used, install them on
the rear tires.
Caution
If the vehicle is equipped with a tire
size other than P245/40R18, 245/
40R18, 275/35R18, 255/35R19, 265/
35ZR19, or 295/30ZR19 use tire
chains only where legal and only
when necessary. Use low profile
chains that add no more than
12 mm thickness to the tire tread
and inner sidewall. Use chains that
are the proper size for the tires.
Install them on the tires of the rear
axle. Don't use chains on the tires
of the front axle. Tighten them as
tightly as possible with the ends
securely fastened. Drive slowly and
follow the chain manufacturer's
instructions. If the chains contact
the vehicle, stop and retighten
them. If the contact continues, slow
down until it stops. Driving too fast
or spinning the wheels with chains
on will damage the vehicle.
Page 325 of 352
Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
324 SERVICE AND MAINTENANCE
At your dealer, you can be certain that
you will receive the highest level of
service available. Your dealer has
specially trained service technicians,
uses genuine replacement parts, as
well as, up-to-date tools and
equipment to ensure fast and accurate
diagnostics.
The proper replacement parts, fluids,
and lubricants to use are listed in
Recommended Fluids and Lubricants
0331 and Maintenance Replacement
Parts 0332. We recommend the use
of genuine parts from your dealer.
Rotation of New Tires
Tire rotation is not recommended if
the vehicle has different size tires on
the front and rear wheels. If tire
rotation is recommended for the
vehicle, to maintain ride, handling,
and performance of the vehicle, it is
important that the first rotation
service for new tires be performed.
Tires should be rotated every service.
See Tire Rotation 0296.Maintenance Schedule
Owner Checks and Services
At Each Fuel Stop
.
Check the engine oil level. See
Engine Oil 0257.
Once a Month
. Check the tire inflation pressures.
See Tire Pressure 0290.
. Inspect the tires for wear. See Tire
Inspection 0296.
. Check the windshield washer fluid
level. See Washer Fluid 0269.
Engine Oil Change
Change the engine oil and filter when
the CHANGE ENGINE OIL SOON
message displays, 12 000 km/7,500 mi,
or at one year, whichever comes first.
If driven under the best conditions,
the engine oil life system may not
indicate the need for vehicle service
for up to a year. The engine oil and
filter must be changed at least once a
year and the oil life system must be
reset. Your trained dealer technician
can perform this work. If the engine oil life system is reset accidentally,
service the vehicle within 5 000 km/
3,000 mi since the last service. Reset
the oil life system when the oil is
changed. See
Engine Oil Life
System 0259.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the following
services. See Tire Rotation0296.
. Check engine oil level and oil
life percentage. If needed, change
engine oil and filter, and reset oil
life system. See Engine Oil0257
and Engine Oil Life System 0259.
. Check engine coolant level. See
Engine Coolant 0264.
. Check windshield washer fluid
level. See Washer Fluid 0269.
. Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0315. Replace worn or
damaged wiper blades. See Wiper
Blade Replacement 0274.
Page 328 of 352
Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
SERVICE AND MAINTENANCE 327
Footnotes—Maintenance Schedule
Additional Required Services -
Normal
(1) Vehicles with different size front
and rear tires do not have tire
rotation. See Tire Rotation0296.
(2) Or every two years, whichever
comes first. More frequent passenger
compartment air filter replacement
may be needed if driving in areas with
heavy traffic, poor air quality, high
dust levels, or environmental
allergens. Passenger compartment air
filter replacement may also be needed
if there is reduced airf low, window
fogging, or odors. Your GM dealer can
help determine when to replace the
filter.
(3) Visually check all fuel and vapor
lines and hoses for proper attachment,
connection, routing, and condition.
(4) Or every two years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
(5) Or every five years, whichever
comes first. See Cooling System0263. (6)
Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage; replace,
if needed.
(7) Replace brake fluid every five
years. See Brake Fluid 0270.
Page 330 of 352
Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
SERVICE AND MAINTENANCE 329
Footnotes—Maintenance Schedule
Additional Required Services -
Severe
(1) Vehicles with different size front
and rear tires do not have tire
rotation. See Tire Rotation0296.
(2) Or every two years, whichever
comes first. More frequent passenger
compartment air filter replacement
may be needed if driving in areas with
heavy traffic, poor air quality, high
dust levels, or environmental
allergens. Passenger compartment air
filter replacement may also be needed
if there is reduced airf low, window
fogging, or odors. Your GM dealer can
help determine when to replace the
filter.
(3) Visually check all fuel and vapor
lines and hoses for proper attachment,
connection, routing, and condition.
(4) Or every two years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
(5) Do not directly power wash the
transfer case output seals. High
pressure water can overcome the seals and contaminate the transfer case
fluid. Contaminated fluid will decrease
the life of the transfer case and should
be replaced.
(6)
Or every five years, whichever
comes first. See Cooling System0263.
(7) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage; replace,
if needed.
(8) Replace brake fluid every five
years. See Brake Fluid 0270.Special Application
Services
Severe Conditions Requiring
More Frequent Maintenance
.
Public service, military,
or commercial use vehicles to
include the following:
‐Ambulances, police cars and
emergency rescue vehicles.
‐ Civilian vehicles such as light
duty pick-up trucks, SUVs and
passenger cars that are used in
military applications.
‐ Recovery vehicles such as tow
trucks and flatbed single vehicle
carriers or any vehicle that is
consistently used in towing
trailers or other loads.
‐ High use commercial vehicles
such as courier delivery vehicles,
private security patrol vehicles
or any vehicles that operate on
a 24 hour basis.
Page 351 of 352
Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
350 INDEX
Storage Areas (cont'd)Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . 100
Instrument Panel . . . . . . . . . . . . . . . . . 100
Storage Compartments . . . . . . . . . . . . . 100
Storing the Tire Sealant and
Compressor Kit . . . . . . . . . . . . . . . . . . . . 309
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . 191
Summer Tires . . . . . . . . . . . . . . . . . . . . . . . 289
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Sunshade Rear Window . . . . . . . . . . . . . . . . . . . . . . . . 49
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
System Forward Collision Alert (FCA) . . . . 235
Infotainment . . . . . . . . . . . . . . . . . 165, 341
Systems Driver Assistance . . . . . . . . . . . . . . . . . 227
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . 118
Theft-Deterrent Systems . . . . . . . . . . . . 42
Thigh Support Adjustment . . . . . . . . . . 57
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
All-Season . . . . . . . . . . . . . . . . . . . . . . . . . 288
Buying New Tires . . . . . . . . . . . . . . . . . 298
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Different Size . . . . . . . . . . . . . . . . . . . . . . 300 Tires (cont'd)
If a Tire Goes Flat . . . . . . . . . . . . . . . . 302
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . 296
Low Profile . . . . . . . . . . . . . . . . . . . . . . . . 289
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Pressure . . . . . . . . . . . . . . . . . . . . . . 290, 291
Pressure Light . . . . . . . . . . . . . . . . . . . . . 128
Pressure Monitor Operation . . . . . . 293
Pressure Monitor System . . . . . . . . 292
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Run-Flat . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Sealant and Compressor Kit . . . . . 303
Sealant and Compressor Kit,
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Wheel Replacement . . . . . . . . . . . . . . 300
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Towing General Information . . . . . . . . . . . . . . 245
Recreational Vehicle . . . . . . . . . . . . . . 313
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Track Events and Competitive Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Traction
Control System (TCS)/
StabiliTrak
®Light . . . . . . . . . . . . . . . 128
Limited-Slip Differential . . . . . . . . . . 217
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . . 209
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 203
Fluid, Automatic . . . . . . . . . . . . . . . . . . 260
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . 118
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Turn and Lane-Change Signals . . . . 161
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . . . . . . 41
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Identification Number (VIN) . . . . . 335
Load Limits . . . . . . . . . . . . . . . . . . . . . . . 192
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Personalization . . . . . . . . . . . . . . . . . . . 149
Reminder Messages . . . . . . . . . . . . . . 148
Remote Start . . . . . . . . . . . . . . . . . . . . . . . . 34
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Speed Messages . . . . . . . . . . . . . . . . . . . 148
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Vehicle Ahead Indicator . . . . . . . . . . . . 127
Page 352 of 352
Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
INDEX 351
Vehicle CareStoring the Tire Sealant and
Compressor Kit . . . . . . . . . . . . . . . . . . 309
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 290
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Ventilation, Air . . . . . . . . . . . . . . . . . . . . . 179
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
W
Warning Brake System Light . . . . . . . . . . . . . . . 125
Caution and Danger . . . . . . . . . . . . . . . . . 2
Lane Departure (LDW) . . . . . . . . . . . 241
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Warnings
Hazard Flashers . . . . . . . . . . . . . . . . . . . 161
Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . . 269 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Wheels
Alignment and Tire Balance . . . . . 300
Different Size . . . . . . . . . . . . . . . . . . . . . . 300
Replacement . . . . . . . . . . . . . . . . . . . . . . 300
When It Is Time for New Tires . . . . 297
Where to Put the Restraint . . . . . . . . . 88
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Windshield
Replacement . . . . . . . . . . . . . . . . . . . . . . 275
Wiper/Washer . . . . . . . . . . . . . . . . . . . . . 106
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Winter Tires . . . . . . . . . . . . . . . . . . . . . . . . . 288
Wiper Blade Replacement . . . . . . . . . . 274
Wireless Charging . . . . . . . . . . . . . . . . . . 110
